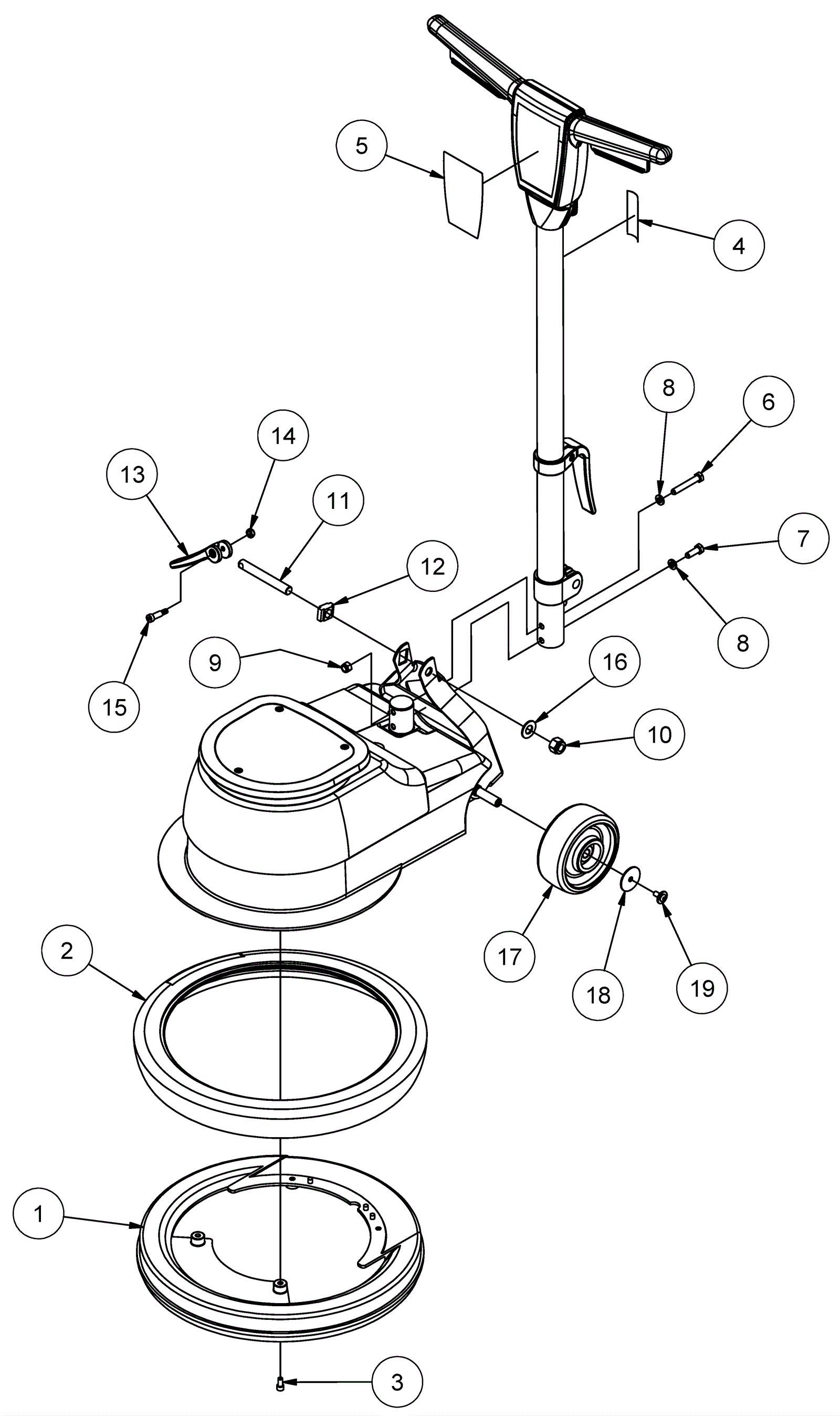

FM2000 Main Assembly

#PartDescriptionPriceReqNotesAvailability
1a 170-5657 FM1700 brush shield $107.93 1 usually ships 16-22 days
1b 170-5658 FM2000 brush shield $543.30 1 usually ships 16-22 days
2a 154-3995 Brush bumper $131.89 1 usually ships 16-22 days
2b 154-3995 Brush bumper $131.89 1 usually ships 16-22 days
3 170-4512 Socket set 1/4 x 20 x 1/2 $7.48 4 usually ships 16-22 days
4 154-3996 Prop 65 decal $1.69 1 usually ships 16-22 days
5 154-3997 Handle decal $12.34 1 usually ships 16-22 days
6 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 1 ships same day
7 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 1 ships same day
8 154-3957 Washer 5/16 inch lock $1.21 2 usually ships 16-22 days
9 154-3956 Nut 5/16 inch lock $1.21 1 usually ships 16-22 days
10 154-3998 Nut 1/2 inch lock $1.21 1 usually ships 16-22 days
11 170-5586 Cam lock bolt $15.11 1 ships same day
12 170-6224 Guide handle lock $18.96 1 usually ships 16-22 days
13 170-5557 Cam locking handle $28.68 1 usually ships 16-22 days
14 170-0465 Nut 1/4-20 ESNA heavy jam $10.85 1 usually ships 12-18 days
15 154-4000 Bolt 5/16 x 3/4 shoulder $8.60 1 usually ships 16-22 days
16 170-5602 Washer $1.21 1 usually ships 16-22 days
17 154-4001 Wheel 5 x 2 inch $156.08 2 usually ships 16-22 days
18 154-4002 Retainer washer $2.51 2 usually ships 16-22 days
19 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 2 ships same day
