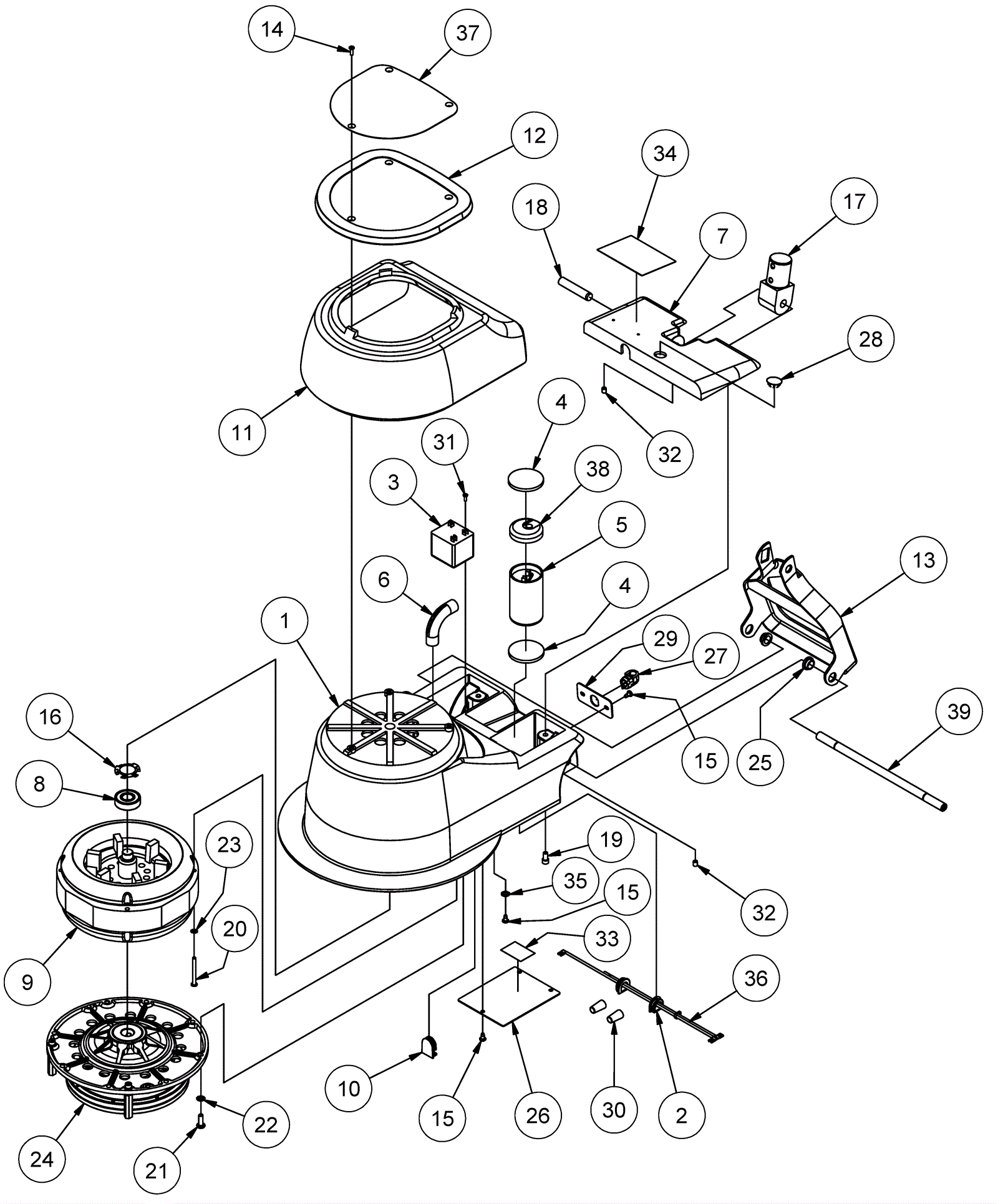

FM2000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-3970 Main housing $1,154.00 1 usually ships 4-15 days
2 170-5611 Bushing $10.89 2 usually ships 4-15 days
3 170-5608 Motor relay 3/4 hp - 1 1/2 hp FM 2300 $84.37 1 usually ships 4-15 days
4 154-3972 Capacitor cushion $5.59 2 usually ships 4-15 days
5 170-0491 115V capacitor $46.18 1 usually ships 4-15 days
6 154-3973 Elbow insulator $11.55 1 usually ships 4-15 days
7 170-5604 Main housing cover $118.33 1 usually ships 4-15 days
8 170-0321 Front end bearing $21.54 1 ships same day
9 154-3975 Field and rotor kit $1,155.09 1 usually ships 4-15 days
10 154-3976 FM plug $11.41 1 usually ships 4-15 days
11 154-3977 Main housing bumper $124.43 1 usually ships 4-15 days
12 170-5631 Drip Cover $92.24 1 usually ships 4-15 days
13 154-3979 Adjusting arm weldment $78.20 1 ships same day
14 154-3946 Screw #8 x 1/2 inch $12.31 3 ships same day
15 270-8038 Screw 10-24 x 3/8 self tapping pan head phillips $9.27 6 usually ships 16-41 days
16 170-5671 Load Spring $9.03 1 usually ships 4-15 days
17 154-3955 Handle tube tongue $74.75 1 usually ships 4-15 days
18 154-3981 Pin handle pivot $6.57 1 usually ships 4-15 days
19 170-4512 Socket set 1/4 x 20 x 1/2 $6.28 5 usually ships 4-15 days
20 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 4 ships same day
21 154-3983 Screw 1/4 x 3/4 pan head $1.21 8 usually ships 4-15 days
22 154-3930 Washer 1/4 inch star lock $1.21 8 usually ships 4-15 days
23 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
24 154-3984 Gear unit assembly $2,444.06 1 usually ships 4-15 days
25 170-5613 Bushing Link Arm $11.19 2 usually ships 4-15 days
26 154-3986 Main bottom cover $11.39 1 usually ships 4-15 days
27 170-5590 Strain relief (OBSOLETE) $6.72 1 usually ships 4-15 days
28 154-3987 25/32 inch button plug $8.93 1 usually ships 4-15 days
29 154-3988 Strain relief plate $26.53 1 usually ships 4-15 days
30 170-5584 Connector $1.21 2 usually ships 1-5 days
31 999-1602 Screw #6 x 3/8 pan head stainless steel $0.99 1 usually ships 1-5 days
32 154-3990 Screw 1/4 x 5/16 set $1.21 2 usually ships 4-15 days
33 170-5620 Wiring Diagram $3.43 1 usually ships 1-5 days
34 373-3016 Decal $12.31 1 usually ships 16-41 days
35 154-3992 Washer 3/16 star $1.21 1 usually ships 4-15 days
36 154-3993 Capacitor wiring harness $11.61 1 usually ships 4-15 days
38 170-5627 Capacitor Cover (OBSOLETE) $4.95 1 usually ships 1-5 days
39 154-3994 Wheel shaft $40.16 1 usually ships 4-15 days
N/S 170-2636 Retainer paper $17.99 1 ships same day
