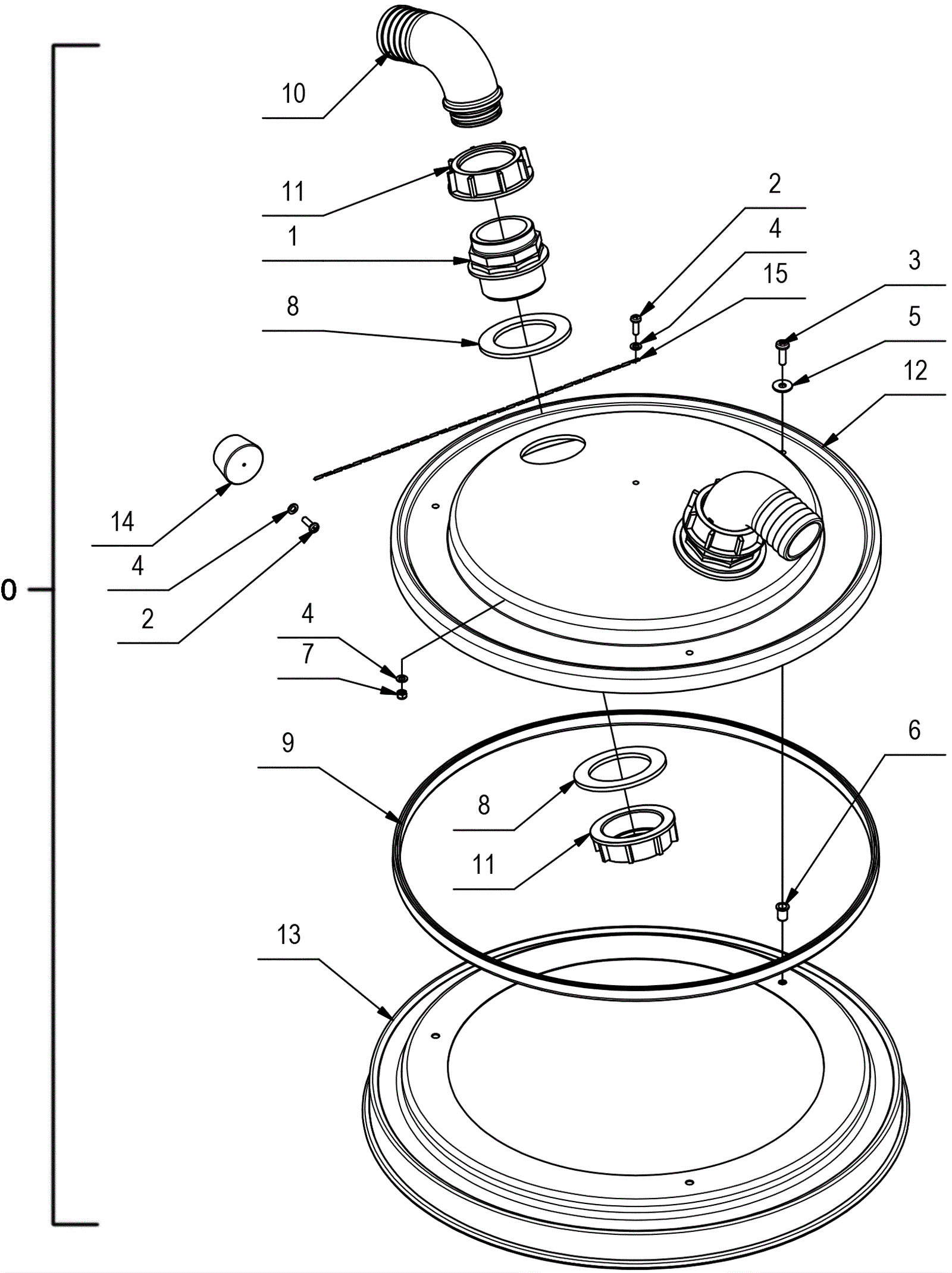

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
154-9359
|
Complete lid assembly |
1 |
(includes 1-15) |
|
1 |
154-9360
|
2 inch nipple |
2 |
|
|
2 |
154-9307
|
Screw M5 x 16mm |
2 |
|
|
3 |
154-9341
|
Screw M6x20mm |
3 |
|
|
4 |
999-9100
|
Washer M5 flat stainless steel |
3 |
|
|
5 |
154-9309
|
Washer M6 x 18mm x 1.5mm |
3 |
|
|
6 |
154-9353
|
Insert M6x14mm |
3 |
|
|
7 |
154-9313
|
M5 lock nut |
1 |
|
|
8 |
154-9361
|
2 inch rubber gasket |
4 |
|
|
9 |
154-9362
|
Vacuum cover seal |
1 |
|
|
10 |
154-9363
|
2 inch elbow hose |
2 |
|
|
11 |
154-9364
|
Nut 2 inch (black) |
4 |
|
|
12 |
154-9365
|
Clear cover |
1 |
|
|
13 |
154-9366
|
Cover frame |
1 |
|
|
14 |
154-9367
|
Rubber plug |
1 |
|
|
15 |
154-9368
|
Chain |
1 |
|
|
