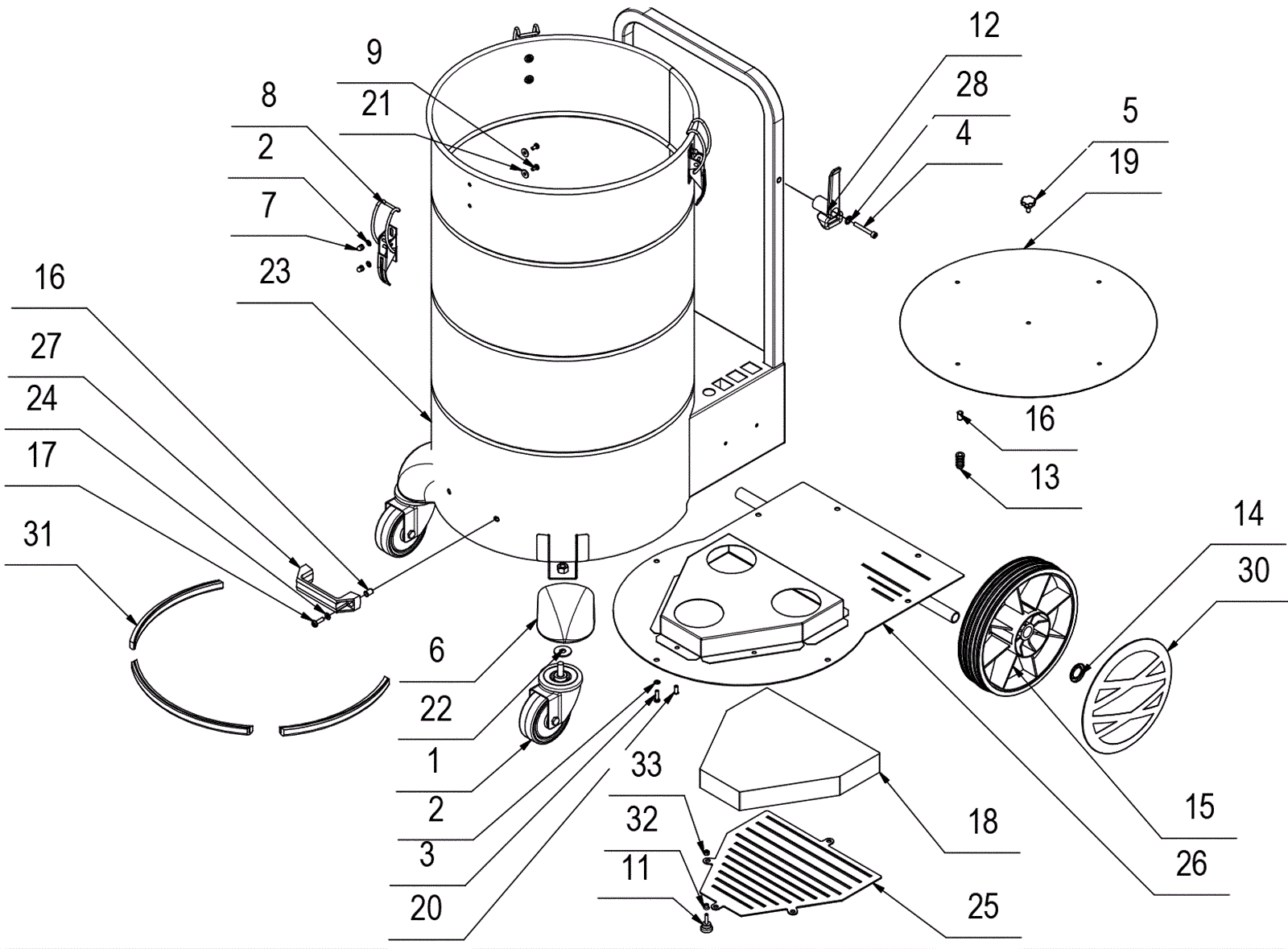

AVAC-26 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-9326 Caster $47.93 2 usually ships 12-17 days
2 154-9327 Washer $5.32 13 usually ships 12-17 days
3 154-9328 Screw $5.32 7 usually ships 12-17 days
4 154-9329 Screw $4.84 1 usually ships 12-17 days
5 154-9330 Knob $9.60 1 usually ships 12-17 days
6 154-9331 Protection cap $31.72 2 usually ships 12-17 days
7 154-9332 Nut $6.83 6 usually ships 12-17 days
8 154-9333 Hook $44.86 3 usually ships 12-17 days
9 154-9334 Screw $4.86 6 usually ships 12-17 days
10 154-9335 Sound insulation $76.44 1 usually ships 12-17 days
11 154-9336 Knob $10.11 4 usually ships 12-17 days
12 154-9337 Cord wrap $49.05 1 usually ships 12-17 days
13 154-9338 Cap $6.44 5 usually ships 12-17 days
14 154-9290 20mm Retaining ring $6.67 2 usually ships 12-17 days
15 154-9339 Inclined handle hole (black) $80.66 2 usually ships 12-17 days
16 154-9340 Insert $1.34 7 usually ships 12-17 days
17 154-9341 Screw M6x20mm $5.50 2 usually ships 12-17 days
18 154-9342 Sponge filter $26.62 1 usually ships 12-17 days
19 154-9343 Grind distance D.450 Call for price 1 usually ships 12-17 days
20 154-9344 Insert $5.50 11 usually ships 12-17 days
21 154-9345 Washer M5x15mm $3.45 6 usually ships 12-17 days
22 154-9346 Washer $4.84 2 usually ships 12-17 days
23 154-9347 Tank $1,869.90 1 usually ships 12-17 days
24 154-9348 Lock washer $3.45 2 usually ships 12-17 days
25 154-9349 Grid $59.28 1 usually ships 12-17 days
26 154-9350 Bottom cover Call for price 1 usually ships 12-17 days
27 154-9351 Handle lift $42.53 1 usually ships 12-17 days
28 154-9352 Lock washer M8x17mm $3.45 1 usually ships 12-17 days
29 154-9353 Insert M6x14mm $6.83 1 usually ships 12-17 days
30 154-9354 Wheel cover (black) $19.35 2 usually ships 12-17 days
31 154-9355 Gasket $30.32 1 usually ships 12-17 days
32 154-9356 Brass knob block Call for price 4 usually ships 12-17 days
33 154-9357 Nut Call for price 4 usually ships 12-17 days
N/S 154-9358 Filter cleaning instruction decal $18.95 1 usually ships 12-17 days
