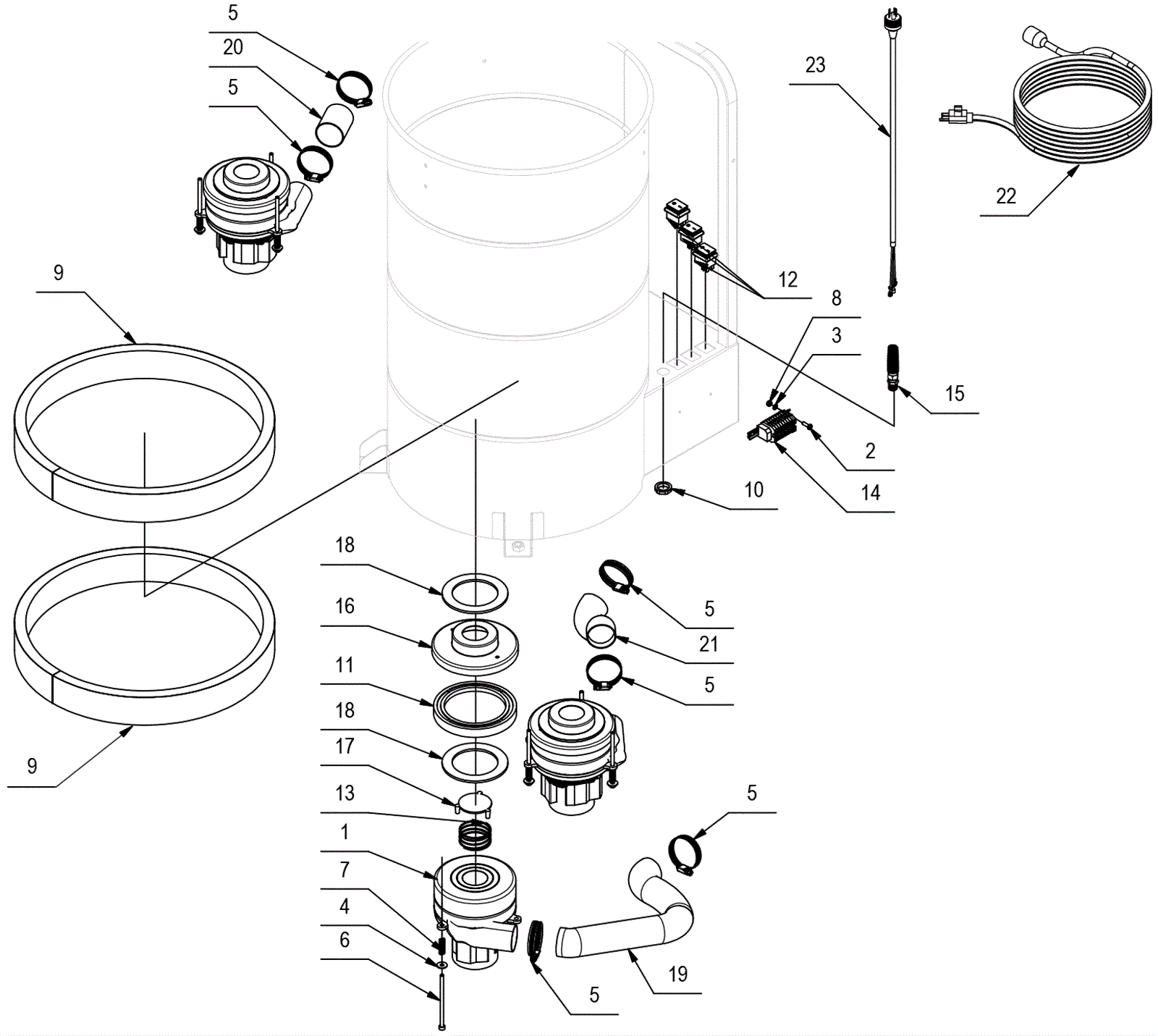

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
154-9305
|
120V 800W motor vac (OBSOLETE) |
3 |
|
|
1b |
154-9306
|
230V 1000W vacuum motor |
3 |
|
|
2 |
154-9307
|
Screw M5 x 16mm |
2 |
|
|
3 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
4 |
154-9309
|
Washer M6 x 18mm x 1.5mm |
10 |
|
|
5 |
154-9310
|
10-60mm clamp |
6 |
|
|
6 |
154-9311
|
Screw M6x110mm |
9 |
|
|
7 |
154-9312
|
Compression spring |
9 |
|
|
8 |
154-9313
|
M5 lock nut |
2 |
|
|
9 |
154-9314
|
Sound insulation |
2 |
|
|
10 |
154-9315
|
Relief cable nut |
1 |
|
|
11 |
154-9316
|
Vac motor seal |
3 |
|
|
12 |
154-9248
|
Rocker switch |
3 |
|
|
13 |
154-9317
|
Valve spring |
3 |
|
|
14 |
154-9318
|
Terminal block |
1 |
|
|
15 |
154-9319
|
Strain cable relief |
1 |
|
|
16 |
154-9320
|
Vacuum valve port |
3 |
|
|
17 |
154-9321
|
Vacuum motor valve |
3 |
|
|
18 |
154-9322
|
Valve port seal |
6 |
|
|
19 |
154-9323
|
50mm tubing |
1 |
|
|
20 |
154-9323
|
50mm tubing |
1 |
|
|
21 |
154-9323
|
50mm tubing |
1 |
|
|
22a |
154-9324
|
120V 50 feet 14/3 power cord |
1 |
(OEM) |
|
22b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
|
22c |
991-5001
|
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
23 |
154-9325
|
Interconnect pigtail cord |
1 |
|
|
