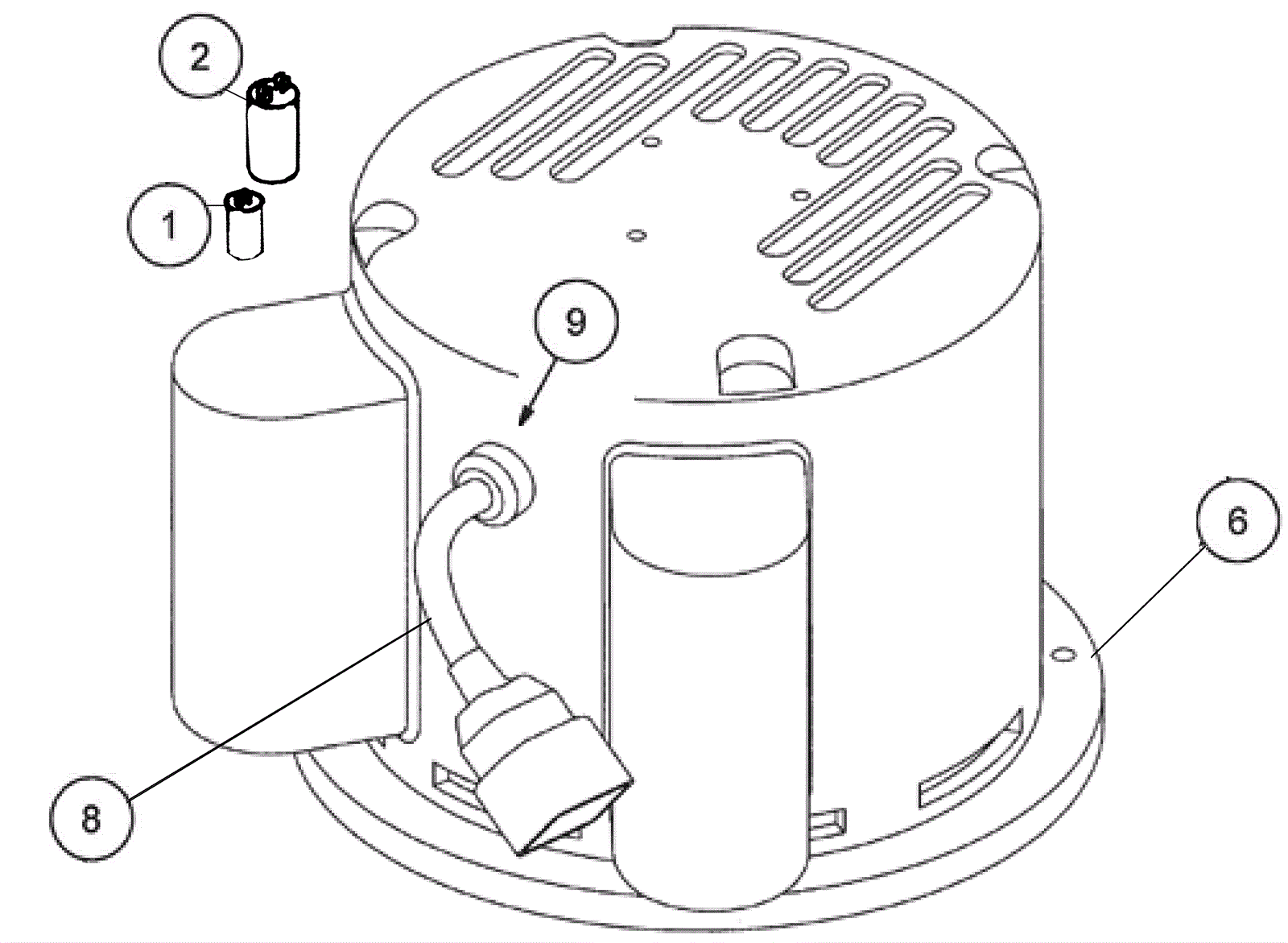

PE225FP Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7066 Start capacitor $111.34 1 usually ships 12-15 days
2 170-7823 Run capacitor $67.77 1 usually ships 12-15 days
6 270-0704 Mounting plate $83.30 1 usually ships 1-5 days
8 270-0693 Cord $37.52 1 usually ships 1-5 days
9 170-1284 Strain relief $1.21 1 usually ships 12-15 days
N/S 270-0697 Capacitor cover (OBSOLETE) $17.30 2 usually ships 1-5 days
N/S 170-7820 Start switch $45.58 1 usually ships 12-15 days
N/S 170-0321 Front end bearing $12.71 1 usually ships 12-15 days
N/S 270-0698 Aluminum end shield $37.31 1 usually ships 1-5 days
