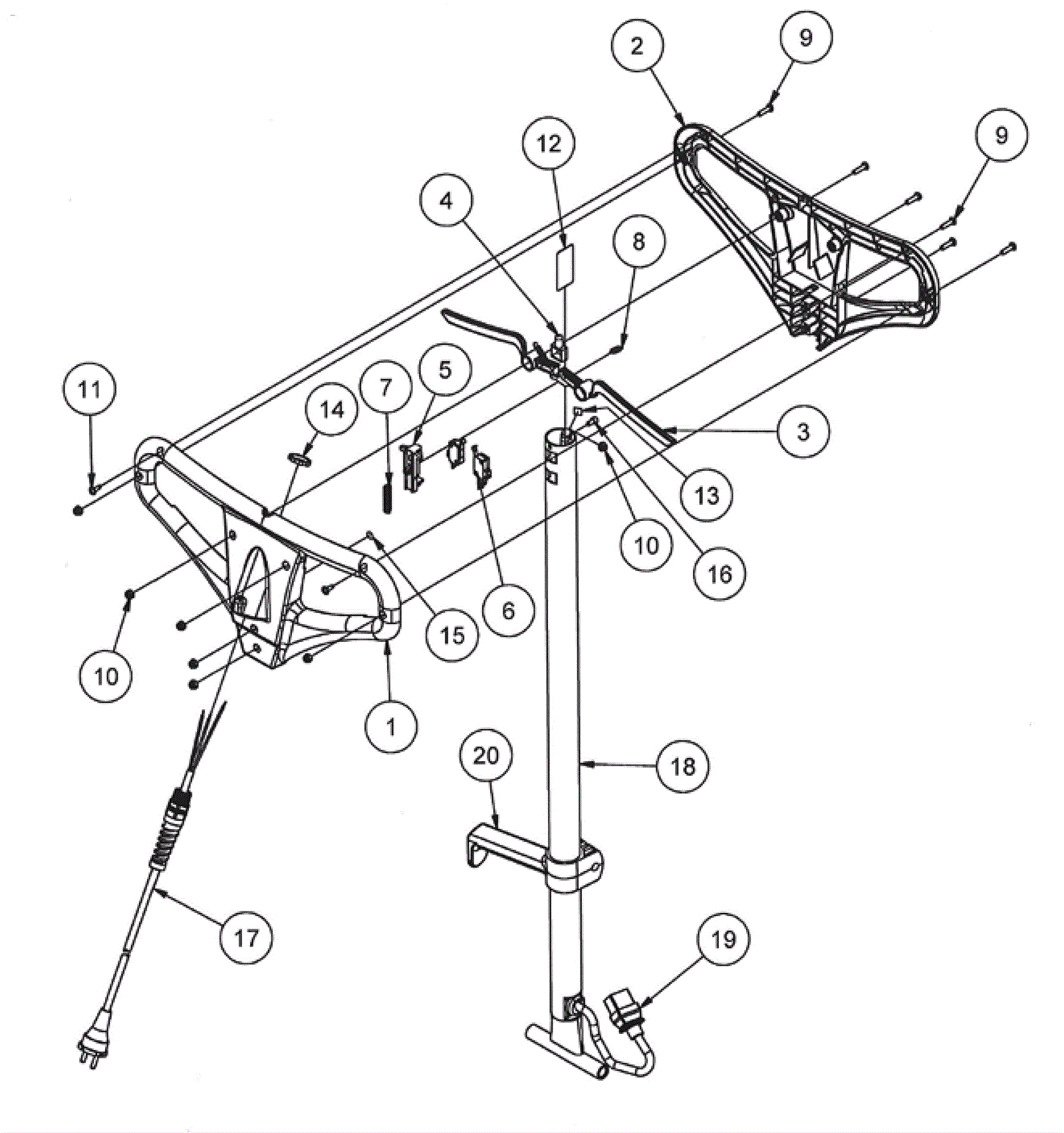

PE225FP Handle Assembly - EB Model

#PartDescriptionPriceReqNotesAvailability
1 170-1514 Rear handle $47.89 1 usually ships 4-15 days
2 270-0709 Front handle $44.63 1 usually ships 4-15 days
3 170-5815 Switch lever $10.89 2 ships same day
4 170-5816 Interlock button $20.21 1 usually ships 4-15 days
5 170-5819 Main interlock $20.21 1 usually ships 4-15 days
6 170-5571 Switch $24.07 2 ships same day
7 170-5820 Compression spring $8.27 1 ships same day
8 170-5817 Extension spring $4.60 2 ships same day
9 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 6 ships same day
10 999-0460 Nut 10-32 hex $0.99 7 ships same day
11 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 2 ships same day
12 170-1538 Cord retainer $6.72 1 usually ships 1-5 days
13 170-6011 Ground symbol decal $5.50 1 usually ships 1-5 days
14 170-2413 Nut lock $8.33 1 usually ships 4-15 days
15 154-5194 Decal $5.60 1 usually ships 4-15 days
16 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 1 ships same day
17 154-5195 Power cord $168.34 1 usually ships 4-15 days
18 154-5196 Handle tube weldment $37.62 1 usually ships 4-15 days
19 154-5193 Interconnect export cord $21.69 1 usually ships 4-15 days
20 170-1517 Handle clamp $87.54 1 ships same day
N/S 154-5198 Decal $10.24 1 usually ships 4-15 days
