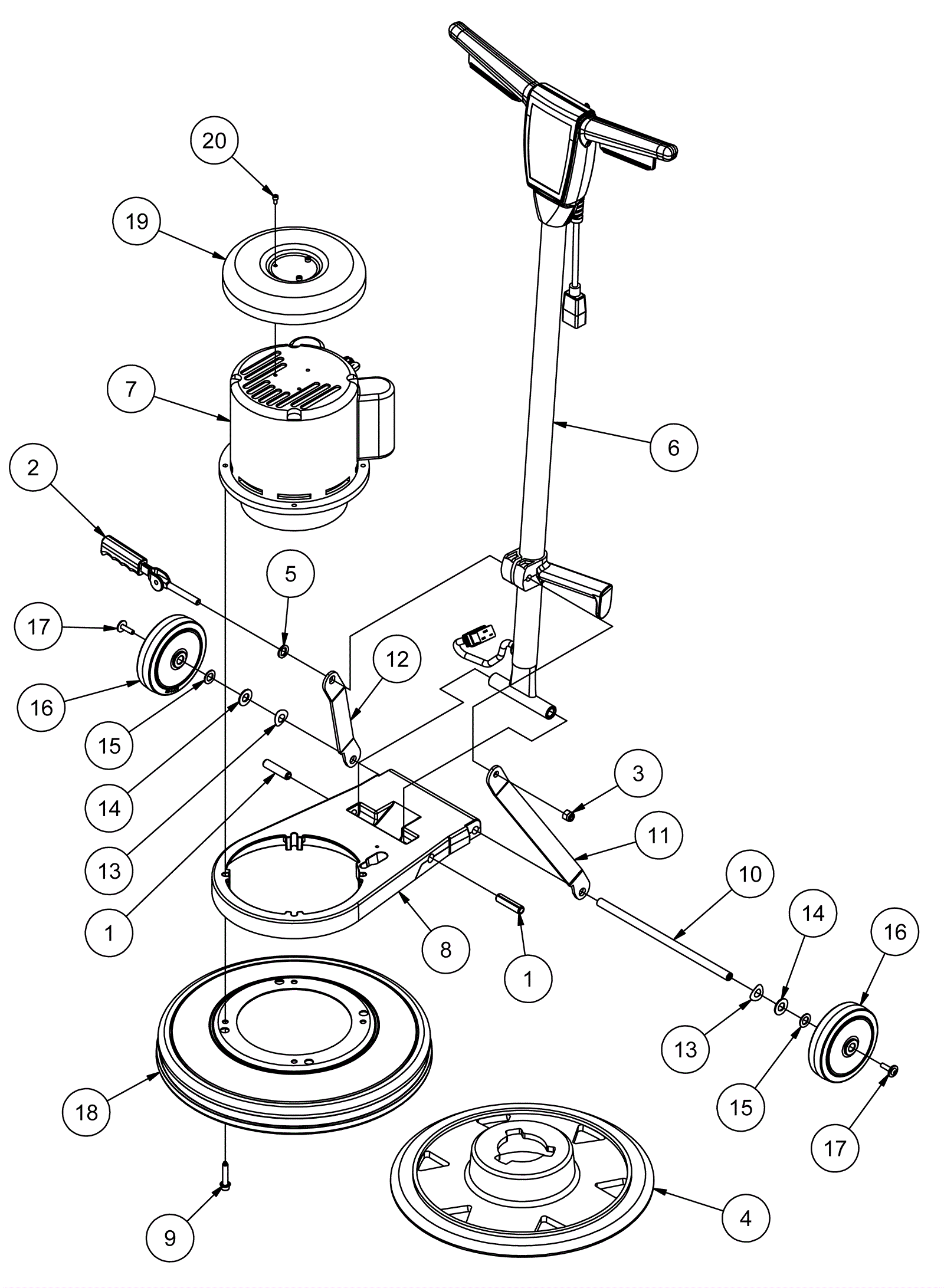

PE225FP Entire Assembly - E6 Model

#PartDescriptionPriceReqNotesAvailability
1 163-0204 1/2 split pin $8.38 2 usually ships 4-15 days
9 163-0218 Screw 5/16-18 $9.24 4 usually ships 4-15 days
2 170-1267 Cam assembly with grip, bolt and locking lever $18.08 1 ships same day
3 999-0170 Nut 3/8-16 hex plain finish $0.99 1 ships same day
4a 154-5175 16 inch pad driver $122.52 1 usually ships 4-15 days
4b 993-1802 19 inch PAD DRIVER W/RISER & 1/2 inch TRIM $103.23 1 usually ships 1-5 days
5 170-5522 Wear washer $3.04 1 ships same day
6 154-5189 Handle $363.46 1 usually ships 4-15 days
7 154-5190 Gearbox $829.24 1 usually ships 4-15 days
8 170-7831 Main frame $103.04 1 usually ships 4-15 days
10 163-0217 Axle $27.31 1 usually ships 4-15 days
11 170-7797 Left linkage arm $24.20 1 usually ships 4-15 days
12 170-7802 Right linkage arm $22.77 1 usually ships 4-15 days
13 272-8202 Bowed washer $3.30 2 ships same day
14 170-5602 Washer $8.07 2 ships same day
15 170-0705 Washer 1/2 x 3/64 $2.70 2 usually ships 4-15 days
16 375-7611 Wheel $69.01 2 usually ships 16-41 days
17 272-8200 Button head screw $5.28 2 ships same day
18a 170-7812 Housing assembly $270.68 1 usually ships 1-5 days
18b 154-5176 20 inch shroud assembly $152.46 1 usually ships 4-15 days
19 170-7817 Drip cover $64.37 1 usually ships 4-15 days
20 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 3 ships same day
