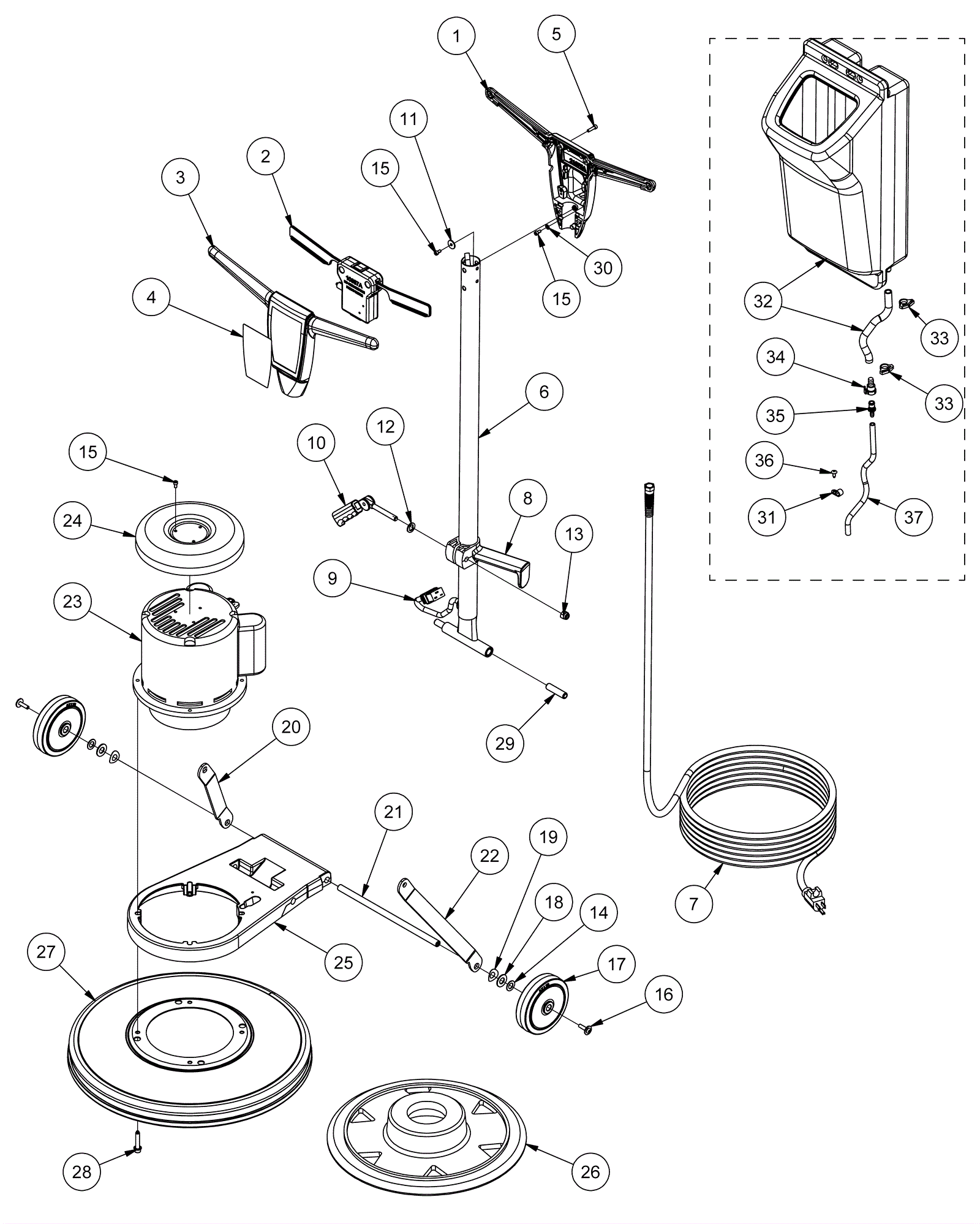

PE225FP Entire Assembly - Base Model

#PartDescriptionPriceReqNotesAvailability
1 270-0145 Rear handle $151.35 1 ships same day
2 270-0077 Switch assembly $131.95 1 ships same day
3 270-0143 Front handle $95.62 1 ships same day
4 154-5172 Handle decal $14.23 1 usually ships 4-15 days
5 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 6 ships same day
6 170-7800 Handle tube $60.71 1 usually ships 4-15 days
7 154-5173 50 foot power cord $224.42 1 usually ships 4-15 days
8 170-1517 Handle clamp $87.54 1 ships same day
9 163-0203 Interconnect cord $33.28 1 usually ships 4-15 days
10 170-1267 Cam assembly with grip, bolt and locking lever $18.08 1 ships same day
11 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
12 170-5522 Wear washer $3.04 1 ships same day
13 999-0170 Nut 3/8-16 hex plain finish $0.99 1 ships same day
14 170-0705 Washer 1/2 x 3/64 $2.70 2 usually ships 4-15 days
15 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 6 ships same day
16 272-8200 Button head screw $5.28 2 ships same day
17 375-7611 Wheel $69.01 2 usually ships 16-41 days
18 170-5602 Washer $8.07 2 ships same day
19 272-8202 Bowed washer $3.30 2 ships same day
20 170-7802 Right linkage arm $22.77 1 usually ships 4-15 days
21 163-0217 Axle $27.31 1 usually ships 4-15 days
22 170-7797 Left linkage arm $24.20 1 usually ships 4-15 days
23a 372-1162 Motor $1,387.40 1 usually ships 4-15 days
23b 154-5174 120V motor $1,139.24 1 (OEM) usually ships 4-15 days
23c 996-8163 19 inch tri-lok pad driver $118.52 1 (NON-OEM) usually ships 6-18 days
24 170-7817 Drip cover $64.37 1 usually ships 4-15 days
25 170-7831 Main frame $103.04 1 usually ships 4-15 days
26a 154-5175 16 inch pad driver $122.52 1 usually ships 4-15 days
26b 154-9399 19 inch pad driver $133.78 1 usually ships 4-15 days
27a 170-7812 Housing assembly $270.68 1 usually ships 1-5 days
27b 170-7813 Housing (OBSOLETE) Call for price 1 usually ships 1-5 days
27c 170-7814 Bumper for 17 inch units $45.42 1 usually ships 4-15 days
27d 154-5176 20 inch shroud assembly $152.46 1 usually ships 4-15 days
27e 154-5177 20 inch shroud $107.14 1 usually ships 4-15 days
27f 154-5178 20 inch bumper $57.17 1 usually ships 4-15 days
28 163-0218 Screw 5/16-18 $9.24 4 usually ships 4-15 days
29 163-0204 1/2 split pin $8.38 2 usually ships 4-15 days
30 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
31 154-1829 Nylon clamp $2.29 1 usually ships 4-15 days
32 154-5179 2 1/2 gallon tank $232.29 1 usually ships 4-15 days
33 154-2133 Cable tie $2.29 2 usually ships 4-15 days
34 154-5180 3/8 female coupling $23.49 1 usually ships 4-15 days
35 154-5181 1/4 male coupling $17.77 1 usually ships 4-15 days
36 999-1449 Screw #10 x 1/2 truss head phillips stainless steel $0.99 1 usually ships 11-24 days
37 154-3721 1/4 inch hose (sold by the inch) $4.71 12 usually ships 4-15 days
N/S 154-5182 APEC decal $10.47 1 usually ships 4-15 days
