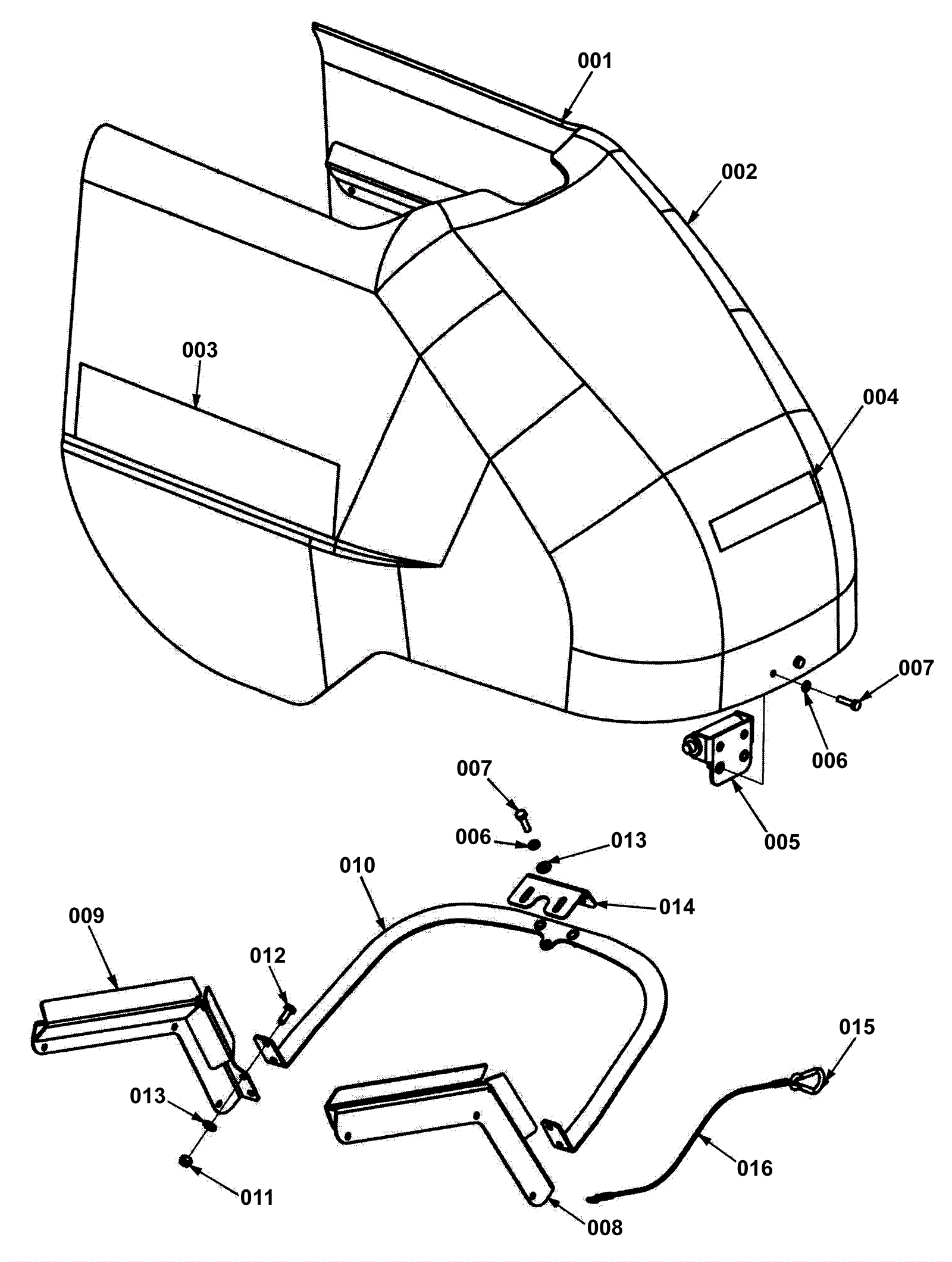

REVOLUTION NXG Engine Cover Assembly

#PartDescriptionPriceReqNotesAvailability
001 154-0806 Engine cover (OBSOLETE) $1,130.78 1 NXG model usually ships 1-5 days
002 154-0807 Engine cover (OBSOLETE) $621.96 1 Revolution model usually ships 1-5 days
003 154-0808 Revolution decal (OBSOLETE) $14.55 2 usually ships 1-5 days
004 154-0809 Pioneer eclipse decal (OBSOLETE) Call for price 1 usually ships 1-5 days
005 154-0810 Hinge pivot pin bracket assembly (OBSOLETE) $80.25 1 usually ships 1-5 days
006 154-0600 Lock washer $1.84 4 usually ships 4-15 days
007 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 4 ships same day
008 154-0811 Engine cover support right side (OBSOLETE) $76.05 1 usually ships 1-5 days
009 154-0812 Engine cover support left side (OBSOLETE) $57.07 1 usually ships 1-5 days
010 154-0813 Center cover support frame (OBSOLETE) $58.93 1 usually ships 1-5 days
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
012 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
013 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
014 154-0814 Center support bracket (OBSOLETE) $45.54 1 usually ships 1-5 days
015 154-0815 Spring snap 1/4 diameter 5/16 eye $13.19 1 usually ships 4-15 days
016 154-0816 Lanyard $34.96 1 usually ships 4-15 days
