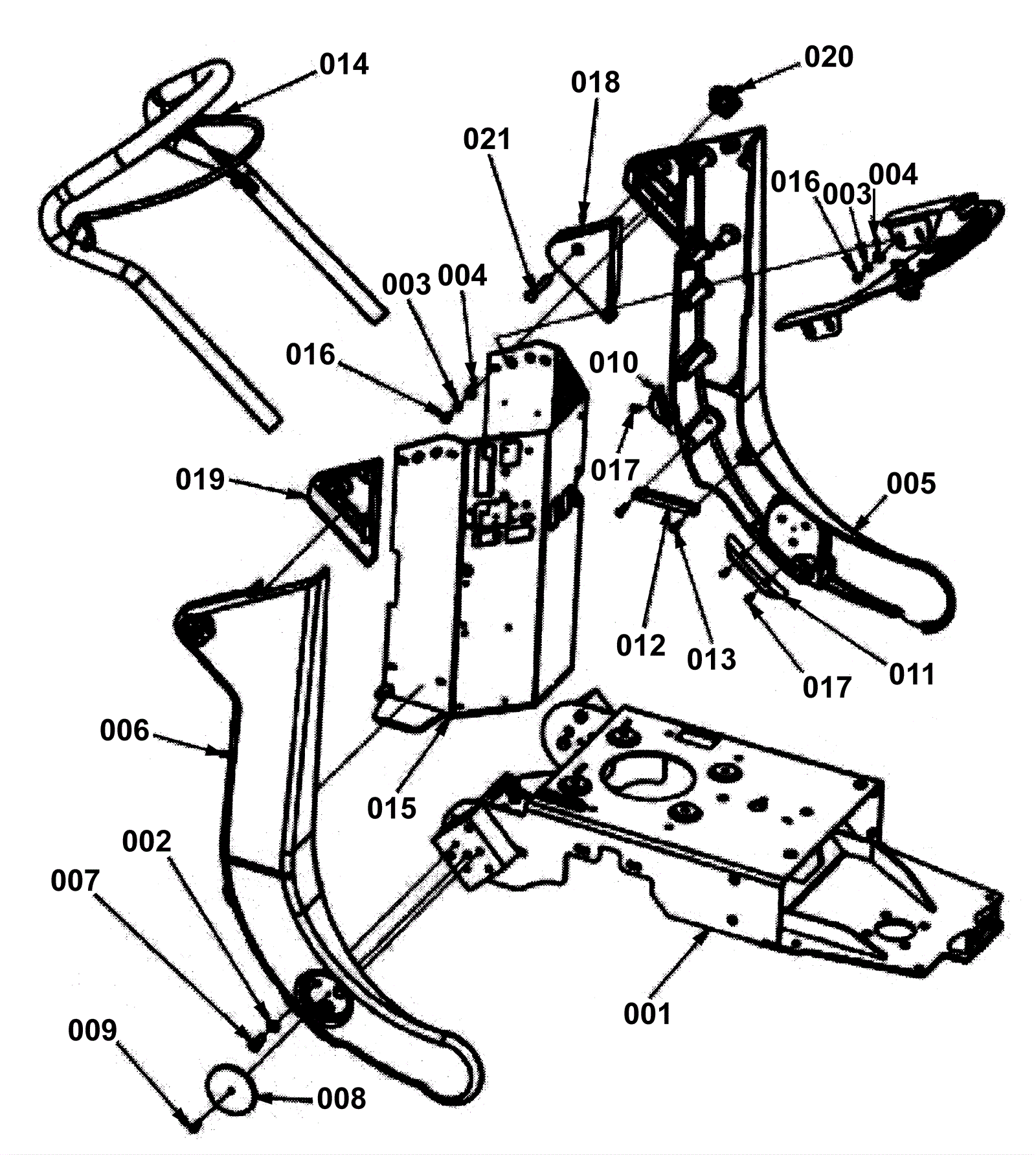

REVOLUTION NXG Bulkhead Assembly

#PartDescriptionPriceReqNotesAvailability
001 154-0742 Frame assembly (OBSOLETE) $563.37 1 usually ships 1-5 days
002 154-0633 Lock washer $1.84 6 usually ships 1-5 days
003 154-0600 Lock washer $1.84 12 usually ships 4-15 days
004 999-0016 Washer 1/4 flat plain finish $0.99 12 ships same day
005 154-0755 Hammertone left arm (OBSOLETE) $635.11 1 usually ships 1-5 days
006 154-0756 Hammertone right arm (OBSOLETE) $642.43 1 usually ships 1-5 days
007 154-0757 Screw 3/8 x 1 $1.84 8 usually ships 1-5 days
008 154-0758 Hubcap (OBSOLETE) $19.71 2 usually ships 1-5 days
009 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 2 ships same day
010 154-0759 Upper foot $15.53 2 usually ships 1-5 days
011 154-0760 Lower foot $16.96 2 usually ships 1-5 days
012 154-0761 Dust box rail (OBSOLETE) $14.27 1 usually ships 1-5 days
013 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 2 ships same day
014 154-0762 Handle assembly $263.99 1 usually ships 1-5 days
015 154-0763 Tank bulkhead assembly (OBSOLETE) $234.69 1 usually ships 1-5 days
016 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 12 ships same day
017 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 6 ships same day
018 154-0765 Handle clamp left side (OBSOLETE) $86.48 1 usually ships 1-5 days
019 154-0766 Handle clamp right side (OBSOLETE) $89.97 1 usually ships 1-5 days
020 154-0326 Knob $38.06 2 usually ships 4-15 days
021 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 2 ships same day
022 154-0767 Dash panel assembly (OBSOLETE) $181.46 1 usually ships 1-5 days
