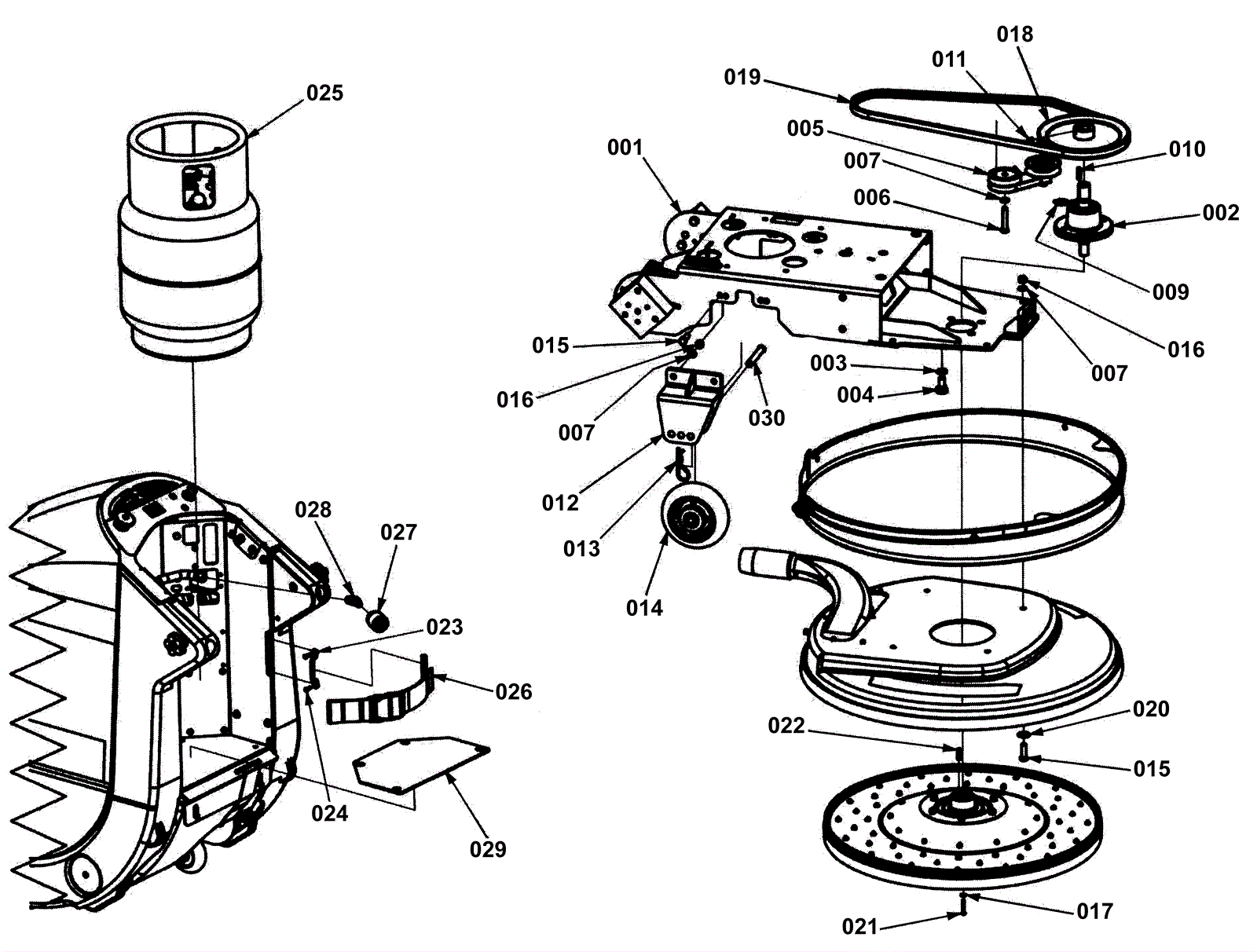

REVOLUTION NXG Bottom Assembly

#PartDescriptionPriceReqNotesAvailability
001 154-0742 Frame assembly (OBSOLETE) $563.37 1 usually ships 1-5 days
002 154-0743 Spindle assembly (OBSOLETE) $174.49 1 usually ships 1-5 days
003 999-0126 Washer 1/2 split lock $1.28 4 ships same day
004 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 4 ships same day
005 154-0744 Pulley tensioner assembly $205.74 1 usually ships 1-5 days
006 154-0745 Screw 3/8 x 2 $2.76 2 usually ships 1-5 days
007 154-0633 Lock washer $1.84 10 usually ships 1-5 days
009 154-0746 External retaining ring $2.43 1 usually ships 1-5 days
010 154-0262 Key 1/4 x 1/4 x 1-1/2 $19.34 1 usually ships 1-5 days
011 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish $0.99 2 ships same day
012 154-0747 Wheel bracket weldment $109.52 2 usually ships 1-5 days
013 997-2515 Cotter pin $0.99 2 ships same day
014 154-0748 6 inch wheel (gray) $105.92 2 ships same day
015 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 8 ships same day
016 999-0302 Nut 3/4-16 hex plain finish $0.99 8 ships same day
017 154-0600 Lock washer $1.84 1 usually ships 4-15 days
018a 154-0749 Pulley 8 inch with 1 inch bore (OBSOLETE) $67.75 1 usually ships 1-5 days
018b 154-0750 Pulley 9 3/4 inch with 1 inch bore $164.81 1 usually ships 1-5 days
019a 991-0021 BX56 belt $50.55 1 ships same day
019b 154-0751 BX59 belt $49.34 1 usually ships 1-5 days
020 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
021 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish $0.99 1 ships same day
022 154-0482 Square keyway $18.23 1 usually ships 1-5 days
023 154-0328 Footman loop $11.97 2 usually ships 1-5 days
024 999-0709 Screw 10-24 x 3/4 oval head phillips $1.65 4 ships same day
025 154-1065 Steel propane tank $285.58 1 usually ships 1-5 days
026 154-0752 Tank holding strap $33.45 1 usually ships 4-15 days
027 991-6004 Female quick coupler $24.89 1 usually ships 3-11 days
028 154-0349 Fitting 54 x 6 (regulator to fuelock) $19.04 1 usually ships 1-5 days
029 154-0753 Tank pad $57.56 1 usually ships 1-5 days
030 154-0754 Clevis pin $14.17 2 usually ships 4-15 days
N/S 154-2785 Clutch switch bracket $69.33 usually ships 1-5 days
