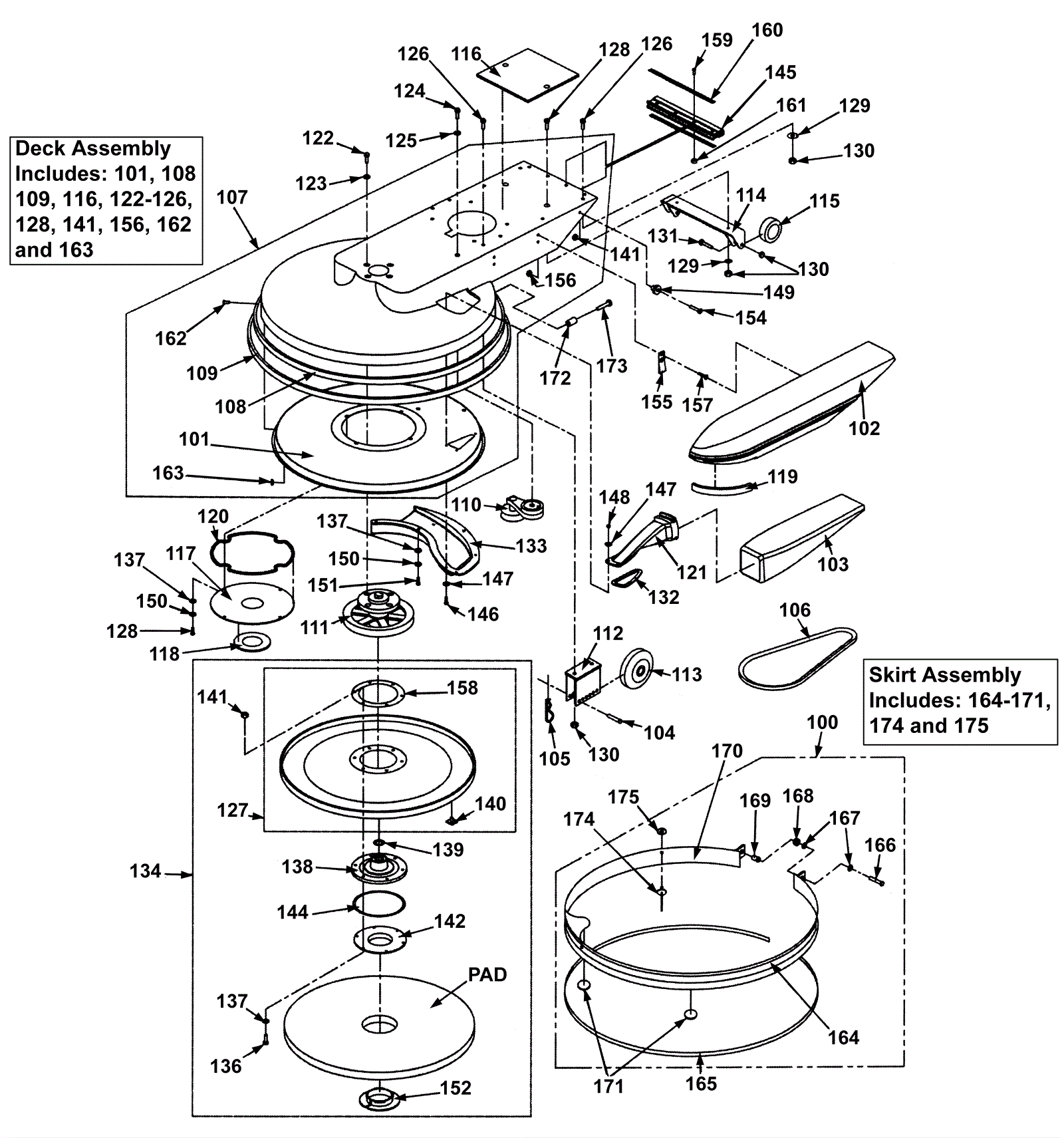

| # | Part | Description |
Req | Notes | Availability |
|---|
100a |
154-0710
|
21 inch steel skirt assembly |
1 |
(includes 164-171, 174 and 175) |
|
100b |
154-0709
|
24 inch steel skirt assembly |
1 |
|
|
100c |
154-0717
|
28 inch steel skirt assembly |
1 |
(includes 164-171, 174 and 175) |
|
100d |
154-0383
|
21 inch extended skirt with webbing assembly |
1 |
21 inch |
|
101a |
154-0711
|
21 inch shroud liner |
1 |
|
|
101b |
154-0386
|
24 inch shroud liner |
1 |
|
|
101c |
154-0374
|
28 inch shroud liner |
1 |
|
|
102 |
154-0387
|
Vacuum bag cover |
1 |
|
|
103a |
154-0388
|
Vacuum bag |
1 |
(For units with a plastic tube.) |
|
103b |
154-3693
|
12 inch dust bag |
1 |
(For units with a metal tube.) |
|
104 |
154-0285
|
Clevis pin |
2 |
|
|
105 |
997-2515
|
Cotter pin |
2 |
|
|
106a |
154-1070
|
BX49 belt |
1 |
(24 inch) |
|
106b |
991-0021
|
BX56 belt |
1 |
(28 inch) |
|
106c |
991-0001
|
BX46 belt |
1 |
(21 inch) |
|
106d |
991-8541
|
BX-57 belt |
1 |
(28 inch) (after SN 78741) |
|
107a |
154-0390
|
21 inch painted deck (OBSOLETE) |
1 |
(21 inch) (includes 101, 108, 109, 116, 122-126, 128, 141, 156, 162 and 163) |
|
107b |
154-0391
|
24 inch painted deck (OBSOLETE) |
1 |
(24 inch) |
|
107c |
154-0392
|
28 inch painted deck (OBSOLETE) |
1 |
(28 inch) (includes 101, 108, 109, 116, 122-126, 128, 141, 156, 162 and 163) |
|
108a |
992-0002
|
Velcro hook (sold by the inch) |
76 in |
(21 inch) |
|
108b |
992-0002
|
Velcro hook (sold by the inch) |
83 in |
(24 inch) |
|
108c |
992-0002
|
Velcro hook (sold by the inch) |
87 in |
(28 inch) |
|
109a |
154-0515
|
Felt for improved skirt design (sold by the foot) |
7 ft |
(21 inch) |
|
109b |
154-0515
|
Felt for improved skirt design (sold by the foot) |
7 ft |
(24 inch) |
|
109c |
154-0515
|
Felt for improved skirt design (sold by the foot) |
8 ft |
(28 inch) |
|
110a |
154-0024
|
Idler belt tensioner with v-groove pulley |
1 |
|
|
110b |
991-8595
|
4 inch idler pulley |
1 |
(NON-OEM) (pulley only) |
|
111a |
154-0671
|
Spindle with 6 3/4 inch pulley |
1 |
(21 inch) |
|
111b |
154-0394
|
Spindle with 7 1/4 inch pulley |
1 |
(24 inch) |
|
111c |
154-0123
|
RETRO KIT - Spindle w/ 9.25 inch pulley & belt |
1 |
(28 inch) (before SN 78741) |
|
111d |
154-0123-R
|
Spindle assembly refurbished with new bearings |
1 |
(28 inch) |
|
111e |
154-3526
|
Spindle with 9.25 inch pulley |
1 |
(28 inch) (after SN 78741) |
|
112a |
154-0297
|
Wheel bracket assembly |
2 |
(21 inch) |
|
112b |
154-0395
|
Wheel bracket assembly (OBSOLETE) |
2 |
(24 inch) |
|
112c |
154-0299
|
Wheel bracket assembly |
2 |
(28 inch) |
|
113 |
991-2012
|
5 inch wheel |
2 |
|
|
114 |
154-0301
|
Rear wheel bracket assembly |
1 |
|
|
115 |
154-0302
|
3 inch gray wheel |
2 |
|
|
116 |
154-0303
|
Tank pad (OBSOLETE) |
1 |
|
|
117a |
154-0723
|
Pulley cover |
1 |
(21 inch) |
|
117b |
154-0397
|
Pulley cover |
1 |
(24 inch) |
|
117c |
154-0398
|
Pulley cover |
1 |
(28 inch) |
|
118a |
154-0399
|
Spindle seal (OBSOLETE) |
1 |
(21 inch) |
|
118b |
154-0400
|
Spindle seal |
1 |
(28 inch) |
|
119 |
154-0401
|
Foam seal |
1 |
|
|
120 |
154-0401
|
Foam seal |
1 |
|
|
121 |
154-0371
|
Dust tube |
1 |
|
|
122 |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
4 |
|
|
123 |
999-0033
|
Washer 7/16 SAE flat |
4 |
|
|
124 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
|
125 |
999-0032
|
Washer 3/8 USS flat plain finish |
5 |
|
|
126 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
10 |
|
|
127a |
154-0126
|
28 inch pad driver with studs |
1 |
(includes 140, 141 and 158) |
|
127b |
154-0557
|
24 inch pad driver with studs |
1 |
(includes 140, 141 and 158) |
|
127c |
154-0134
|
21 inch pad driver with studs |
1 |
(includes 140, 141 and 158) |
|
128 |
999-0235
|
Screw 1/4-20 x 3/4 button head socket plain finish |
4 |
|
|
129 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
|
|
130 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
|
131 |
999-0108
|
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
2 |
|
|
132 |
154-0403
|
Dust tube seal |
1 |
|
|
133a |
154-0404
|
21 inch vacuum scoop |
1 |
|
|
133b |
154-0712
|
24 inch vacuum scoop |
1 |
|
|
133c |
154-0373
|
28 inch vacuum scoop |
1 |
|
|
134a |
154-0305
|
21 inch pad driver assembly |
1 |
(includes 127, 136-142, 152 and 158) |
|
134b |
154-0534
|
24 inch pad driver assembly |
1 |
(includes 127, 136-142, 152 and 158) |
|
134c |
154-0306
|
28 inch pad driver assembly |
1 |
(includes 127, 136-142, 152 and 158) |
|
136 |
999-0124
|
Screw 1/4-20 x 1 1/4 button head socket cap plain finish |
6 |
|
|
137 |
999-0016
|
Washer 1/4 flat plain finish |
14 |
|
|
138a |
154-0128
|
Flexi-disc |
1 |
|
|
138b |
154-0135
|
Flexi disc for 21 inch |
1 |
|
|
139 |
154-0268
|
Washer 3/4 x 39/64 stainless steel |
1 |
|
|
140a |
154-0127
|
Velcro stud |
76 |
(pad holder) |
|
140b |
154-0127
|
Velcro stud |
12 |
(hood) |
|
141 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
|
142a |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
1 |
(24 and 28 inch) |
|
142b |
991-2202
|
Big mouth pad holder set (blue) |
1 |
(NON-OEM) |
|
142c |
991-8577
|
Pad retainer |
1 |
(NON-OEM) |
|
144 |
154-0312
|
Spacer ring for Center-Lok II |
1 |
(24 and 28 inch) |
|
145 |
154-0405
|
RokBak bumper molding (sold by the foot) |
1 ft |
|
|
146 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
3 |
|
|
147 |
999-0006
|
Washer 3/16 flat zinc plated |
6 |
|
|
148 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
3 |
|
|
149 |
154-0406
|
Support stud |
1 |
|
|
150 |
154-0600
|
Lock washer |
7 |
|
|
151 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
3 |
|
|
152 |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
1 |
(24 and 28 inch) |
|
152b |
154-1062
|
Center-Lok II |
1 |
(21 inch) |
|
154 |
999-0124
|
Screw 1/4-20 x 1 1/4 button head socket cap plain finish |
1 |
|
|
155 |
154-0407
|
Belt clip |
2 |
|
|
156 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
4 |
|
|
157 |
154-0411
|
Screw 8-32 x 5/8 flat head phillips |
4 |
|
|
158 |
154-0408
|
Pad holder stress relief ring |
1 |
|
|
159 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
|
160 |
154-0409
|
Skirt clamp band (sold by the foot) |
2 ft |
|
|
161 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
|
162 |
154-0728
|
Pop rivet 3/16 x 1/2 x 3/8 |
10 |
|
|
163 |
999-0006
|
Washer 3/16 flat zinc plated |
10 |
|
|
164a |
154-0516
|
Bumper molding (sold by the foot) |
5 ft |
(21 inch) (top - cut to 4.08 ft) |
|
164b |
154-0516
|
Bumper molding (sold by the foot) |
6 ft |
(24 inch) (top - cut to 5.02 ft) |
|
164c |
154-0516
|
Bumper molding (sold by the foot) |
7 ft |
(28 inch) (top - cut to 6.07 ft) |
|
165a |
154-0466
|
Skirt edging (bottom) (sold by the foot) |
7 ft |
(21 inch) (bottom - cut to 6.03 ft) |
|
165b |
154-0466
|
Skirt edging (bottom) (sold by the foot) |
8 ft |
(24 inch) (bottom - cut to 7.10 ft) |
|
165c |
154-0466
|
Skirt edging (bottom) (sold by the foot) |
9 ft |
(28 inch) (bottom - cut to 8.14 ft) |
|
166 |
154-0018
|
Pop rivet |
1 |
|
|
167 |
154-0713
|
Pop rivet 1/8 x 5/16 |
2 |
|
|
169 |
154-0714
|
Handle latch |
1 |
|
|
170a |
154-0715
|
21 inch steel skirt |
1 |
|
|
170b |
154-0716
|
24 inch steel skirt |
1 |
|
|
170c |
154-0717
|
28 inch steel skirt assembly |
1 |
|
|
171 |
154-0718
|
Felt dot |
2 |
|
|
172 |
154-0719
|
Steel bushing |
1 |
|
|
173 |
154-0720
|
Screw 1/4-20 x 1 1/4 socket head with loctite |
1 |
|
|
174 |
154-0721
|
Rivet |
4 |
|
|
175 |
999-0464
|
Washer 3/16 flat plain finish |
4 |
|
|
N/S |
154-3546
|
28 inch extended skirt with webbing |
1 |
|
|
N/S |
154-0464
|
Improved skirt design for 21 inch (OBSOLETE) |
1 |
|
|
N/S |
154-0465
|
Improved skirt design for 28 inch (OBSOLETE) |
1 |
|
|
