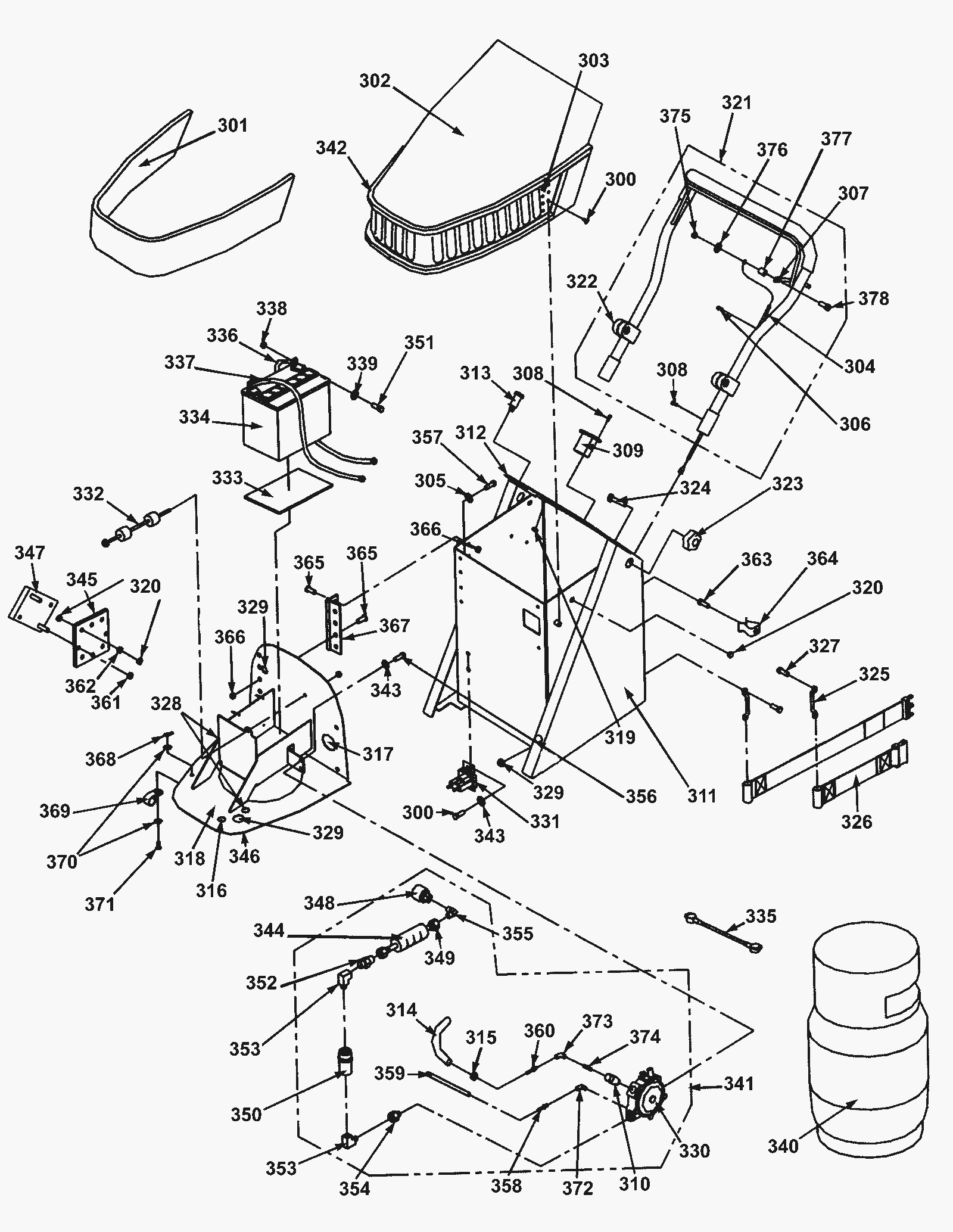

Handle Assembly

#PartDescription ReqNotesAvailability
300 999-0113 Screw 1/4-20 x 1/2 truss head slotted 4
301 154-0313 Foam air intake filter 1
302 154-0314 Battery cover 1
303 154-0127 Velcro stud 12
304 154-0541 Throttle control cable 1
305 999-0238 Washer 1/4 internal star lock zinc plated 2
306 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss 1
307 154-0316 Bail 1
308 154-0018 Pop rivet 4
309 154-0214 Hour meter 1
310 154-0168 Fuel adjustment 1
311a N/A Not available 1 (KWA) (Bulkhead assembly)
311b 154-0693 Bulkhead assembly (OBSOLETE) 1 (KWC, KVB)
312 154-0117 Trim (sold by the foot) 1
313 154-0319 Starter switch with ground prong (2 keys) 1
314 154-0320 Fuel line (sold by the foot) 3 ft
315 154-0036 Plastic hose clamp 2
316 154-0321 Nylon plug (black) (OBSOLETE) 1
317 154-0584 Grommet 1
318 154-0694 Battery tray weldment (OBSOLETE) 1
319 154-0379 Display board 1
320 999-0144 Nut 6-32 k-lock zinc plated 8
321 154-0324 Handle assembly 1 (includes 304, 305, 306, 308, 322 and 375 thru 378)
322 154-0325 Pivot handle slide block 2
323 154-0326 Knob 2
324 999-0708 Screw 3/8-16 x 2 carriage head grade 5 zinc 2
325 154-0328 Footman loop 2
326 154-1039 Tank strap 1
327 999-0709 Screw 10-24 x 3/4 oval head phillips 4
328 154-0331 Grooved grommet 3
329 154-0332 Grooved grommet 5
330 991-6001 Fuel regulator (T60) 1
331 154-0279 Starter solenoid (remote mounted) 1
332 154-0334 Battery retainer assembly (OBSOLETE) 1
333 154-0093 Battery pad (OBSOLETE) 1
334 162-0001 12V 35Ah AGM battery 1
335 154-0336 5 inch starter cable 1
336 154-0337 Positive battery cable 1
337 154-0338 Negative battery cable 1
338 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
339 999-0028 Washer 5/16 split lock plain finish 2
340a 154-1065 Steel propane tank 1 (KWA, KWC)
340b 161-0003 Aluminum propane tank 1 (KVB)
341a 154-0695 Regulator assembly (17HP E) 1 (E models) (includes 310, 314, 315, 330, 344, 348-350, 352-355, 358-360 and 372-374)
341b 154-0696 Regulator assembly (17HP) 1 (17 HP) (includes 310, 314, 315, 330, 344, 348-350, 352-355, 358-360 and 372-374)
342 154-0342 Battery cover molding 1
343 154-0600 Lock washer 4
344 154-0343 Insulation pipe (OBSOLETE) 1
345 154-0344 Safe sense module bracket 1
346 N/A Not available 2 Foam seal
347 154-0259 Safe sense module for Kawasaki (OBSOLETE) 1
348 991-6004 Female quick coupler 1
349a 154-0698 18 inch regulator hose 1 (E models)
349b 154-0098 12 inch regulator hose 1 (17 HP)
349c 154-0206 12 inch regulator hose with fittings kit 1
350 991-6002 12V fuel lock off (Model 152) 1
351 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
352 154-0347 Fitting (regulator to fuel lock) 1
353 154-0348 90 degree elbow fitting 2
354 154-0090 Fitting (regulator to fuel lock) 1
355 154-0349 Fitting 54 x 6 (regulator to fuelock) 1
356 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
357 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 2
358 154-0228 Hosebarb 1/8 x 1/4 inch 1
359 154-0351 Vacuum hose (sold by the foot) 3 ft
360 154-0352 Hosebarb 1/8 x 3/8 inch 1
361 999-0239 Nut 10-32 k-lock zinc plated 2
362 154-0354 Spacer 4
363 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 1
364 154-0039 Spring clip 1
365 154-0586 Stud 8
366 999-0151 Nut 8-32 nylon insert lock zinc plated 8
367 154-0585 Hinge (OBSOLETE) 1
368 154-0699 Presto pin 1
369 154-0700 P clamp 1
370 999-0016 Washer 1/4 flat plain finish 2
371 154-0701 Clevis pin 1/4 x 5/8 1
372 154-0702 Fitting 1/8 x 1/8 inch 1
373 154-0703 Fitting 1/8 x 1/8 inch 1
374 154-0704 Nipple fitting 1/8 x 1/8 inch 1
375 999-0086 Nut 10-32 nylon insert lock zinc plated 1
376 999-0006 Washer 3/16 flat zinc plated 1
377 154-0640 Bushing 1
378 154-0705 Screw 10-24 x 7/8 button head 1
N/S 154-0706 Large hole plug 1
N/S 154-0707 Small hole plug (OBSOLETE) 2
