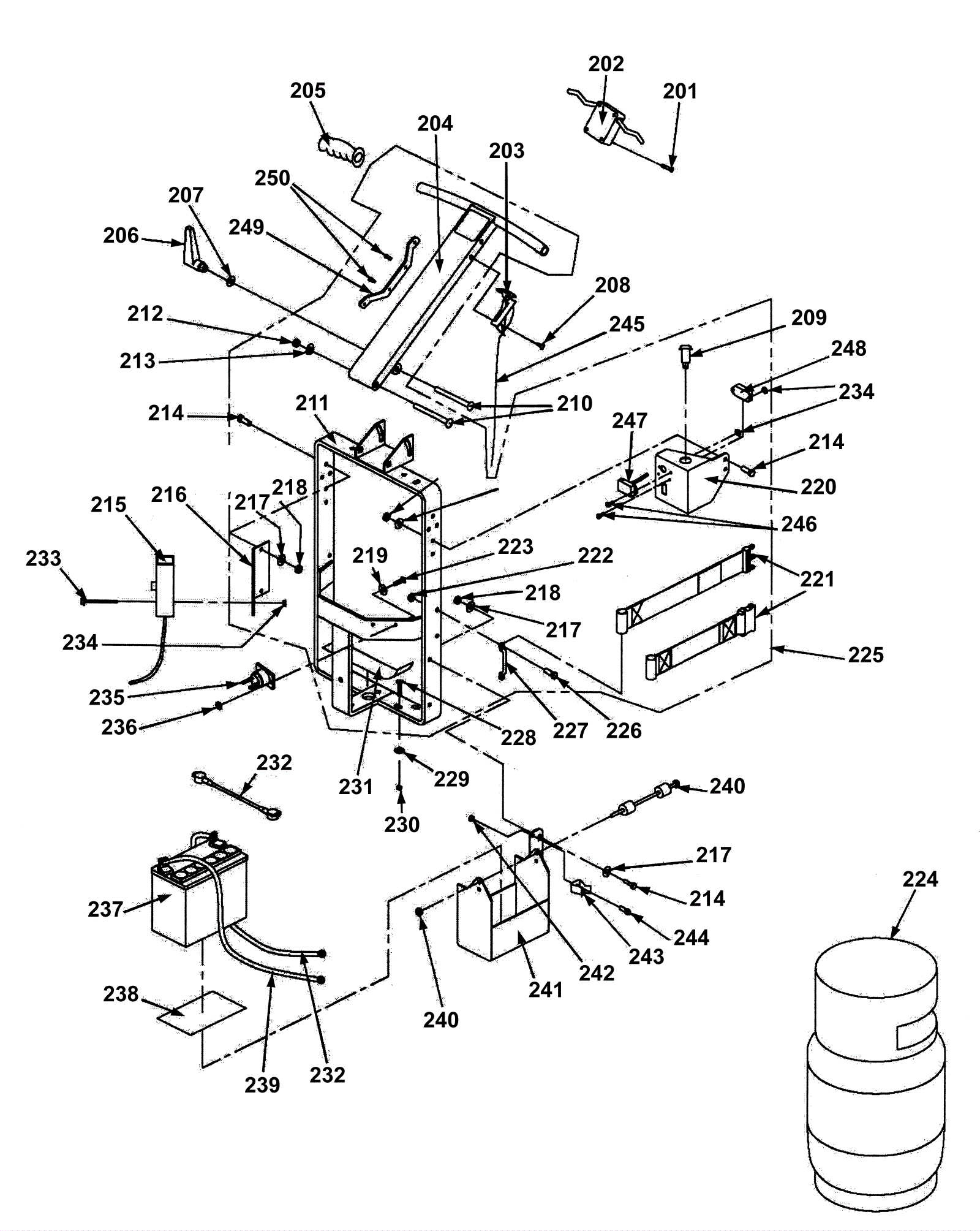

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
999-0233
|
Screw 8 x 1 1/4 hex washer head slotted zinc plated |
4 |
|
|
202 |
154-0623
|
Switch (OBSOLETE) |
|
Models with clutch |
|
203 |
154-0149
|
Throttle knob |
1 |
|
|
204 |
154-0647
|
Handle 12V (OBSOLETE) |
1 |
12V start |
|
205a |
154-0077
|
Handle grip |
2 |
|
|
205b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
206 |
154-0071
|
Adjustable handle lever |
1 |
|
|
207 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
208 |
999-0576
|
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
2 |
|
|
209 |
154-0319
|
Starter switch with ground prong (2 keys) |
1 |
12V start |
|
210 |
999-0242
|
Screw 3/8-16 x 4 carriage head grade 5 zinc |
2 |
|
|
211a |
154-0653
|
Handle complete 12V (OBSOLETE) |
1 |
12V models |
|
211b |
154-0648
|
Handle complete 110V (OBSOLETE) |
1 |
110V models |
|
212 |
999-0234
|
Nut 3/8-16 acorn nickel plated |
1 |
|
|
213 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
214a |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
2 |
110V models |
|
214b |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
4 |
12V models |
|
215 |
178-7081
|
120V electric starter |
1 |
110V models |
|
216 |
154-0655
|
Starter bracket 110V (OBSOLETE) |
1 |
110V models |
|
217a |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
110V models |
|
217b |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
12V models |
|
218a |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
110V models |
|
218b |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
12V models |
|
219 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
2 |
|
|
220 |
154-0656
|
Switch bracket (OBSOLETE) |
1 |
12V models |
|
221 |
154-1039
|
Tank strap |
1 |
|
|
222 |
154-0649
|
Nut 10-24 spin lock |
4 |
|
|
223 |
999-0113
|
Screw 1/4-20 x 1/2 truss head slotted |
2 |
|
|
224a |
161-0003
|
Aluminum propane tank |
1 |
|
|
224b |
154-1065
|
Steel propane tank |
1 |
|
|
225a |
154-0650
|
Handle assembly 110V (OBSOLETE) |
1 |
110V models w/o clutch |
|
225b |
154-0657
|
Handle assembly 110V with clutch (OBSOLETE) |
1 |
110V models with clutch |
|
225c |
154-0658
|
Handle assembly 12V (OBSOLETE) |
1 |
12V models |
|
226 |
154-0651
|
Socket screw 10-24 x 3/4 |
4 |
|
|
227 |
154-0328
|
Footman loop |
2 |
|
|
228 |
999-0232
|
Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc |
5 |
|
|
229 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
230 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
5 |
|
|
231 |
992-0001
|
Velcro loop (sold by the inch) |
1 |
|
|
232a |
998-0010
|
Battery jumper cable - ring type (red) |
2 |
|
|
232b |
991-6025
|
Wire 4 x14.5, 3/8 ring x 3/8 ring |
2 |
(NON-OEM) |
|
233 |
154-0660
|
Screw 8-32 x 2 |
2 |
|
|
234 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
4 |
|
|
235a |
154-1040
|
Starter solenoid |
1 |
(replaces 154-0661) |
|
235b |
991-9253
|
12V DC starter solenoid |
1 |
(NON-OEM) |
|
236 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
237 |
162-0001
|
12V 35Ah AGM battery |
1 |
|
|
238 |
154-0662
|
Battery pad |
1 |
|
|
239 |
154-0338
|
Negative battery cable |
1 |
|
|
240 |
154-0334
|
Battery retainer assembly (OBSOLETE) |
1 |
|
|
241 |
154-0663
|
Battery tray (OBSOLETE) |
1 |
|
|
242 |
999-0144
|
Nut 6-32 k-lock zinc plated |
1 |
|
|
243 |
154-0039
|
Spring clip |
1 |
|
|
244 |
999-0249
|
Screw 6-32 x 5/8 round head slotted zinc plated |
1 |
|
|
245 |
160-0006
|
48 inch throttle control cable |
1 |
|
|
246 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
|
|
247 |
154-0664
|
Ecosense module |
1 |
|
|
248 |
154-0665
|
12V circuit relay board |
1 |
|
|
249a |
154-0666
|
Cord wrap bracket black formed |
1 |
Black |
|
249b |
154-0667
|
Cord wrap bracket hammer tone formed |
1 |
Hammer-Tone |
|
250 |
999-0392
|
Screw 8 x 3/4 hex washer head slotted zinc plated |
2 |
|
|
N/S |
154-0578
|
Fuel regulator |
1 |
Kawasaki |
|
