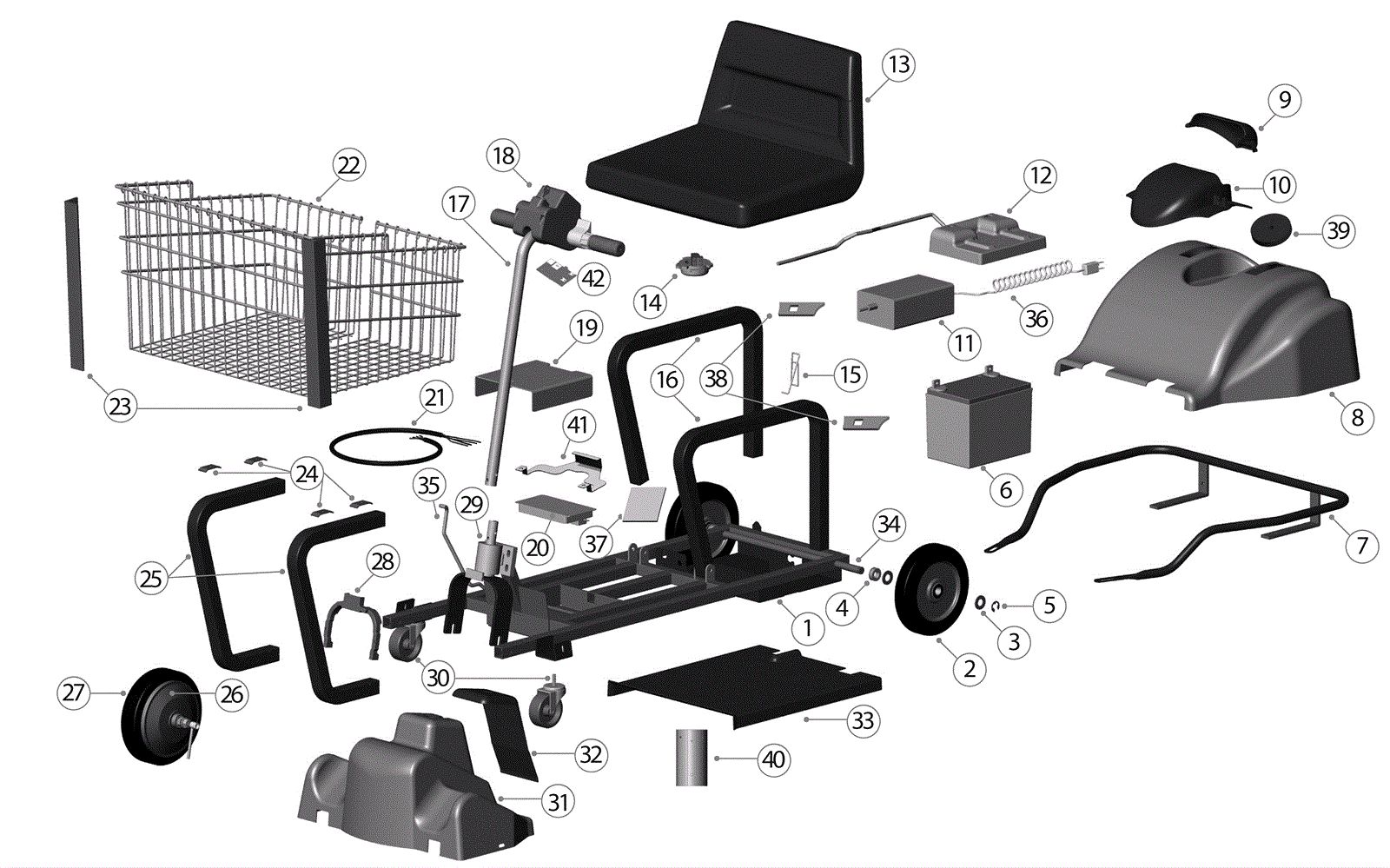

# | Part | Description | Price | Req | Notes | Availability |
1 |
153-1018
|
Hardware and bumper frame (includes bumper) |
$609.15
|
1 |
|
usually ships 3-16 days |
2 |
153-1019
|
Rear wheel |
$43.96
|
1 |
|
usually ships 3-16 days |
3 |
153-1020
|
5/8 inch bushing |
$0.99
|
2 |
(2 on each wheel) |
usually ships 3-16 days |
4 |
153-1021
|
5/8 inch grommet |
$0.99
|
1 |
(1 on each wheel) |
usually ships 3-16 days |
5 |
153-1105
|
5/8 inch "E" type retaining ring |
$0.99
|
1 |
(1 on each wheel) |
usually ships 3-16 days |
6 |
162-0122
|
12V 35Ah AGM deep cycle battery |
$159.82
|
1 |
|
ships same day |
7 |
153-1024
|
Rear bumper |
$109.45
|
1 |
|
usually ships 3-16 days |
8a |
153-1116
|
Rear cover |
Call for price
|
1 |
|
usually ships 3-16 days |
8b |
153-1026
|
Rear cover fastener |
$4.39
|
1 |
|
usually ships 3-16 days |
9 |
153-1027
|
Cord cover lid |
$5.50
|
1 |
(can be ordered as an assembly part 280-0004) |
usually ships 3-16 days |
10 |
153-1028
|
Cord cover |
$9.15
|
1 |
(included in 9) |
usually ships 3-16 days |
11 |
153-1029
|
10amp outdoor UL charger |
$384.62
|
1 |
|
usually ships 3-16 days |
12a |
153-1030
|
Main wire harness assembly |
$141.94
|
1 |
(includes batter cover and 12b) |
usually ships 3-16 days |
12b |
153-1031
|
20amp circuit breaker |
$11.55
|
1 |
|
usually ships 3-16 days |
13 |
153-1032
|
Seat |
$361.90
|
1 |
(includes 14) |
usually ships 3-16 days |
14 |
153-1033
|
Seat switch |
$20.14
|
1 |
|
usually ships 3-16 days |
15 |
153-1034
|
Seat latch assembly |
$7.33
|
1 |
|
usually ships 3-16 days |
16 |
153-1035
|
Seat mount tube |
$66.50
|
2 |
|
usually ships 3-16 days |
17 |
153-1009
|
Steering column with rod and grips |
$75.09
|
1 |
|
usually ships 3-16 days |
18 |
N/A
|
Not available |
Call for price
|
1 |
(see control box assembly for parts) |
usually ships 3-26 days |
19 |
153-1038
|
UL motor controller cover |
$73.47
|
1 |
|
usually ships 3-16 days |
20 |
153-1017
|
UL motor controller |
$730.76
|
1 |
|
usually ships 3-16 days |
21 |
153-1039
|
Steering wire harness |
$76.75
|
1 |
|
usually ships 3-16 days |
22 |
153-1078
|
LIL max basket |
$324.37
|
1 |
|
usually ships 3-16 days |
23 |
153-1041
|
Basket bumpers (blue) |
$16.48
|
2 |
|
usually ships 3-16 days |
24 |
153-1042
|
Basket mounting clips |
$3.31
|
4 |
|
usually ships 3-16 days |
25 |
153-1077
|
Basket tube |
$64.10
|
1 |
|
usually ships 3-16 days |
26 |
153-1063
|
Tire/outer shell |
$110.81
|
1 |
|
usually ships 3-16 days |
27 |
153-1045
|
Hub motor |
$886.07
|
1 |
|
usually ships 3-16 days |
28 |
153-1046
|
Wire guide |
$4.39
|
1 |
|
usually ships 3-16 days |
29 |
153-1047
|
Steering fork assembly |
$122.71
|
1 |
|
usually ships 3-16 days |
30 |
153-1048
|
Caster assembly |
$13.18
|
2 |
|
usually ships 3-16 days |
31a |
153-1084
|
Front cover (OBSOLETE) |
Call for price
|
1 |
|
usually ships 3-16 days |
31b |
153-1026
|
Rear cover fastener |
$4.39
|
1 |
|
usually ships 3-16 days |
32 |
153-1051
|
Bridge cover |
$8.98
|
1 |
|
usually ships 3-16 days |
33 |
153-1052
|
Floor cover |
$29.67
|
1 |
|
usually ships 3-16 days |
34 |
153-1053
|
5/8 inch steel axle |
$44.68
|
1 |
|
usually ships 3-16 days |
35a |
153-1054
|
Hub to UL motor controller wire harness |
$27.47
|
1 |
|
usually ships 3-16 days |
35b |
153-1055
|
Wire guide assembly |
$31.49
|
1 |
|
usually ships 3-16 days |
36a |
153-1117
|
Charging cord kit |
Call for price
|
1 |
|
usually ships 3-16 days |
36b |
153-1057
|
Stowed charging cord in bag |
$71.42
|
1 |
|
usually ships 3-16 days |
37 |
153-1058
|
Battery pan gasket |
Call for price
|
1 |
|
usually ships 3-16 days |
38 |
153-1059
|
Seat tubes gasket |
Call for price
|
2 |
|
usually ships 3-16 days |
39 |
153-1060
|
Power cord gasket |
Call for price
|
1 |
|
usually ships 3-16 days |
40 |
153-1061
|
Splash guard |
$7.76
|
1 |
|
usually ships 3-16 days |
41 |
153-1064
|
Control hold down bracket |
$26.37
|
1 |
|
usually ships 3-16 days |
42 |
153-1119
|
GPS board (inside control box) |
$322.34
|
1 |
|
usually ships 3-16 days |
N/S |
153-1121
|
Cord cover and lid assembly |
$11.02
|
1 |
|
usually ships 3-16 days |
N/S |
153-1122
|
Jumbo basket |
Call for price
|
1 |
|
usually ships 3-16 days |
