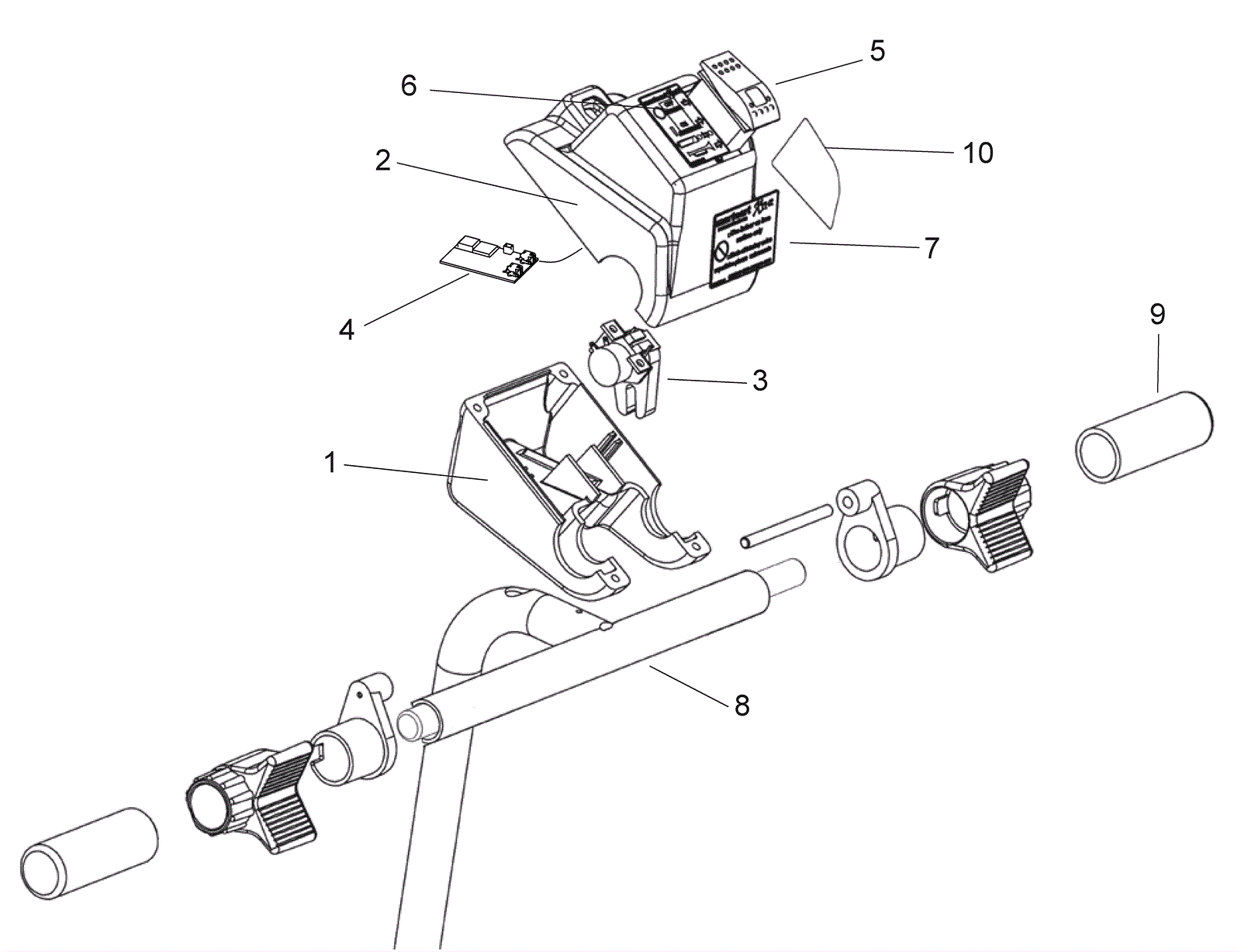

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
153-1001
|
Control box bottom cover |
$3.66
|
1 |
|
usually ships 3-16 days |
2 |
153-1002
|
Control box top cover |
$3.66
|
1 |
|
usually ships 3-16 days |
3 |
153-1118
|
GPS potentiometer assembly |
$103.49
|
1 |
|
usually ships 3-16 days |
4 |
153-1119
|
GPS board (inside control box) |
$322.34
|
1 |
|
usually ships 3-16 days |
5 |
153-1005
|
Key switch |
$47.25
|
1 |
(optional) |
usually ships 3-16 days |
6 |
153-1006
|
Rocker switch assembly |
$63.36
|
1 |
|
usually ships 3-16 days |
7 |
153-1007
|
Top control box overlay |
$4.14
|
1 |
|
usually ships 3-16 days |
8 |
153-1008
|
Front control box overlay |
$5.85
|
1 |
|
usually ships 3-16 days |
9 |
153-1009
|
Steering column with rod and grips |
$75.09
|
1 |
|
usually ships 3-16 days |
10 |
153-1010
|
Grip, PVC-FREE |
$7.33
|
1 |
|
usually ships 3-16 days |
