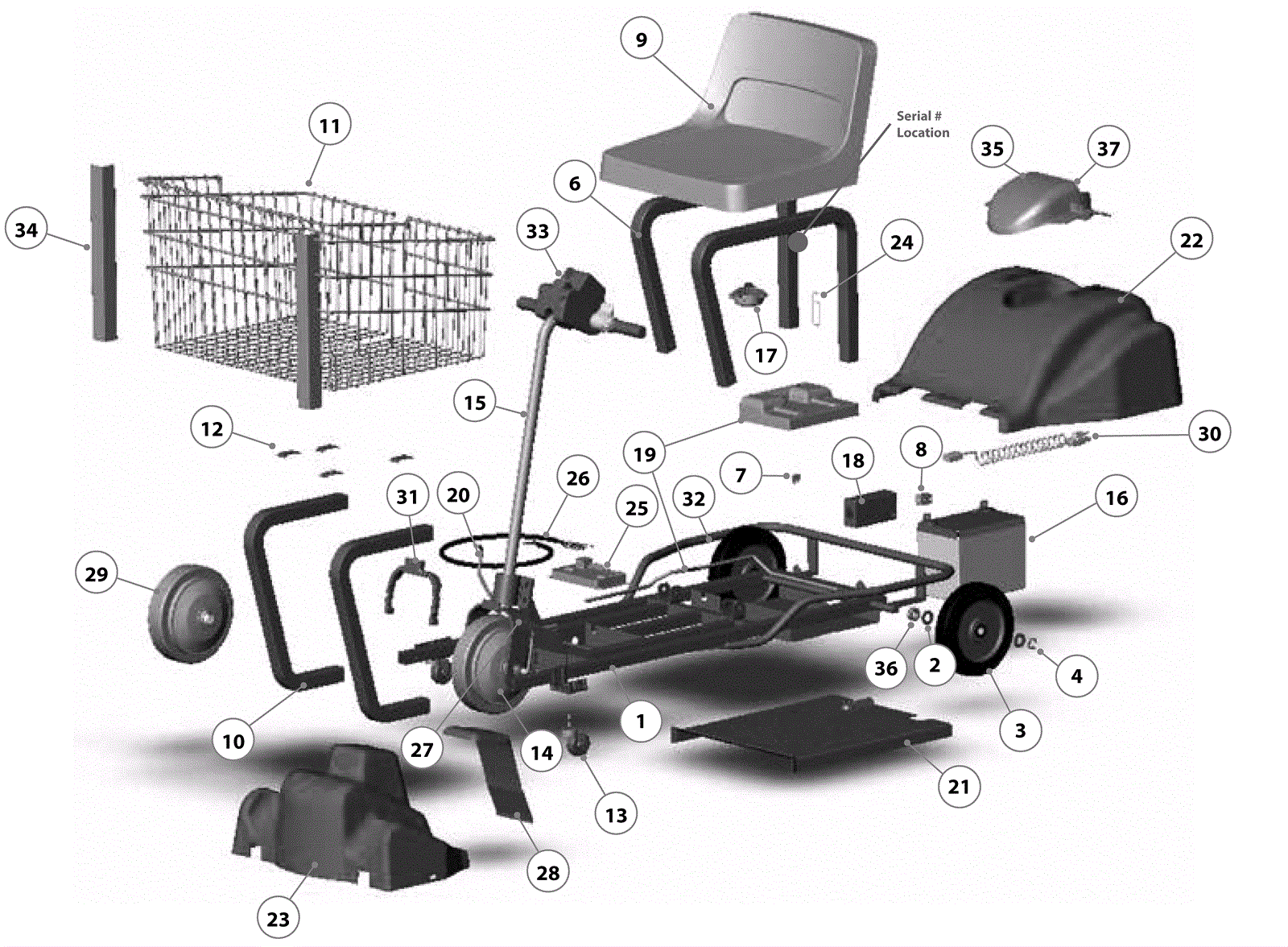

MODEL 280-3700 General Assembly

#PartDescriptionPriceReqNotesAvailability
1 153-1018 Hardware and bumper frame (includes bumper) $609.15 1 usually ships 3-16 days
2 153-1104 5/8 inch bushing Call for price 2 (2 on each wheel) usually ships 3-16 days
3 153-1019 Rear wheel $43.96 2 usually ships 3-16 days
4 153-1105 5/8 inch "E" type retaining ring $0.99 2 usually ships 3-16 days
6 153-1035 Seat mount tube $66.50 1 usually ships 3-16 days
7 153-1074 5amp mini fuse $1.64 1 usually ships 3-16 days
8 153-1075 15amp circuit breaker $6.23 1 usually ships 3-16 days
9 153-1032 Seat $361.90 1 usually ships 3-16 days
10 153-1077 Basket tube $64.10 2 usually ships 3-16 days
11 153-1106 LIL Max basket $220.87 1 usually ships 3-16 days
12 153-1042 Basket mounting clips $3.31 4 usually ships 3-16 days
13 153-1048 Caster assembly $13.18 2 usually ships 3-16 days
14 153-1114 Hub motor/Wheel/Tire Call for price 2 usually ships 3-16 days
15 N/A Not available Call for price 1 (see control box assembly for parts) usually ships 3-26 days
16 162-0122 12V 35Ah AGM deep cycle battery $159.82 1 ships same day
17 153-1033 Seat switch $20.14 1 usually ships 3-16 days
18 153-1107 12V 10amp battery charger $338.82 1 usually ships 3-16 days
19 153-1108 Main wire harness/battery cover assembly $123.27 2 usually ships 3-16 days
20 153-1109 Steering wire harness with connectors $81.68 1 usually ships 3-16 days
21 153-1052 Floor cover $29.67 1 usually ships 3-16 days
22 153-1110 Rear cover $66.58 1 usually ships 3-16 days
23 153-1084 Front cover (OBSOLETE) Call for price 1 usually ships 3-16 days
24 153-1034 Seat latch assembly $7.33 1 usually ships 3-16 days
25 153-1111 Motor controller $395.60 1 usually ships 3-16 days
26 153-1086 Wire harness - controller to motor $25.64 1 usually ships 3-16 days
27 153-1047 Steering fork assembly $122.71 1 usually ships 3-16 days
28 153-1051 Bridge cover $8.98 1 usually ships 3-16 days
29 153-1063 Tire/outer shell $110.81 2 usually ships 3-16 days
30 153-1088 Coiled charging cord $81.31 1 usually ships 3-16 days
31 153-1046 Wire guide $4.39 4 usually ships 3-16 days
32 153-1089 Rear bumper $126.37 1 usually ships 3-16 days
33 N/A Not available Call for price 1 (see control box assembly for parts) usually ships 3-26 days
34 153-1041 Basket bumpers (blue) $16.48 2 usually ships 3-16 days
35 153-1028 Cord cover $9.15 1 usually ships 3-16 days
36 153-1021 5/8 inch grommet $0.99 2 usually ships 3-16 days
37 153-1027 Cord cover lid $5.50 1 usually ships 3-16 days
N/S 153-1120 Wire guide and harness assembly $23.42 1 (includes 26 and 31) usually ships 3-16 days
N/S 153-1121 Cord cover and lid assembly $11.02 1 (includes 35 and 37) usually ships 3-16 days
