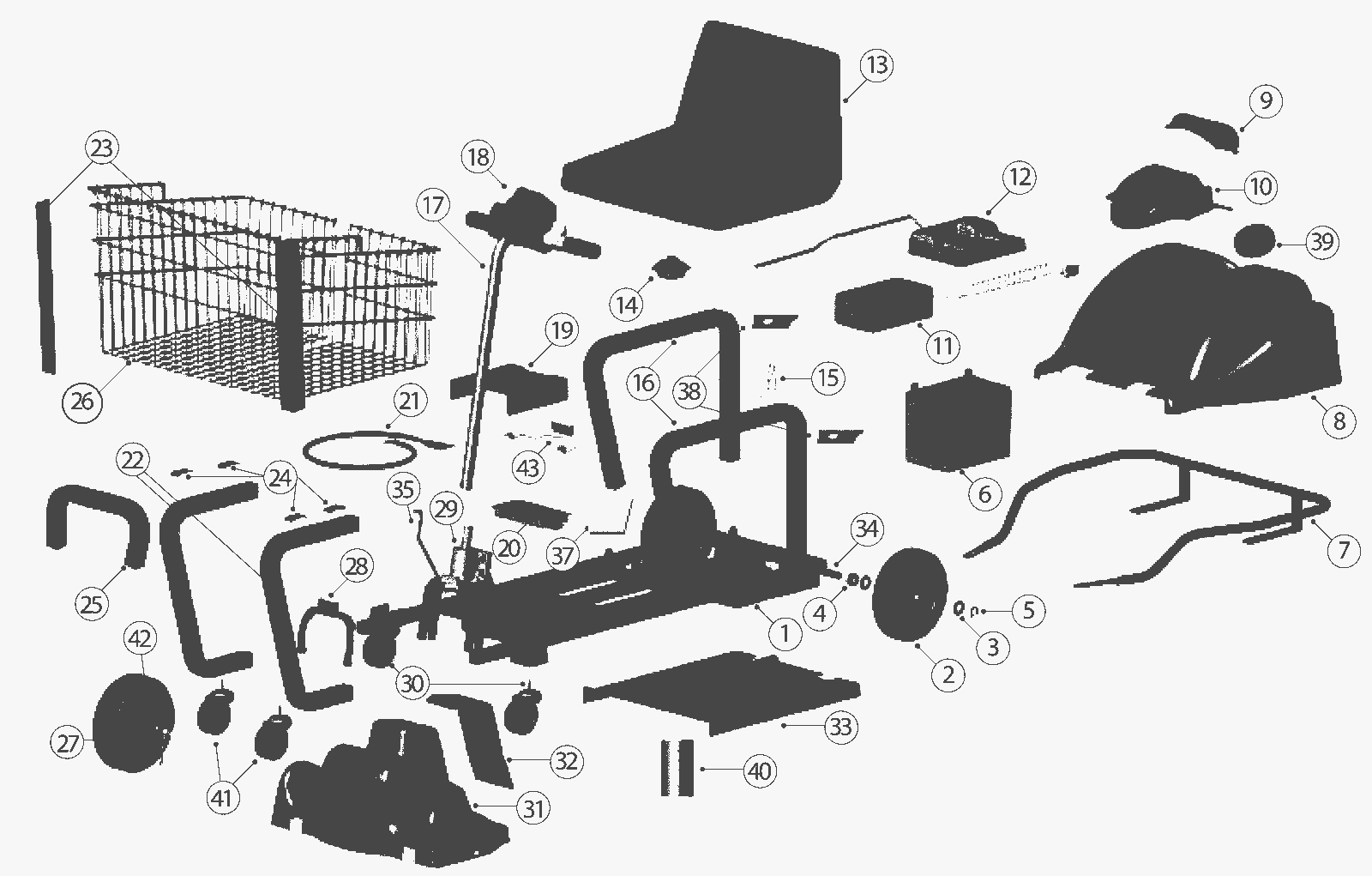

MODEL 4038 General Assembly

#PartDescriptionPriceReqNotesAvailability
1 153-1018 Hardware and bumper frame (includes bumper) $609.15 1 usually ships 3-16 days
2 153-1019 Rear wheel $46.49 2 usually ships 3-16 days
3 153-1020 5/8 inch bushing $0.99 4 (2 on each wheel) usually ships 3-16 days
4 153-1021 5/8 inch grommet $0.99 2 (1 on each wheel) usually ships 3-16 days
5 153-1022 Snap ring $0.99 2 (1 on each wheel) usually ships 3-16 days
6 162-0122 12V 35Ah AGM deep cycle battery $159.82 1 ships same day
7 153-1024 Rear bumper $109.45 1 usually ships 3-16 days
8a 153-1025 Rear cover $93.54 1 usually ships 3-16 days
8b 153-1026 Rear cover fastener $4.39 1 usually ships 3-16 days
9 153-1027 Cord cover lid $5.50 1 (can be ordered as 280-0004) usually ships 3-16 days
10 153-1028 Cord cover $9.15 1 (can be ordered as 280-0004) usually ships 3-16 days
11 153-1029 10amp outdoor UL charger $384.62 1 usually ships 3-16 days
12a 153-1030 Main wire harness assembly $141.94 1 (includes battery cover and 12b) usually ships 3-16 days
12b 153-1031 20amp circuit breaker $11.55 1 usually ships 3-16 days
13 153-1032 Seat $361.90 1 (includes 14) usually ships 3-16 days
14 153-1033 Seat switch $20.14 1 usually ships 3-16 days
15 153-1034 Seat latch assembly $7.33 1 usually ships 3-16 days
16 153-1035 Seat mount tube $66.50 2 usually ships 3-16 days
17 153-1009 Steering column with rod and grips $75.09 1 usually ships 3-16 days
18 N/A Not available Call for price 1 (control box) (see Control Box Assembly) usually ships 3-26 days
19 153-1038 UL motor controller cover $73.47 1 usually ships 3-16 days
20 153-1017 UL motor controller $730.76 1 usually ships 3-16 days
21 153-1039 Steering wire harness $76.75 1 usually ships 3-16 days
22 153-1040 Jumbo basket tube $103.81 1 usually ships 3-16 days
23 153-1041 Basket bumpers (blue) $16.48 2 usually ships 3-16 days
24 153-1042 Basket mounting clips $3.31 4 usually ships 3-16 days
25 153-1043 Basket tube cross brace $38.04 1 usually ships 3-16 days
26 153-1044 Jumbo basket $433.42 1 usually ships 3-16 days
27 153-1045 Hub motor $886.07 1 (includes tire) usually ships 3-16 days
28 153-1046 Wire guide $4.39 1 usually ships 3-16 days
29 153-1047 Steering fork assembly $122.71 1 usually ships 3-16 days
30 153-1048 Caster assembly $13.18 2 usually ships 3-16 days
31a 153-1049 Front cover $51.84 1 usually ships 3-16 days
32 153-1051 Bridge cover $8.98 1 usually ships 3-16 days
33 153-1052 Floor cover $29.67 1 usually ships 3-16 days
34 153-1053 5/8 inch steel axle $44.68 1 usually ships 3-16 days
35a 153-1054 Hub to UL motor controller wire harness $27.47 1 usually ships 3-16 days
35b 153-1055 Wire guide assembly $31.49 1 usually ships 3-16 days
37 153-1058 Battery pan gasket Call for price 2 usually ships 3-16 days
38 153-1059 Seat tubes gasket Call for price 1 usually ships 3-16 days
39 153-1060 Power cord gasket Call for price 1 usually ships 3-16 days
40 153-1061 Splash guard $7.76 1 usually ships 3-16 days
41 153-1062 3 inch caster $34.79 2 usually ships 3-16 days
42 153-1063 Tire/outer shell $110.81 2 usually ships 3-16 days
43 153-1064 Control hold down bracket $26.37 1 usually ships 3-16 days
N/S 153-1056 Charging cord (OBSOLETE) Call for price 1 (charging cord) usually ships 3-16 days
N/S 153-1057 Stowed charging cord in bag $71.42 1 (for 280-4037 only) usually ships 3-16 days
N/S 280-0004 Lid for 43815 $52.92 1 (includes 9 and 10) ships same day
