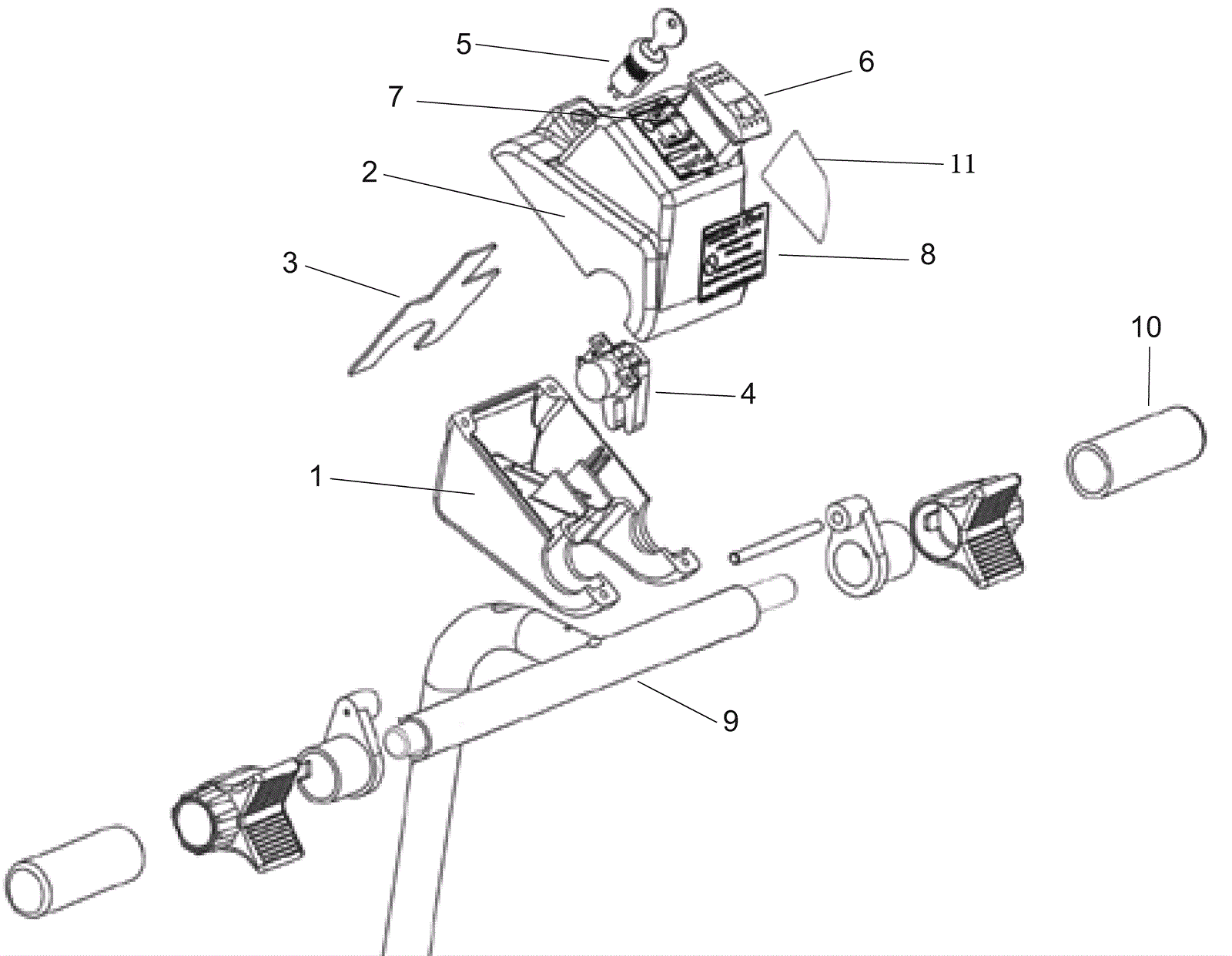

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
153-1001
|
Control box bottom cover |
1 |
|
|
2 |
153-1002
|
Control box top cover |
1 |
|
|
3 |
153-1003
|
Control box divider |
1 |
|
|
4 |
153-1004
|
Potentiometer assembly |
1 |
|
|
5 |
153-1005
|
Key switch |
1 |
(optional) |
|
6 |
153-1006
|
Rocker switch assembly |
1 |
|
|
7 |
153-1007
|
Top control box overlay |
1 |
|
|
8 |
153-1008
|
Front control box overlay |
1 |
|
|
9 |
153-1009
|
Steering column with rod and grips |
1 |
|
|
10 |
153-1010
|
Grip, PVC-FREE |
1 |
|
|
11 |
153-1011
|
Inteli-Charge indicator decal |
1 |
|
|
Kit1 |
153-1012
|
Keyless control box |
1 |
(includes 1-4, 6-8, 11) |
|
Kit2 |
153-1013
|
Keyed control box |
1 |
(includes 1-8, 11) |
|
Kit3 |
153-1014
|
Keyless top control box |
1 |
(includes 2, 4, 6-8, 11) |
|
Kit4 |
153-1015
|
Keyed top control box |
1 |
(includes 2, 4, 5, 6-8, 11) |
|
Kit5 |
153-1016
|
Box top with decals |
1 |
(includes 2, 7, 8, 11) |
|
