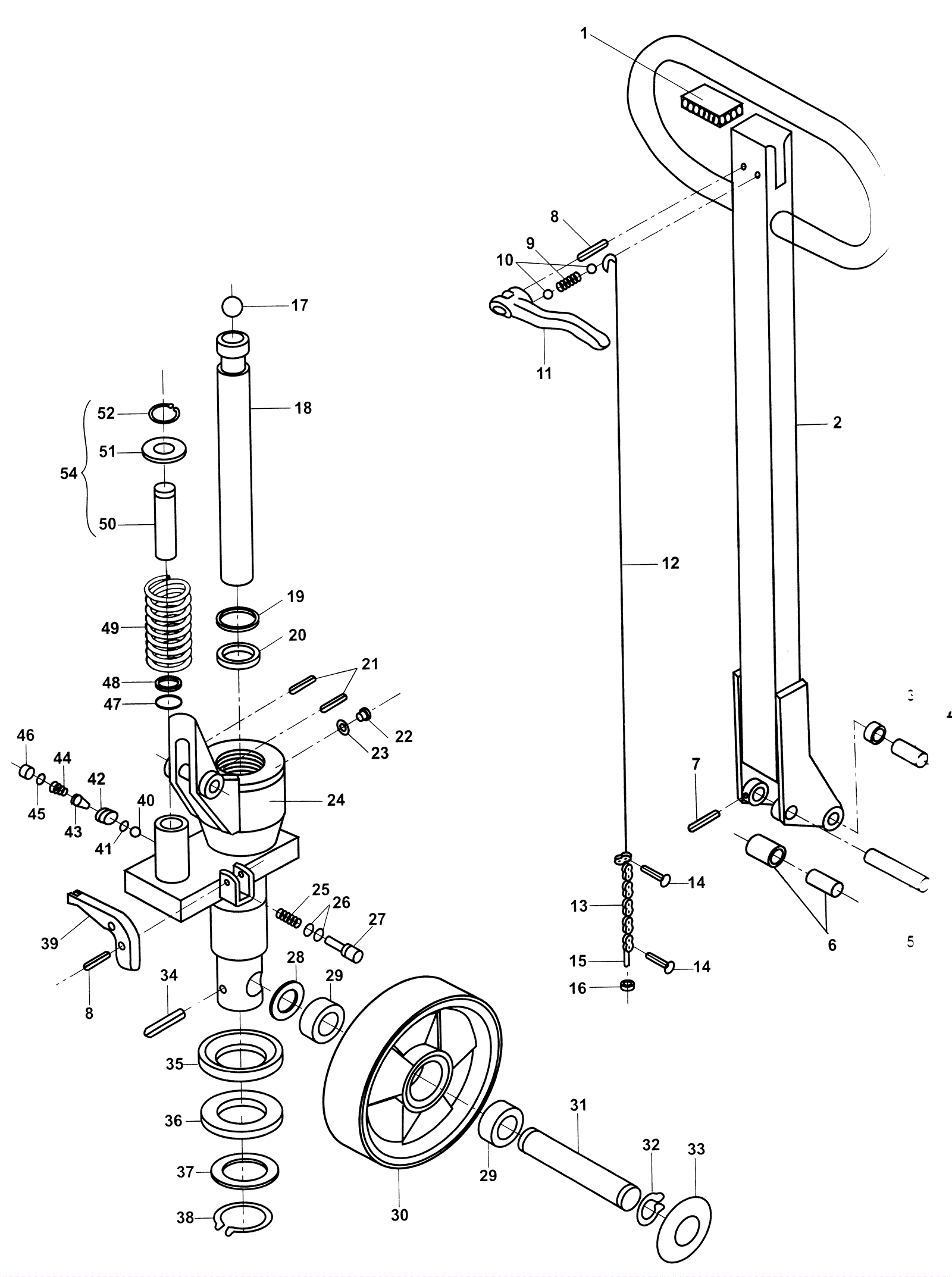

L-55 Hydraulic Unit Assemlby

#PartDescriptionPriceReqNotesAvailability
001 151-0271 Handle cap $4.17 usually ships 1-5 days
002a 151-0272 Handle $74.71 usually ships 1-5 days
002b 151-0273 Handle assembly $145.20 usually ships 1-5 days
003 151-0274 Bushing $4.37 usually ships 5-15 days
004 151-0275 Handle bracket pin $13.62 usually ships 1-5 days
005 151-0276 Pin $6.82 usually ships 5-15 days
006 151-0277 Roller complete with bushing $24.51 usually ships 5-15 days
007 151-0278 Split pin $2.48 usually ships 5-15 days
008 151-0279 Split pin $0.99 usually ships 5-15 days
009 151-0280 Spring $3.26 usually ships 1-5 days
010 151-0234 Ball $0.99 usually ships 1-5 days
011 151-0281 Control lever $36.55 usually ships 1-5 days
012a 151-0282 Control rod $23.76 usually ships 1-5 days
012b 151-0309 Salvaged control rod $29.41 ships same day
013 151-0283 Chain $9.50 usually ships 1-5 days
014 151-0199 Hex head nut stainless steel $1.65 usually ships 5-15 days
015 151-0211 Lower control rod $9.17 usually ships 1-5 days
016 151-0212 Adjusting nut $0.99 usually ships 1-5 days
017 151-0239 Ball $2.38 usually ships 1-5 days
018 151-0284 Ram piston $114.77 usually ships 1-5 days
019 151-0285 Top seal $29.72 usually ships 1-5 days
020 151-0237 U-cup $32.67 usually ships 5-15 days
021 151-0286 Split pin $1.65 usually ships 1-5 days
022 151-0236 Five port lever nut $4.07 usually ships 9-27 days
023 151-0235 Washer $2.11 usually ships 1-5 days
024 151-0304 Hydraulic unit Call for price usually ships 1-5 days
025 151-5029 Spring $2.73 usually ships 1-5 days
026 151-0235 Washer $2.11 usually ships 1-5 days
027 151-5030 Release pin $15.69 usually ships 1-5 days
028 151-0184 Washer $3.30 usually ships 5-15 days
029 151-0287 Ball bearing $14.08 usually ships 1-5 days
030a 151-0288 Steer wheel assembly ultra polypropylene $73.79 usually ships 1-5 days
030b 151-0289 Steer wheel assembly polypropylene $63.23 usually ships 1-5 days
030c 151-5045 Steer wheel assembly $63.23 usually ships 1-5 days
030d 151-0290 Steer wheel assembly steel $76.43 usually ships 1-5 days
031 151-0185 Steer wheel axle 25mm $13.98 usually ships 1-5 days
032 151-0183 Snap ring $1.25 usually ships 1-5 days
033 151-0291 Hub cap $4.62 usually ships 1-5 days
034 151-5012 Roll pin $1.25 usually ships 1-5 days
035 151-0218 Spacer $27.65 usually ships 1-5 days
036 151-0221 Thrust bearing $22.77 usually ships 1-5 days
037 151-0243 Washer $4.09 usually ships 1-5 days
038 151-0222 Snap ring $3.96 usually ships 1-5 days
039 151-0219 Release lever $22.37 usually ships 1-5 days
040 151-0226 Ball $0.99 usually ships 1-5 days
041 151-0194 O-ring $0.99 usually ships 1-5 days
042 151-0292 Cone valve $18.48 usually ships 1-5 days
043 151-0293 Cone $9.16 usually ships 1-5 days
044 151-0195 Spring $1.32 usually ships 1-5 days
045 151-0294 Plug bolt o ring $0.99 usually ships 1-5 days
046 151-0193 Screw plug $2.38 usually ships 1-5 days
047 151-0295 Pump piston seal $20.44 usually ships 5-15 days
048 151-5020 Scraper $5.72 usually ships 5-15 days
049 151-0296 Handle return spring $16.37 usually ships 5-15 days
050 151-0297 Pump piston w/snap ring $46.29 usually ships 5-15 days
051 151-0298 Pump piston washer $9.81 usually ships 5-15 days
052 151-0299 Snap ring $4.09 usually ships 5-15 days
054 151-0300 Pump piston assembly $55.56 usually ships 1-5 days
KIT 151-0301 Seal kit $66.92 usually ships 1-5 days
KIT 151-0302 Ball and valve kit $36.30 usually ships 1-5 days
KIT 151-0303 Seal kit complete $85.80 usually ships 1-5 days
