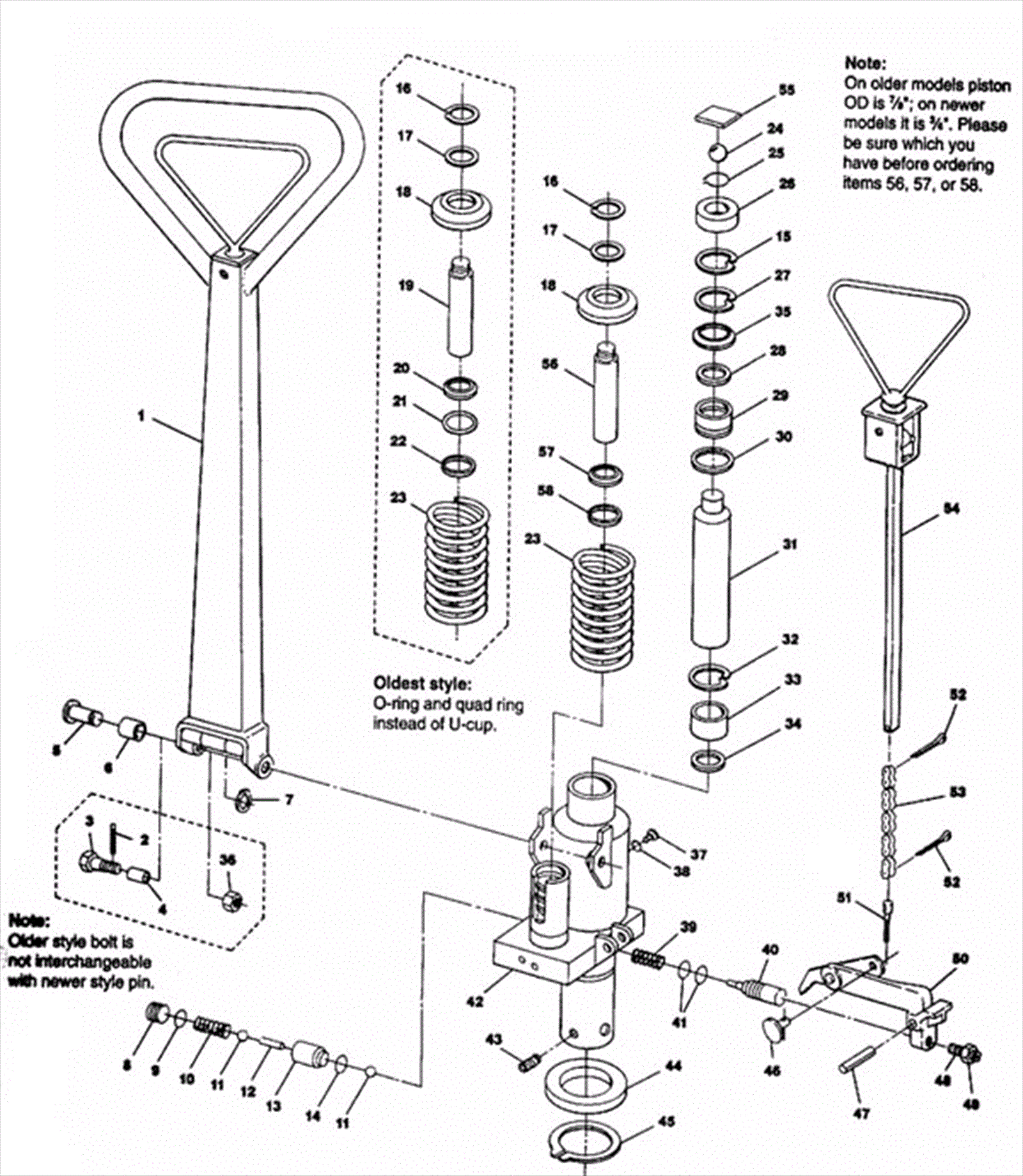

ML66 Hydraulic Unit

#PartDescription ReqNotesAvailability
001 151-0008 Handle assembly newer style
002 151-0061 Roll pin
003 999-0735 Bolt 9/16-18 x 2 hex head grade 5 zinc plated
004 151-0063 Bushing
005 151-0009 Handle pin
006 151-0010 Bushing
007 151-0019 Snap ring
008 151-0066 Screw plug
009 151-0067 O-ring
010 151-0068 Spring
011 151-0069 Ball
012 151-0070 Pin
013 151-0071 Valve
014 151-0072 O-ring
015 151-0073 Snap ring
016 151-0007 Snap ring
017 151-0023 Washer
018 151-0024 Spring cap
019 151-0077 Piston 7/8 OD (older style)
020 151-0078 Scraper 7/8 ID (older style)
021 151-0079 O-ring
022 151-0080 Quad ring
023 151-0081 Spring
024 151-0082 Ball
025 151-0083 Snap ring
026 151-0084 Bearing
027 151-0085 Snap ring
028 151-0086 O-ring
029 151-0087 Bushing
030 151-0088 O-ring
031 151-0089 Ram
032 151-0090 Snap ring
033 151-0091 Bushing
034 151-0092 U-cup
035 151-0093 Scraper
036 151-0094 Nut
037 151-0095 Filler plug
038 151-0096 O-ring
039 151-0097 Spring
040 151-0098 Release pin
041 151-0099 O-ring
042 151-0017 Hydraulic unit- newer style (OBSOLETE)
043 999-0466 Screw 5/16-18 x 3/4 cup point socket alloy plain finish
044 151-0101 Traverse bearing
045 151-0018 Snap ring
046 151-0102 Connecting pin
047 151-0103 Roll pin
048 151-0104 Adjusting screw
049 151-0105 Nut
050 151-0106 Release lever (OBSOLETE)
051 151-0107 Chain connector (OBSOLETE)
052 151-0020 Cotter pin
053 151-0011 Chain
054 151-0109 Control rod
055 151-0110 Plate
056a 151-0111 Piston 3/4 OD newer style
056b 151-0077 Piston 7/8 OD (older style)
057a 151-0113 Scraper 3/4 ID newer
057b 151-0078 Scraper 7/8 ID (older style)
058a 151-0115 MO3076 U-cup 3/4 ID newer style
058b 151-0116 U-cup 7/8 ID older style
058c 151-0117 Seal kit-super
058d 151-0118 Seal kit complete
059 999-0192 Screw 10 x 1/2 hex washer head slotted sheet metal
