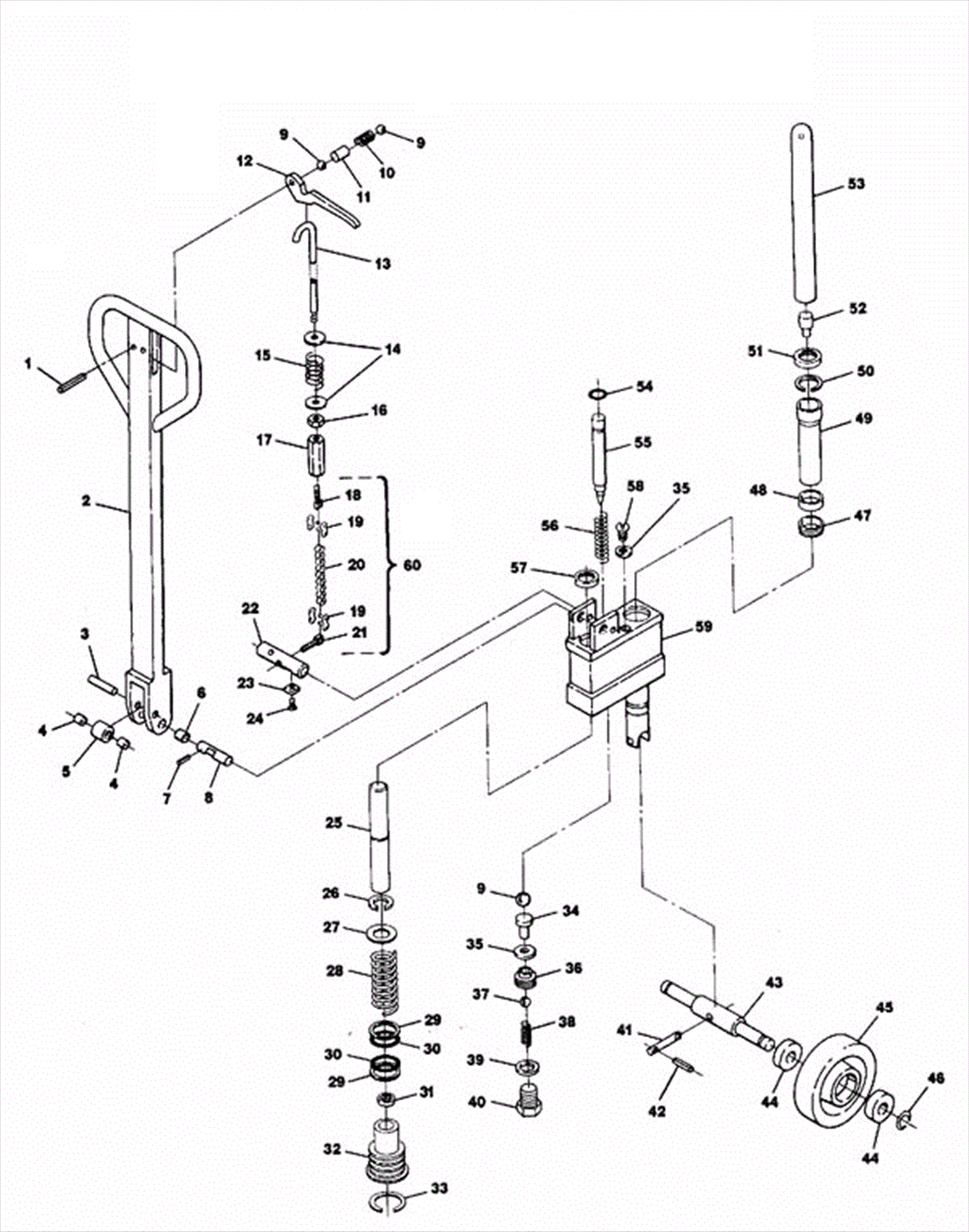

PTH Handle

#PartDescription ReqNotesAvailability
001 150-0027 Roll pin
002a 150-0020 Handle frame
002b 150-0019 Handle assembly
003 150-0134 Handle pin
004 150-0135 Roller bearing
005 150-0136 Roller
006 150-0009 Bushing
007 150-0028 Roll pin
008 150-0054 Handle pin
009 150-0137 Ball bearing inside pump
010 150-0068 Spring
011 150-0139 Trigger sleeve
012 150-0140 Control lever
013 150-0141 Control rod
014 150-0008 Washer
015 150-0041 Spring
016 150-0142 Nut
017 150-0007 Adjusting hex nut for control rod
018 150-0006 Chain connector to hex nut
019 150-0040 Master link
020 150-0039 Chain
021 150-0016 Chain connector
022 150-0143 Pin, controls raising
023 150-0144 Actuating plate
024 150-0145 Screw for actuating plate
025a 150-0146 Piston for pumping the hydraulic fluid
025b 150-0147 Piston & cylinder assembly
026 150-0032 Snap ring
027 150-0148 Inside pump washer
028 150-0149 Handle return spring
029 150-0150 Back-up ring inside pump
030 150-0151 O-ring in pump
031 150-0152 U-cup for PTH
032a 150-0153 Pump cylinder
032b 150-0147 Piston & cylinder assembly
033 150-0155 Snap ring outside of pump at bottom of cylinder
034 150-0156 Tappet inside pump pushes fluid control ball bearings
035 150-0157 Washer in pump under tappet
036 150-0158 Ball housing
037 150-0159 Ball
038 150-0018 Spring
039 150-0160 Washer
040 150-0161 Screw plug
041 150-0010 Pin
042 150-0026 Roll pin
043 150-0015 Steer wheel axle
044 150-0037 Bearing
045 150-0071 Steer wheel assembly poly 20mm ID bearings (This steer wheel 150-0071 is for the older Crown PTH models only. It is not interchangable with the newer PTH50 models, which has a smaller sized steer wheel assembly)
046 150-0032 Snap ring
047 150-0162 Bushing
048 150-0163 U-cup
049 150-0164 Bushing
050 150-0165 Snap ring
051 150-0166 Scraper
052 150-0167 Magnet and sleeve
053 150-0168 Ram assembly
054 150-0169 O-ring
055 150-0170 Release pin
056 150-0171 Spring
057 150-0172 Scraper
058 150-0173 Filler plug
059 150-0022 Rebuilt hydraulic pump- 90 Day warranty
060 150-0044 Chain assembly
KIT 150-0174 Seal kit, super (PTH)
KIT 150-0176 Seal kit, Universal PTH
KIT 150-0058 Seal kit complete
KIT 150-0175 Seal kit, super, Universal PTH
