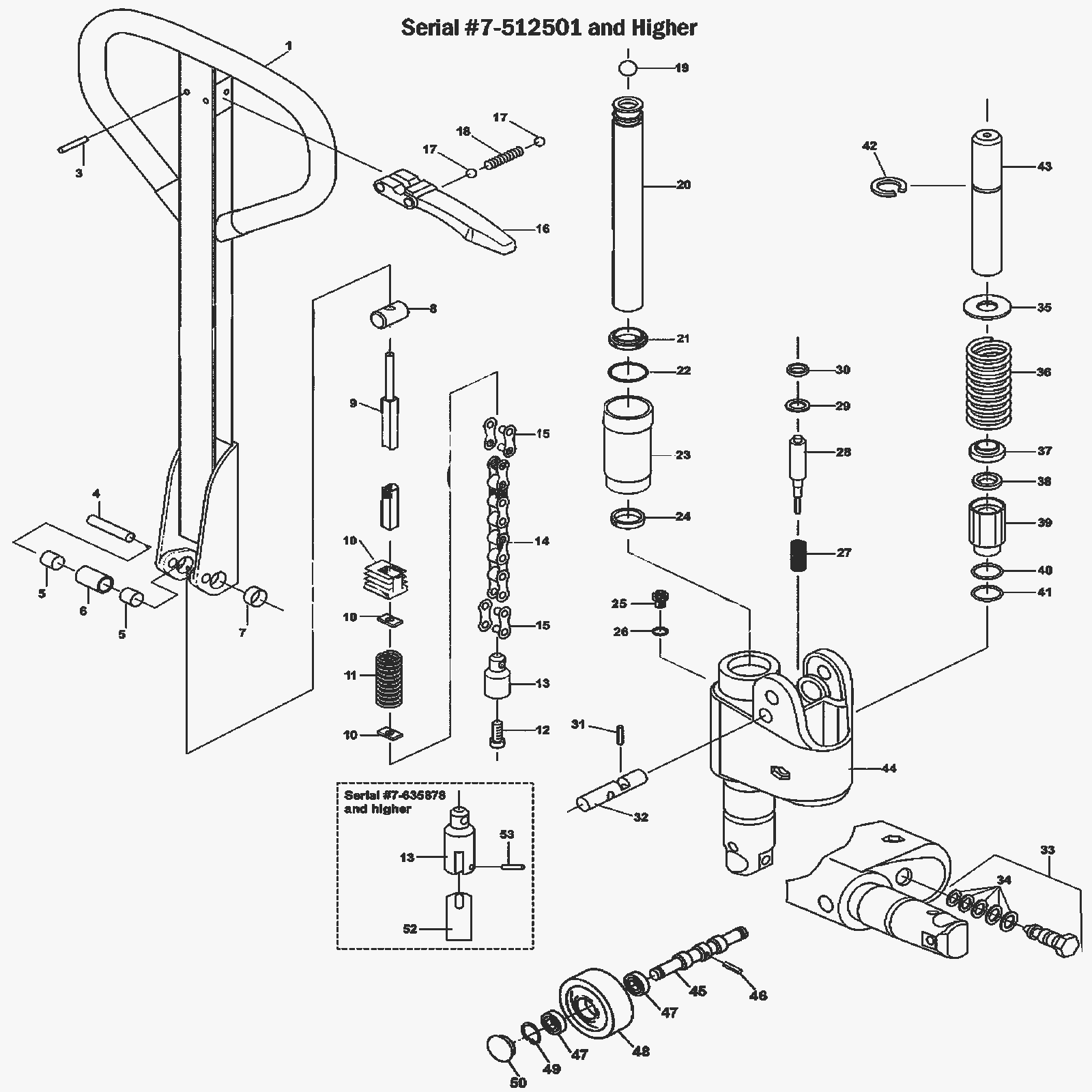

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
150-0224
|
Handle assembly (PTH50) |
|
(includes items 3-18) |
|
1b |
150-0374
|
Handle assembly |
|
(includes items 3-18 and 52-53) |
|
3 |
150-0027
|
Roll pin |
|
|
|
4 |
150-0377
|
Roller axle |
|
|
|
5 |
150-0226
|
Roller bushing |
|
|
|
6 |
150-0378
|
Roller |
|
|
|
7 |
150-0035
|
Handle bushing |
|
|
|
8 |
150-0065
|
Barrel nut |
|
|
|
9 |
150-0066
|
Control rod |
|
|
|
10 |
150-0067
|
Insert assembly |
|
|
|
11 |
150-0041
|
Spring |
|
|
|
12 |
150-0031
|
Pump pin screw |
|
|
|
13a |
150-0025
|
Chain connector (PTH50) |
|
(SN 7-512501 to 7-635878) |
|
13b |
150-0380
|
Chain connector |
|
(SN 7-635878 and higher) |
|
13c |
150-0381
|
Chain connector kit |
|
(SN 7-635878 and higher) |
|
14 |
150-0023
|
Chain (PTH50) |
|
|
|
15 |
150-0382
|
Master link |
|
|
|
16 |
150-0069
|
Control lever |
|
|
|
17 |
150-0137
|
Ball bearing inside pump |
|
|
|
18 |
150-0068
|
Spring |
|
|
|
19 |
150-0100
|
Ball |
|
|
|
20 |
150-0384
|
Ram |
|
|
|
21 |
150-0166
|
Scraper |
|
(included in KIT1 and KIT2) |
|
22 |
150-0165
|
Snap ring |
|
(included in KIT1 and KIT2) |
|
23 |
150-0164
|
Bushing |
|
|
|
24 |
150-0163
|
U-cup |
|
(included in KIT1 and KIT2) |
|
25 |
150-0173
|
Filler plug |
|
|
|
26 |
150-0157
|
Washer in pump under tappet |
|
(included in KIT1 and KIT2) |
|
27 |
150-0271
|
Spring |
|
(included in KIT1 and KIT2) |
|
28 |
150-0385
|
Control Piston |
|
(included in KIT2) |
|
29 |
150-0386
|
O-ring |
|
(included in KIT1 and KIT2) |
|
30 |
150-0387
|
Wiper |
|
|
|
31 |
150-0064
|
Roll pin |
|
(included in KIT1 and KIT2) |
|
32a |
150-0388
|
Pin |
|
(SN 7-512501 to 7-635878) |
|
32b |
150-0389
|
Camshaft |
|
(SN 7-635878 and higher) |
|
33 |
150-0390
|
Pump cartridge |
|
(included in KIT2) |
|
34 |
150-0391
|
O-ring |
|
(included in KIT1 and KIT2) |
|
35 |
150-0241
|
Washer |
|
|
|
36 |
150-0242
|
Handle return spring (PTH50) |
|
|
|
37 |
150-0272
|
Scraper |
|
(included in KIT1 and KIT2) |
|
38 |
150-0245
|
U-cup (PTH50) |
|
(included in KIT1 and KIT2) |
|
39 |
150-0392
|
Pump cylinder |
|
|
|
40 |
150-0393
|
Back up ring |
|
(included in KIT1 and KIT2) |
|
41 |
150-0394
|
O-ring |
|
(included in KIT1 and KIT2) |
|
42 |
150-0240
|
Snap ring |
|
|
|
43 |
150-0395
|
Pump piston |
|
(included in KIT2) |
|
44a |
150-0375
|
Rebuilt pump assembly |
|
(SN 7-512501 to 7-635878) |
|
44b |
150-0376
|
Rebuilt pump assembly (requires $350 core fee) (OBSOLETE) |
|
(SN 7-635878 and higher) |
|
44c |
150-0396
|
Pump assembly |
|
|
|
45 |
150-0257
|
Steer wheel axle |
|
|
|
46 |
150-0256
|
Roll pin |
|
|
|
47 |
150-0037
|
Bearing |
|
|
|
48a |
150-0356
|
Ultra poly steer wheel assembly on aluminum hub (red) |
|
|
|
48b |
150-0357
|
Poly steer wheel assembly on nylon hub (black) |
|
|
|
48c |
150-0358
|
Nylon steer wheel assembly with bearings |
|
|
|
48d |
150-0359
|
Steel steer wheel assembly with bearings |
|
|
|
48e |
150-0351
|
Complete wheel kit, 2 load wheels, 2 steer wheels & hardware |
|
|
|
49 |
150-0032
|
Snap ring |
|
|
|
50a |
150-0070
|
Hub cap |
|
(OEM wheel only) |
|
50b |
150-0360
|
Hub cap (GPS wheel only) |
|
(GPS wheel only) |
|
52 |
150-0397
|
Spring stopper |
|
|
|
53 |
150-0398
|
Roll pin |
|
|
|
N/S |
150-0362
|
Handle axle |
|
(SN 7-635878 and higher) |
|
KIT1 |
150-0372
|
Seal kit |
|
|
|
KIT2 |
150-0373
|
Super seal kit |
|
|
|
KIT3 |
150-0379
|
Control rod |
|
(includes items 9, 13-15, 52, and 53) |
|
KIT4 |
150-0353
|
Chain assembly |
|
(includes items 12-15) |
|
KIT5 |
150-0383
|
Chain assembly |
|
(includes items 14-15) |
|
KIT6 |
150-0354
|
Rod and chain assembly |
|
(includes items 8-15) |
|
