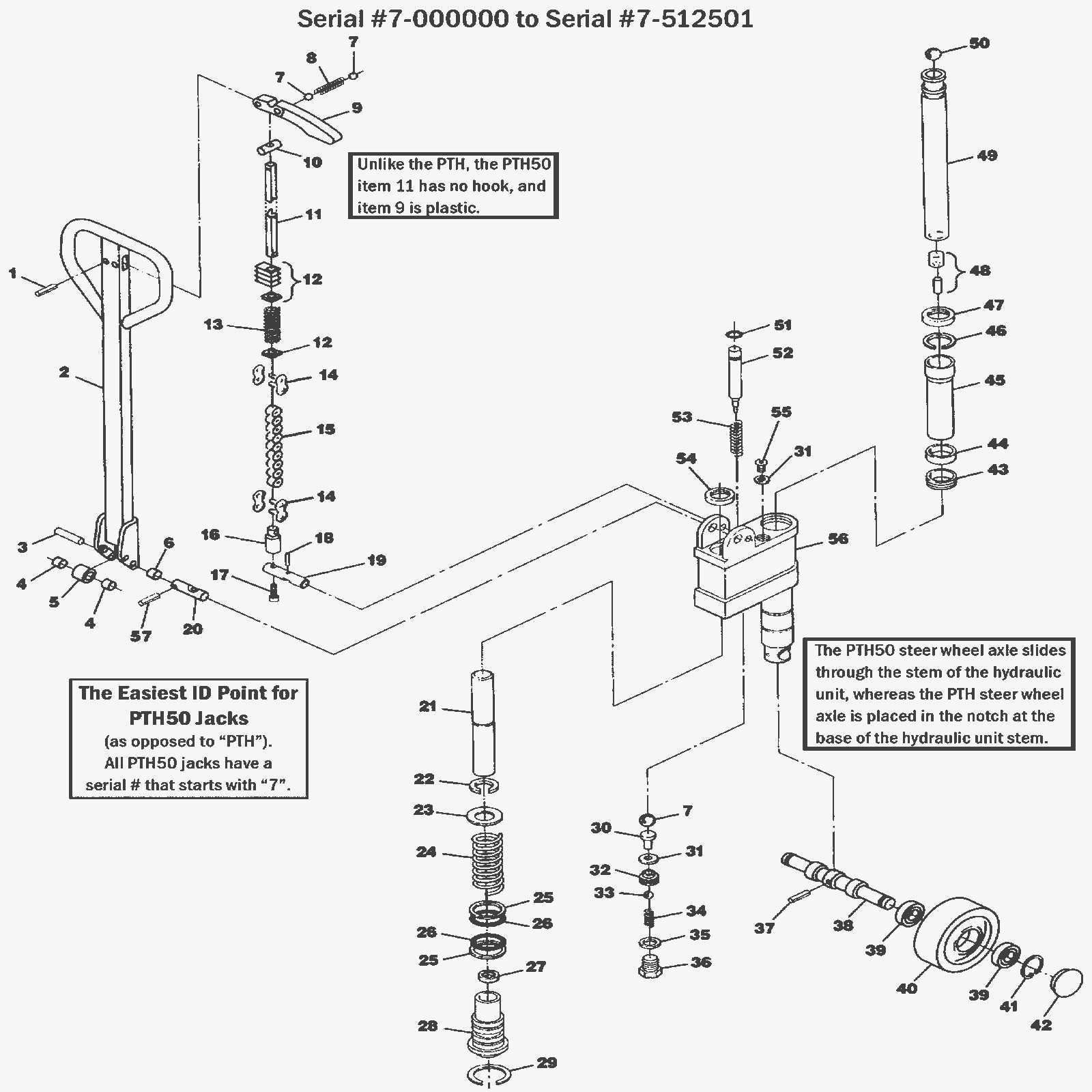

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
150-0027
|
Roll pin |
|
|
|
2 |
150-0224
|
Handle assembly (PTH50) |
|
|
|
3 |
150-0225
|
Handle pin |
|
|
|
4 |
150-0226
|
Roller bushing |
|
|
|
5 |
150-0227
|
Roller |
|
|
|
6 |
150-0035
|
Handle bushing |
|
|
|
7 |
150-0137
|
Ball bearing inside pump |
|
(included in KIT1 and KIT2) |
|
8 |
150-0068
|
Spring |
|
|
|
9 |
150-0069
|
Control lever |
|
|
|
10 |
150-0065
|
Barrel nut |
|
|
|
11 |
150-0066
|
Control rod |
|
|
|
12 |
150-0067
|
Insert assembly |
|
|
|
13 |
150-0041
|
Spring |
|
|
|
14 |
150-0024
|
Master link (PTH50) |
|
|
|
15 |
150-0023
|
Chain (PTH50) |
|
|
|
16 |
150-0025
|
Chain connector (PTH50) |
|
|
|
17 |
150-0031
|
Pump pin screw |
|
|
|
18 |
150-0064
|
Roll pin |
|
(included in KIT1) |
|
19 |
150-0236
|
Pump pin |
|
|
|
20 |
150-0045
|
Handle pin |
|
|
|
21a |
150-0238
|
Piston |
|
(included in KIT1) |
|
21b |
150-0239
|
Piston and cylinder assembly |
|
|
|
22 |
150-0240
|
Snap ring |
|
(included in KIT1) |
|
23 |
150-0241
|
Washer |
|
|
|
24 |
150-0242
|
Handle return spring (PTH50) |
|
|
|
25 |
150-0150
|
Back-up ring inside pump |
|
(included in KIT1 and KIT2) |
|
26 |
150-0151
|
O-ring in pump |
|
(included in KIT1 and KIT2) |
|
27 |
150-0245
|
U-cup (PTH50) |
|
(included in KIT1 and KIT2) |
|
28 |
150-0246
|
Pump cylinder |
|
|
|
29 |
150-0155
|
Snap ring outside of pump at bottom of cylinder |
|
(included in KIT1) |
|
30 |
150-0156
|
Tappet inside pump pushes fluid control ball bearings |
|
(included in KIT1 and KIT2) |
|
31 |
150-0157
|
Washer in pump under tappet |
|
(included in KIT1 and KIT2) |
|
32 |
150-0158
|
Ball housing |
|
(included in KIT1 and KIT2) |
|
33 |
150-0159
|
Ball |
|
(included in KIT1 and KIT2) |
|
34 |
150-0018
|
Spring |
|
(included in KIT1 and KIT2) |
|
35 |
150-0160
|
Washer |
|
(included in KIT1 and KIT2) |
|
36 |
150-0161
|
Screw plug |
|
(included in KIT1) |
|
37 |
150-0256
|
Roll pin |
|
|
|
38 |
150-0257
|
Steer wheel axle |
|
|
|
39 |
150-0037
|
Bearing |
|
|
|
40a |
150-0356
|
Ultra poly steer wheel assembly on aluminum hub (red) |
|
|
|
40b |
150-0357
|
Poly steer wheel assembly on nylon hub (black) |
|
|
|
40c |
150-0358
|
Nylon steer wheel assembly with bearings |
|
|
|
40d |
150-0359
|
Steel steer wheel assembly with bearings |
|
|
|
40e |
150-0351
|
Complete wheel kit, 2 load wheels, 2 steer wheels & hardware |
|
|
|
41 |
150-0032
|
Snap ring |
|
|
|
42a |
150-0070
|
Hub cap |
|
|
|
42b |
150-0360
|
Hub cap (GPS wheel only) |
|
|
|
43 |
150-0162
|
Bushing |
|
(included in KIT1 and KIT2) |
|
44 |
150-0163
|
U-cup |
|
(included in KIT1 and KIT2) |
|
45 |
150-0164
|
Bushing |
|
|
|
46 |
150-0165
|
Snap ring |
|
(included in KIT1) |
|
47 |
150-0166
|
Scraper |
|
(included in KIT1 and KIT2) |
|
48 |
150-0167
|
Magnet and sleeve |
|
|
|
49 |
150-0267
|
Ram assembly |
|
|
|
50 |
150-0100
|
Ball |
|
|
|
51 |
150-0269
|
O-ring |
|
(included in KIT1 and KIT2) |
|
52 |
150-0270
|
Release pin |
|
|
|
53 |
150-0271
|
Spring |
|
(included in KIT1 and KIT2) |
|
54 |
150-0272
|
Scraper |
|
(included in KIT1 and KIT2) |
|
55 |
150-0173
|
Filler plug |
|
(included in KIT1) |
|
56 |
150-0361
|
Rebuilt hydraulic unit (OBSOLETE) |
|
|
|
57 |
150-0028
|
Roll pin |
|
|
|
KIT1 |
150-0352
|
Super seal kit |
|
|
|
KIT2 |
150-0059
|
Seal kit complete (PTH50) |
|
|
|
KIT3 |
150-0353
|
Chain assembly |
|
(includes items 14-17) |
|
KIT4 |
150-0354
|
Rod and chain assembly |
|
(includes items 10-17) |
|
KIT5 |
150-0355
|
Chain and link kit |
|
(includes items 14-15) |
|
