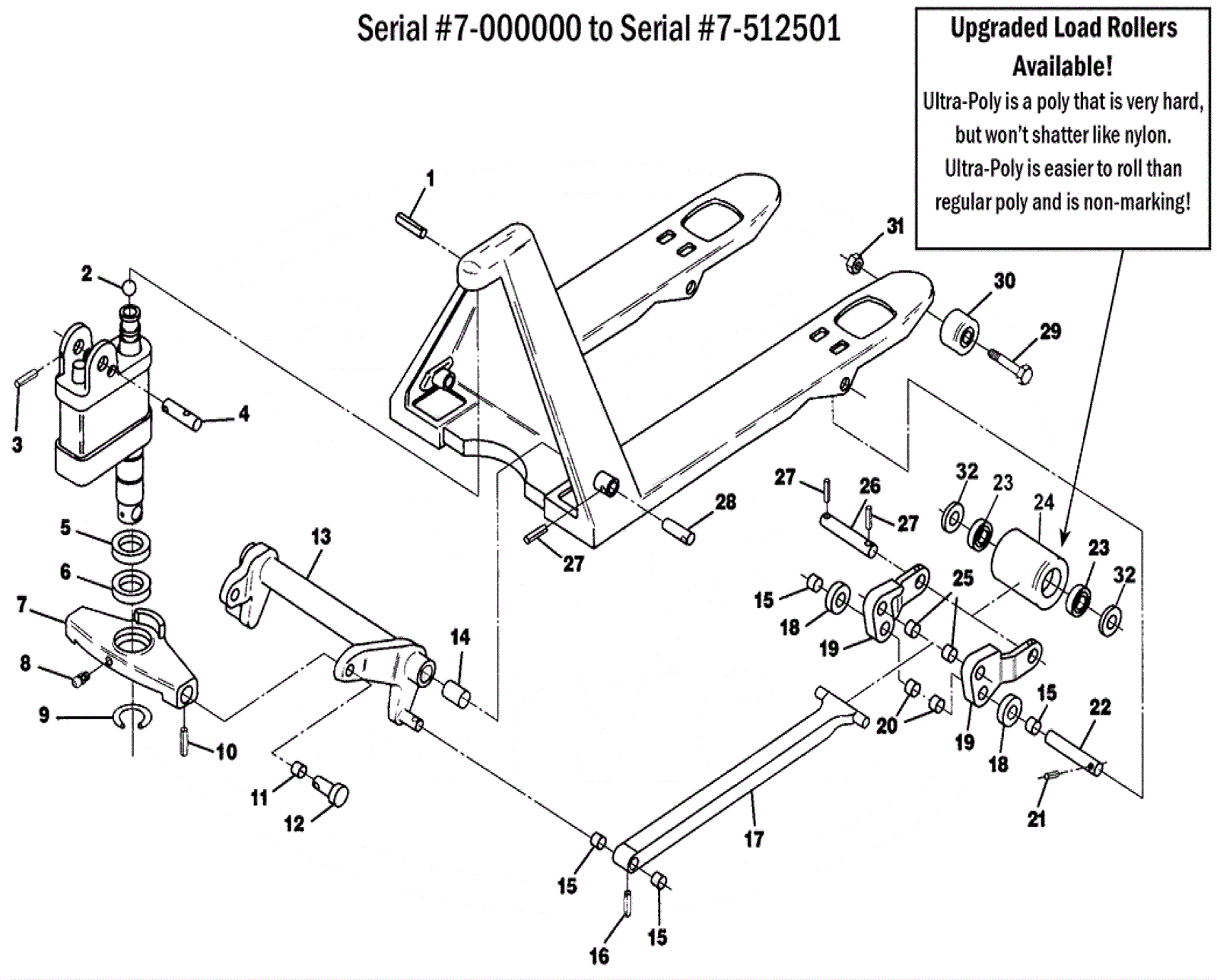

PTH50 Frame Assembly - Up to SN 7-512501

#PartDescriptionPriceReqNotesAvailability
1 150-0346 Roll pin $0.99 usually ships 11-14 days
2 150-0100 Ball $2.66 usually ships 11-14 days
3 150-0028 Roll pin $0.96 ships same day
4 150-0045 Handle pin $18.30 ships same day
5 150-0102 Washer $53.63 usually ships 11-14 days
6 150-0036 Traverse bearing $23.52 usually ships 11-14 days
7 150-0104 Traverse $364.90 usually ships 11-14 days
8 150-0061 Grease fitting $1.68 ships same day
9 150-0033 Snap ring $1.82 usually ships 11-14 days
10 150-0119 Roll pin $0.50 usually ships 11-14 days
11 150-0011 Bushing $3.38 usually ships 11-14 days
12 150-0107 Shoulder pin $12.50 ships same day
13 150-0109 Lifting link 27 wide truck - SPECIAL ORDER $191.65 usually ships 1-5 days
14 150-0110 Bushing $6.78 usually ships 11-14 days
15 150-0111 Bushing $9.44 usually ships 11-14 days
16 150-0112 Roll pin $0.99 ships same day
17a 150-0114 Push rod 42 forks - SPECIAL ORDER $220.44 (special order) usually ships 1-5 days
17b 150-0115 Push rod, 48 inch forks $61.40 (includes item 15) usually ships 11-14 days
18 150-0116 Exit roller $4.44 ships same day
19 150-0117 Load roller brackets - SPECIAL ORDER Pair $87.67 (includes 20 and 25) usually ships 11-14 days
20 150-0118 Bushing $5.47 usually ships 11-14 days
21 150-0106 Roll pin $0.99 usually ships 11-14 days
22 150-0120 Pivot axle $13.66 ships same day
23 150-0037 Bearing $4.99 usually ships 11-14 days
24a 150-0348 Load roller assembly, ultra poly on aluminum hub w/ bearings $53.83 ships same day
24b 150-0349 Load roller assembly, ultra poly on steel hub w/ bearings $57.33 ships same day
24c 150-0290 Nylon load roller assembly, PTH50 $50.75 usually ships 11-14 days
24d 150-0308 Steel load roller assembly, PTH50 $38.90 usually ships 11-14 days
25 150-0122 Push rod bushing $5.68 usually ships 11-14 days
26 150-0048 PTH50 Load roller axle $12.78 usually ships 11-14 days
27 150-0029 Roll pin $0.99 ships same day
28 150-0123 Lifting link pin $15.33 ships same day
29 999-0467 Bolt M8-1.25 x 55mm hex head part thread zinc $0.99 ships same day
30 150-0125 Entry roller $8.16 ships same day
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 ships same day
KIT1 150-0308 Steel load roller assembly, PTH50 $38.90 usually ships 11-14 days
KIT2 150-0350 Load wheel kit, 2 load wheels, axles and fasteners $153.56 ships same day
KIT3 150-0351 Complete wheel kit, 2 load wheels, 2 steer wheels & hardware $266.62 ships same day
