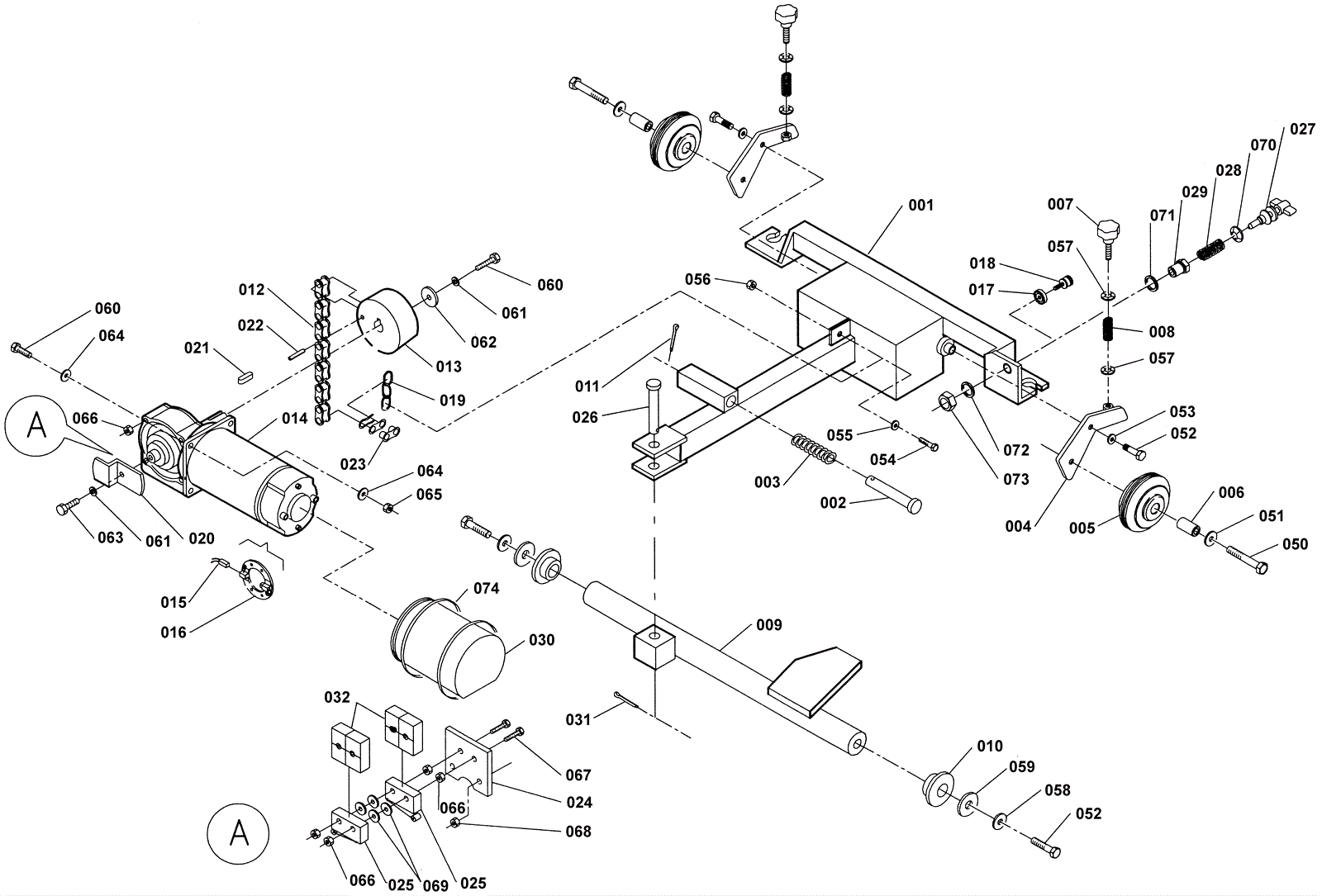

| # | Part | Description |
Req | Notes | Availability |
|---|
005 |
189-6388
|
Squeegee wheel |
|
|
|
007 |
189-6208
|
Knob |
|
|
|
008 |
189-6390
|
Spring |
|
|
|
030 |
250-1154
|
Squeegee motor |
|
|
|
050 |
189-6389
|
Screw M10 x 60mm |
|
|
|
051 |
999-9099
|
Washer M10 flat stainless steel |
|
|
|
057 |
189-9094
|
Washer M8 external serrated lock zinc |
|
|
|
