- CLEANING AND/OR REPLACING THE SOLUTION FILTER
 Level of Difficulty - MEDIUM  Estimated Completion Time - 15 minutes

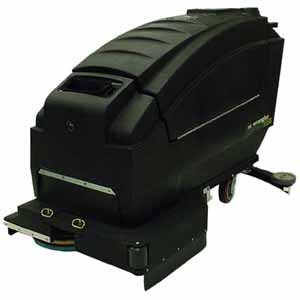

NSS - WRANGLER 3330

Tools Required

Parts Required
PartDescriptionPriceAvailablePurchase
164-1435 Solution filter kit $52.50 Back Order Qty:
164-9126 Inline canister strainer $31.16 Back Order Qty:


Step Procedure & Parts & Tools
1 LOCATE THE STRAINER LABEL ON LOWER LEFT SIDE OF MACHINE. (STANDING IN THE OPERATOR POSITION)

2 REACH HAND UP UNDERNEATH THE MACHINE UNTIL YOU FEEL THE SOLUTION FILTER.

3 TWIST THE SOLUTION FILTER TO REMOVE IT FROM THE MACHINE. UNSCREW THE CAP TO EXPOSE THE SCREEN.

PartDescriptionPriceQty
164-1435 Solution filter kit $52.50 Qty:
4 PULL THE SCREEN OUT OF FILTER AND RINSE UNDER WATER TO REMOVE DIRT AND DEBRIS.

PartDescriptionPriceQty
164-9126 Inline canister strainer $31.16 Qty:
5 REVERSE STEPS 2 THRU 4 TO REINSTALL CLEAN FILTER OR TO REPLACE THE FILTER.
