Parts List Complete for WINDSOR VOYAGER E

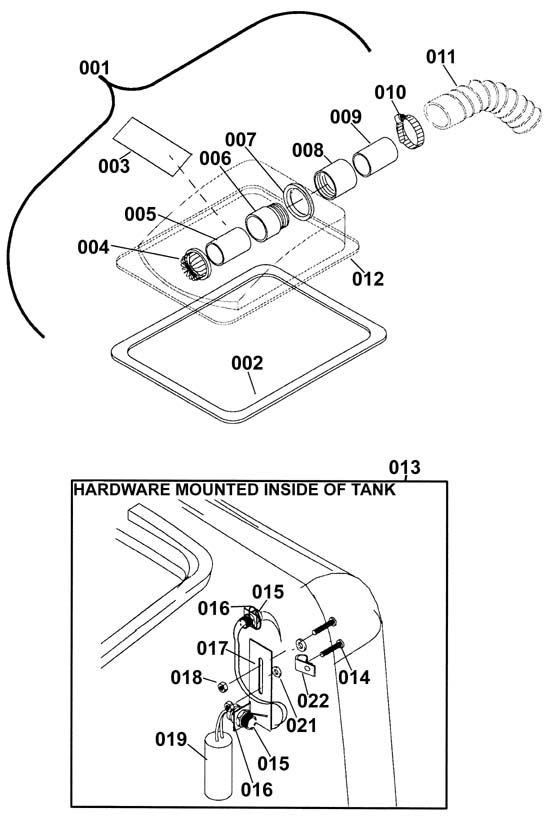

Dome and Float Assemblies - 173-6084
RefNbr Part Number Description Req Notes
001 173-0600 Dome assembly 1 Includes 003-010
002 173-0592 Dome gasket 1
003 173-2228 Warning decal 1
004 173-3654 Vacuum intake filter 1
005 173-0582 Tube 1
006 173-0586 Adapter 1
007 173-0588 Spacer 1
008 173-0597 Adapter 1
009 173-0596 Tube 1
010 997-2007 Hose clamp 1
011 173-0390 Hose vac 1
012 173-0578 Tank dome 1
013 173-7092 Shut off float assembly 1
014 999-0744 Screw 10-32 x 1 3/4 pan head phillips zinc plated 2
015 173-1273 Sealed bulkhead fitting 2
016 173-2574 Nut 3/8 hex brass nickel plated thread 2
017 173-0598 Float bracket 1
018 173-2472 Nut 10-32 with star washer 2
019 173-5167 Recovery shut-off float 1
021 173-7093 Washer #10 flat neoprene 2
022 173-1800 5/16 nylon clamp (OBSOLETE) 1

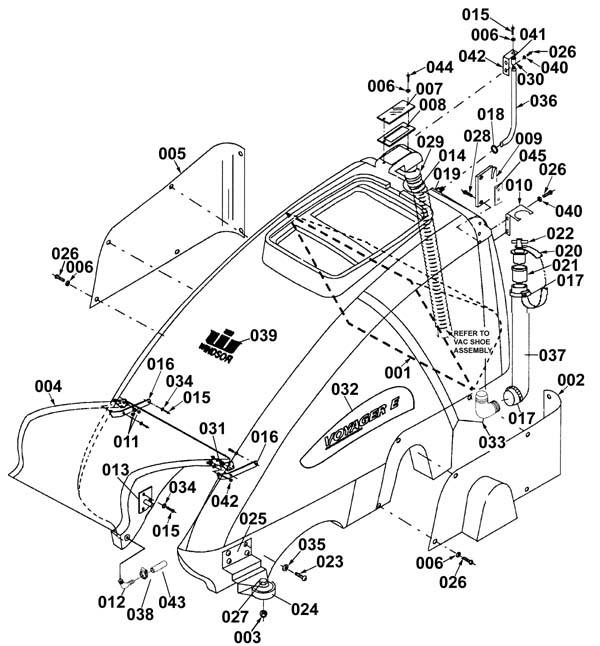

Tank Assembly - 173-6085
RefNbr Part Number Description Req Notes
001 173-7082 Tank assembly with diaphragm (OBSOLETE) 1
002 173-7083 Left tank cover 1
003 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
004 173-0576 Front tank cover 1
005 173-0577 Right side tank cover 1
006 999-0998 Washer #10 flat stainless steel 12
007 173-0579 Sight window cover 1
008 173-0580 Sight window gasket 1
009 173-0581 Rear frame tank mounting plate 1
010 173-0599 Recovery hose mounting bracket (OBSOLETE) 1
011 173-2472 Nut 10-32 with star washer 6
012 173-7084 Hose barb 45 degree 1/4 x 3/8 2
013a 173-0583 Right tank pivot assembly 1
013b 173-0584 Left tank pivot assembly 1
014 173-0585 Hose assembly 1
015 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 5
016 173-0595 Hinge bracket 2
017 189-0329 Hose clamp 2
018 997-2000 Hose clamp 1
019 173-0613 Hosebarb 1
020 189-4123 Drain plug tether 1
021 189-4130 1/2 inch hosebarb 1
022 173-1213 Drain plug 1
023 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 6
024 189-0326 Bumper wheel 2
025 173-7085 Guide wheel bracket assembly (OBSOLETE) 1
026 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 14
027 173-0594 Drain hose plug bracket 1
028 173-2753 Screw 1/4-20 x 3/4 flat head cap screw 4
029 997-2007 Hose clamp 1
030 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
031a 173-0589 Left door hinge 1
031b 173-0590 Right door hinge 1
032a 173-7086 Voyager logo left label 1
032b 173-7087 Voyager logo right label 1
033 173-7088 Hose barb 1-1/2 x 1-1/2 1
034 999-0017 Washer 1/4 external star lock 8
035 999-1049 Washer 1/4 split lock zinc plated 6
036 173-0593 Solution drain hose with stamp 1
037 173-1216 Drain hose 1 1/2 x 24 inch 1
038 173-1821 Hose clamp 4
039 173-7089 Windsor logo label (OBSOLETE) 1
040 999-0311 Washer #10 external star lock zinc plated 4
041 173-1175 Hosebarb 1
042 999-0086 Nut 10-32 nylon insert lock zinc plated 2
043 173-7090 Hose 3/8 x 11 nylon braid 2
044 173-2454 Screw 10-3/4 polyfast 2
045 173-7091 Spacer plate 3

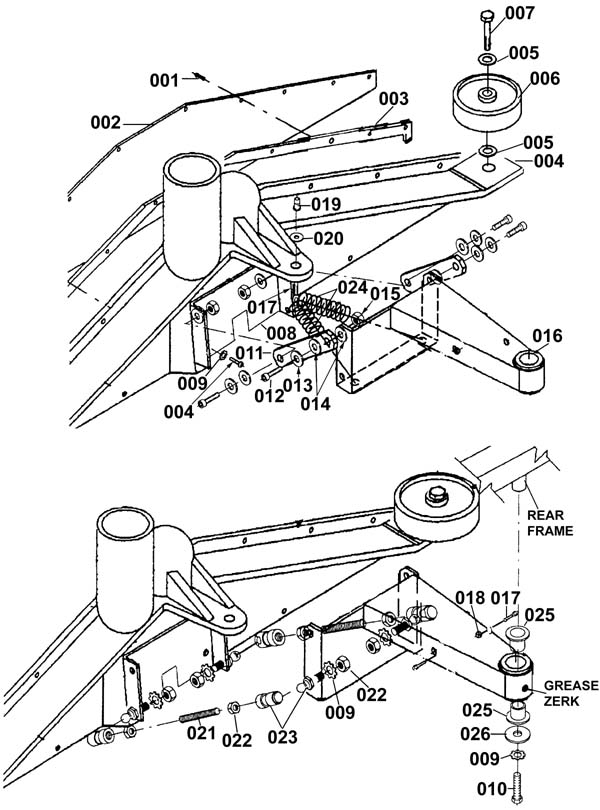

Vac Shoe Assembly - 173-6086
RefNbr Part Number Description Req Notes
001 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 13
002 173-0601 Vacuum shoe cover plate 1
003 173-0602 Vacuum shoe plate gasket 1
004 173-0603 28 inch vacuum shoe 1
005 999-0617 Washer 3/8 x 1 flat stainless steel 4
006 189-0326 Bumper wheel 2
007 173-0503 Screw 3/8-16 x 1-3/4 hex head cap screw 2
008 173-0604 Vac shoe linkage plated bracket 1
009 999-0017 Washer 1/4 external star lock 9
010 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
011 173-0605 Squeegee arm assembly 2
012 173-5107 Bolt 5/16 x 3/8 shoulder 4
013 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
014 999-1007 Washer 3/8 x 1/16 flat nylon 8
015 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
016 173-0606 Vacuum shoe pivot bracket assembly 1
017 173-0607 Eyebolt 8-32 x 1 3
018 999-0151 Nut 8-32 nylon insert lock zinc plated 2
019 173-0608 Vacuum shoe adjustment knob (OBSOLETE) 1
020 999-0998 Washer #10 flat stainless steel 1
021 999-1048 Screw 1/4-28 x 2 1/2 round head slotted 2
022 999-0952 Nut 1/4-28 hex stainless steel 8
023 173-0609 Ball joint assembly (OBSOELTE) 4
024 173-1478 Extension spring 2
025 173-0610 Flanged bushing 2
026 999-0016 Washer 1/4 flat plain finish 1

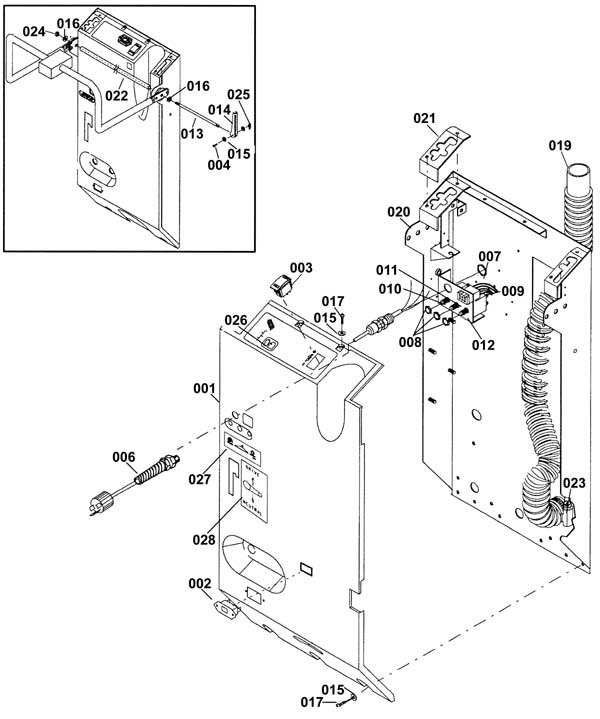

Rear Tower Electrical Components - 173-6087
RefNbr Part Number Description Req Notes
001 173-7066 Double trimmed rear cover (OBSOLETE) 1
002 173-7067 Vacuum hour meter 1 Non resetable
003 189-0319 2 position rocker switch 1
004 173-0419 Clevis pin 1
006 173-2744 Pigtail cord 1
007 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) 1
008 173-5074 Nut 3/8-27 dress panel 3
009 173-7068 Propel board wire harness 1
010 991-1624 3amp circuit breaker 1
011 173-7069 Circuit breaker 13a (OBSOLETE) 1
012 173-7070 Circuit breaker 4a 1
013 173-0395 Handle adjustment rod 1
014 173-0418 Handle locking lever 1
015 999-0998 Washer #10 flat stainless steel 6
016 173-2548 Washer M10 x 30mm plated 2
017 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 4
019 173-7071 Vacuum hose 2 x 43 inches 1
020 173-0391 Rear frame 1
021 173-0394 Adjustment plate kit 1
022 173-0393 Handle adjustment tube 1
023 997-2007 Hose clamp 1
024 999-0488 Nut 3/8-16 flange lock serrated zinc plated 1
025 173-1130 Cotter ring 1
026 173-7072 Control panel label 1
027 173-7073 Circuit breaker label (OBSOLETE) 1
028 173-7074 Rear cover label 1

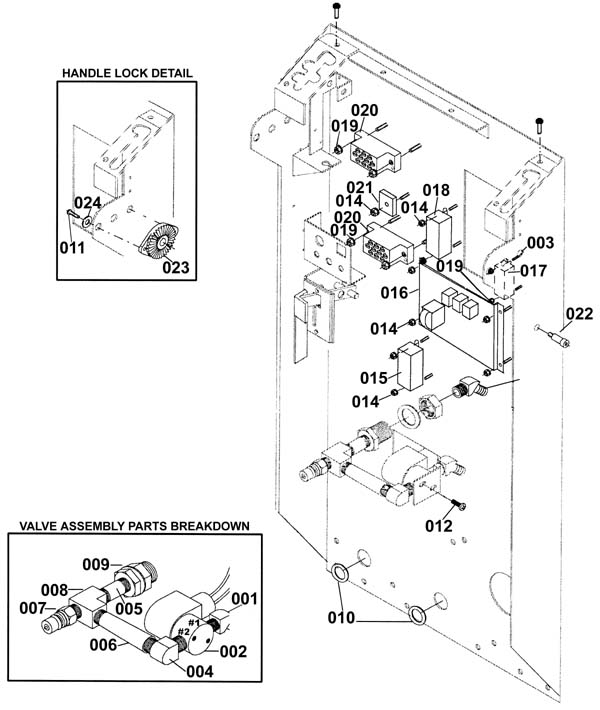

Rear Tower Valve - Electrical Assemblies - 173-6088
RefNbr Part Number Description Req Notes
001 173-1937 1/2 hosebarb 2
002 173-0574 2 way solenoid valve 1
003 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
004 173-2098 Street elbow 1/4 1
005 173-0573 Nipple 1/4 x 1-3/4 1
006 173-7063 Nipple 1/4 x 3-1/4 1
007 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
008 173-2314 1/4 inch street tee 1
009 189-4207 Anchor coupling 1
010 173-1891 Grommet 2
011 999-1043 Screw 10-32 x 1/4 pan head phillips stainless steel 4
012 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 2
015 173-7064 Relay (OBSOLETE) 1
016 173-7065 Propel controller 1
017 173-0918 Transformer assembly 115v 1
018 173-5077 Relay 30 amp 1
019 173-2522 Nut 6-32 with star washer 6
020 173-1888 Terminal block 2
021 173-5076 Rectifier bridge 115v 1
022 173-1239 Bolt 5/16 x 3/4 shoulder 3
023 173-5097 Handle adjustment lock 2
024 999-0998 Washer #10 flat stainless steel 4

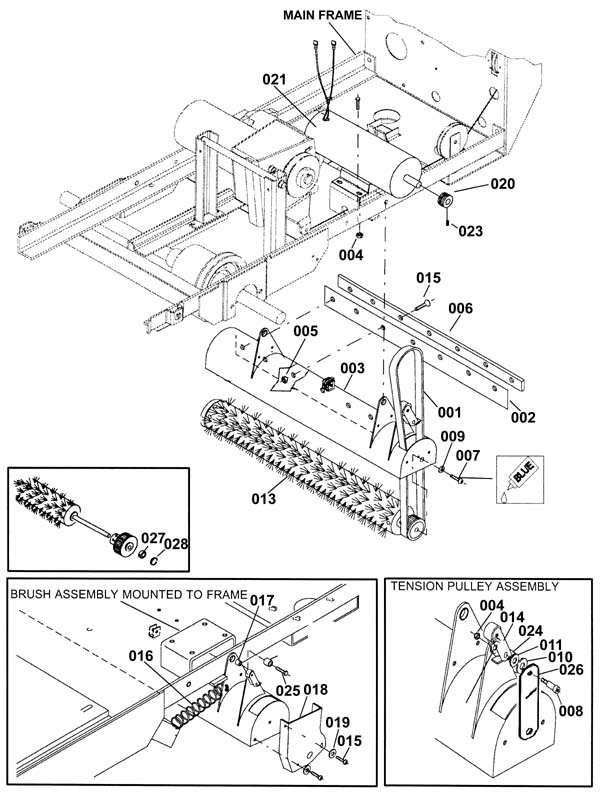

Brush Assembly - 173-6089
RefNbr Part Number Description Req Notes
001 173-0566 Brush drive belt assembly (OBSOLETE) 1
002 173-0530 Splash guard 1
003 173-0519 Brush housing 1
004 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
005 173-2472 Nut 10-32 with star washer 7
006 173-0531 Splash guard retainer 1
007 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 6
008 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 1
009 999-0017 Washer 1/4 external star lock 2
010 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
011 999-1007 Washer 3/8 x 1/16 flat nylon 1
012 999-1053 Washer 5/16 internal star lock stainless steel 1
013 173-0537 Brush assembly 1
014 173-0536 Pulley assembly 1
015 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 9
016 173-0532 Extension spring 2
017 173-2337 1/2 cylinder bearing 2
018 173-0575 Belt guard cover 1
019 999-0998 Washer #10 flat stainless steel 2
020 173-2031 Poly-V belt motor pulley 1
021 173-7102 Brush motor assembly (OBSOLETE) 1
022 173-0526 Spacer 2
023 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
024 173-2178 Compression spring 1
025 173-0524 Screw 3/8-16 x 3/4 button head machine 2
026 173-0538 Pulley plate 1
027 173-2030 Shielded bearing (OBSOLETE) 2
028 173-2263 Internal snap ring 1-1/8 1

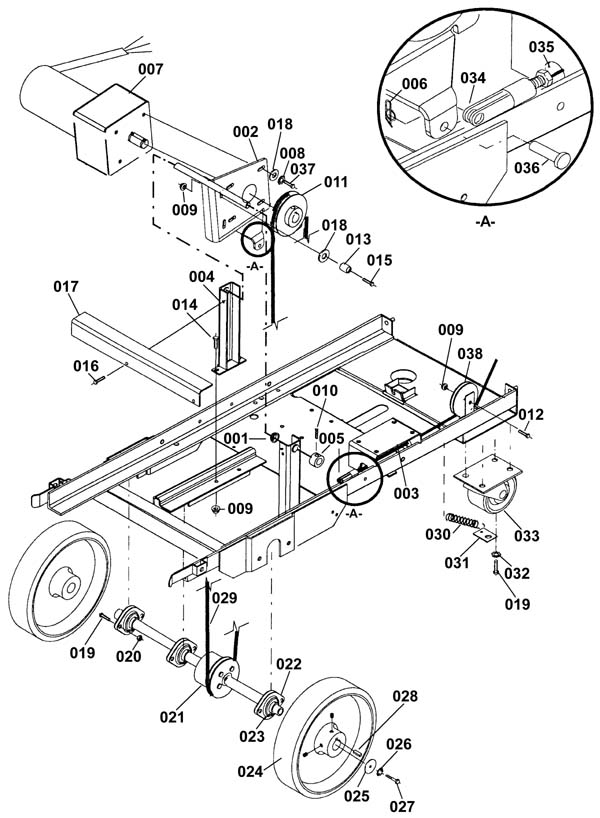

Drive Assembly - 173-6090
RefNbr Part Number Description Req Notes
001 173-2337 1/2 cylinder bearing 2
002 173-7094 Motor pivot bracket assembly 1
003 N/A Not available Cable assembly
004 173-7095 Support motor pivot bracket 2
005 173-3036 Brush pivot axle-steel collar 2
006 173-1130 Cotter ring 1
007 173-7096 Traction motor assembly (OBSOLETE) 1
008 999-0017 Washer 1/4 external star lock 4
009 999-0152 Nut 1/4-20 nylon insert lock zinc plated 9
010 999-1051 Screw 1/4-28 x 1/4 knurled point socket set plain finish 2
011 173-7097 V-belt pulley 3-1/2 1
012 999-9072 Bolt 1/4-20 x 1 hex head cap 1
013 173-7098 Spacer 1/2 x /32 x 1-3/8 2
014 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
015 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized 2
016 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
017 173-7099 Support bracket 1
018 999-0123 Washer 1/4 SAE flat zinc plated 6
019 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 14
020 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
021 173-7100 Differential 1
022 173-0397 Bearing flangette (pkg of 2) 3
023 173-0398 Bearing 1 inch bore 3
024 173-0396 Wheel 10 x 2 1/2 bore 2
025 999-0016 Washer 1/4 flat plain finish 2
026 999-0017 Washer 1/4 external star lock 2
027 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
028 173-0518 Key 1/4 x 1/4 x 2 1/2 2
029 173-7101 Belt 1
030 173-5155 Extension spring 2
031 173-0558 Spring hook plate 2
032 999-1053 Washer 5/16 internal star lock stainless steel 2
033 173-0557 4 inch swivel caster wheel 2
034 173-1479 Yoke end clevis 1
035 999-0952 Nut 1/4-28 hex stainless steel 1
036 173-1474 Clevis pin 1
037 999-1054 Bolt 1/4-28 x 1 hex head stainless steel 4
038a 173-5123 Tube 1
038b 173-5121 Cable pulley 1

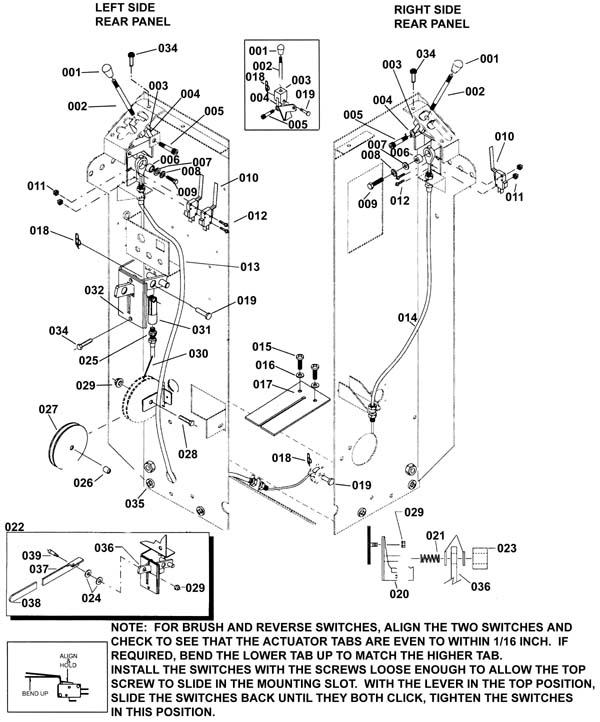

Rear Tower Mechanical Assemblies - 173-6091
RefNbr Part Number Description Req Notes
001 173-1901 Solution lever knob 2
002 173-0539 Brush vac control handle 2
003 173-0540 Clevis rod end 2
004 173-0541 Handle pivot lever assembly 2
005 999-1056 Bolt 5/16-18 x 1 shoulder stainless steel 2
006 173-0542 Spacer (OBSOLETE) 2
007 999-0123 Washer 1/4 SAE flat zinc plated 2
008 999-0017 Washer 1/4 external star lock 2
009 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
010 173-0543 Lever bent switch 3
011 173-2579 Nut 4-40 hex star lock 4
012 999-1057 Screw 4-40 x 1-1/4 pan head phillips stainless steel 4
013 173-0544 Brush lift cable 1
014 173-0545 Vac shoe lift cable 1
015 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
016 999-0998 Washer #10 flat stainless steel 2
017 173-0546 Splash guard 1
018 173-1130 Cotter ring 3
019 173-1474 Clevis pin 3
020 173-7103 Idler handle pivot bracket assembly 1
021 173-4832 Compression spring 3/4 x 1 1/2 x 5/8 1
022 N/A Not available 1 Belt tension handle assembly (product is obsolete)
023 173-4836 Shaft collar 3/8 1
024 999-1007 Washer 3/8 x 1/16 flat nylon 2
025 999-0952 Nut 1/4-28 hex stainless steel 2
026 173-5123 Tube 1
027 173-5121 Cable pulley 1
028 999-9072 Bolt 1/4-20 x 1 hex head cap 1
029 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
030 173-7104 Tension cable 1
031 173-1479 Yoke end clevis 1
032 173-7105 Handle guide plate 1
034 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 6
035 999-1058 Screw 1/4-20 x 3/4 pan head thread rolling phillips 4
036 173-7106 Belt tension handle 1
037 173-2290 Lift lever handle bracket 1
038 173-1169 Flat bar grip 3/16 x 1 inch 1
039 173-1228 Bolt 5/16 OD x 1/2 long shoulder 1

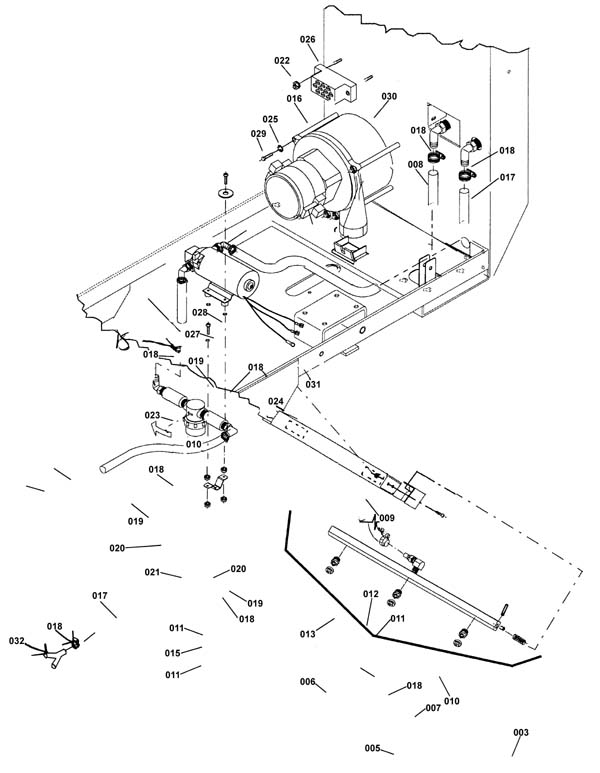

Pump, Manifold and Vac Assemblies - 173-6092
RefNbr Part Number Description Req Notes
001 173-0353 Bumper 1
002 173-2090 1/8 plug (OBSOLETE) 2
003 173-2206 Roll pin 1
004 173-2680 Mini quick replacement jet 3
005 173-2086 Mini-quick jet body with seal 3
006 173-0547 3 Jet manifold assembly (OBSOLETE) 1
007 173-2096 Hosebarb 1
008 173-0568 Hose 1
009 173-7116 Main frame (OBSOLETE) 1
010 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 5
011 173-2472 Nut 10-32 with star washer 8
012 173-0555 Tape 2
013 173-0565 Manifold bracket 1
014 173-0548 Manifold A 1
015 173-3048 valve mounting bracket 1
016 173-1674 Spacer 3
017 173-5019 Hose 3/8 Nylobraid x 13 1
018 173-1821 Hose clamp 8
019 204-0041 Fitting 4
020 173-0556 Coupler 2
022 173-2522 Nut 6-32 with star washer 2
023 173-1571 Nylon hose 3/8 x 2 inch 1
024 173-7117 Pump assembly 1
025 999-0017 Washer 1/4 external star lock 3
026 173-1888 Terminal block 1
027 999-0998 Washer #10 flat stainless steel 4
028 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 4
029 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 3
030a 173-7118 120V vacuum motor assembly 1 (OEM)
030b 991-1204 120V 3 stage vacuum motor tangential with snout 1 (NON-OEM)
031 173-2327 vacuum motor brush set (OBSOLETE) 1
032 173-7119 Nylon hosebarb inchY inch fitting 3/8 1

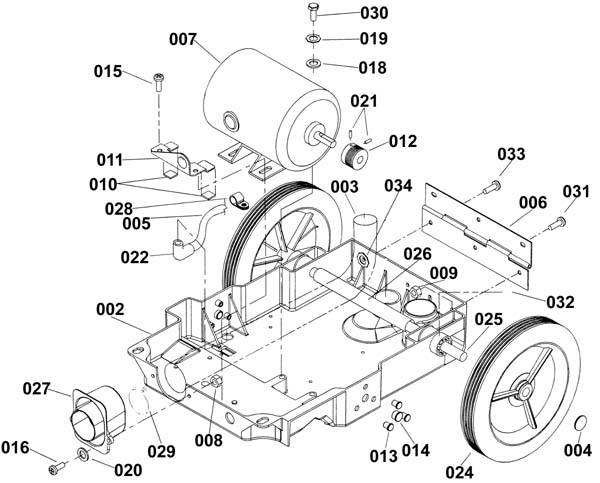

Handle Assembly - 173-6093
RefNbr Part Number Description Req Notes
001 173-7107 Propel handle cover 1
002 173-2566 Screw #10 x 1/2 pan head 4
003 999-0998 Washer #10 flat stainless steel 4
004 999-0086 Nut 10-32 nylon insert lock zinc plated 2
005 173-1030 Lever Pivot Support 1
006 173-1031 Handle Lever Pivot Rod 2
007 173-1032 Propel Control Handle Lever 2
008 173-1033 Clevis Pin 1
009 173-1034 Propel Control Plate Assembly 1
010 999-0744 Screw 10-32 x 1 3/4 pan head phillips zinc plated 2
011 173-1035 Lever Centering Guide 1
012 173-1036 Propel control brushing 2
013 173-1037 Comp..36 D x 1.12L x .04W Spring 1
014 173-2522 Nut 6-32 with star washer 2
015 173-1130 Cotter ring 1
016 173-7108 Dual switch plate 1
017 173-2576 Nut 10-24 tinnerman (OBSOLETE) 4
018 173-1041 Speed control knob 1
019 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
020 173-2332 Mini roller switch 1
021 173-0473 Mini plunger switch 2
022 173-0470 Tandem switch actuator 1
023 173-1043 Handle x 9.5 inch Grip 2
024 173-5097 Handle adjustment lock 2
025 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel 4
026 173-0550 Main handle 1
027 173-7109 Handle wire assembly 1
028 173-7110 Screw 4-40 x 1/4 type f 1
029 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 4
030 999-0311 Washer #10 external star lock zinc plated 4
031 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
032 173-7111 Lever guide plate 1
034 999-0123 Washer 1/4 SAE flat zinc plated 1
035 173-7112 Spacer 1
036 999-0148 Washer #6 external star lock zinc plated 5
037 999-1057 Screw 4-40 x 1-1/4 pan head phillips stainless steel 2
038 173-7113 Speed tachometer label 1
039 173-7114 Speed control label 1

Recommended Spare Parts - 173-9894
RefNbr Part Number Description Req Notes
01 173-0566 Brush drive belt assembly (OBSOLETE)
02a 173-0570 Replacement screen for strainer
02b 991-8569 Mesh filter screen stainless steel (NON-OEM)
03 173-0592 Dome gasket
04 173-2085 Mini-quick jet seal
05 173-2680 Mini quick replacement jet
06 173-3050 O-ring gasket
07 173-7075 Potentiometer
08 173-7076 Spotting wand
09 173-7077 Deluxe professional wand
10 173-7078 Deluxe hand tool kit
11 173-7079 Deluxe dry hand tool (OBSOLETE)
12 173-7080 Extraction spray wand (OBSOLETE)
13 173-7081 Fastraction spray wand (OBSOLETE)
14 273-5580 Hand tool kit

- Extractor Fit All Parts - 999-9400
RefNbr Part Number Description Req Notes
001a 991-8000 12 inch stainless head wand, 1 jet 120 PSI plastic valve (wands)
001b 991-8001 12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) (wands)
001c 991-8002 12 inch aluminum head wand, 3 jet, 120 PSI plastic valve (wands)
001d 991-8227 500psi brass valve (wands)
002a 991-8222 30 inch stair wand (open spray) (stair wand)
002b 991-8223 30 inch swivel head ergonomic stair wand (open spray) (stair wand)
004 991-8129 Handle 1-1/2 inch low profile comfort grip assist (wands)
005a 991-8128 120 PSI, acetel plastic valve, low heat 140 degrees (wands)
005b 991-8127 120 PSI, brass valve, stainless steel stem (wands)
005c 991-8226 Valve
005d 991-8171 400psi cast aluminum valve
007 991-8130 3-1/2 inch wide 120 PSI standard detailer, external spray (wands)
008 991-8132 10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
009 991-8133 20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
010 991-8136 10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml (hose assemblies and parts)
011 991-8137 20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml (hose assemblies and parts)
012 991-8134 10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi (hose assemblies and parts)
013 991-8135 20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings (hose assemblies and parts)
014 991-8138 10ft 100psi vac/sol hose assembly w/ 1/4 male fittings (hose assemblies and parts)
015 991-8139 20ft 100psi vac/sol hose assembly with male fittings (hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI)
016 991-8142 10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
017 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
018 991-8140 10ft 100psi vac/sol hose assembly w/ 1/4 female fittings (hose assemblies and parts)
021 991-8004 1 1/2 inch vacuum hose (sold by the foot) (hose assemblies and parts)
022 991-8005 1 1/2 inch replacement hose cuff (black) (hose assemblies and parts)
023 991-8131 1 1/2 inch hide-a-hose cuff (no swivel) (hose assemblies and parts)
026 991-8045 1/8 inch brass vee jet 8001 (1/8 brass vee jet)
027 991-8046 1/8 inch brass vee jet 8001.5 (1/8 brass vee jet)
028 991-8047 1/8 inch brass vee jet 8002 (1/8 brass vee jet)
029 991-8048 1/8 inch brass vee jet 8003 (1/8 brass vee jet)
030 991-8049 1/8 inch brass vee jet 8004 (1/8 brass vee jet)
031 991-8050 1/8 inch brass vee jet 8005 (OBSOLETE) (1/8 brass vee jet)
032 991-8051 1/8 inch brass vee jet 8006 (1/8 brass vee jet)
033 991-8052 1/8 inch brass vee jet 8008 (1/8 brass vee jet)
034 991-8053 1/8 inch brass vee jet 8010 (1/8 brass vee jet)
035 991-8054 1/8 inch brass vee jet 9502 (1/8 brass vee jet)
036 991-8055 1/8 inch brass vee jet 9503 (1/8 brass vee jet)
037 991-8056 1/8 inch brass vee jet 9504 (1/8 brass vee jet)
038 991-8057 1/8 inch brass vee jet 9505 (1/8 brass vee jet)
039 991-8058 1/8 inch brass vee jet 9506 (1/8 brass vee jet)
040 991-8059 1/8 inch brass vee jet 9508 (1/8 brass vee jet)
041 991-8060 1/8 inch brass vee jet 11001 (1/8 brass vee jet)
042 991-8061 1/8 inch brass vee jet 11001.5 (1/8 brass vee jet)
043 991-8062 1/8 inch brass vee jet 11002 (1/8 brass vee jet)
044 991-8063 1/8 inch brass vee jet 11003 (1/8 brass vee jet)
045 991-8064 1/8 inch brass vee jet 11004 (1/8 brass vee jet)
046 991-8065 1/8 inch brass vee jet 11005 (1/8 brass vee jet)
047 991-8066 1/8 inch brass vee jet 11006 (1/8 brass vee jet)
048 991-8067 1/8 inch brass vee jet 11008 (1/8 brass vee jet)
049 991-8068 1/8 inch brass vee jet 11010 (1/8 brass vee jet)
050 991-8021 1/4 inch brass vee jet 8001 (1/4 brass vee jet)
051 991-8022 1/4 inch brass vee jet 8001.5 (1/4 brass vee jet)
052 991-8023 1/4 inch brass vee jet 8002 (1/4 brass vee jet)
053 991-3005 1/4 inch brass vee jet 8003 (1/4 brass vee jet)
054 991-8025 1/4 inch brass vee jet 8004 (1/4 brass vee jet)
055 991-8026 1/4 inch brass vee jet 8005 (1/4 brass vee jet)
056 991-8027 1/4 inch brass vee jet 8006 (1/4 brass vee jet)
057 991-8028 1/4 inch brass vee jet 8008 (1/4 brass vee jet)
058 991-8029 1/4 inch brass vee jet 8010 (1/4 brass vee jet)
059 991-8030 1/4 inch brass vee jet 9502 (1/4 brass vee jet)
060 991-8031 1/4 inch brass vee jet 9503 (1/4 brass vee jet)
061 991-8032 1/4 inch brass vee jet 9504 (1/4 brass vee jet)
062 991-8033 1/4 inch brass vee jet 9505 (1/4 brass vee jet)
063 991-8034 1/4 inch brass vee jet 9506 (1/4 brass vee jet)
064 991-8035 1/4 inch brass vee jet 9508 (1/4 brass vee jet)
065 991-8036 1/4 inch brass vee jet 11001 (1/4 brass vee jet)
066 991-8037 1/4 inch brass vee jet 11001.5 (1/4 brass vee jet)
067 991-8038 1/4 inch brass vee jet 11002 (1/4 brass vee jet)
068 991-8039 1/4 inch brass vee jet 11003 (1/4 brass vee jet)
069 991-8040 1/4 inch brass vee jet 11004 (1/4 brass vee jet)
070 991-8041 1/4 inch brass vee jet 11005 (OBSOLETE) (1/4 brass vee jet)
071 991-8042 1/4 inch brass vee jet 11006 (1/4 brass vee jet)
072 991-3006 1/4 inch brass vee jet 11008 (1/4 brass vee jet)
073 991-8044 1/4 inch brass vee jet 11010 (1/4 brass vee jet)
074 991-8069 1/4 inch stainless vee jet 8001 (1/4 stainless vee jet)
075 991-8070 1/4 inch stainless vee jet 8002 (1/4 stainless vee jet)
076 991-8071 1/4 inch stainless vee jet 8003 (1/4 stainless vee jet)
077 991-8072 1/4 inch stainless vee jet 8004 (1/4 stainless vee jet)
078 991-8073 1/4 inch stainless vee jet 9501 (1/4 stainless vee jet)
079 991-8074 1/4 inch stainless vee jet 9502 (1/4 stainless vee jet)
080 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless vee jet)
081 991-8076 1/4 inch stainless vee jet 9504 (1/4 stainless vee jet)
082 991-8077 1/4 inch stainless vee jet 11003 (1/4 stainless vee jet)
083 991-8078 1/4 inch stainless vee jet 11004 (1/4 stainless vee jet)
084 991-8079 1/4 inch stainless vee jet 11006 (1/4 stainless vee jet)
085 991-8080 1/4 inch stainless vee jet 11008 (1/4 stainless vee jet)
086 991-8081 1/4 inch stainless/plastic tee jet 8002 (1/4 stainless/plastic tee jet)
087 991-8082 1/4 inch stainless/plastic tee jet 8003 (1/4 stainless/plastic tee jet)
088 991-8083 1/4 inch stainless/plastic tee jet 8004 (1/4 stainless/plastic tee jet)
089 991-8084 1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) (1/4 stainless/plastic tee jet)
090 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless/plastic tee jet)
091 991-8086 1/4 inch stainless/plastic tee jet 9504 (1/4 stainless/plastic tee jet)
092 991-3010 1/4 inch stainless/plastic tee jet 11003 (1/4 stainless/plastic tee jet)
093 991-8088 1/4 inch stainless/plastic tee jet 11004 (1/4 stainless/plastic tee jet)
094 991-8089 1/4 inch stainless/plastic tee jet 11006 (1/4 stainless/plastic tee jet)
095 991-8090 1/4 inch stainless/plastic tee jet 11008 (1/4 stainless/plastic tee jet)
096 991-8091 1/4 inch x 1/8 hex nipple H21
097 991-8092 1/4 inch x 1/4 hex nipple H22
098 991-8093 1/4 inch x 3/8 hex nipple H23
099 991-8094 45 degree street elbow 1/4 inch H24
100 991-8095 45 degree street elbow 1/8 inch H25
101 991-8096 45 degree union elbow 1/4 inch H26
102 991-8098 90 degree street elbow short 1/4 inch H28
103 991-8098 90 degree street elbow short 1/4 inch H28
104 991-8099 90 degree street elbow 1/8 inch H29
105 991-8100 90 degree street elbow short 1/8 inch H30
106 991-8101 90 degree union elbow 1/4 inch H31
107 991-8102 90 degree union elbow 1/8 inch H32
108 991-8103 30 degree union elbow 1/4 inch H33
109 991-8104 1/4 inch coupling H34
110 991-8105 1/8 inch coupling H35
111 991-8106 1/4 inch adapter H36
112 991-8107 1/8 inch adapter H37
113 991-8108 1/4 inch branch tee H38
114 991-8109 1/8 inch branch tee H39
115 991-8110 1/8 inch tee H40
116 991-8111 7/16 inch stainless steel hose clamp H41
117 997-2002 Hose clamp #6
118 991-8113 Strainer for 1/8 inch vee jets H43
119 991-8114 Strainer for 1/4 inch vee jets H44
120 991-8115 Strainer/check valve for 1/4 inch vee jets H45
121 991-8116 Brass strainer/check valve for tee jets H46
122 991-8117 500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47
123 991-8118 500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48
124 991-8119 500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49
125 991-8120 1/4 inch brass flood jets K1 or K2 H54
126 991-8158 1/4 inch BH2-60 female coupler (mate to QD40)
127 991-8150 1/4 inch BH2-61 male nipple (mate to QD80)
128 991-8144 B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55
129 991-8152 B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15
130 991-8145 B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55
131 991-8153 B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15
132 991-8146 BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65
133 991-8154 B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25
134 991-8147 BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65
135 991-8155 B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25
136 991-8148 Hansen 02 male nipple, mate to QD70
137 991-8156 Quick disconnect socket female to QD30
138 991-8149 1/8 inch male quick disconnect
139 991-8157 1/8 inch female quick disconnect socket
140 991-8151 BH3-61,3/8 inch FPT, Male Nipple, mate to QD85
141 991-8159 BH3-60, 3/8 inch fpt, female coupler, mate to QD45
142 991-8123 Bottom hex nut for Kingston or P valve H57
143 991-8121 1/8 inch brass flood jets K1 or K2 H55
144 991-8124 Inline filter H58
145 991-8122 1/8 inch special brass flood jets for V1245 H56
146 991-8008 120V 50 PSI Flo Jet pump (pumps)
147 991-8009 120V 100 PSI Flo Jet pump (pumps)
148 991-8218 120V 120 PSI pump (pumps)
149 991-8220 1/8 fpt brass female connector
150 991-1835 Crevice tool

- Frequently Replaced Parts - 999-9689
RefNbr Part Number Description Req Notes
1 173-2744 Pigtail cord
2 991-5010 12/3 extension cord 100 foot with twist lock (yellow)(OBS)
3 189-0319 2 position rocker switch (power)
4 173-0543 Lever bent switch (vacuum and brush)
5 173-0574 2 way solenoid valve
6 173-0585 Hose assembly
7 173-0578 Tank dome
8 173-0592 Dome gasket
9 173-1213 Drain plug
10 173-1216 Drain hose 1 1/2 x 24 inch
11 173-7118 120V vacuum motor assembly (OEM)
12 991-1204 120V 3 stage vacuum motor tangential with snout (NON-OEM)
13 173-7117 Pump assembly
14 173-5167 Recovery shut-off float
15 173-2680 Mini quick replacement jet
16 273-5538 Strainer
17 173-0566 Brush drive belt assembly (OBSOLETE)
18 173-0537 Brush assembly
Webpage Problem Reporting
