- Commonly Asked For Parts - 273-9967 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
273-4353 |
Front cover |
1 |
|
|
|

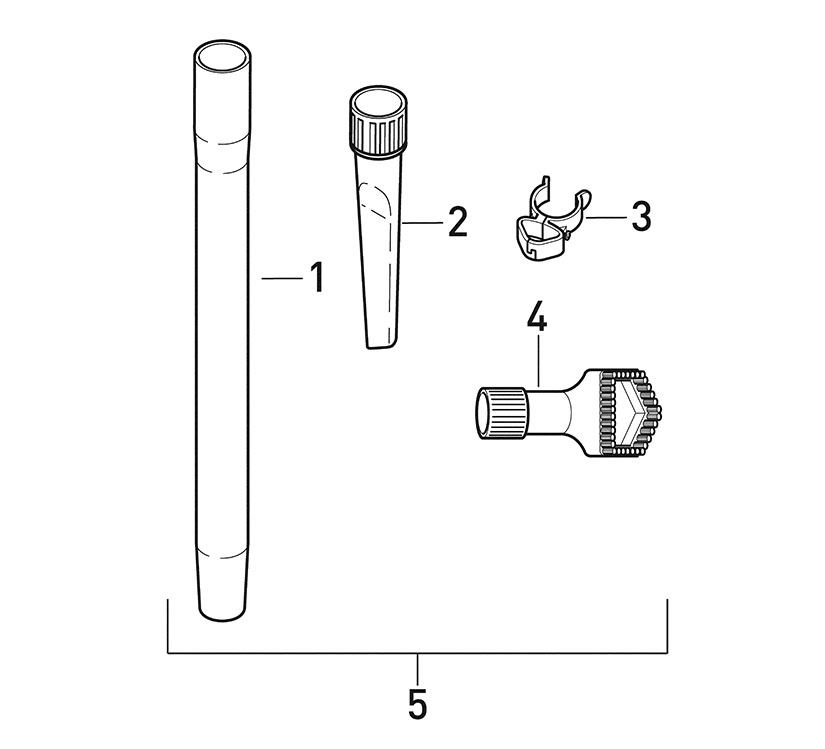

Optional Tools Assembly - 273-9968 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-7533 |
Extension tube (black) |
|
|
| 2 |
173-7532 |
Crevice tool (black) |
|
|
| 3 |
173-7534 |
Attachement clips (black) |
|
|
| 6 |
273-3622 |
Dusting tool |
|
(includes 1, 3, and 4) |
|
|
Bag and Filter Assembly - 273-9969 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-0001 |
Versamatic paper bag (pkg of 10) |
|
|
| 2 |
173-5010 |
Silencer (OBSOLETE) |
|
|
| 3 |
173-5011 |
Exhaust filter |
|
|
| 4 |
173-0003 |
Vacuum motor filter |
|
|
| 5 |
173-0020 |
Micro-hospital grade vac filter |
|
|
|
|
Upper Housing Assembly - 273-9970 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
273-7614 |
18/3 power cord (yellow) |
1 |
|
| 2 |
173-7536 |
Handle grip (black) |
1 |
|
| 3 |
173-0157 |
Handle cover |
1 |
|
| 4 |
173-5005 |
830mm handle tube |
1 |
|
| 5 |
173-5006 |
Dust bag housing |
1 |
|
| 6 |
173-7539 |
Grommet (black) |
1 |
|
| 7 |
173-7540 |
Switch button (yellow) |
1 |
|
| 10 |
173-0043 |
Switch holder |
1 |
|
| 11 |
173-0061 |
Switch cover |
1 |
|
| 12 |
173-7541 |
Connecting tube |
1 |
|
| 13 |
173-7542 |
Retaining ring |
1 |
|
| 14a |
173-0033 |
Printed circuit board |
1 |
|
| 14b |
173-7543 |
8 inch antistatic wire |
1 |
(included with 14a) |
| 15 |
173-7544 |
7 inch antistatic wire |
1 |
|
| 16 |
173-0031 |
Interconnect cord |
1 |
|
| 17 |
173-0030 |
Cable clamp |
1 |
|
| 18 |
173-0040 |
Switch housing cover |
1 |
|
| 19 |
173-0044 |
Dust bag lever |
1 |
|
| 20 |
173-0045 |
Torsion spring |
1 |
|
| 21 |
173-0046 |
Leaf spring |
1 |
|
| 22 |
173-0047 |
Connecting rod |
1 |
|
| 24 |
173-0003 |
Vacuum motor filter |
1 |
|
| 25 |
173-7386 |
Rear cover (dark gray) |
1 |
|
| 26 |
173-0050 |
Rear cover seal |
1 |
|
| 28 |
173-5016 |
Latch with spring and pin |
1 |
|
| 29 |
173-7547 |
Upper cord hood |
1 |
|
| 30 |
173-7548 |
Lower cord hook |
1 |
|
| 31 |
173-7549 |
Extension tube |
1 |
(includes 32-34) |
| 33 |
173-5021 |
Leaf spring |
1 |
|
| 34 |
173-5030 |
Catch holder |
1 |
|
| 35 |
273-0133 |
Hose assembly |
1 |
|
| 36 |
173-5031 |
Motor housing |
1 |
|
| 37 |
173-5036 |
Terminal block |
1 |
|
| 38 |
173-5039 |
Female contact holder |
1 |
|
| 39 |
173-4724 |
Locking rod |
1 |
|
| 40 |
173-4725 |
Locking catch |
1 |
|
| 41 |
173-5060 |
Vacuum motor seal |
1 |
|
| 42 |
173-5346 |
120V vacuum motor |
1 |
|
| 43 |
173-4208 |
Carbon brush (pkg of 2) |
1 |
|
| 44 |
173-5061 |
Motor support |
1 |
|
| 45 |
173-5062 |
Motor locator |
1 |
|
| 47 |
173-5010 |
Silencer (OBSOLETE) |
1 |
|
| 49 |
173-5011 |
Exhaust filter |
1 |
|
| 50 |
173-5066 |
Exhaust filter cover |
1 |
|
| 51 |
173-0134 |
Screw M3-.5 x 5mm |
1 |
|
| 52 |
173-0007 |
Screw M3-.5 x 13mm |
1 |
|
| 53 |
173-0135 |
Screw M3-.5 x 16mm |
1 |
|
| 55 |
999-0985 |
Washer #4 SAE flat |
1 |
|
| 57 |
273-5580 |
Hand tool kit |
1 |
|
|
|
Power Head-VS Assembly - 273-9971 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 100 |
173-7566 |
18 inch chassis (black) |
1 |
|
| 101 |
173-7567 |
Front bottom plate |
1 |
|
| 102 |
173-7568 |
Bumper (black) |
1 |
|
| 103 |
273-0137 |
Retaining bracket |
1 |
|
| 104 |
173-7569 |
Rear bottom plate |
1 |
|
| 105a |
173-7557 |
Foot pedal |
1 |
|
| 105b |
173-7558 |
Foot pedal axle |
1 |
|
| 106 |
273-0113 |
Swivel neck bearing |
1 |
|
| 107 |
173-7559 |
Wheel (black) |
1 |
|
| 108 |
173-7570 |
Circuit board |
1 |
|
| 109 |
273-0115 |
Pile adjustment axle |
1 |
|
| 110 |
173-7560 |
Pile adjustment wheel |
1 |
|
| 111 |
173-5260 |
Thrust member |
1 |
|
| 112 |
173-7561 |
Adjustment button |
1 |
|
| 114a |
173-5345 |
Brush motor |
1 |
|
| 114b |
173-6319 |
Carbon brush set |
1 |
|
| 115 |
173-5354 |
Brush motor pulley |
1 |
|
| 117 |
173-5096 |
Swivel neck |
1 |
|
| 118 |
173-5099 |
Wire swivel neck |
1 |
|
| 119 |
173-0088 |
Swivel neck cover |
1 |
|
| 120 |
273-0119 |
Right side swivel neck support |
1 |
|
| 121 |
273-0120 |
Left side swivel neck support |
1 |
|
| 122 |
173-6315 |
Switch lever |
1 |
|
| 123 |
173-0084 |
Leaf spring |
1 |
|
| 125 |
273-0121 |
Brush pulley |
1 |
|
| 126 |
173-7570 |
Circuit board |
1 |
|
| 127 |
273-0140 |
18 inch brush assembly |
1 |
|
| 128 |
173-0100 |
18 inch brush strip |
1 |
|
| 129 |
273-0124 |
Left side bearing block |
1 |
|
| 130 |
173-7562 |
Right side bearing block (black) |
1 |
|
| 131a |
173-7563 |
Brush roller release |
1 |
|
| 132 |
173-5106 |
Support lever with spring |
1 |
|
| 133 |
173-0064 |
Torsion spring |
1 |
|
| 134 |
173-7571 |
Power head cover |
1 |
|
| 135 |
173-7565 |
Side plate (black) |
1 |
|
| 136 |
173-4217 |
Screw M4-.7 x 20mm self-tapping torx |
1 |
|
| 137 |
273-0939 |
Screw M4-.7 x 12mm with washer |
1 |
|
| 138 |
273-0130 |
Screw M4-.7 x 14mm |
1 |
|
| 139 |
999-1518 |
Screw M4-.7 x 30mm pan head phillips zinc plated |
1 |
|
| 140 |
173-0007 |
Screw M3-.5 x 13mm |
1 |
|
| 141 |
273-3546 |
Access door |
1 |
|
| 143 |
273-0132 |
Leaf hinge |
1 |
|
| 142 |
273-9550 |
Service box |
1 |
|
|
|
Wiring Assembly - 273-9972 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
273-9433 |
Solenoid valve plate cover |
|
|
|
273-9435 |
Solenoid valve retaining plate |
|
|
|
373-1686 |
Strainer (OBSOLETE) |
|
|
|
373-4821 |
Retainer flange filter bag |
|
|
|
373-4786 |
24V turbine level 2 (OBSOLETE) |
|
|
|
373-5026 |
Key switch bottom |
|
|
|
|
