Tools Assembly - 173-1615 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-0013 |
Straight tube |
1 |
|
| 2 |
173-0014 |
Crevice nozzle |
1 |
|
| 4 |
173-0016 |
Dusting brush |
1 |
|
| 5 |
173-0017 |
Upholstery nozzle (OBSOLETE) |
1 |
|
| 6 |
173-0113 |
Wall and floor brush |
1 |
|
| 7 |
173-5281 |
Tool kit |
1 |
(includes 1-6) |
| N/S |
273-3622 |
Dusting tool |
1 |
(includes 1, 3-4) (after 08.01.12) |
|
|
Bag and Filters Assembly - 173-1616 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
173-0001 |
Versamatic paper bag (pkg of 10) |
1 |
|
| 1b |
991-9004 |
Versamatic paper bag (pkg of 10) |
1 |
(NON-OEM) |
| 2a |
N/A |
Not available |
1 |
(cloth bag) (OEM) |
| 2b |
991-6021 |
Cloth bag |
1 |
(NON-OEM) |
| 3a |
173-7011 |
Exhaust filter |
1 |
(after 08.01.12) |
| 3b |
173-0004 |
Exhaust filter |
1 |
(before 08.01.12) |
| 4 |
173-0003 |
Vacuum motor filter |
1 |
|
| 5 |
173-0020 |
Micro-hospital grade vac filter |
1 |
|
|
|
Upper Body Assembly - 173-2002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
273-7614 |
18/3 power cord (yellow) |
1 |
(OEM) |
| 1b |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
| 1c |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 2 |
173-0156 |
Handle grip assembly |
1 |
(includes item 3) |
| 3 |
173-0157 |
Handle cover |
1 |
|
| 5a |
173-4710 |
Dust bag housing |
1 |
|
| 5b |
273-1384 |
Dust bag housing (gray) |
1 |
(after 08.01.12) |
| 5c |
173-4710 |
Dust bag housing |
1 |
(before 08.01.12) |
| 7 |
173-4731 |
Switch button |
1 |
|
| 10a |
173-0043 |
Switch holder |
1 |
(after 08.01.12) |
| 10b |
273-8438 |
Switch holder |
1 |
(before 08.01.12) |
| 11 |
173-0061 |
Switch cover |
1 |
|
| 12a |
173-0037 |
Connecting tube |
1 |
|
| 12b |
273-1385 |
Connecting tube (OBSOLETE) |
1 |
(after 08.01.12) |
| 12c |
173-0037 |
Connecting tube |
1 |
(before 08.01.12) |
| 13 |
173-4717 |
Retaining ring |
1 |
|
| 14 |
173-0033 |
Printed circuit board |
1 |
|
| 15a |
173-0054 |
Antistatic wire |
1 |
|
| 15b |
173-7543 |
8 inch antistatic wire |
1 |
(after 08.01.12) |
| 15c |
173-7544 |
7 inch antistatic wire |
1 |
(after 08.01.12) |
| 15d |
173-0054 |
Antistatic wire |
1 |
(before 08.01.12) |
| 16a |
173-0031 |
Interconnect cord |
1 |
(after 08.01.12) |
| 16b |
173-0031 |
Interconnect cord |
1 |
(before 08.01.12) |
| 17 |
173-0030 |
Cable clamp |
1 |
|
| 18 |
173-0040 |
Switch housing cover |
1 |
|
| 19 |
173-0044 |
Dust bag lever |
1 |
|
| 20 |
173-0045 |
Torsion spring |
1 |
|
| 21 |
173-0046 |
Leaf spring |
1 |
|
| 22 |
173-0047 |
Connecting rod |
1 |
|
| 24a |
173-0003 |
Vacuum motor filter |
1 |
(OEM) |
| 24b |
991-9009 |
Vacuum motor filter |
1 |
(NON-OEM) |
| 25a |
173-7011 |
Exhaust filter |
1 |
(OEM) |
| 25b |
991-9008 |
Exhaust filter |
1 |
(NON-OEM) |
| 26a |
173-0041 |
Rear cover (blue) |
1 |
|
| 26b |
173-7386 |
Rear cover (dark gray) |
1 |
|
| 26c |
273-7651 |
Back cover |
1 |
(after 08.01.12) |
| 26d |
173-0041 |
Rear cover (blue) |
1 |
(before 08.01.12) |
| 27 |
173-0050 |
Rear cover seal |
1 |
|
| 29a |
173-0042 |
Latch with spring and pins |
1 |
|
| 29b |
273-1386 |
Latch with spring and pin |
1 |
(after 08.01.12) |
| 29c |
173-0042 |
Latch with spring and pins |
1 |
(before 08.01.12) |
| 30a |
173-0058 |
Upper cord hook (blue) |
1 |
|
| 30b |
173-7381 |
Upper cord hook (green) |
1 |
|
| 30c |
273-1387 |
Upper cord hook |
1 |
(after 08.01.12) |
| 30d |
173-0058 |
Upper cord hook (blue) |
1 |
(before 08.01.12) |
| 31a |
173-0059 |
Lower cord hook |
1 |
|
| 31b |
273-1388 |
Lower cord hook |
1 |
(includes 28) (after 08.01.12) |
| 31c |
173-0059 |
Lower cord hook |
1 |
(includes 28) (before 08.01.12) |
| 32 |
273-6583 |
Curved extension tube |
1 |
|
| 33 |
273-0133 |
Hose assembly |
1 |
|
| 34a |
173-4720 |
Motor housing |
1 |
(after 08.01.12) |
| 34b |
173-4720 |
Motor housing |
1 |
(before 08.01.12) |
| 35 |
173-4721 |
Housing cover |
1 |
|
| 36 |
173-4722 |
Filter retaining button |
1 |
|
| 37 |
173-4723 |
Sound insulation |
1 |
|
| 38 |
173-4724 |
Locking rod |
1 |
|
| 39 |
173-4725 |
Locking catch |
1 |
|
| 40 |
173-2752 |
120V vacuum motor |
1 |
|
| 41 |
173-4726 |
Carbon brush (pkg of 2) |
1 |
|
| 42 |
173-4727 |
Motor cover |
1 |
|
| 43 |
173-0024 |
Motor support |
1 |
|
| 44 |
173-0029 |
Vacuum motor seal |
1 |
|
| 45 |
173-0055 |
Female contact holder |
1 |
|
| 46 |
173-0052 |
Terminal block (3 wire) |
1 |
|
| 47 |
173-0060 |
Terminal block cover |
1 |
|
| 48 |
173-0134 |
Screw M3-.5 x 5mm |
1 |
|
| 49 |
173-0007 |
Screw M3-.5 x 13mm |
8 |
|
| 50 |
173-0135 |
Screw M3-.5 x 16mm |
1 |
|
| 52 |
999-0985 |
Washer #4 SAE flat |
1 |
|
| 53 |
173-0062 |
PC board cover |
1 |
|
| 54 |
173-4211 |
Screw M4-.7 x 10mm |
1 |
(after 08.01.12) |
| 55 |
173-0051 |
Hand nozzle |
1 |
(before 08.01.12) |
| 56 |
173-0049 |
Hose |
1 |
(before 08.01.12) |
| N/S |
173-4730 |
Retaining ring |
1 |
(before 08.01.12) |
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Accessories - 173-2053 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-0013 |
Straight tube |
|
|
| 002 |
173-0014 |
Crevice nozzle |
|
|
| 004 |
173-0016 |
Dusting brush |
|
|
| 005 |
173-0017 |
Upholstery nozzle (OBSOLETE) |
|
|
| 006 |
173-0113 |
Wall and floor brush |
|
|
| 007 |
173-0012 |
Vacuum extension hose |
|
|
| 008a |
173-0001 |
Versamatic paper bag (pkg of 10) |
|
(OEM) |
| 008b |
991-9004 |
Versamatic paper bag (pkg of 10) |
|
(NON-OEM) |
| 008c |
N/A |
Not available |
|
(Cloth bag) |
| 010 |
173-0004 |
Exhaust filter |
|
|
| 011a |
173-0003 |
Vacuum motor filter |
|
(OEM) |
| 011b |
991-9009 |
Vacuum motor filter |
|
(NON-OEM) |
| 012 |
173-0020 |
Micro-hospital grade vac filter |
|
|
|
|

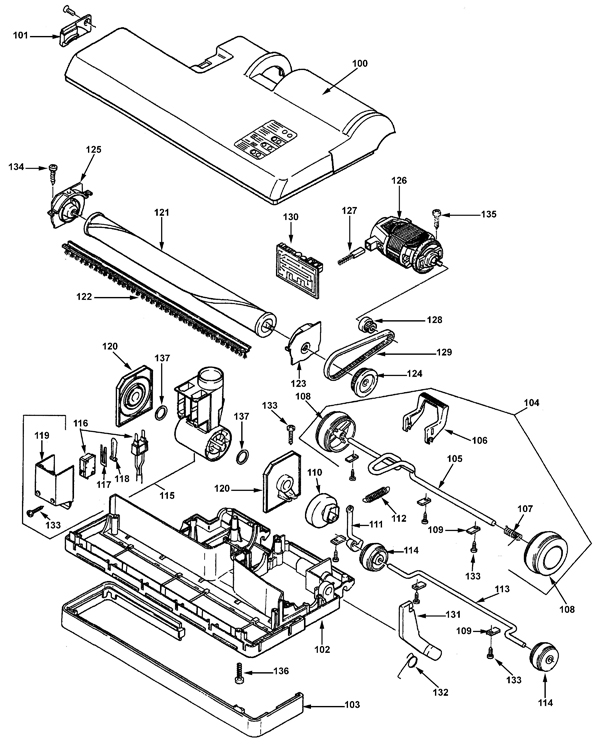

Power Head Assembly - Before 8.1.12 - 173-2062 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 100 |
173-0215 |
Cover assembly |
|
|
| 101 |
173-0081 |
Brush strip cover with screws |
|
|
| 102 |
173-0917 |
18 inch chassis assembly |
|
|
| 103 |
173-0140 |
18 inch bumper |
|
|
| 104 |
173-0302 |
Axle assembly for model VSE-2 |
|
|
| 110 |
173-0119 |
Pile adjustment knob |
|
|
| 111 |
173-0145 |
Pile adjustment lever |
|
|
| 113 |
173-0143 |
Pile adjustment axle |
|
|
| 114 |
173-0071 |
Pile adjustment wheel |
|
|
| 115 |
173-2892 |
Swivel neck assembly |
|
|
| 116 |
173-0089 |
Swivel neck wire connector |
|
|
| 118 |
173-0085 |
Switch lever |
|
|
| 119 |
173-0088 |
Swivel neck cover |
|
|
| 120 |
173-0083 |
Swivel support |
|
|
| 121 |
173-0153 |
18 inch brush assy (no bearing blocks or bearings included) |
|
|
| 122a |
173-0100 |
18 inch brush strip |
|
|
| 122b |
991-5124 |
18 inch brush strip |
|
(NON-OEM) |
| 123 |
193-0004 |
12 inch floor tool 1 1/2inch |
|
|
| 124 |
173-0080 |
Brush roller pulley |
|
|
| 125a |
173-0078 |
Right hand bearing block with bearings |
|
|
| 125b |
991-9172 |
BEARING BLOCK, VSM/VSE RH |
|
(NON-OEM) |
| 126 |
173-0147 |
120V brush motor |
|
|
| 127 |
173-0920 |
New style non-spring type carbon brush set |
|
|
| 128 |
173-0092 |
Motor pulley |
|
|
| 130 |
173-0152 |
120V electronic control board |
|
|
| 131 |
173-0063 |
Support lever with spring |
|
|
| 132 |
173-0064 |
Torsion spring |
|
|
| 133 |
173-0007 |
Screw M3-.5 x 13mm |
|
|
| 134 |
173-0135 |
Screw M3-.5 x 16mm |
|
|
| 135 |
173-0137 |
Screw M3-9 x 22mm |
|
|
|
|
Power Head Assembly - After 8.1.12 - 173-2211 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 100a |
273-0134 |
14 inch chassis |
1 |
(14 inch) |
| 100b |
273-0106 |
18 inch chassis |
1 |
(18 inch) |
| 101a |
273-0135 |
Rear bottom plate |
1 |
(14 inch) |
| 101b |
273-0107 |
Rear bottom plate |
1 |
(18 inch) |
| 102a |
273-0136 |
Bumper |
1 |
(14 inch) |
| 102b |
273-0108 |
Bumper |
1 |
(18 inch) |
| 103 |
273-0137 |
Retaining bracket |
2 |
|
| 104a |
273-0111 |
Bottom plate |
1 |
(14 inch) |
| 104b |
273-0109 |
Bottom plate |
1 |
(18 inch) |
| 105 |
273-0112 |
Foot pedal |
1 |
|
| 106 |
273-0113 |
Swivel neck bearing |
2 |
|
| 108 |
173-0008 |
Axle clamp |
2 |
|
| 109 |
273-0115 |
Pile adjustment axle |
1 |
|
| 110 |
173-0118 |
Pile adjustment wheel |
2 |
|
| 111 |
173-5260 |
Thrust member |
1 |
|
| 112 |
273-0116 |
Adjustment button |
1 |
|
| 114a |
173-5345 |
Brush motor |
1 |
(includes 114b-115) |
| 114b |
173-4251 |
Carbon brush (pkg of 2) (OBSOLETE) |
1 |
|
| 115 |
173-5354 |
Brush motor pulley |
1 |
|
| 117 |
273-0117 |
Swivel neck assembly |
1 |
(includes 118-119, 122-124, 140) |
| 118 |
273-0118 |
Wire assembly |
1 |
(wire with micro switch) |
| 119 |
173-0088 |
Swivel neck cover |
1 |
|
| 120 |
273-0119 |
Right side swivel neck support |
1 |
|
| 121 |
273-0120 |
Left side swivel neck support |
1 |
|
| 122 |
173-0085 |
Switch lever |
1 |
|
| 123 |
173-0084 |
Leaf spring |
1 |
|
| 125 |
273-0121 |
Brush pulley |
1 |
|
| 126 |
273-0122 |
120V circuit board |
1 |
|
| 127a |
273-0123 |
14 inch brush assembly |
1 |
(includes 125) (14 inch) |
| 127b |
273-0140 |
18 inch brush assembly |
1 |
(includes 125) (18 inch) |
| 128a |
173-0077 |
14 inch brush strip |
1 |
(14 inch) |
| 128b |
173-7508 |
14 inch heavy duty brush strip (red) |
1 |
(14 inch) |
| 128c |
173-0100 |
18 inch brush strip |
1 |
(18 inch) |
| 128d |
991-5124 |
18 inch brush strip |
1 |
(NON-OEM) |
| 129 |
273-0124 |
Left side bearing block |
1 |
|
| 130 |
273-0125 |
Right side bearing block |
1 |
|
| 131a |
273-0126 |
Brush roller release |
1 |
|
| 132 |
173-0063 |
Support lever with spring |
1 |
|
| 133 |
173-0064 |
Torsion spring |
1 |
|
| 134a |
273-0138 |
Power head cover |
1 |
(14 inch) |
| 134b |
273-0110 |
Power head |
1 |
(18 inch) |
| 135 |
273-0129 |
Side plate |
1 |
|
| 136 |
173-4217 |
Screw M4-.7 x 20mm self-tapping torx |
3 |
|
| 137 |
273-0939 |
Screw M4-.7 x 12mm with washer |
2 |
|
| 138 |
273-0130 |
Screw M4-.7 x 14mm |
8 |
|
| 139 |
999-1518 |
Screw M4-.7 x 30mm pan head phillips zinc plated |
2 |
|
| 140 |
173-0007 |
Screw M3-.5 x 13mm |
2 |
|
| 141 |
273-0139 |
Access door |
1 |
|
| 143 |
273-0132 |
Leaf hinge |
1 |
|
|
|
- Frequently Replaced Parts - 999-9799 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
273-7614 |
18/3 power cord (yellow) |
|
(OEM) |
| 02 |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) |
| 03 |
173-0034 |
Switch kit |
|
(power) |
| 06a |
173-0078 |
Right hand bearing block with bearings |
|
|
| 06b |
991-9172 |
BEARING BLOCK, VSM/VSE RH |
|
(NON-OEM) |
| 07 |
193-0004 |
12 inch floor tool 1 1/2inch |
|
|
| 08 |
173-0153 |
18 inch brush assy (no bearing blocks or bearings included) |
|
|
| 09 |
173-0100 |
18 inch brush strip |
|
(OEM) |
| 09 |
991-5124 |
18 inch brush strip |
|
(NON-OEM) |
| 10 |
173-0147 |
120V brush motor |
|
|
| 11 |
173-2752 |
120V vacuum motor |
|
|
| 12 |
991-9009 |
Vacuum motor filter |
|
|
| 14 |
991-9008 |
Exhaust filter |
|
|
| 15a |
173-0001 |
Versamatic paper bag (pkg of 10) |
|
|
| 15b |
991-9004 |
Versamatic paper bag (pkg of 10) |
|
|
| 16 |
N/A |
Not available |
|
(Cloth bag) |
| 17 |
173-0042 |
Latch with spring and pins |
|
|
| 18a |
173-0058 |
Upper cord hook (blue) |
|
(upper) |
| 18b |
173-7381 |
Upper cord hook (green) |
|
|
| 19 |
173-0059 |
Lower cord hook |
|
(lower) |
| 20 |
173-0140 |
18 inch bumper |
|
|
|
|
