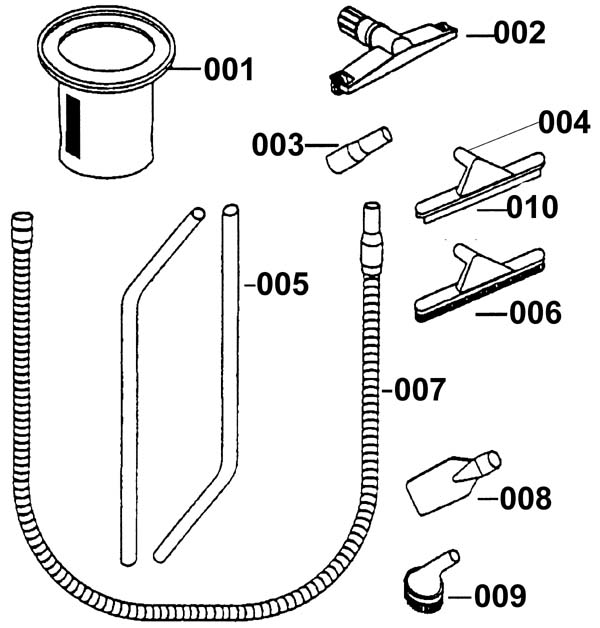

Accessories - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

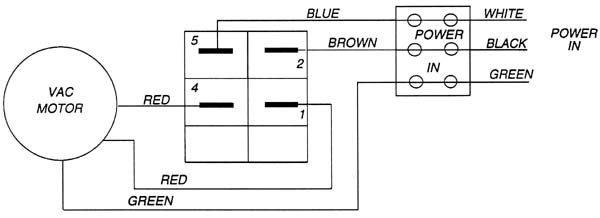

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

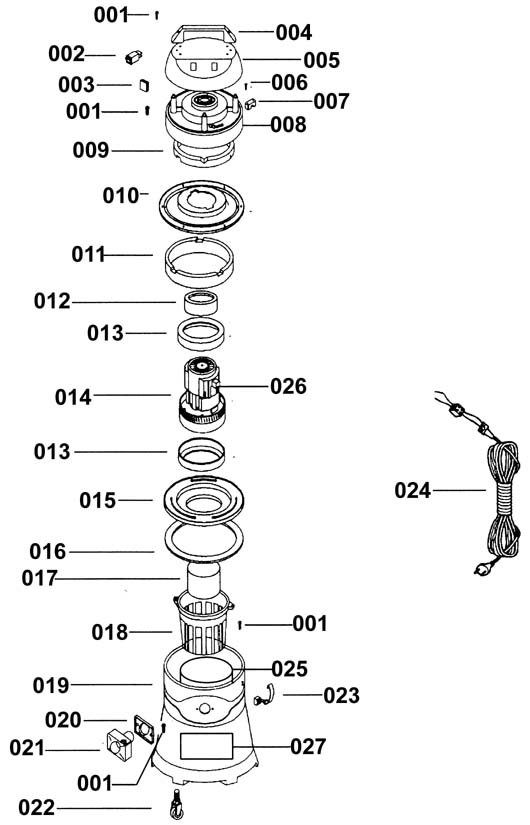

Entire Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Tool Assembly - 273-3339 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
203-1247 |
Flex hose 1 1/2 x 10 foot |
1 |
|
| 2 |
273-5405 |
2 piece wand (OBSOLETE) |
1 |
|
| 3 |
273-4101 |
3 inch round brush |
1 |
|
| 4 |
203-2882 |
Crevice tool |
1 |
|
| 5 |
273-5407 |
2 piece curved wand |
1 |
|
| 6 |
273-5411 |
Rug/floor combination tool |
1 |
|
| 7 |
273-5410 |
Fixed carpet tool |
1 |
|
| 8 |
273-5412 |
16 inch squeegee tool |
1 |
|
|
|
