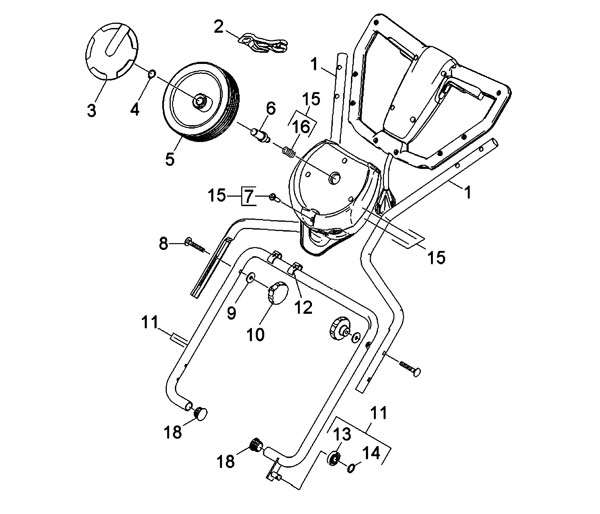

Lower Handle Assembly - 173-1257 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-6198 |
Top retaining bar |
2 |
|
| 2 |
173-6199 |
Strain relief |
1 |
|
| 3 |
173-5782 |
Wheel hubcap |
2 |
|
| 4 |
173-6200 |
Locking ring 16 x 1 |
2 |
|
| 7 |
173-6202 |
Screw M5 x 20mm |
4 |
|
| 8 |
173-6203 |
Screw M8 x 50mm saucer head |
2 |
|
| 10 |
173-6205 |
Knob (gray) |
2 |
|
| 11 |
N/A |
Not available |
1 |
(Bottom retaining bar) |
| 12 |
173-6206 |
Cable clip (OBSOLETE) |
2 |
|
| 13 |
173-6208 |
Ball bearing |
1 |
|
| 14 |
173-6209 |
Lock washer |
1 |
|
| 15 |
173-6210 |
Set wheel holder |
1 |
|
| 16 |
N/A |
Not available |
2 |
(Pressure spring) |
| 18 |
N/A |
Not available |
2 |
(Drain plug) |
|
|

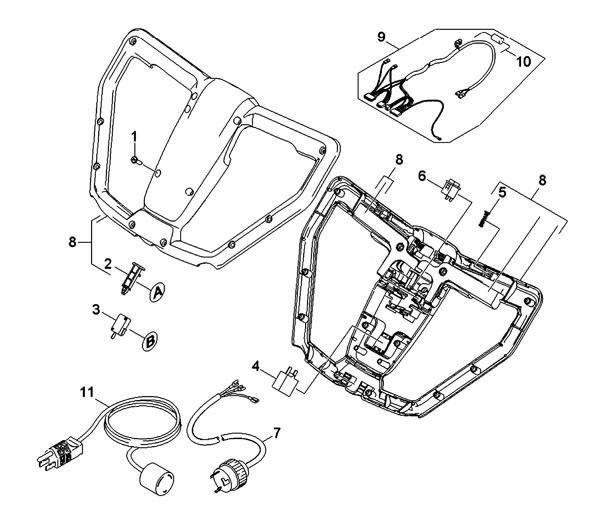

Upper Handle Assembly - 173-1258 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-6202 |
Screw M5 x 20mm |
12 |
|
| 2 |
173-6207 |
Press switch slide |
1 |
|
| 6 |
173-6214 |
Switch |
2 |
(water pump) |
| 8 |
N/A |
Not available |
1 |
(Operating unit assembly) |
| 9 |
173-6216 |
Cable harness |
1 |
|
| 10 |
N/A |
Not available |
1 |
(Diode) |
| 11 |
173-2059 |
14/3 extension cord 50 foot twist lock (yellow) |
1 |
|
|
|

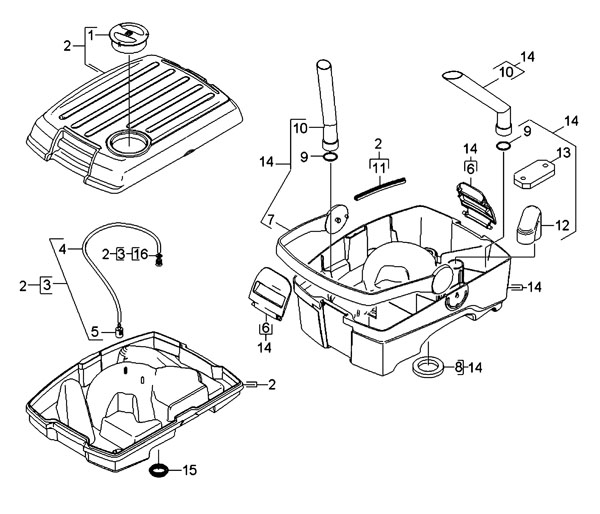

Tank Assembly - 173-1259 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
173-6217 |
Solution tank |
1 |
|
| 3 |
173-6218 |
Housing valve assembly |
1 |
|
| 4 |
173-6219 |
Hose (sold by the foot) |
1 |
|
| 6 |
273-6410 |
Tank closure |
2 |
|
| 7 |
273-6409 |
Carrier tank handle |
2 |
|
| 12 |
173-6225 |
Elbow float |
1 |
|
| 13 |
N/A |
Not available |
1 |
(Float) |
| 14 |
173-6226 |
Recovery tank |
1 |
|
| 15 |
N/A |
Not available |
1 |
(Valve seal) |
|
|

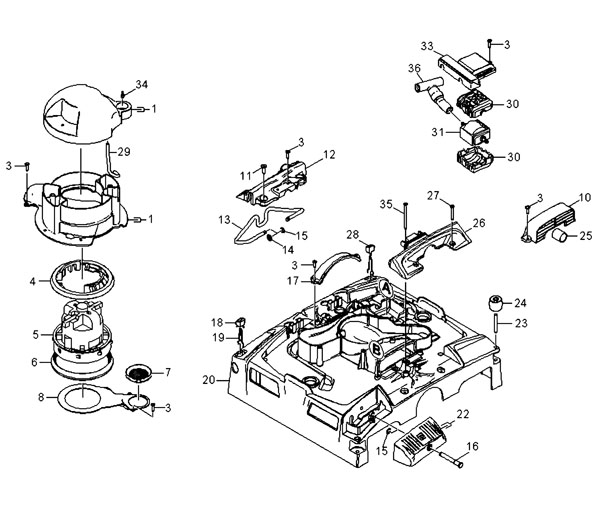

Upper Brush Housing Assembly - 173-1260 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-6218 |
Housing valve assembly |
1 |
|
| 3 |
173-6202 |
Screw M5 x 20mm |
18 |
|
| 4 |
173-6227 |
Vacuum motor seal |
1 |
|
| 5 |
273-8905 |
Turbine replacement set |
1 |
|
| 6 |
173-6229 |
Vacuum motor seal |
1 |
|
| 8 |
173-6231 |
Covering cap |
1 |
|
| 9 |
183-0075 |
Screw 5-16 x 10.9mm |
4 |
|
| 10 |
173-6232 |
Right splash guard |
1 |
|
| 11 |
999-1403 |
Screw M8 x 16mm torx head |
4 |
|
| 12 |
173-6233 |
Left retaining bracket |
1 |
|
| 13 |
173-6234 |
Adjustment retaining bracket |
1 |
|
| 14 |
999-0150 |
Washer #8 medium split lock |
2 |
|
| 15 |
173-6209 |
Lock washer |
3 |
|
| 17 |
173-6237 |
Left splash guard |
1 |
|
| 18 |
N/A |
Not available |
1 |
(Rear wheel pusher) |
| 20 |
173-6239 |
Brush housing cover |
1 |
|
| 23 |
173-6241 |
Deflector roll bolt |
2 |
|
| 24 |
173-6242 |
Deflector roll |
2 |
|
| 25 |
N/A |
Not available |
2 |
(Bushing) |
| 26 |
173-6243 |
Right retaining bracket |
1 |
|
| 27 |
173-6244 |
Screw 5M x 50mm |
4 |
|
| 28 |
N/A |
Not available |
1 |
(Front wheel pusher) |
| 29 |
173-6219 |
Hose (sold by the foot) |
1 |
|
| 31a |
173-6246 |
120V motor pump |
1 |
|
| 31b |
373-3068 |
Pump adapter cable |
1 |
|
| 35 |
173-6249 |
Screw M5 x 80mm |
2 |
|
| 36 |
173-6250 |
Check valve |
1 |
|
|
|

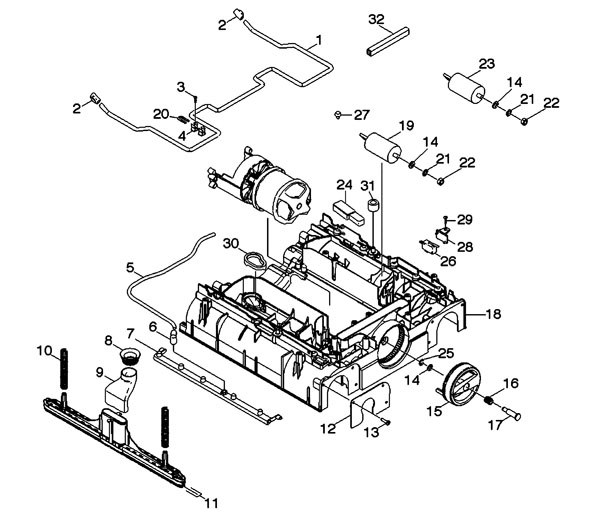

Lower Brush Housing Assembly - 173-1261 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-6251 |
Suction bar retaining bracket |
1 |
|
| 2 |
N/A |
Not available |
2 |
(Suction bar pusher) |
| 3 |
273-9982 |
Screw 3 x 12 |
2 |
|
| 5 |
173-6219 |
Hose (sold by the foot) |
1 |
|
| 6 |
173-6253 |
Angle bushing |
2 |
|
| 7 |
173-6254 |
Water distributor |
2 |
|
| 10 |
173-6257 |
Helical spring |
4 |
|
| 11a |
173-6258 |
Squeegee bar assembly |
2 |
|
| 11b |
273-1144 |
Single squeegee |
|
|
| 11c |
273-2024 |
Squeegee bar assembly (blades not available alone) |
2 |
|
| 12 |
173-6259 |
Brush holder plate |
2 |
|
| 13 |
173-6139 |
Screw 5 x 20 |
6 |
|
| 14 |
999-9097 |
Washer M8 flat stainless steel |
3 |
|
| 15 |
173-6260 |
Handle (gray) |
1 |
|
| 16 |
173-6261 |
Helical spring |
1 |
|
| 17 |
N/A |
Not available |
1 |
(Bold carriage) |
| 18 |
173-6262 |
Brush housing |
1 |
|
| 20 |
173-6264 |
Plate clamp |
1 |
|
| 21 |
173-6265 |
Serrated lock washer |
2 |
|
| 22 |
999-1651 |
Nut M8-1 hex stainless steel |
2 |
|
| 24 |
N/A |
Not available |
1 |
(Starting electronic) |
| 25 |
173-6209 |
Lock washer |
1 |
|
| 26 |
173-6268 |
Micro switch |
1 |
|
| 27 |
173-6269 |
Rubber buffer |
2 |
|
| 28 |
173-6270 |
Micro switch retainer |
1 |
|
| 29 |
173-6202 |
Screw M5 x 20mm |
1 |
|
| 30 |
N/A |
Not available |
1 |
(Exhaust seal) |
| 31 |
N/A |
Not available |
2 |
(Joint ring) |
|
|

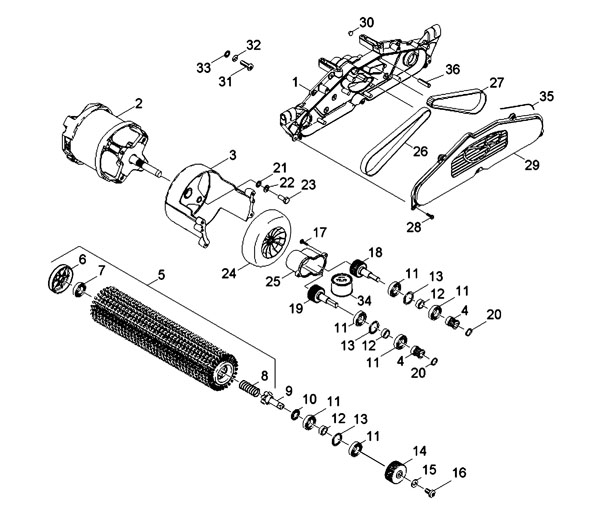

Brush Assembly - 173-1262 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
173-6273 |
120V electric motor |
1 |
|
| 3 |
173-6274 |
Motor flange |
1 |
|
| 5a |
183-7537 |
Hi/low cylindrical grout brush (orange) |
2 |
(for scrubbing structured floors, safety tiles, etc.) |
| 5b |
173-6276 |
Very hard cylindrical brush assembly (black) |
2 |
(Very hard, for extremely sticky dirt and for deep cleaning; for unsensitive surfaces only.) |
| 5c |
173-5397 |
Soft cylindrical brush (white) |
2 |
(for polishing floors) |
| 5d |
273-6415 |
Hard cylindrical scrubbing brush (green) |
2 |
(for cleaning heavily dirtied floors) |
| 5e |
173-6278 |
Natural horsehair cylindrical brush |
2 |
(perfect for spray cleaning and for polishing) |
| 5f |
273-6414 |
Medium cylindrical scrubbing brush (red) |
2 |
(for light cleaning) |
| 7 |
173-6280 |
Ball bearing |
2 |
|
| 8 |
173-6281 |
Helical spring |
2 |
|
| 11 |
273-5827 |
Ball bearing |
8 |
|
| 12 |
173-6284 |
Spacer sleeve |
4 |
|
| 13 |
273-5828 |
Locking ring |
4 |
|
| 14 |
173-6285 |
Belt pulley |
2 |
|
| 16 |
173-6286 |
Screw M6 x 12mm |
2 |
|
| 17 |
173-6287 |
Screw M5 x 16mm (OBSOLETE) |
3 |
|
| 18 |
173-6288 |
Left shaft gear |
1 |
|
| 19 |
173-6289 |
Right shaft gear |
1 |
|
| 20 |
273-6070 |
Locking ring |
2 |
|
| 21 |
173-6265 |
Serrated lock washer |
4 |
|
| 22 |
999-0150 |
Washer #8 medium split lock |
4 |
|
| 23 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
4 |
|
| 24 |
173-6291 |
Blower wheel |
1 |
|
| 26 |
173-6293 |
Toothed belt |
1 |
|
| 27 |
173-6294 |
Toothed belt |
1 |
|
| 28 |
173-6202 |
Screw M5 x 20mm |
6 |
|
| 29 |
173-6295 |
Gear case cover |
1 |
|
| 30 |
N/A |
Not available |
1 |
(Cap) |
| 31 |
173-6296 |
Screw M6 x 30mm |
4 |
|
| 33 |
173-6298 |
Serrated lock washer |
4 |
|
| 35 |
173-6299 |
Rubber seal string |
1 |
|
| 36 |
173-6300 |
Spring pin 5 x 24 |
2 |
|
|
|

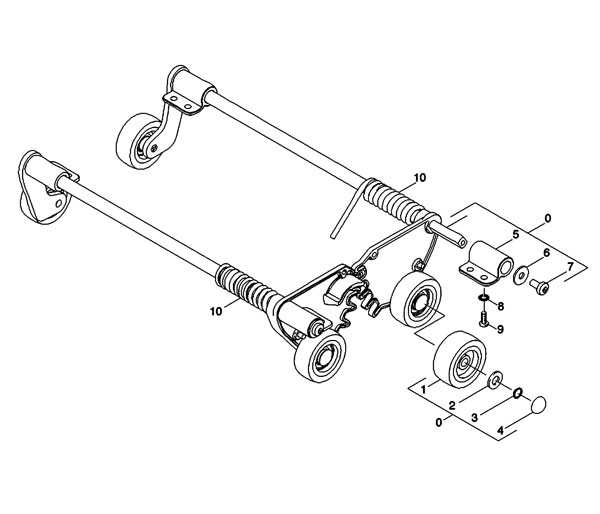

Chassis Assembly - 173-1263 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
173-6301 |
Chassis assembly |
1 |
|
| 1 |
173-6302 |
Wheel (gray) |
4 |
|
| 2 |
173-6303 |
Joint ring (OBSOLETE) |
4 |
|
| 3 |
173-6304 |
Locking ring |
4 |
|
| 5 |
173-6306 |
Bearing flange carriage |
4 |
|
| 7 |
173-6286 |
Screw M6 x 12mm |
4 |
|
| 8 |
173-6307 |
Serrated lock washer (OBSOLETE) |
8 |
|
| 9 |
173-6139 |
Screw 5 x 20 |
8 |
|
| 10 |
N/A |
Not available |
1 |
(Leg spring set) |
|
|
- Commonly Asked For Parts - 173-9052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
273-6410 |
Tank closure |
|
|
| 0.9835 |
273-2024 |
Squeegee bar assembly (blades not available alone) |
2 |
|
| 0.9835 |
273-6409 |
Carrier tank handle |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
