Parts List Complete for WINDSOR SABER BLADE 12

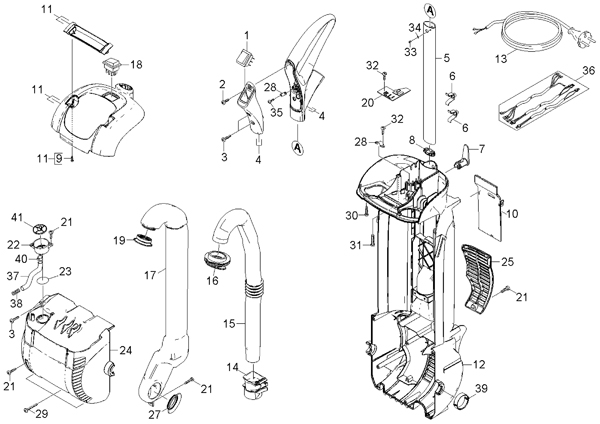

Housing Assembly - 173-1253
RefNbr Part Number Description Req Notes
1 173-6138 Switch 1
2 173-6139 Screw 5 x 20 8
3 183-8117 Screw 5 x 40 2
4 173-6140 Handle assembly 1
5 173-6141 Handle weldment 1
6 173-6142 Handle spring 2
7 173-6143 Cable hook (gray) (OBSOLETE) 1
8 N/A Not available 1 (Handle plug)
9 183-0075 Screw 5-16 x 10.9mm 2
10 173-6144 Cable cover 1
11 173-6145 Housing cover 1 (includes 9)
12 173-6146 Housing 1
13 173-6147 Power cord 1
14 173-6148 Sleeve (gray) 1
15 173-6149 Hose 1
16 173-6150 Seal 1
17 173-6151 Suction pipe 1
18 173-6152 Switch 1
19 173-6153 Seal 1
20 273-6480 Circuit board 1
21 183-0281 Screw 3
22 173-6155 Valve funnel 1
23 173-6156 Gasket 1
24 173-6157 Motor frame 1
25 173-6158 Vent 1
27 173-6159 Seal 1
28 173-6160 Cable clamp 2
29 N/A Not available 3 (Screw)
30 273-0977 Screw M5-10.9 x 30mm 2
31 273-6482 Screw 5 x 65 2
32 173-2935 Screw M4-.7 x 12mm 4
33 273-6483 Screw M4 x 12mm 1
34 273-6484 Lock washer 1
35 173-6178 Screw M5 x 12mm 2
36 273-6485 Cable harness 1
37 273-6486 Tube 1
38 273-6487 Spring 1
39 183-8126 Bearing shell 1
40 173-5843 Hose clip with insert 1
41 273-6488 Strainer 1

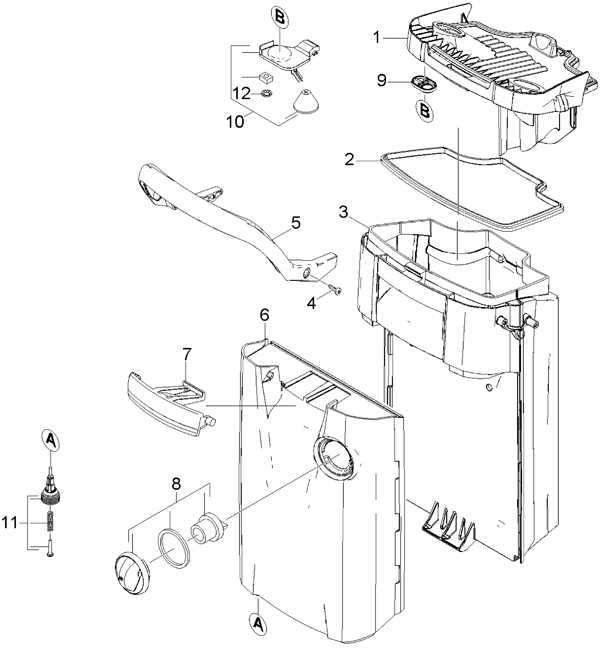

Tank Assembly - 173-1254
RefNbr Part Number Description Req Notes
1 273-6430 Cover 1
2 273-6431 Gasket 1
3 273-6432 Solution tank 1
4 183-0075 Screw 5-16 x 10.9mm 2
5 273-6424 Tank carrier handle 1
6 173-6161 Solution tank 1
7 273-6425 Fresh water tank notch 1
8 173-6162 Tank cap 1
9 273-6433 Float seal 1
10 273-6434 Float 1 (includes 12)
11 173-6154 Valve 1
12 183-0394 Quick fastener (OBSOLETE) 1

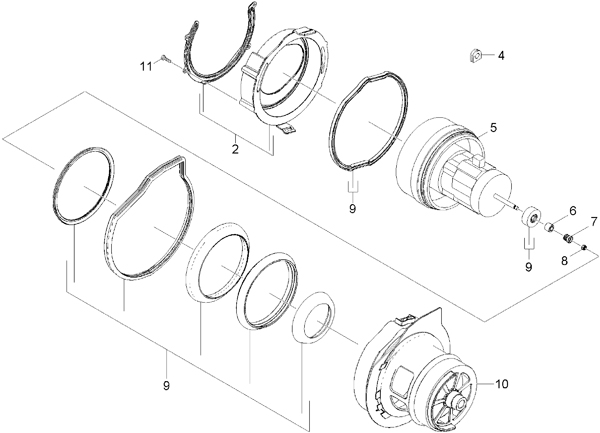

Motor Assembly - 173-1255
RefNbr Part Number Description Req Notes
2 173-6163 Motor cover 1
4 173-6164 Cable bushing 1
5 173-6165 Vacuum motor 1
6 173-6166 Pinion 1
7 N/A Not available 1 (Motor pinion)
8 173-6167 Hexagon nut 1
9 173-6168 Gasket set 1
10 173-6169 Motor enclosure 1
11 183-0281 Screw 4

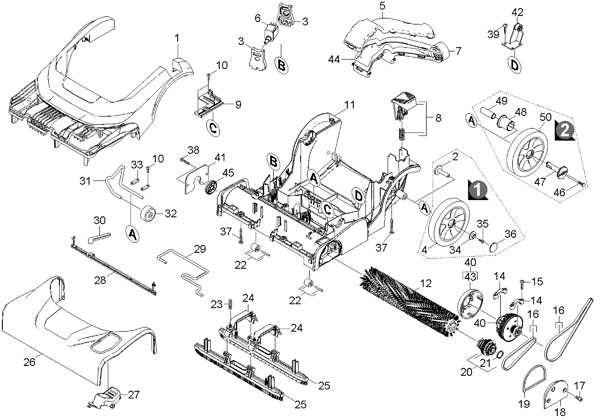

Brush Head Assembly - 173-1256
RefNbr Part Number Description Req Notes
1 173-6170 Brush head cover 1
2 173-6171 Snap fit 2 (version 1)
3 173-6172 Bearing 2
4 N/A Not available 2 (Wheel) (version 1)
5 173-6174 Suction channel top 1
6 173-6175 Pump 1
7 173-6176 Suction channel 1
8 183-8135 Foot pedal 1
9 173-6177 Plate switch covering cap 1
10 273-6490 Screw 4 x 16 6
11 173-6179 Brush head housing 1
12a 173-7509 Complete brush roller (red) 1
12b 173-7510 Brush roller (white) 1
12c 173-7511 Complete microfiber roller 1
12d 273-4230 Brush roller (orange) 1
14 173-6180 Coupler 2
15 173-6181 Screw M4 x 22mm 4
16 173-6182 Toothed belt set 1
17 183-0281 Screw 3
18 173-6183 Bearing retainer 1
19 173-6184 Seal 1
20 173-6185 Brush drive assembly set 1 (includes 21)
21 173-6186 Locking ring 10 x 1 1
22 183-8106 Roller assembly 2
23 173-6187 Spring 4
24 173-6188 Suction bar bracket 2
25a 273-1136 Complete suction bar 2 (Squeegee blade cannot be purchased seperatly)
25b 273-1137 Complete oil resistant suction bar 2 (Squeegee blade cannot be purchased seperatly)
26 173-6189 Bumper 1
27 173-6190 Pedal (gray) 1
28 173-6191 Water distributor strip 1
29 173-6192 Retaining bracket 1
30 173-6193 Hose nozzle 1
31 173-6194 Retaining bracket 1
32 183-2003 Wheel 1
33 173-2998 Pull relief 2
34 173-6195 Washer 2 (version 1)
35 173-6196 Screw M5 x 12mm 2 (version 1)
36 273-6416 Quick fastener 2 (version 1)
37 N/A Not available 1 (Screw)
38 N/A Not available 2 (Screw)
39 183-0281 Screw 3
40 173-6197 Coupler assembly 1 (includes 43)
41 273-6492 Brush bracket 1
42 273-6493 Pressure roller assembly 1
43 273-6494 Cap coupler 1
44 173-6299 Rubber seal string 1
45 275-6406 Thread deflector 1
46 273-6495 Wheel pin 2 (version 2)
47 173-6171 Snap fit 2 (version 2)
48 N/A Not available 2 (Bearing with collar) (version 2)
49 N/A Not available 2 (Bushing) (version 2)
50 N/A Not available 2 (Wheel) (version 2)

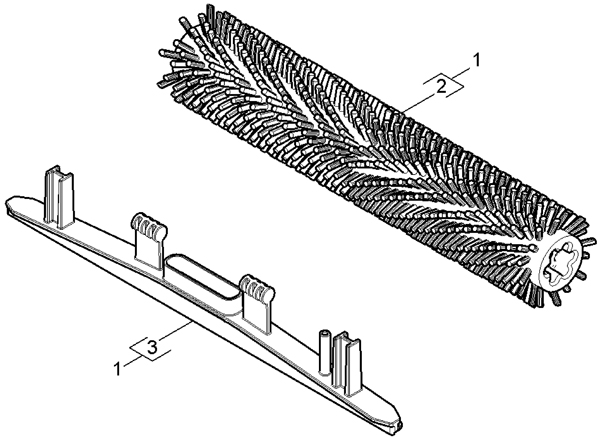

Add-On Carpet Cleaning Kit - 173-8547
RefNbr Part Number Description Req Notes
1 273-6499 Carpet cleaning kit 1 (includes 2 and 3)
2 273-6500 Roller brush (blue) 1
3 273-6501 Suction bar 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
