Parts List Complete for WINDSOR SABER 34

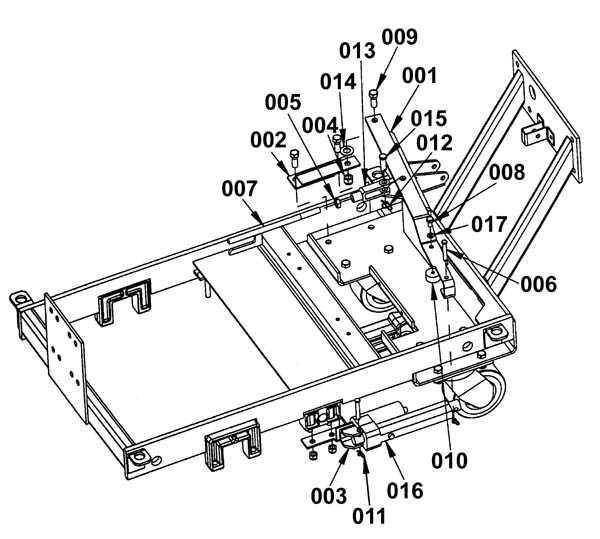

Automatic Squeegee Lift - 173-0053
RefNbr Part Number Description Req Notes
001 173-1719 Auto lift arm 1
002 173-1720 Actuator assembly bracket 1
003 173-1725 Auto lift actuator mount 1
004 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 1
005 999-0169 Nut 3/8-24 hex jam plain finish 1
006 173-1726 Clevis pin 2
007 173-1727 Auto lift push rod (OBSOLETE) 1
009 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish 1
010 173-1728 Spacer 1
011 173-1130 Cotter ring 2
012 173-1593 Cotter ring (OBSOLETE) 1
013 173-1729 3/8 in yoke end clevis 1
014 999-0566 Washer 1/2 flat nylon 1
015 173-1730 Clevis pin 1
016 173-1731 actuator assembly 1
017 999-0017 Washer 1/4 external star lock 1

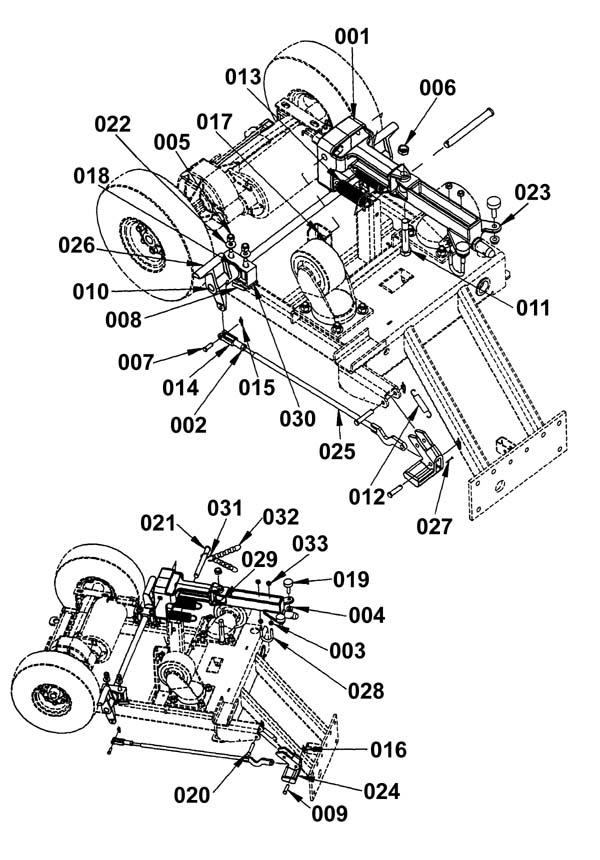

Brake/Squeegee Link Assemblies - 173-0054
RefNbr Part Number Description Req Notes
001 173-1732 Squeegee pivot linkage 1
002 999-0952 Nut 1/4-28 hex stainless steel 1
003 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
004 173-2465 Nut 5/16 external snap (OBSOLETE) 2
005 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
006 173-3886 Nut 1/2-13 lock thin 1
007 173-1474 Clevis pin 1
008 173-2880 Roll pin 2
010 173-1733 torsion brake rod 1
011 999-0128 Bolt 1/2-13 x 3 hex head grade 5 zinc plated 1
012 173-1478 Extension spring 1
013 173-1734 Extension spring (OBSOLETE) 2
014 173-1479 Yoke end clevis 1
015 173-1130 Cotter ring 1
016 173-1480 Cotter ring 2
017 173-1659 1/2 inch cotter ring (OBSOLETE) 1
018 999-0349 Washer 5/8 SAE flat 2
019 173-1537 Adjustment bumper 2
020 173-1481 Clevis pin 1
021 173-1662 Clevis pin 1/2 X 4 4/5 1
022 999-0630 Washer 3/4 SAE flat 4
023 173-1735 Squeegee lift linkage 1
024 173-1482 brake pedal (OBSOLETE) 1
025 173-1483 weldment rod parking brake (OBSOLETE) 1
026 173-1484 brake pad (OBSOLETE) 2
027 173-1039 Cotter Pin 1/16 x 3/4 1
028 173-1110 U-bolt 1/4-20 x 1 x 1 3/4 1
029 173-1663 spacer 1
030 173-1486 pillow block bushing (OBSOLETE) 2
031 173-1668 2 inch S hook 1
032 173-1667 #10 7-links grounding chain (OBSOLETE) 1
033 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2

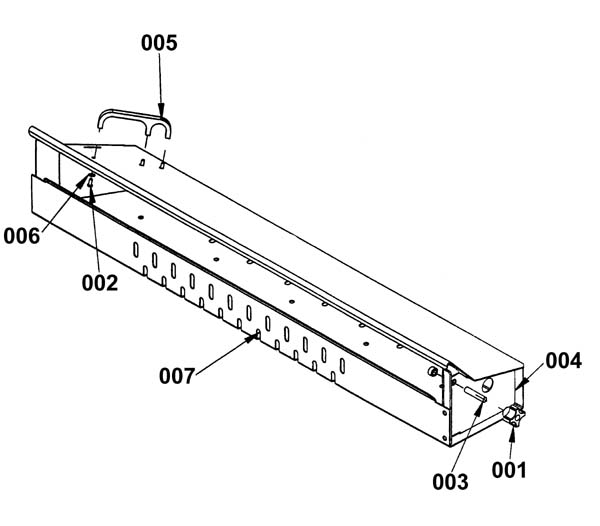

Hopper Assembly - 173-0055
RefNbr Part Number Description Req Notes
001 173-1736 Knob 1
003 173-3516 Screw 5/16-18 x 1 1/2 set 1
004 173-1738 cover cylindrical scrub tracer plate 1
005 173-1739 Cylindrical scrub hopper handle 1
007 173-1740 tray 34 cylindrical scrub weldment 1

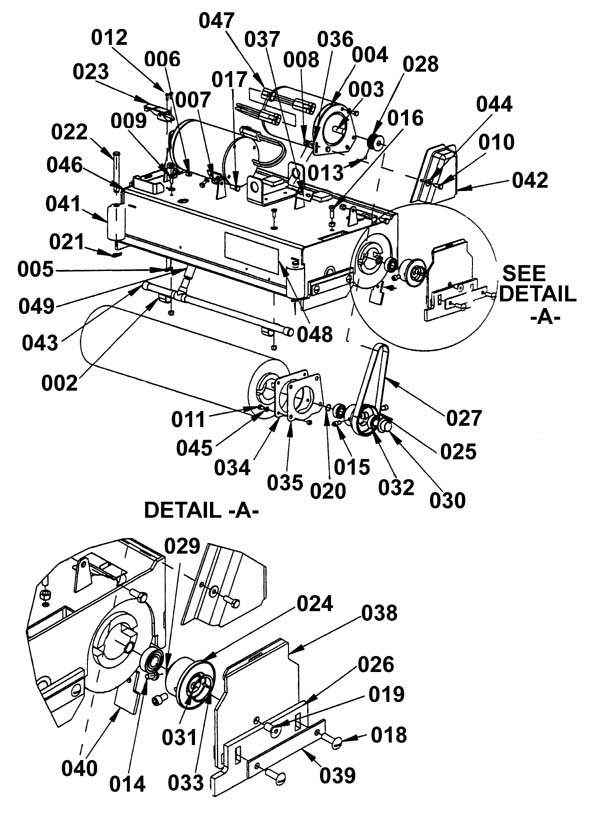

Cylindrical Brush Head Assembly - 173-0056
RefNbr Part Number Description Req Notes
002 173-1741 Conduit clamp 2
003 173-1742 1/4 x 3/4 key 2
004 173-1743 Brush motor 2
005 999-0151 Nut 8-32 nylon insert lock zinc plated 4
006 999-0069 Nut 5/16-18 hex 2
007 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
008 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
009 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
010 999-0200 Bolt 1/2-13 x 1 1/4 hex head 4
012 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
013 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 4
014 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
015 173-0139 18 inch metal plate set 8 (18 inch)
017 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
018 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
019 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated 2
020 173-3507 Retainer ring 4
021 173-1659 1/2 inch cotter ring (OBSOLETE) 2
022 173-1744 Clevis pin (OBSOLETE) 2
023 173-0009 Axle spring 2
024 173-1745 Idler cylindrical scrub hub (OBSOLETE) 2
026 173-1747 Squeegee cylindrical side scrub 4
027 173-1748 Cylindrical brush drive belt 2
028 173-1749 Motor drive cylindrical brush pulley 2
029 173-1750 Idler cylindrical scrub shaft 2
030 173-1751 Drive cylindrical scrub shaft 2
031 173-1752 Retaining HO ring 2
032 173-1753 Bearing 6
033 173-1754 Roll pin 2
034 173-3506 Seal retainer plate 2
035 173-1756 Driver cylindrical scrub seal 2
036 173-1757 Motor mount plate 2
037 173-1758 Motor mount angle 2
038 173-1759 Cylindrical door scrub weldment (OBSOLETE) 2
039 173-1760 Retainer bar 4
040 173-1761 side cylindrical scrub flap 2
041 173-1762 Cylindrical side scrub roller 2
042 173-1763 Cylindrical belt scrub machine guard 2
043 173-1764 solution delivery tube assembly 1
044 999-0123 Washer 1/4 SAE flat zinc plated 10
045 999-0017 Washer 1/4 external star lock 16
046 173-1756 Driver cylindrical scrub seal 1
047 173-1766 Polarity jumper wire assembly 1
048 173-1767 Scrub plus decal 1
049 173-1684 1/2 nylobraid x 36 inch hose 1

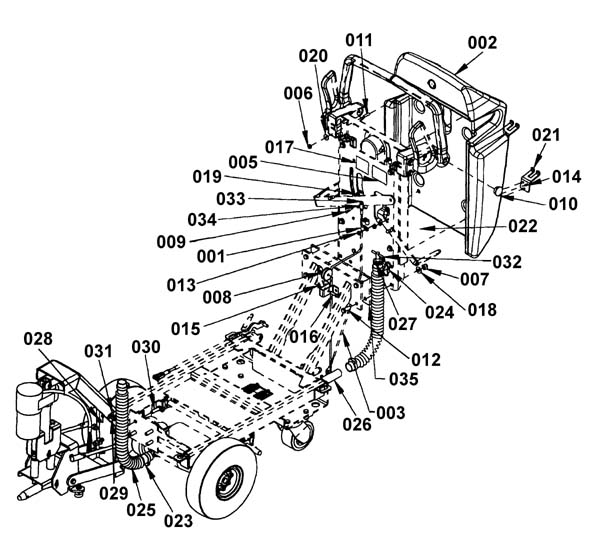

Control Panel Cover - 173-0057
RefNbr Part Number Description Req Notes
001 173-1709 P clamp (OBSOLETE) 4
002 173-1499 rear console (OBSOLETE) 1
003 173-1649 Cable 1
004 173-1769 saber main harness (OBSOLETE) 1
005 173-1282 For safety decal 1
006 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 4
007 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 8
008 173-1653 pulley 1
009 173-1038 Pin Clevis 3/16 x 1/12 1
010 173-1492 1.00 hole plug 2
011 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 4
012 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel 4
013 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 4
014 173-3906 Screw 10-32 x 1/2 pan head type b stainless steel 6
015 173-1130 Cotter ring 2
016 173-1660 clevis pin 1
017 173-1721 Battery caution decal 1
018 999-0617 Washer 3/8 x 1 flat stainless steel 8
019 999-0377 Washer 6 SAE flat plain finish 1
020 173-2483 Washer 1/4ID x 3/4OD plated 4
021 189-4135 Hose mounting bracket 2
022 N/A Not available 2 (not available)
023 173-1678 Nylon rachet clamp 4
024 189-4123 Drain plug tether 1
025 173-2793 Drain hose 2
026 173-1771 clear hose 1
027 189-0339 Sleeve (OBSOLETE) 1
028 999-0086 Nut 10-32 nylon insert lock zinc plated 1
029 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 1
030 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
031 173-1772 P clamp 1
032 173-2794 Drain hose plug 1
033 173-3956 Cable Extension Plate 1
034 173-2472 Nut 10-32 with star washer 1
035 N/A Not available 1 (not available)

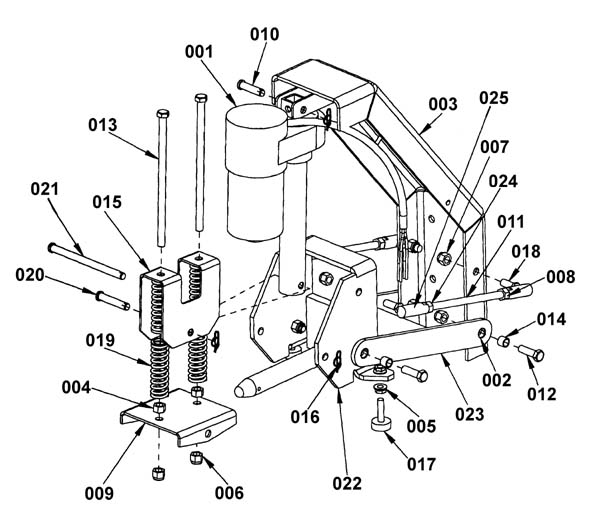

Brush/Scrub Head Lift Assembly - 173-0058
RefNbr Part Number Description Req Notes
001 273-0091 36V actuator 1
002 173-1583 bearing 4
003 173-1774 Actuator weldment bracket (OBSOLETE) 1
004 999-0170 Nut 3/8-16 hex plain finish 2
005 173-2465 Nut 5/16 external snap (OBSOLETE) 4
006 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 6
007 999-1391 Nut 3/8-24 nylon insert lock stainless steel 4
008a 999-0169 Nut 3/8-24 hex jam plain finish 4
008b 999-0169 Nut 3/8-24 hex jam plain finish 2
009 173-1587 spring support plate 1
010 173-1588 Clevis pin 1
011a 173-1775 Rod assembly (Not Available) (OBSOLETE) 2 This part is no longer available. You need to order 011b, 011c, and 011d to get all the parts in this assembly.
011b 173-1589 Scrub lift rod 2
011c 173-1584 Left ball joint 4
011d 173-3927 Nut 3/8-24 4
012 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc 4
013a 999-0926 Bolt 3/8-16 x 7 1/2 hex head grade 8 plain finish 2
013b 173-3957 Screw 3/8-16 x 6 hex head 2
014a 173-1591 Spacer 8
014b 173-1591 Spacer 4
015 173-1592 spring retainer plate 1
016 173-1593 Cotter ring (OBSOLETE) 3
017 173-1537 Adjustment bumper 2
018a 173-1594 Right ball joint assembly 4
018b 173-1594 Right ball joint assembly 2
019a 173-1776 Compound spring 4
019b 173-1777 compound spring 4
020 173-1595 Clevis pin (OBSOLETE) 1
021 173-1596 Clevis pin 1
022 189-1040 Scrub deck pin weldment 1
023a 173-1778 weldment scrub deck linkage (OBSOLETE) 2
023b 173-1778 weldment scrub deck linkage (OBSOLETE) 1
024 173-3927 Nut 3/8-24 2
025 173-1584 Left ball joint 2

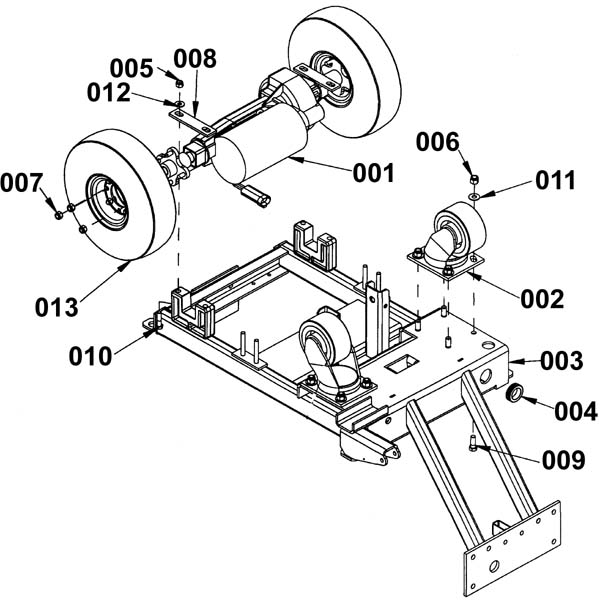

Main Frame Assembly - 173-0059
RefNbr Part Number Description Req Notes
001 173-1779 Drive motor axle 1
002a 991-2006 Caster wheel assembly (red) 2
002b 991-2008 4 inch caster wheel with bearings (red) 2 Can install if swivel is ok
003 173-3637 Saber frame (OBSOLETE) 1
004 173-1681 Grommet 1
005 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
006 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 8
007 999-0689 Nut 7/16-20 hex jam plain finish 6
008 173-1694 Drive axle plate 2
009 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 8
010 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish 4
011 999-0617 Washer 3/8 x 1 flat stainless steel 8
013a 173-1780 Pneumatic knobby wheel (gray) 2 Includes tube
013b 173-1781 Pneumatic knobby wheel (black) 2
N/S 173-1782 12 inch tire tube 2

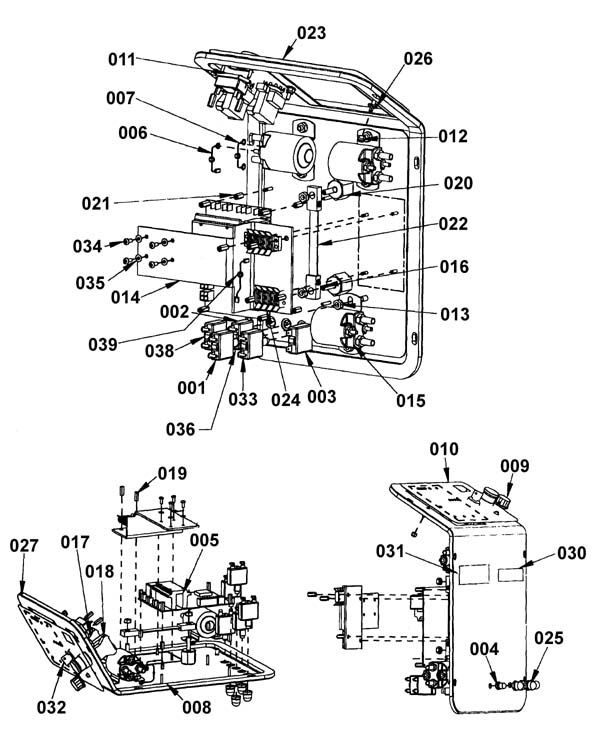

Rear Panel Electrical - 173-0060
RefNbr Part Number Description Req Notes
001 991-1629 35amp circuit breaker 2
002 991-1632 25amp circuit breaker 1
003 991-1624 3amp circuit breaker 1
004 189-0312 3/8 inch circuit breaker boot 1
005 173-1783 controller 1
006 173-1784 diode assembly (OBSOLETE) 1
007 189-0372 Diode assembly 1
008 173-1508 electrical panel gasket 1
009 189-0315 Knob with set screw 1
010 173-3658 Scrubber panel label 1
011 173-1160 LED hour meter 1
012 999-0151 Nut 8-32 nylon insert lock zinc plated 2
013 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 8
014 N/A Not available 1 (not available)
015 991-1227 36V solenoid 4 post (2 large 2 small) 3
016 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
017a 189-0320 Key switch 1
017b 173-3958 Key (pkg of 2)
018 173-1531 Emergency stop switch 1
019 173-1520 Nylon standoff 10
020 173-1145 Insulated stand-off 2
021 173-1786 1/2 inch standoff 4
022a 173-1787 type A shunt 1
022b 173-1788 type A shunt 1
023 173-1789 Touch panel assembly 1
024 173-1790 Strip 8 position terminal 2
025a 173-1522 3/8 inch circuit breaker boot 4 (OEM)
025b 991-5157 3/8 inch circuit breaker boot 4 (NON-OEM)
026 999-0377 Washer 6 SAE flat plain finish 2
027 173-1791 weldment electrical panel (OBSOLETE) 1
028 173-1792 control harness (OBSOLETE) 1
029 173-1793 motor harness 1
030 173-1282 For safety decal 1
031 173-1724 Safety decal 1
032 173-3958 Key (pkg of 2) 1
034 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
036 173-1795 breaker 1
037 173-1796 red wire 1
038 173-1795 breaker 1
039 173-1798 diode assembly (OBSOLETE) 1
040 173-1799 Potentiometer 1

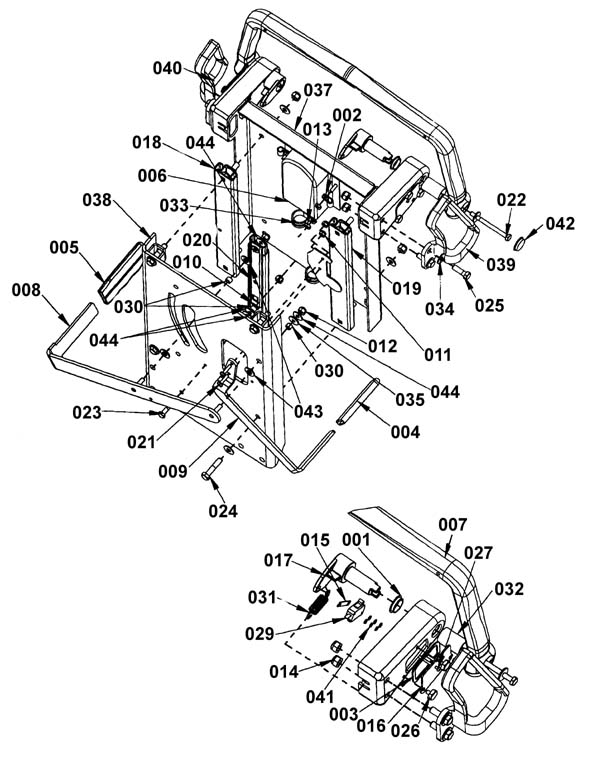

Rear Panel Mechanical - 173-0061
RefNbr Part Number Description Req Notes
001 173-1487 3/4 nyliner SI bearing 2
002 173-1800 5/16 nylon clamp (OBSOLETE) 2
003 173-1488 micro switch cover gasket 2
004 173-1801 vinyl handle grip 1
005 173-1169 Flat bar grip 3/16 x 1 inch 1
006 173-1802 harness cover guard (OBSOLETE) 1
007 173-1489 control handle 1
008 189-0345 Squeegee lift lever 1
009 173-3659 Console lift lever 1
010 999-0190 Nut 1/4-20 hex plain finish 1
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
013 173-2472 Nut 10-32 with star washer 4
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
015 173-3902 Switch mounting nut plate 2
016 173-1490 microswitch mount plate 2
017 173-1491 handle pivot (OBSOLETE) 2
018 173-1803 sliding rail 1
019 173-1804 locking rail 1
020 189-0346 Rail rachet (OBSOLETE) 1
021 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 6
022 999-0683 Bolt 1/4-20 x 3 hex head grade 5 zinc plated 2
023 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 1
024 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4
025 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 4
026 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 6
027 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 4
028 173-1529 Windsor service card (OBSOLETE) 1
029 189-0305 Microswitch 2
030 173-1658 tube 3
031 189-0306 Extension spring 2
032 173-1494 spacer 7/8 OD x .78 ID x 1.357L 2
033 173-1772 P clamp 2
035 999-1007 Washer 3/8 x 1/16 flat nylon 2
036 173-1530 Service card band 1
037 173-1805 console mounting weldment (OBSOLETE) 1
038 173-1806 tower weldment 1
039 173-1497 Grab handle bar left 1
040 173-1498 Grab handle bar right (OBSOLETE) 1
041 173-3904 Washer 1/8 rivet backup 12
042 173-1492 1.00 hole plug 2
043 173-3944 Washer 2/5 nylon 3
044 173-3943 Washer 17/64 flat 4

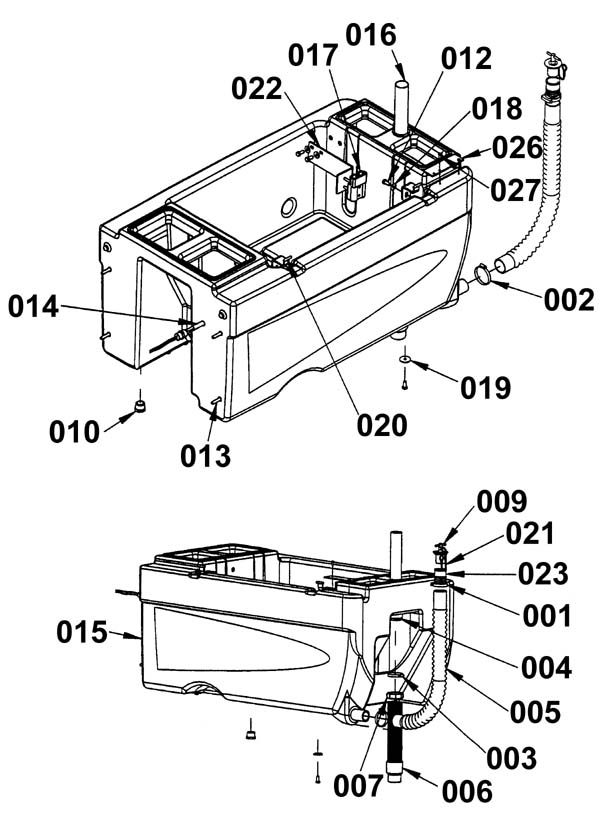

Recovery Tank - 173-0062
RefNbr Part Number Description Req Notes
001 189-4122 Hose clamp 1
002 997-2007 Hose clamp 1
003 189-0329 Hose clamp 1
004 173-1542 1 1/2 compression gasket 1
005 173-1216 Drain hose 1 1/2 x 24 inch 1
006 173-2798 Vacuum hose assembly 1
007 273-6836 Slip joint nut 1
009 173-1213 Drain plug 1
010 173-1551 PVC plug 1
012 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 8
014 273-1080 Float switch 1
015 173-1807 recovery tank (OBSOLETE) 1
016 173-1548 1.5 inch x 8 inch PVC tube (OBSOLETE) 1
017 991-2112 175amp charger plug with pins (gray) SB175 1
019 999-0617 Washer 3/8 x 1 flat stainless steel 4
020 189-0333 Weldment hinge 2
021 189-4123 Drain plug tether 1
022 173-1808 battery connector mount bracket (OBSOLETE) 1
023 189-4130 1/2 inch hosebarb 1
024 173-1809 charger adapter wire assembly 1
026 173-1710 Cable mount plate (OBSOLETE) 1
027 173-3906 Screw 10-32 x 1/2 pan head type b stainless steel 2

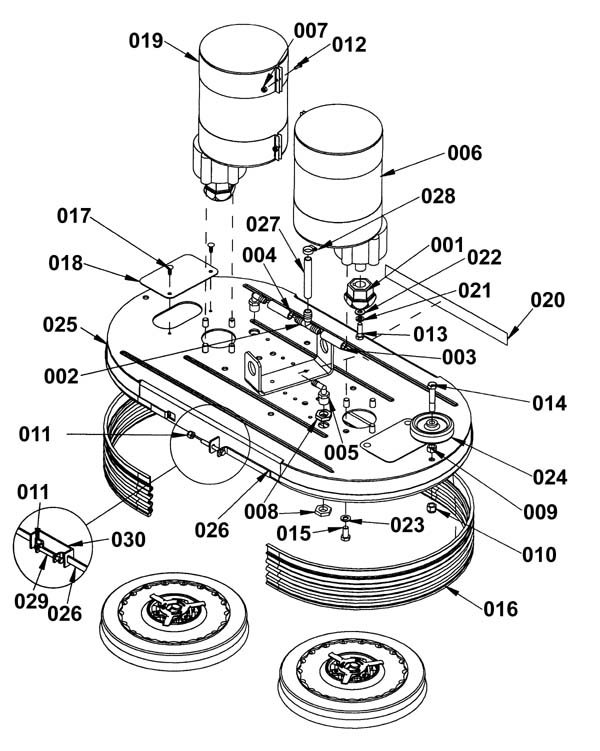

Scrub Deck Assembly - 173-0063
RefNbr Part Number Description Req Notes
001 189-0021 Hex drive hub (OBSOLETE) 2
002 173-1095 Tee fitting 1
003a 173-1811 nylobraid hose 1
003b 173-1812 nylobraid hose 1
004 173-1570 Nylon braided hose 3/8 x 7 inch 1
005 173-1572 Hosebarb 3/8 x 3/8 inch 2
006a 173-1946 36V brush motor assembly 2
006b 991-2122 36V .75HP brush motor assembly with gear box 2 (NON-OEM)
007 999-0151 Nut 8-32 nylon insert lock zinc plated 4
008 173-3922 Sealed bulkhead nut 4
009 999-0170 Nut 3/8-16 hex plain finish 1
010 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 1
011b 999-0442 Nut 10-24 nylon insert lock stainless steel
012 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel 4
013 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
014 173-3937 Bolt 3/8-16 x 2 hex head 1
015 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 8
016a 189-0325 Shroud skirt (OBSOLETE) 1
016b 189-3075 Shroud-32 inch 1
017 173-1577 Tree clip 4
018 173-1578 Brush release cover 2
019 173-3660 Motor guard 4
020 173-1579 anti slip pad 1
021 999-0028 Washer 5/16 split lock plain finish 2
022 173-3912 Washer .344 x .066 flat head (OBSOLETE) 2
023 999-0034 Washer 3/8 split lock plain finish 8
024 189-0326 Bumper wheel 1
025a 173-1816 scrubhead weldment 34 inch 1
025b 173-1817 scrubhead weldment 27 inch (OBSOLETE) 1
026a 173-1818 Weldment skirt retainer 34 inch 1
026b 173-1819 weldment skirt retainer 28 inch 1
027 173-1684 1/2 nylobraid x 36 inch hose 1
028 173-1821 Hose clamp 1
029 999-1688 Screw 10-24 x 2 hex head stainless steel 1
030 173-1820 strap support channel (OBSOLETE) 1
N/S 173-1023 Hex drive clutch (OBSOLETE)
N/S 173-1022 Brush release plate

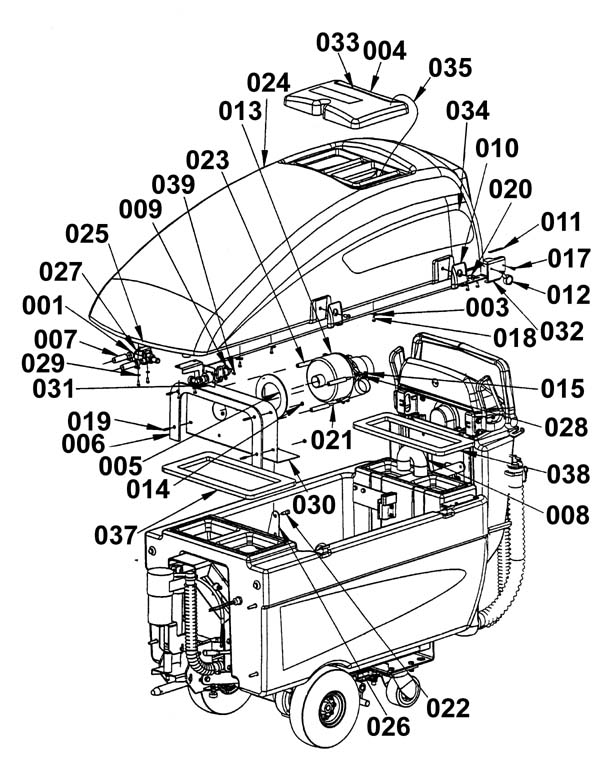

Solution Tank Assembly - 173-0064
RefNbr Part Number Description Req Notes
001 173-1821 Hose clamp 4
003 173-1822 single conduit clip (OBSOLETE) 4
004 189-0337 Solution tank lid 1
006 173-3666 Vac motor gasket 1
007 173-1823 1/2 nylobraid hose 2
008 189-0330 P-trap hose 1
009 173-1685 Hosebarb 1/2 x 1/2 inch 3
010 189-0340 Hinge 2
011 173-1824 solution flow label (OBSOLETE) 1
012 173-1825 solution valve control assembly lever 1
013a 173-0402 36V 3 stage vacuum motor assembly 1 OEM
013b 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug 1 (NON-OEM)
014 173-2472 Nut 10-32 with star washer 4
015 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 6
017 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 8
018 173-3906 Screw 10-32 x 1/2 pan head type b stainless steel 4
019 173-3946 Screw 10-32 x 1 set stainless steel 4
020 173-3949 Bolt 5/16-18 x 3/4 flat head zinc socket cap 2
021 173-3947 Screw 1/4-20 x 1 3/4 set socket cup point 3
022 173-1545 Shoulder bolt 2
023 173-1674 Spacer 3
024 173-1826 solution tank 1
025 173-1088 Screen filter 1
026 173-1549 Recovery tank support plate 1
027 173-1098 36V solenoid valve 1
028 999-0123 Washer 1/4 SAE flat zinc plated 3
029 999-0006 Washer 3/16 flat zinc plated 6
030 173-1827 vacuum mount weldment 1
031 173-1828 metering assembly standard valve 1
032 173-1829 Solution lever bracket 1
033 173-1698 Safety decal 1
034a 173-1831 stride II label (OBSOLETE) 1
034b 173-1832 stride II label right (OBSOLETE) 1
034c 173-1524 label left 1
034d 173-1525 label right 1
035 173-1679 Solution cover cord 1
036 173-1833 brush set for vacuum motor 1
037 173-1834 Gasket 1
038 173-1835 Gasket 1
039 173-1836 Solution cable swivel 1
040 173-1837 Vacuum filter 1
041 N/A Not available 1

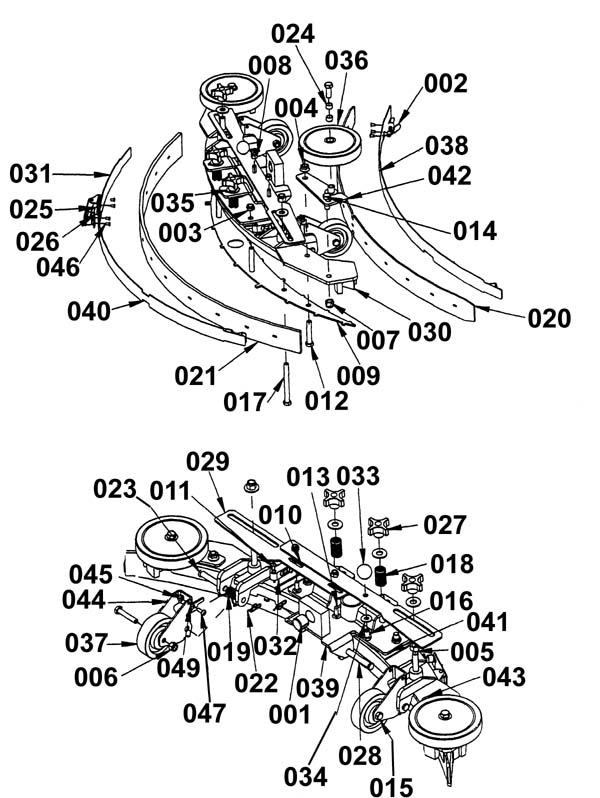

Squeegee Assembly - 173-0065
RefNbr Part Number Description Req Notes
001 173-1838 fiber bearing 1
002 173-1018 Straight line manual clamp (OBSOLETE) 1
003 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
004 999-0488 Nut 3/8-16 flange lock serrated zinc plated 2
005 999-0170 Nut 3/8-16 hex plain finish 2
006 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
007 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 3
008 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
009a 173-1839 Squeegee blade retainer plate 1
009b 173-1840 Squeegee blade retainer plate 1
010 173-1841 Long squeegee plate slide 1
011 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
012 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 2
013 173-3931 Screw 1/4-20 x 3/4 carriage 2
014 173-3964 Thrust washer 4
015 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
016 173-3962 Bolt 5/16-18 x 1/2 hex head 1
017 173-3932 Bolt 3/8-16 x 3 1/2 hex head 2
018 173-1842 compound spring 2
019 173-1601 Torsion spring 2
020a 173-7376 Squeegee blade linatex front 1
021a 173-1020 Squeegee blade linatex rear 1
021b 173-2856 Squeegee blade 44 3/25 inch linatex rear 1
021c 173-1844 Squeegee blade rear 50 inch linatex (OBSOLETE) 1
022 173-1593 Cotter ring (OBSOLETE) 3
023 173-1610 Clevis pin 2
024 173-1611 Spacer 4
025 173-0412 Squeegee strap latch 1
026 170-7029 Keeper 1
027 173-1025 Knob 3
028 173-1596 Clevis pin 1
029 173-1612 Squeegee adjust short plate 1
030a 173-1613 32 inch squeegee weldment 1
030b 173-1845 32 inch squeegee assembly 1
030c 173-1846 Squeegee blade 45 inch 1
031 173-1614 Rear squeegee band 1
032 164-1136 Squeegee level 1
033 173-1618 Knob adjustment ball 1
035 999-0328 Washer 7/16 USS flat 6
036 173-1619 Wheel (gray) 2
037 173-1250 3 inch diameter cushion rubber wheel 2
038a 173-1017 Squeegee band weldment front 1 for models S28, S34, QQS28 and, QQS34
038b 173-1847 Squeegee band front weldment 1 for models S34SP and QQS34SP
039 173-1848 Squeegee mount weldment 1
040a 173-1849 Squeegee band rear weldment 1 for models S28, S34, QQS28 and, QQS34
040b 173-1850 Squeegee band rear weldment (OBSOLETE) 1 for models S34SP and QQS34SP
041 173-1851 Squeegee mount weldment 1
042a 173-1631 Squeegee wheel weldment right 1
042b 173-1622 Squeegee extension weldment right 1
043a 173-1632 Squeegee wheel weldment left 1
043b 173-1623 Squeegee extension weldment left 1
044 173-1624 Squeegee wheel support bracket 2
046 173-2797 Rivet 7
047 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
049 173-1617 Pointer plate 1
050 173-1616 Squeegee overlay 1

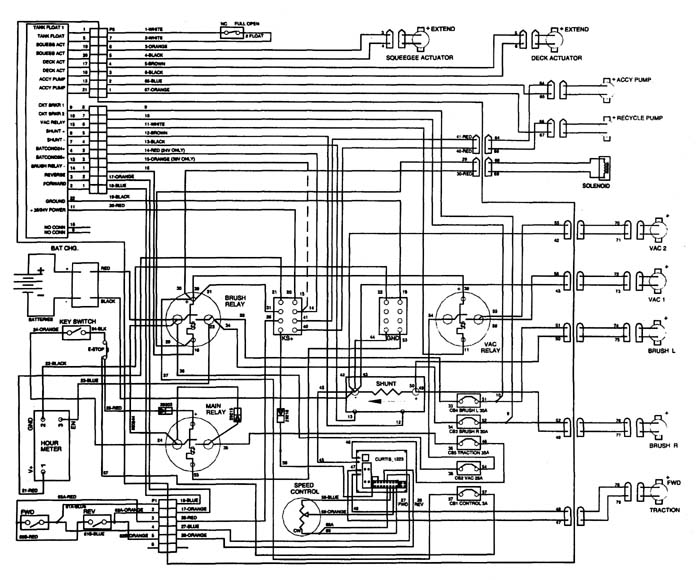

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Chargers - 173-9947
RefNbr Part Number Description Req Notes
0.9835 996-1610 16 inch polypropelene scrubbing brush 2
0.9835 996-1557 Clutch plate 2
0.9835 996-1609 16 inch lite grit scrubbing brush - 500 grit 2
0.9835 996-1608 16 inch medium grit scrubbing brush - 180 grit 2
0.9835 996-1607 16 inch heavy grit stripping brush - 80 grit 2
0.9835 996-1637 Pad driver 2
0.2225 162-0003 6V 225Ah wet battery (SNSR) 6
0.2305 162-0005 6V 305Ah wet battery (SNSR) 6
0.3224 162-0043 6V 224Ah AGM battery (Group GC2) 6
0.3335 162-0046 6V 335Ah AGM battery (Group J305) 6

- Pads - 255-1700
RefNbr Part Number Description Req Notes
01 255-1740 17 inch aqua plus burnishing pad (pkg of 5)
02 255-1735 17 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1764 17 inch Blue ace pad (pkg of 5)
04 255-1742 17 inch Blue Jay burnishing pad (pkg of 5)
05 255-1712 17 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-1777 17 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1738 17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1721 17 inch gorilla lite burnishing pad (pkg of 5)
09 255-1750 17 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1765 17 inch Heat concrete bonding pad (pkg of 5)
11 255-1730 17 inch jaguar burnishing pad (pkg of 5)
12 255-1767 17 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-1768 17 inch Microclean daily cleaning pad (pkg of 2)
14 255-1769 17 inch Micropolish polishing and burnishing pad (pkg of 2)
15 255-1790 17 inch premium black stripping pad (pkg of 5)
16 255-1770 17 inch premium blue cleaning pad (pkg of 5)
17 255-1792 17 inch premium brown stripping pad (pkg of 5)
18 255-1780 17 inch premium green scrubbing pad (pkg of 5)
19 255-1760 17 inch premium red scrubbing pad (pkg of 5)
20 255-1752 17 inch premium tan polishing pad (pkg of 5)
21 255-1720 17 inch premium white polishing pad (pkg of 5)
22 255-1711 17 inch superspeed rubberized pad (pkg of 5)
23 255-1795 17 inch razorback stripping pad (pkg of 5)
24 255-1747 17 inch Redwood maroon floor prep pad (pkg of 10)
25 255-1755 17 inch Ruff non-abrasive brush pad (pkg of 2)
26 255-1723 17 inch sand screen driver pad (pkg of 2)
27 255-0139 17 inch Professional sand screen 100 grit (pkg of 10)
28 255-0019 17 inch Professional sand screen 120 grit (pkg of 10)
29 255-0140 17 inch Professional sand screen 150 grit (pkg of 10)
30 255-0141 17 inch Professional sand screen 180 grit (pkg of 10)
31 255-0142 17 inch Professional sand screen 220 grit (pkg of 10)
32 255-0143 17 inch Professional sand screen 400 grit (pkg of 10)
33 255-0138 17 inch Professional sand screen 60 grit (pkg of 10)
34 255-0018 17 inch Professional sand screen 80 grit (pkg of 10)
35 255-0225 17 inch Superscreen sand screen 100 grit (pkg of 10)
36 255-0226 17 inch Superscreen sand screen 120 grit (pkg of 10)
37 255-0227 17 inch Superscreen sand screen 150 grit (pkg of 10)
38 255-0228 17 inch Superscreen sand screen 180 grit (pkg of 10)
39 255-0229 17 inch Superscreen sand screen 220 grit (pkg of 10)
40 255-0230 17 inch Superscreen sand screen 400 grit (pkg of 10)
41 255-0223 17 inch Superscreen sand screen 60 grit (pkg of 10)
42 255-0224 17 inch Superscreen sand screen 80 grit (pkg of 10)
43 255-1724 17 inch Tiger carpet bonnet (pkg of 2)
44 255-9570 17 inch Diamond by Gorilla 11000 Grit (pkg of 2)
45 255-9567 17 inch Diamond by Gorilla 1500 Grit (pkg of 2)
46 255-9564 17 inch Diamond by Gorilla 200 Grit (pkg of 2)
47 255-9568 17 inch Diamond by Gorilla 3000 Grit (pkg of 2)
48 255-9565 17 inch Diamond by Gorilla 400 Grit (pkg of 2)
49 255-9566 17 inch Diamond by Gorilla 800 Grit (pkg of 2)
50 255-9569 17 inch Diamond by Gorilla 8000 Grit (pkg of 2)
51 255-9642 17 inch Diamond starter pack (1 of each grit)
52 255-1782 17 inch Turbostrip segmented rotary pad (pkg of 4)
53 255-1715 17 inch Duala clean and shine pad - low speed (pkg of 5)
54 255-1716 17 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-9649
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) (6)
2 162-0005 6V 305Ah wet battery (SNSR) (6)
1 162-0043 6V 224Ah AGM battery (Group GC2) (6)
2 162-0046 6V 335Ah AGM battery (Group J305) (6)
3a 162-5063 36V 20amp battery charger with SB175 large gray plug
3b 162-5063 36V 20amp battery charger with SB175 large gray plug
5 991-2112 175amp charger plug with pins (gray) SB175
6 998-0010 Battery jumper cable - ring type (red)
7 189-0320 Key switch (power)
8 173-3958 Key (pkg of 2)
9 189-0305 Microswitch (vacuum and brush)
10 173-1098 36V solenoid valve
11 173-1088 Screen filter
12 173-2856 Squeegee blade 44 3/25 inch linatex rear
13 173-2798 Vacuum hose assembly
14 173-1834 Gasket (front)
15 173-1835 Gasket (rear)
16 173-1213 Drain plug
17 173-1216 Drain hose 1 1/2 x 24 inch
18 173-0402 36V 3 stage vacuum motor assembly (Windsor)
19 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug (NON-OEM)
20 996-1607 16 inch heavy grit stripping brush - 80 grit
21 996-1608 16 inch medium grit scrubbing brush - 180 grit
22 996-1609 16 inch lite grit scrubbing brush - 500 grit
23 996-6162 16 inch daily cleanning brush
24 996-1637 Pad driver
25 996-1557 Clutch plate
Webpage Problem Reporting
