- Commonly Asked For Parts - 173-2526 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
273-0099 |
Battery belt |
|
|
| 0.9835 |
273-0097 |
Rotary support wheel |
|
|
| 0.9835 |
273-0098 |
Frame flap kit (grey) |
|
|
|
|

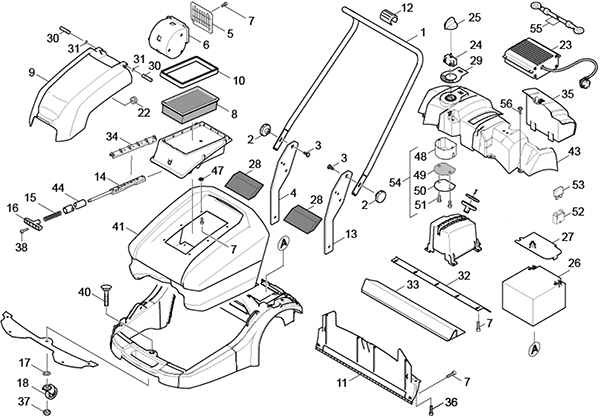

General assembly - 273-1231 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
273-6005 |
Screw M8-1.25 x 25mm saucer head |
2 |
|
| 5 |
173-5379 |
Filter grill |
1 |
|
| 6 |
173-6321 |
Blower assembly |
1 |
|
| 7 |
183-0075 |
Screw 5-16 x 10.9mm |
16 |
|
| 12 |
173-5382 |
Handle clamp |
1 |
|
| 14 |
273-6013 |
Filter shaker |
1 |
|
| 15a |
273-9398 |
Spring |
1 |
(gray model) |
| 15b |
273-6014 |
Spring |
1 |
(blue model) |
| 16a |
273-6015 |
Filter shaker handle |
1 |
(gray model) |
| 16b |
273-6015 |
Filter shaker handle |
1 |
(blue model) |
| 18 |
173-5376 |
Caster wheel |
1 |
|
| 22 |
273-6019 |
Wiring protection sleeve |
1 |
|
| 23a |
273-0428 |
Battery charger |
1 |
(gray model) |
| 23b |
173-5374 |
Battery charger |
1 |
(blue model) |
| 25a |
273-9368 |
Knob w/ spring clip |
1 |
(gray model) |
| 25b |
273-6022 |
Knob |
1 |
(blue model) |
| 27 |
273-6023 |
Battery covering cap |
1 |
|
| 28 |
273-6024 |
Filter cartridge |
2 |
|
| 29 |
273-6025 |
Control panel foil |
1 |
|
| 30 |
273-6026 |
Grooved bolt |
2 |
|
| 31 |
173-6324 |
Lock washer |
2 |
|
| 33 |
173-5378 |
Skirt holder |
1 |
|
| 35 |
273-6030 |
Battery cover |
1 |
|
| 36 |
273-0977 |
Screw M5-10.9 x 30mm |
6 |
|
| 37 |
273-6031 |
Nut M10-8 hex |
1 |
|
| 40 |
273-6033 |
Screw M10 x 80mm saucer head |
1 |
|
| 41a |
273-0430 |
Tank |
1 |
(gray model) |
| 41b |
273-6034 |
Complete sweep tank (blue) |
1 |
(blue model) |
| 41c |
273-6035 |
Tank assembly (blue) |
1 |
(blue model) |
| 43a |
273-6037 |
Cover without hinge |
1 |
|
| 43b |
273-6036 |
Cover with hinge |
1 |
|
| 44 |
273-6038 |
Filter shaker tube |
1 |
|
| 48 |
173-6326 |
Dust protector |
1 |
|
| 52 |
173-6329 |
Fuse holder |
1 |
|
| 54 |
273-6021 |
Dust protection switch kit |
1 |
(includes 48-51) |
| 55 |
173-6338 |
Cable assembly |
1 |
|
| 56 |
273-6089 |
Screw 6-10.9 x 20mm |
16 |
(gray model) |
| N/S |
273-6018 |
Blower cover |
1 |
(blue model) |
| N/S |
273-9368 |
Knob w/ spring clip |
1 |
(blue model) |
|
|

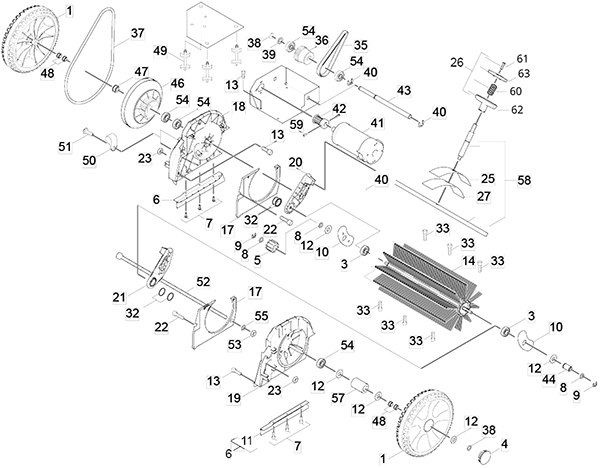

Transmission assembly - 273-1232 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
273-6041 |
Ball bearing |
2 |
|
| 5 |
273-6043 |
Pinion with clutch |
1 |
|
| 6a |
273-0431 |
Side strip |
1 |
(includes 11) (gray) |
| 6b |
273-6044 |
Right skirt |
1 |
(includes 11) (blue) |
| 7 |
183-0075 |
Screw 5-16 x 10.9mm |
14 |
|
| 13 |
273-6049 |
Screw 6-10.9 x 25mm |
6 |
|
| 14a |
173-5383 |
Center brush - CYLINDRICAL |
1 |
|
| 14b |
173-6331 |
Antistatic center brush - CYLINDRICAL |
1 |
|
| 18 |
273-6053 |
Right axle drum |
1 |
|
| 19 |
273-6054 |
Left axle drum |
1 |
|
| 20 |
273-6055 |
Right axle stub |
1 |
|
| 21 |
273-6056 |
Left axle stub |
1 |
|
| 22 |
273-6057 |
Screw M6-8.8 x 35mm (OBSOLETE) |
4 |
|
| 23 |
273-6058 |
Nut M6-1 hex |
4 |
|
| 25 |
273-6059 |
Plate stainless steel |
1 |
|
| 26 |
273-0432 |
Height adjustment |
1 |
(includes 60-63) |
| 33 |
273-6066 |
Screw 5-10.9 x 30mm |
6 |
|
| 35 |
273-6067 |
Toothed belt |
1 |
|
| 36a |
273-0433 |
Belt pulley |
1 |
(gray) |
| 36b |
273-6068 |
Belt pulley |
1 |
(blue) |
| 38 |
273-6070 |
Locking ring |
1 |
|
| 40 |
173-6334 |
Lock washer |
2 |
|
| 41 |
273-6071 |
12V brush motor |
1 |
|
| 42 |
273-6072 |
Toothed belt pulley |
1 |
|
| 43 |
273-6073 |
Hexagon shaft |
1 |
|
| 46 |
273-6075 |
Belt pulley |
1 |
|
| 53 |
273-6081 |
Nut M6-4 hex |
1 |
|
| 54 |
173-6280 |
Ball bearing |
5 |
|
| 58 |
173-6335 |
Angle assembly |
1 |
(includes 25 and 27) |
| 59 |
273-0434 |
Threaded pin M4 x 6mm |
2 |
|
| 63 |
273-6064 |
Screw M5-.8 x 20mm |
1 |
|
|
|

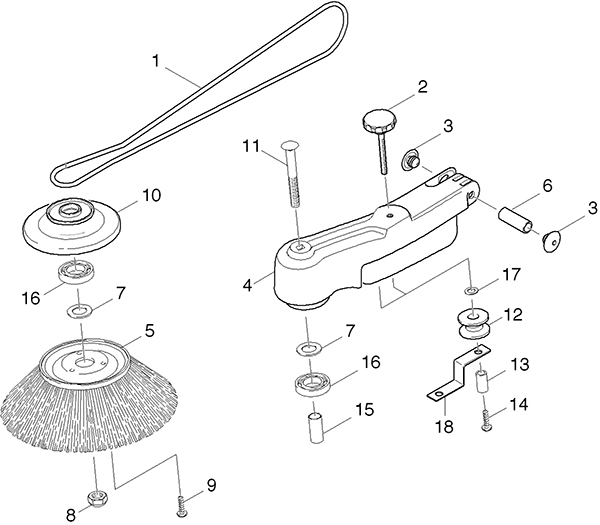

Side broom assembly - 273-1233 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 8 |
273-6031 |
Nut M10-8 hex |
1 |
|
| 9a |
273-0435 |
Screw 8 x 16 sheet metal |
3 |
(gray) |
| 9b |
273-6089 |
Screw 6-10.9 x 20mm |
3 |
(blue) |
| 10 |
273-6090 |
Side brush hub |
1 |
|
| 11 |
273-6091 |
Screw M10 x 30mm saucer head |
1 |
|
| 12 |
173-6336 |
Deflection pulley |
2 |
|
| 14 |
273-6094 |
Screw 6-10.9 x 35mm |
2 |
|
| 16 |
273-6041 |
Ball bearing |
2 |
|
|
|
