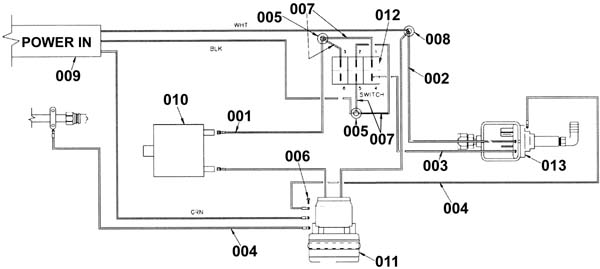

Wiring Diagram - 173-6080 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 007 |
173-2726 |
3 in Wire black (OBSOLETE) |
|
|
| 001 |
173-2730 |
Wire 8 in black (OBSOLETE) |
|
|
| 002 |
173-2729 |
Wire 12 in white |
|
|
| 003 |
173-2728 |
Wire 13 in black (OBSOLETE) |
|
|
| 004 |
173-2038 |
14 inch wire (green) |
|
|
| 005 |
173-2727 |
Crimp type wire nut |
|
|
| 006 |
173-2711 |
Screw 10-32 x 1/2 ground |
|
|
| 007 |
173-2726 |
3 in Wire black (OBSOLETE) |
|
|
| 008 |
173-2725 |
Crimp wire nut |
|
|
| 009 |
173-2707 |
18/3 cord set 25 foot (yellow) |
|
|
| 010 |
173-2053 |
6amp circuit breaker |
|
|
| 011a |
173-2694 |
Vac motor |
|
(new motor update requires 11b) |
| 011b |
373-5029 |
Female coupler 18G .25 term |
|
|
| 012 |
173-2724 |
On-off switch |
|
|
| 013a |
173-2722 |
Pump assembly 100v |
|
|
| 013b |
173-0212 |
120V Pump (OBSOLETE) |
|
|
|
|

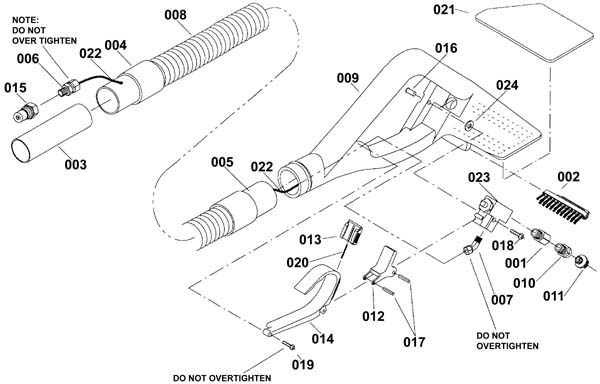

Deluxe Hand Tool Assembly - 173-6081 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-2672 |
Adapter 1/8 x 1/8 |
|
|
| 003 |
173-2674 |
Coupler 1.5 vac hose |
|
|
| 007 |
999-0303 |
Screw 8-18 x 1/2 hex washer head slotted zinc plated |
|
|
| 009 |
173-2679 |
Housing handtool |
|
|
| 010 |
173-2086 |
Mini-quick jet body with seal |
|
|
| 011 |
173-2680 |
Mini quick replacement jet |
|
|
| 012 |
173-2585 |
Trigger lever |
|
|
| 014 |
173-2587 |
Handle lever |
|
|
| 015 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 016 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
|
|
| 018 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
|
|
| 019 |
173-2454 |
Screw 10-3/4 polyfast |
|
|
| 020 |
173-2589 |
Compression spring .08D x .75L x .01W |
|
|
| 021 |
273-0910 |
Vacuum bracket gasket |
|
|
| 022 |
173-2683 |
Upholstery shield |
|
|
|
|

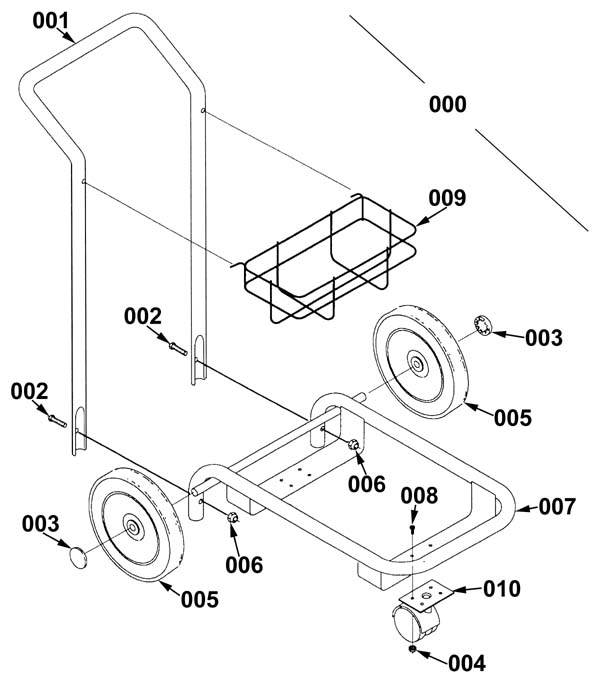

Cart Assembly - 173-6082 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
173-4989 |
Spotter cart |
|
|
| 002 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
|
|
| 003 |
173-2667 |
Nut 1/2 starlock push-on |
|
|
| 004 |
173-2472 |
Nut 10-32 with star washer |
|
|
| 005 |
173-2668 |
Wheel (OBSOLETE) |
|
|
| 006 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
|
|
| 007 |
173-2269 |
Brush motor assembly |
|
|
| 008 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 010 |
173-2671 |
Swivel caster wheel |
|
|
|
|

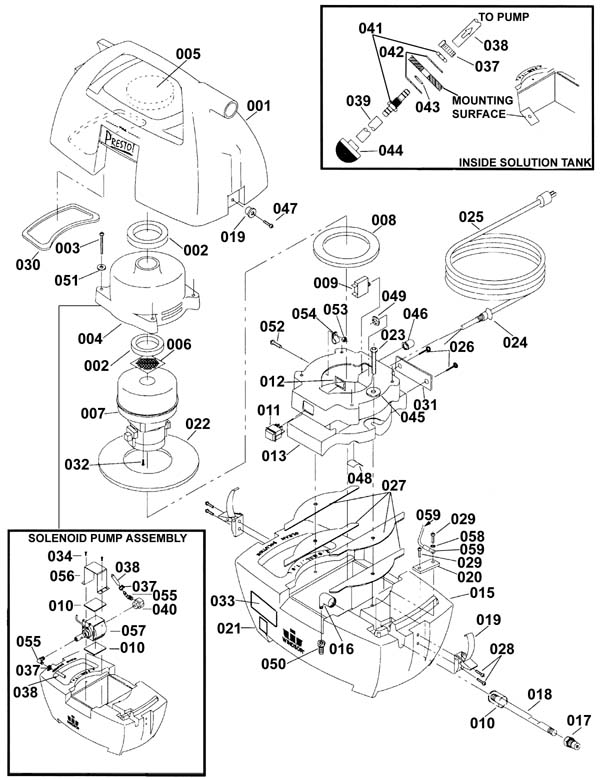

Entire Assembly - 173-6083 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-2688 |
Recovery tank |
|
|
| 002 |
273-0910 |
Vacuum bracket gasket |
|
|
| 003 |
173-0645 |
Wheel axle (OBSOLETE) |
|
|
| 004 |
173-2691 |
Vacuum cover |
|
|
| 006 |
173-2693 |
Inlet screen |
|
|
| 007a |
173-2694 |
Vac motor |
|
(new motor update requires 007b) |
| 007b |
373-5029 |
Female coupler 18G .25 term |
|
|
| 009 |
173-2053 |
6amp circuit breaker |
|
|
| 012 |
173-2084 |
Switch retaining clip |
|
|
| 013 |
173-2698 |
Vacuum motor housing |
|
|
| 015 |
273-5563 |
Solution tank (gray) |
|
|
| 016 |
173-2701 |
90 degree elbow female fitting |
|
|
| 017 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 019 |
173-2703 |
Latch w/ keeper |
|
|
| 020 |
173-2704 |
Nipple bracket (OBSOLETE) |
|
|
| 021 |
173-1282 |
For safety decal |
|
|
| 022 |
173-2705 |
Vacuum housing gasket |
|
|
| 023 |
999-0398 |
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
|
|
| 024 |
173-2706 |
Strain relief trumpet |
|
|
| 025 |
173-2707 |
18/3 cord set 25 foot (yellow) |
|
|
| 028 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
|
|
| 029 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 031 |
173-2710 |
Data decal plate |
|
|
| 032 |
173-2711 |
Screw 10-32 x 1/2 ground |
|
|
| 033 |
173-0253 |
Warning explosion decal |
|
|
| 034 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
|
|
| 038 |
173-2713 |
Wire bound hose 3/8 x 8 inch |
|
|
| 039 |
173-2714 |
Hose 3/8 rubber x 5 |
|
|
| 040 |
173-0214 |
Adapter (OBSOLETE) |
|
|
| 041a |
175-2715 |
Potentiometer kit (OBSOLETE) |
|
|
| 041b |
172-2039 |
5K potentiometer |
|
Potentiometer only |
| 044 |
173-0099 |
Mesh strainer |
|
|
| 045 |
999-0016 |
Washer 1/4 flat plain finish |
|
|
| 046 |
189-0312 |
3/8 inch circuit breaker boot |
|
|
| 047 |
999-0437 |
Screw 8-32 x 1/2 flat head phillips zinc plated |
|
|
| 049 |
175-2718 |
Bushing (OBSOLETE) |
|
|
| 050 |
173-2719 |
Hosebarb, 1/8 FPT x 3/8 |
|
|
| 051 |
999-0464 |
Washer 3/16 flat plain finish |
|
|
| 052 |
999-0657 |
Bolt 1/2-13 x 2 18-8 hex head stainless steel |
|
|
| 053 |
173-2472 |
Nut 10-32 with star washer |
|
|
| 054 |
173-1709 |
P clamp (OBSOLETE) |
|
|
| 055 |
173-2720 |
Hosebarb 1/8 MPT 3/8 |
|
|
| 056 |
173-2721 |
Soleniod pump bracket |
|
|
| 057a |
173-2722 |
Pump assembly 100v |
|
|
| 057b |
173-0212 |
120V Pump (OBSOLETE) |
|
|
|
|
Suggested Spare Parts List - 173-9892 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
273-6737 |
Solution adaptor |
|
|
| 0.9835 |
173-2686 |
Solution and vacuum hose assembly 12 ft |
|
|
|
|
