Parts List Complete for WINDSOR POWERTEC C17

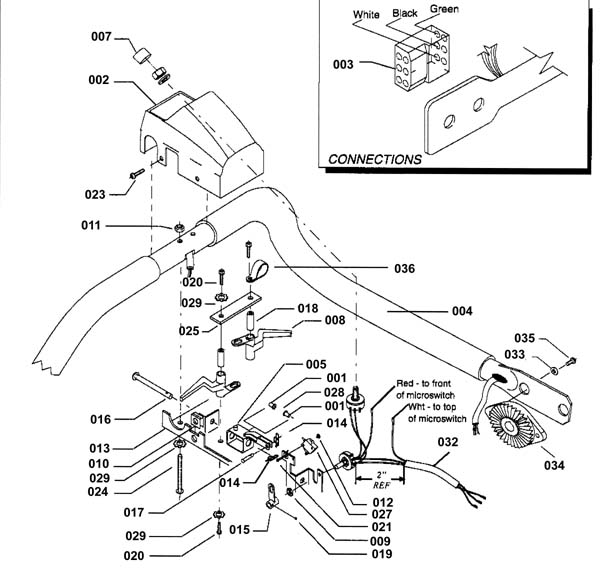

Drive Control Assemby - After SN 5000001 - 173-0259
RefNbr Part Number Description Req Notes
001 173-1036 Propel control brushing 2
002 173-7107 Propel handle cover 1
003 173-4052 Connector Molex 6 Pin receptacle 1
004a 173-4571 Handle with foam (OBSOLETE) 1
004b 173-4572 Main handle assembly (OBSOLETE) 1
004c 173-1966 Handle grip (OBSOLETE) 1
005 173-1035 Lever Centering Guide 1
007 173-1041 Speed control knob 1
008 173-1032 Propel Control Handle Lever 2
009 173-3896 Nut 3/8-27 Panel 1
010 173-2576 Nut 10-24 tinnerman (OBSOLETE) 4
012 173-2579 Nut 4-40 hex star lock 2
013 173-1034 Propel Control Plate Assembly 1
014 173-1130 Cotter ring 2
015 173-1042 Potentiometer pivot (OBSOLETE) 1
016 173-1033 Clevis Pin 1
017 173-1038 Pin Clevis 3/16 x 1/12 1
018 173-1031 Handle Lever Pivot Rod 2
019 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 1
020 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 4
021 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
023 173-2566 Screw #10 x 1/2 pan head 4
024 999-0744 Screw 10-32 x 1 3/4 pan head phillips zinc plated 2
025 173-1030 Lever Pivot Support 26
027 189-0305 Microswitch 1
028 173-1037 Comp..36 D x 1.12L x .04W Spring 1
029 999-0311 Washer #10 external star lock zinc plated 5
031 999-1158 Washer #6 flat stainless steel 2
032 173-4573 Potentiometer wire assembly (OBSOLETE) 1
033 999-0998 Washer #10 flat stainless steel 4
034 173-5097 Handle adjustment lock 2
035 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel 4
036 173-1800 5/16 nylon clamp (OBSOLETE) 1

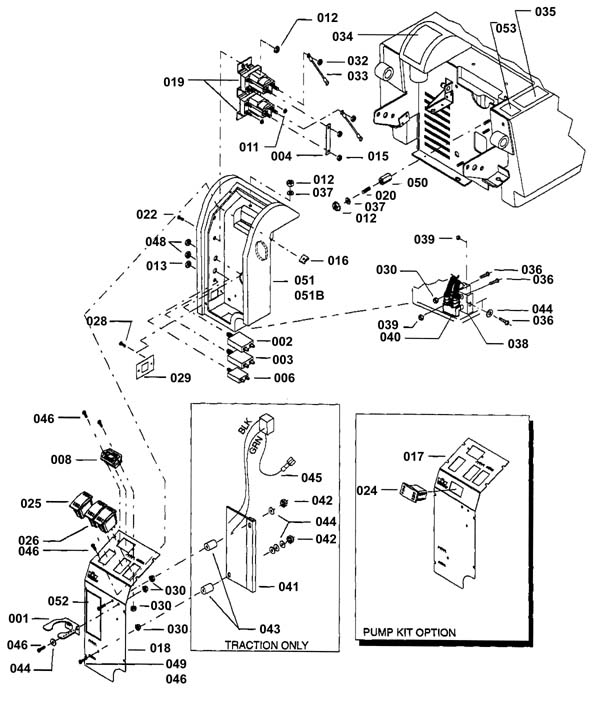

Electrical control Assembly - After SN 5000001 - 173-0260
RefNbr Part Number Description Req Notes
001 173-3007 drain hose bracket (OBSOLETE) 1
002 991-1632 25amp circuit breaker 1
003 173-1795 breaker 1
004 173-4574 Control panel bussbar (OBSOLETE) 1
005 189-4092 15amp circuit breaker 1
006 991-1624 3amp circuit breaker 1
008 189-0316 24V battery charger meter 1
012 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 6
015 173-4575 Vacuum float rod assembly 2
016 173-5083 Nut 6-32 U-tinnerman (OBSOLETE)
017 173-4576 Control panel (OBSOLETE) 1
018 173-4577 Control panel (OBSOLETE) 1
019 173-4578 24V solenoid relay 2
020 173-2593 Screw 1/4-20 x 1 plated set 1
022 999-1540 Screw 1/4-20 x 3/4 truss head phillips 3
024 173-4580 28V DC SPST Illuminated switch 1
025 173-2277 2 position rocker switch 1
026 189-0319 2 position rocker switch 1
028 189-2054 Rivet 1/8 x 1/2 Aluminum 2
029 189-2065 Plate molex mounting 1
030 173-5037 Nut 6-32 elastic stop (OBSOLETE) 6
032 173-4582 Red wire 7 inch (OBSOLETE) 1
033 173-4583 Red wire 4 inch (OBSOLETE) 1
034 173-5081 Squeegee/solution label (OBSOLETE) 1
035 173-5082 Scrub deck label (OBSOLETE) 1
036 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel 5
037 173-2483 Washer 1/4ID x 3/4OD plated 5
038 173-4585 Compact battery connect extension (OBSOLETE) 1
039 999-0195 Nut 6-32 hex plain 2
040 173-4586 Wire assembly battery connector 1
041 173-4587 Speed controller 24vdc 1
043 173-2117 Spacer 2
045 N/A Not available 1
046 173-5025 Screw 6-32 x 1/2 zinc truss head 12
048 173-3892 Nut 7/16-28 panel 2
049 173-5078 Screw 8-32 x 1.0 black nylon pan head machine (OBSOLETE) 2
050 173-1145 Insulated stand-off 1
051a 173-4588 Enclosure panel (OBSOLETE) 1
051b 173-4589 Control enclosure panel (OBSOLETE) 1
052 173-1147 Warning Explosion label 1
053 173-1282 For safety decal 1

Mechanical Control Assembly - After SN 5000001 - 173-0261
RefNbr Part Number Description Req Notes
001 173-5089 Bearing .753 x .627 1.0 L 2
002 173-5090 Rear compartment door cable 2
004 173-1723 2 percent grade decal 1
005 173-5091 Scrub deck cable (OBSOLETE) 1
006 173-7529 Squeegee cable assembly (OBSOLETE) 1
007 173-5093 Solution cable 1
008 173-5094 Rear compartment door (OBSOLETE) 1
010 173-4571 Handle with foam (OBSOLETE) 1
011 173-1901 Solution lever knob 3
014 173-4590 Charge warning label (OBSOLETE) 1
015 173-0418 Handle locking lever 1
016 173-5097 Handle adjustment lock 4
017 173-5098 Solution lever 1
018 999-0190 Nut 1/4-20 hex plain finish 4
020 999-0488 Nut 3/8-16 flange lock serrated zinc plated 1
021 173-4591 Charger warning label (OBSOLETE) 1
022 173-2073 Roll pin 1
023 173-1130 Cotter ring 1
024 173-1474 Clevis pin 2
025 173-1130 Cotter ring 3
026 173-0419 Clevis pin 1
027 173-5100 Pin 1/4 x 1.0 roll 2
028 173-5101 Cable lever pivot (OBSOLETE) 2
029 173-3429 3/8 snap ring (OBSOLETE) 1
030 173-5102 Handle adjustment rod 1
031 N/A Not available 1 (Lock rod)
032 173-5104 Scrub deck lift rod assembly (OBSOLETE) 1
033 173-5105 Squeegee lift rod assembly (OBSOLETE) 1
034 173-0253 Warning explosion decal 1
035 173-1529 Windsor service card (OBSOLETE) 1
036 173-1530 Service card band 1
037 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel 8
038 173-5107 Bolt 5/16 x 3/8 shoulder 2
040 173-1037 Comp..36 D x 1.12L x .04W Spring 1
042 173-5108 Handle adjustment tube (OBSOLETE) 1
043 999-0617 Washer 3/8 x 1 flat stainless steel 1
044 999-0998 Washer #10 flat stainless steel 11
046 999-1007 Washer 3/8 x 1/16 flat nylon 2
047 999-0187 Washer 1/2 flat plain finish 2
049 173-5110 Clevis pin 1
050 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated 1
052 173-5111 Rear panel assembly (OBSOLETE) 1

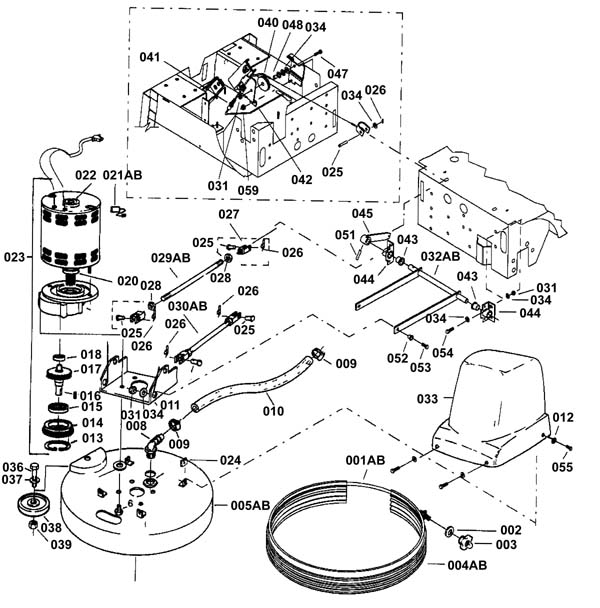

Scrub Deck Assembly - After SN 5000001 - 173-0262
RefNbr Part Number Description Req Notes
001a 173-4592 Bumper strap assembly 1
001b 173-1568 Worm clamp 1
002 173-2483 Washer 1/4ID x 3/4OD plated 1
003 173-1736 Knob 1
004a 173-1027 Skirt 1
004b 173-5113 Shroud skirt 3 1/4 x 49 1
005a 173-5114 Scrub deck TC17 (OBSOLETE) 1
005b 173-5115 Scrub deck TC20 (OBSOLETE) 1
006 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
007 173-2574 Nut 3/8 hex brass nickel plated thread 1
008 173-1072 Hosebarb 3/8 x 1/2 inch 1
009 173-1821 Hose clamp 2
010 173-5116 1/2 x 22 inch Clear solution feed hose (OBSOLETE) 1
011 173-5117 Scrub deck mounting bracket 1
012 999-0998 Washer #10 flat stainless steel 4
013 173-3075 snap ring (OBSOLETE) 1
014 173-5119 Bearing seat (OBSOLETE) 1
015 173-3073 lower gearbox bearing (OBSOLETE) 1
016 189-0323 Square keyway 1
017 173-3072 brush motor gear (OBSOLETE) 1
018 173-3071 upper gear box bearing (OBSOLETE) 1
019 173-3070 brush motor gear housing (OBSOLETE) 1
020 173-3069 lower brush motor bearing (OBSOLETE) 1
021a 173-1575 Carbon brush set 1
021b 173-1576 Carbon brush (pkg of 4) 1
022 173-3068 upper brush motor bearing (OBSOLETE) 1
023 173-1574 24V 1HP brush motor assembly 1
024 173-2576 Nut 10-24 tinnerman (OBSOLETE) 4
025 173-1474 Clevis pin 5
026 173-1130 Cotter ring 5
027 173-4594 Clevis rod kit 5/16-24 4
029a 173-4595 Secondary rod linkage 2
029b 173-4596 Rod secondary linkage (OBSOLETE) 2
030a 173-5132 Rode linkage assembly 2
030b 173-4597 Secondary linkage assembly (OBSOLETE) 2
031 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
032a 173-4598 Scrub deck lift rod assembly (OBSOLETE) 1
032b 173-5135 Scrub deck rod assembly (OBSOLETE) 1
033 173-5126 Cover motor (OBSOLETE) 1
034 999-0123 Washer 1/4 SAE flat zinc plated 12
035 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 1
036 173-0503 Screw 3/8-16 x 1-3/4 hex head cap screw 1
037 999-0617 Washer 3/8 x 1 flat stainless steel 5
038 189-0326 Bumper wheel 1
039 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
040 173-5121 Cable pulley 1
041 173-5091 Scrub deck cable (OBSOLETE) 1
042 173-5122 Lift pulley bracket (OBSOLETE) 1
043 173-5134 Flanged bushing 2
044 173-5118 Scrub deck collar assembly (OBSOLETE) 2
045 173-5133 Scrub deck arm assembly 1
047 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated 1
048 173-5123 Tube 1
052 173-5125 Flanged bushing 2
054 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
055 173-2566 Screw #10 x 1/2 pan head 4
059 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 1

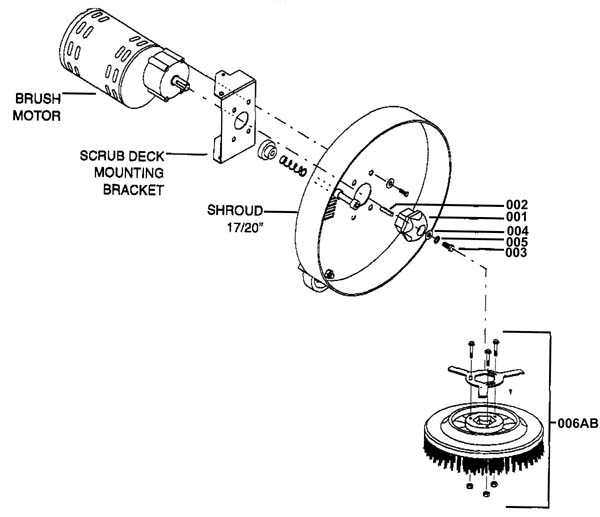

Scrub Deck Assembly (Hex Drive) After SN 5000001 - 173-0263
RefNbr Part Number Description Req Notes
001 189-0021 Hex drive hub (OBSOLETE) 1
002 189-0323 Square keyway 1
003 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 1
005 999-1053 Washer 5/16 internal star lock stainless steel 1
006 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages

Squeegee Assembly - After SN 5000001 - 173-0264
RefNbr Part Number Description Req Notes
001 173-5137 Bearing (OBSOLETE) 2
002 173-5138 Support bracket assembly (OBSOLETE) 1
003 173-5139 Spring support block (OBSOLETE) 1
004 173-5140 Square cable bracket assembly (OBSOLETE) 1
005 173-5141 Square pivot bracket assembly 1
006 173-5142 Bushing 1
007 173-3195 Swivel caster wheel 2
008 173-5143 Spring retainer cap (OBSOLETE) 2
009 173-7529 Squeegee cable assembly (OBSOLETE) 1
010 173-5144 Roller assembly support 2
011 173-5145 5/16-18 x 1 stud knob 2
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated
015 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
016 173-3872 Squeegee camber lock nut 1
017 173-3886 Nut 1/2-13 lock thin 1
018 173-5027 Nut 1/4-20 wing locking 7
019 173-5147 Squeegee plate rear retaining 2
020 173-5148 Squeegee plate front retaining 1
022 173-5149 Pivot axle assembly 1
023 173-5121 Cable pulley 1
025 173-5150 Squeegee adjustment plate 1
026 173-4599 Squeegee mount plate weldment (OBSOLETE) 1
027 173-1726 Clevis pin 2
028 173-5160 Squeegee weldment 1
029 173-2797 Rivet 4
030 173-5152 Rod weldment square lift 1
031 999-9072 Bolt 1/4-20 x 1 hex head cap 1
032 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 2
033 173-5154 Bolt 3/8OD x 5/8L shoulder 2
034 173-1228 Bolt 5/16 OD x 1/2 long shoulder 1
035 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 11
036 173-5155 Extension spring 2
037 173-5156 Spring compress 1.10 x 2.75 x .142 (OBSOLETE) 1
038 173-5123 Tube 1
039 173-5157 Squeegee blade 24 inch die cut front (OBSOLETE) 1
040 173-5158 Squeegee blade 24 inch die cut rear (OBSOLETE) 1
041 173-5159 Squeegee assembly (OBSOLETE) 1
043 173-3189 Nylon spacer 1
045 173-1480 Cotter ring 3
046 173-3996 Washer 3/8in ID x 1x 0.1 neoprene 4
047 173-0412 Squeegee strap latch 1
048 170-7029 Keeper 1
049 173-1025 Knob 1
050 173-1842 compound spring 1
051 173-5161 Washer spherical male half 2
052 999-0998 Washer #10 flat stainless steel 6
056 173-3028 Roller wheel 2
057 999-0187 Washer 1/2 flat plain finish 1
058 999-0028 Washer 5/16 split lock plain finish 11
059 173-2483 Washer 1/4ID x 3/4OD plated 1
060 173-5162 Washer 5/8 x 1/2 inch 1
061 173-5163 Washer 5/8 x 2O x 3/32 thick 2
062 189-0326 Bumper wheel 2

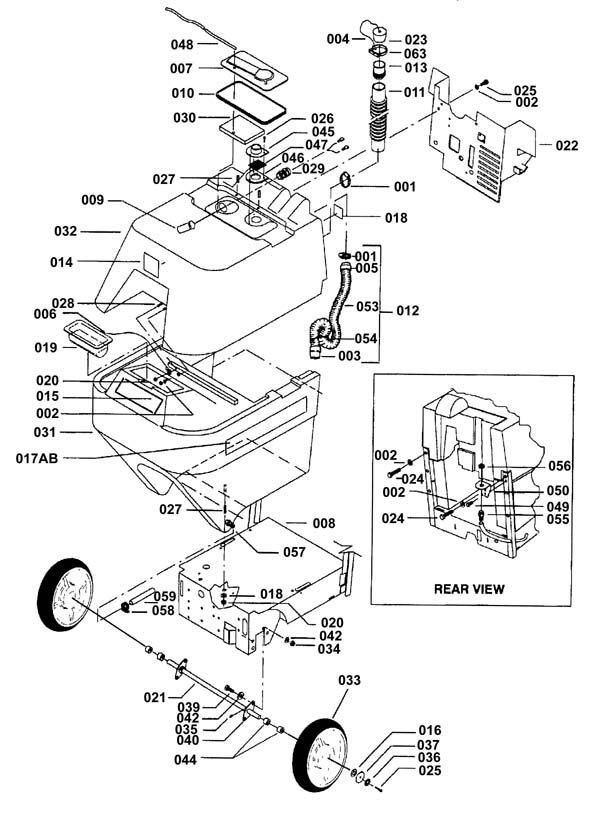

Solution and Recovery Tanks and Frame - After SN 5000001 - 173-0265
RefNbr Part Number Description Req Notes
001 997-2007 Hose clamp 2
002 173-2483 Washer 1/4ID x 3/4OD plated 12
003 993-0014 CUFF, HOSE 1.5 inch BLK A 2161 1
004 173-0269 drain plug cord assembly 1
005 173-1123 Hose cuff 1 1/2 slip x 1 1/2 inch 1
006 173-5164 Solution lid cord 1
007 173-5165 Modified dome 1
008 173-5166 Main frame (OBSOLETE) 1
009 173-5167 Recovery shut-off float 1
010 173-2001 Seal 1
011 173-1216 Drain hose 1 1/2 x 24 inch 1
012 173-5168 Vacuum hose assembly (OBSOLETE) 1
013 189-4130 1/2 inch hosebarb 1
014 173-5169 Windsor logo label (OBSOLETE) 1
015 173-0253 Warning explosion decal 1
016 173-5040 Washer plastic 2
017a 173-5170 Label (OBSOLETE) 2
017b 173-5171 Label (OBSOLETE) 2
018 173-1282 For safety decal
019 173-5172 Solution tank lid 1
020 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
021 173-1459 gasket 1
022 173-5111 Rear panel assembly (OBSOLETE) 1
023 173-2107 Plug 1
024 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 6
025 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 6
026 173-2454 Screw 10-3/4 polyfast 3
027 173-2593 Screw 1/4-20 x 1 plated set 4
028 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
029 173-1273 Sealed bulkhead fitting 1
030 173-5174 Foam breaker 1
031 173-5175 Solution tank (OBSOLETE) 1
032 173-5176 Recovery tank (OBSOLETE) 1
034 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 4
036 999-0017 Washer 1/4 external star lock 2
037 173-5178 Wheel hub cap 2
039 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
040 999-0237 Screw 8-32 x 1 1/4 round head slotted zinc plated 2
042 999-0617 Washer 3/8 x 1 flat stainless steel 8
044 173-5179 Spacer 1OD x .688ID x .3L 4
045 173-5180 Vacuum motor tube (OBSOLETE) 1
046 173-5181 Vacuum intake gasket (OBSOLETE) 1
047 173-5182 Filter vacuum intake (OBSOLETE) 1
048 173-3412 Cord 1/8 x 12 inch 1
049 999-1212 Screw 10-32 x 1/2 hex head stainless steel 2
050 173-2299 Sight tube bracket 1
051 173-4600 Battery tray 1
052 173-4601 White nylon cord 5/16 x 24 1
053 173-1277 1.5 blue vacuum hose x 45 inch 1
054 273-3820 11 inch cable tie 1
055 173-3056 Hosebarb 3/8 x 1/2 inch 1
056 173-2574 Nut 3/8 hex brass nickel plated thread 1
057 173-3396 Hosebarb 1
058 173-1821 Hose clamp 1
059 173-3397 nylobraid hose 1
063 189-4122 Hose clamp 1

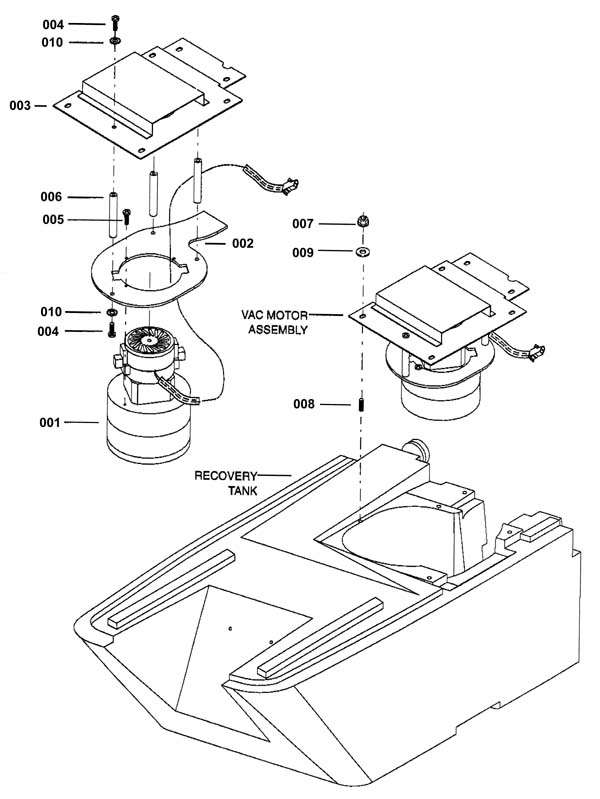

Vac Motor Assembly - After SN 5000001 - 173-0266
RefNbr Part Number Description Req Notes
001 173-5185 24V vacuum motor assembly 1
002 173-4602 Vacuum divider plate 1
003 173-4603 Vacuum compartment plate 1
004 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6
005 173-2454 Screw 10-3/4 polyfast 4
006 173-4604 Spacer 3
007 999-0086 Nut 10-32 nylon insert lock zinc plated 6
008 173-3946 Screw 10-32 x 1 set stainless steel 6
009 999-0998 Washer #10 flat stainless steel 6
010 999-0017 Washer 1/4 external star lock 6

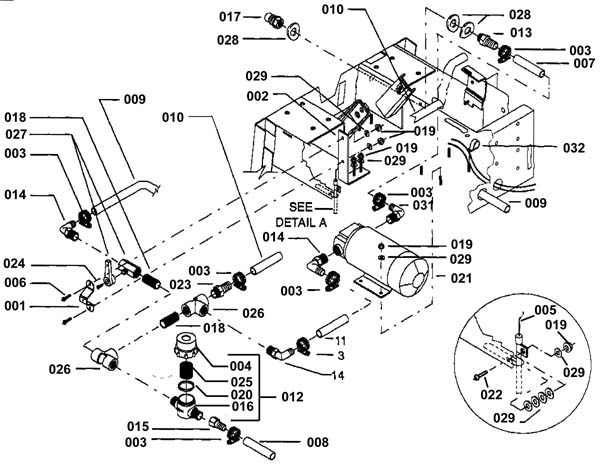

Valve Assembly (Pump Kit Option) After SN 5000001 - 173-0267
RefNbr Part Number Description Req Notes
001 173-3048 valve mounting bracket 1
002 173-5189 Solution valve mounting bracket (OBSOLETE) 1
003 173-1821 Hose clamp 7
004 173-8323 Solution filter assembly 1
005 173-5093 Solution cable 1
006 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
007 173-0646 Rubber hose 3/ 8 x 15 inches 1
008 173-3397 nylobraid hose 1
009 173-5116 1/2 x 22 inch Clear solution feed hose (OBSOLETE) 1
010 173-5190 1/2 x 5 clear hose 1
011 173-3057 1/2 x 5 1/2 clear hose (OBSOLETE) 1
012 173-5191 3/8 NPT 20 mesh strainer 1
013 173-2091 Hosebarb 1
014 173-1072 Hosebarb 3/8 x 1/2 inch 3
015 173-2853 Exp brush 1
016 173-3049 strainer housing (OBSOLETE) 1
017 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
018 173-4605 Close pvc nipple 3/8 (OBSOLETE) 2
019 999-0086 Nut 10-32 nylon insert lock zinc plated 9
020 173-3050 O-ring gasket 1
021 173-2772 24V Pump assembly (OBSOLETE) 1
022 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 1
023 173-3056 Hosebarb 3/8 x 1/2 inch 1
024 173-3906 Screw 10-32 x 1/2 pan head type b stainless steel 1
025 173-3051 Mesh strainer screen 1
026 173-3046 3/8 FPT tee (OBSOLETE) 2
027 173-5192 3/8 FPT valve 1
028 999-0855 Washer 9/16 SAE flat 3
029 999-0998 Washer #10 flat stainless steel 12
030 173-2094 P clamp 1
031 204-0041 Fitting 1
032 173-1800 5/16 nylon clamp (OBSOLETE) 1

Valve Assembly (Standard Model) Afer SN 5000001 - 173-0268
RefNbr Part Number Description Req Notes
001 173-3048 valve mounting bracket 1
002 173-5189 Solution valve mounting bracket (OBSOLETE) 1
003 173-1821 Hose clamp 7
004 173-8323 Solution filter assembly 1
005 173-5093 Solution cable 1
006 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
008 173-3397 nylobraid hose 1
009 173-5116 1/2 x 22 inch Clear solution feed hose (OBSOLETE) 1
010 173-5190 1/2 x 5 clear hose 1
012 173-5191 3/8 NPT 20 mesh strainer 1
014 173-1072 Hosebarb 3/8 x 1/2 inch 3
016 173-3049 strainer housing (OBSOLETE) 1
019 999-0086 Nut 10-32 nylon insert lock zinc plated 9
020 173-3050 O-ring gasket 1
022 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 1
023 173-3056 Hosebarb 3/8 x 1/2 inch 1
024 173-3906 Screw 10-32 x 1/2 pan head type b stainless steel 1
025 173-3051 Mesh strainer screen 1
026 173-3046 3/8 FPT tee (OBSOLETE) 2
027 173-5192 3/8 FPT valve 1
029 999-0998 Washer #10 flat stainless steel 12
030 173-2094 P clamp 1
N/S 173-0646 Rubber hose 3/ 8 x 15 inches 1
N/S 173-3057 1/2 x 5 1/2 clear hose (OBSOLETE) 1
N/S 173-4606 Hose barb 3/8 x 1/2 1
N/S 999-0855 Washer 9/16 SAE flat 3
N/S 173-4605 Close pvc nipple 3/8 (OBSOLETE) 2
N/S 204-0041 Fitting 1
N/S 173-2091 Hosebarb 1
N/S 173-1800 5/16 nylon clamp (OBSOLETE) 1
N/S 173-2772 24V Pump assembly (OBSOLETE) 1
N/S 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1

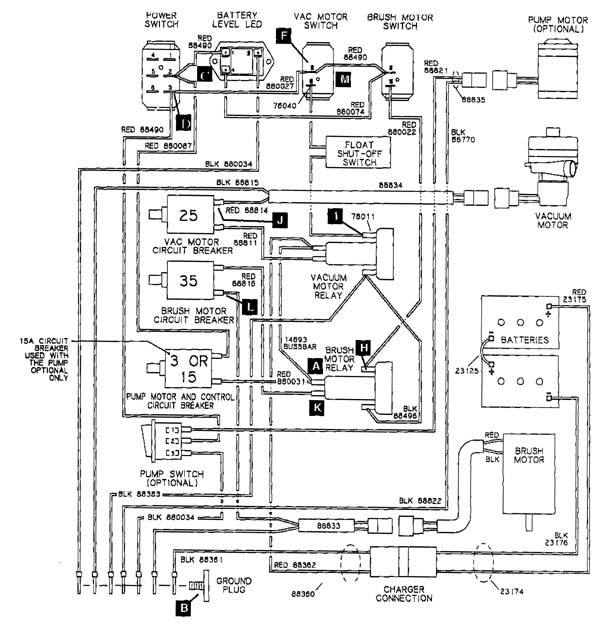

Wiring Diagram - After SN 5000001 - 173-0269
RefNbr Part Number Description Req Notes
0.9835 173-4630 Red wire 14 inch
0.9835 173-4620 Red wire 12 inch (OBSOLETE)
0.9835 173-4618 5 inch wire (black) 76008 x 76008 (OBSOLETE)
0.9835 173-4626 Pump wire assembly 24v (OBSOLETE)
0.9835 173-4611 Red wire 6 x 21
0.9835 173-4614 Battery charger wire assembly pt20
0.9835 173-4583 Red wire 4 inch (OBSOLETE)
0.9835 173-4625 Vacuum motor wire assembly
0.9835 173-3131 4 inch wire (red)
0.9835 173-4628 Red wire 5 inch (OBSOLETE)
0.9835 173-4622 Red wire 42 inch (OBSOLETE)
0.9835 173-4621 Black wire 12 inch (OBSOLETE)
0.9835 173-4616 8 inch wire (red) 76063 x strip (OBSOLETE)
0.9835 173-4629 Red wire 5 inch (OBSOLETE)
0.9835 173-4624 Brush motor wire assembly (OBSOLETE)
0.9835 173-4574 Control panel bussbar (OBSOLETE)
0.9835 173-4615 8 inch wire (black) 76063 x strip (OBSOLETE)
0.9835 173-4613 Female coupler term 18g 1/4
0.9835 173-4612 Black wire 6 x 21 (OBSOLETE)
0.9835 173-3135 6 inch wire (black)
0.9835 173-4619 5 inch wire (black) 76114 x 76028 (OBSOLETE)
0.9835 173-1617 Pointer plate
0.9835 173-4623 Black wire 42 inch (OBSOLETE)
0.9835 189-2105 Clamp style jumper cable (black)
0.9835 173-4582 Red wire 7 inch (OBSOLETE)
0.9835 173-0413 Battery cable assembly

- Batteries, Brushes and Chargers - 173-9944
RefNbr Part Number Description Req Notes
162-5124 24V 12amp smart battery charger with small SB50 red plug 1
01 162-0011 12V 105Ah wet battery (SNSR) 2
02 162-0042 12V 115Ah AGM battery (Group 31) 2
03 162-5124 24V 12amp smart battery charger with small SB50 red plug 1
04 991-2103 50amp charger plug SB50 with pins (red)
05 996-3084 16 inch heavy grit stripping brush - 80 grit 1
06 996-3085 16 inch medium grit scrubbing brush - 180 grit 1
07 996-3086 16 inch lite grit scrubbing brush - 500 grit 1
08 996-3087 16 inch polypropelene scrubbing brush 1
09 996-3088 Pad driver 1
10 996-3078 16 inch value stripping brush assembly (OBSOLETE) 1 Carlisle
11 996-0341 Drive lugs - plastic (pkg of 3) 1
12 996-0417 16 inch Pad driver 1

- Pads - 255-1700
RefNbr Part Number Description Req Notes
01 255-1740 17 inch aqua plus burnishing pad (pkg of 5)
02 255-1735 17 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1764 17 inch Blue ace pad (pkg of 5)
04 255-1742 17 inch Blue Jay burnishing pad (pkg of 5)
05 255-1712 17 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-1777 17 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1738 17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1721 17 inch gorilla lite burnishing pad (pkg of 5)
09 255-1750 17 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1765 17 inch Heat concrete bonding pad (pkg of 5)
11 255-1730 17 inch jaguar burnishing pad (pkg of 5)
12 255-1767 17 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-1768 17 inch Microclean daily cleaning pad (pkg of 2)
14 255-1769 17 inch Micropolish polishing and burnishing pad (pkg of 2)
15 255-1790 17 inch premium black stripping pad (pkg of 5)
16 255-1770 17 inch premium blue cleaning pad (pkg of 5)
17 255-1792 17 inch premium brown stripping pad (pkg of 5)
18 255-1780 17 inch premium green scrubbing pad (pkg of 5)
19 255-1760 17 inch premium red scrubbing pad (pkg of 5)
20 255-1752 17 inch premium tan polishing pad (pkg of 5)
21 255-1720 17 inch premium white polishing pad (pkg of 5)
22 255-1711 17 inch superspeed rubberized pad (pkg of 5)
23 255-1795 17 inch razorback stripping pad (pkg of 5)
24 255-1747 17 inch Redwood maroon floor prep pad (pkg of 10)
25 255-1755 17 inch Ruff non-abrasive brush pad (pkg of 2)
26 255-1723 17 inch sand screen driver pad (pkg of 2)
27 255-0139 17 inch Professional sand screen 100 grit (pkg of 10)
28 255-0019 17 inch Professional sand screen 120 grit (pkg of 10)
29 255-0140 17 inch Professional sand screen 150 grit (pkg of 10)
30 255-0141 17 inch Professional sand screen 180 grit (pkg of 10)
31 255-0142 17 inch Professional sand screen 220 grit (pkg of 10)
32 255-0143 17 inch Professional sand screen 400 grit (pkg of 10)
33 255-0138 17 inch Professional sand screen 60 grit (pkg of 10)
34 255-0018 17 inch Professional sand screen 80 grit (pkg of 10)
35 255-0225 17 inch Superscreen sand screen 100 grit (pkg of 10)
36 255-0226 17 inch Superscreen sand screen 120 grit (pkg of 10)
37 255-0227 17 inch Superscreen sand screen 150 grit (pkg of 10)
38 255-0228 17 inch Superscreen sand screen 180 grit (pkg of 10)
39 255-0229 17 inch Superscreen sand screen 220 grit (pkg of 10)
40 255-0230 17 inch Superscreen sand screen 400 grit (pkg of 10)
41 255-0223 17 inch Superscreen sand screen 60 grit (pkg of 10)
42 255-0224 17 inch Superscreen sand screen 80 grit (pkg of 10)
43 255-1724 17 inch Tiger carpet bonnet (pkg of 2)
44 255-9570 17 inch Diamond by Gorilla 11000 Grit (pkg of 2)
45 255-9567 17 inch Diamond by Gorilla 1500 Grit (pkg of 2)
46 255-9564 17 inch Diamond by Gorilla 200 Grit (pkg of 2)
47 255-9568 17 inch Diamond by Gorilla 3000 Grit (pkg of 2)
48 255-9565 17 inch Diamond by Gorilla 400 Grit (pkg of 2)
49 255-9566 17 inch Diamond by Gorilla 800 Grit (pkg of 2)
50 255-9569 17 inch Diamond by Gorilla 8000 Grit (pkg of 2)
51 255-9642 17 inch Diamond starter pack (1 of each grit)
52 255-1782 17 inch Turbostrip segmented rotary pad (pkg of 4)
53 255-1715 17 inch Duala clean and shine pad - low speed (pkg of 5)
54 255-1716 17 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
