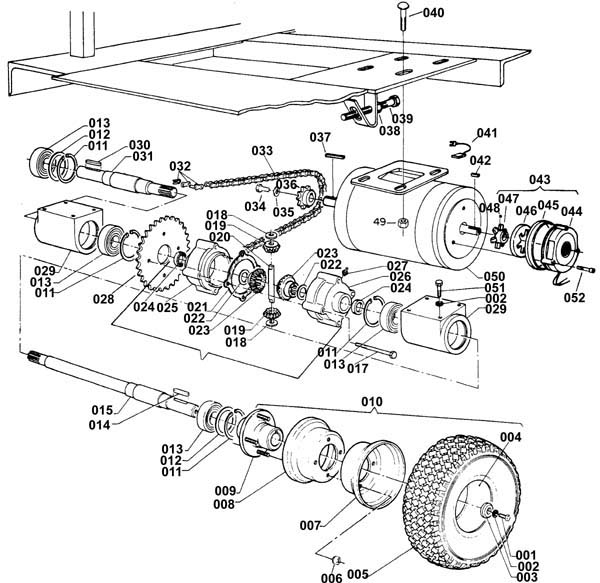

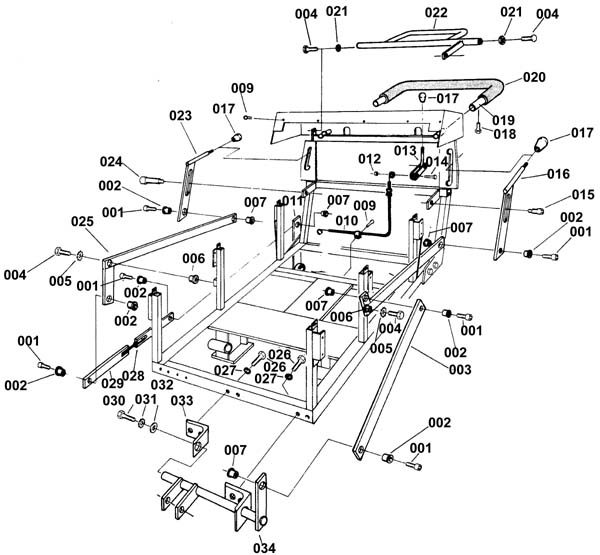

Chain Drive/Differential - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Body Work - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

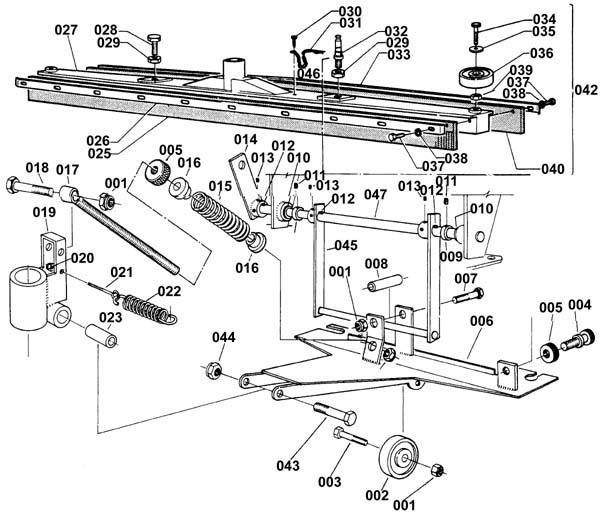

Squeegee and Lift Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

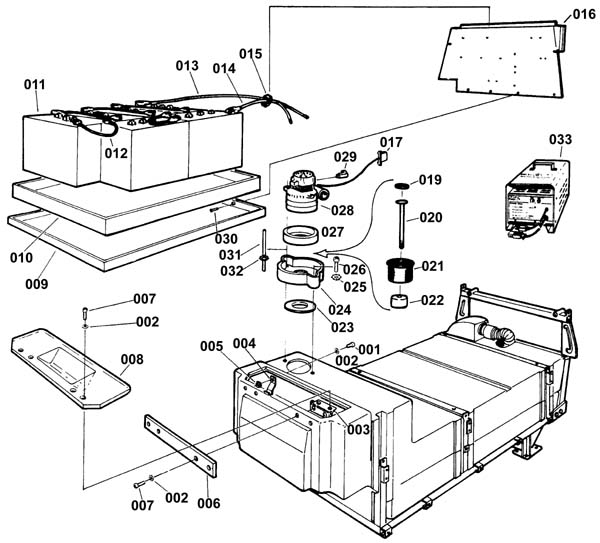

Vac, Battery, and Tanks - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Mechanical Controls - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

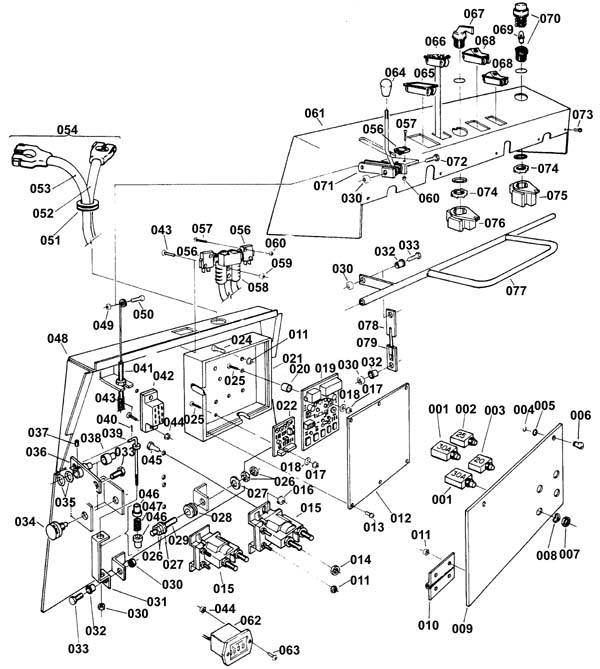

Electrical Controls - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

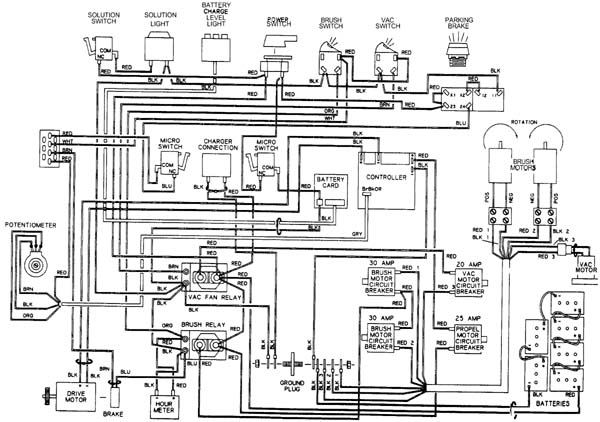

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

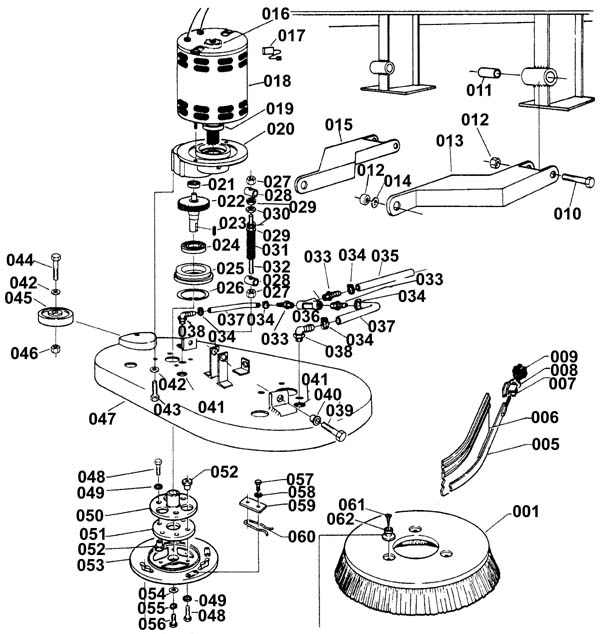

Scrub Deck - 173-0804 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 050 |
173-1942 |
brush drive plate |
|
|
|
|

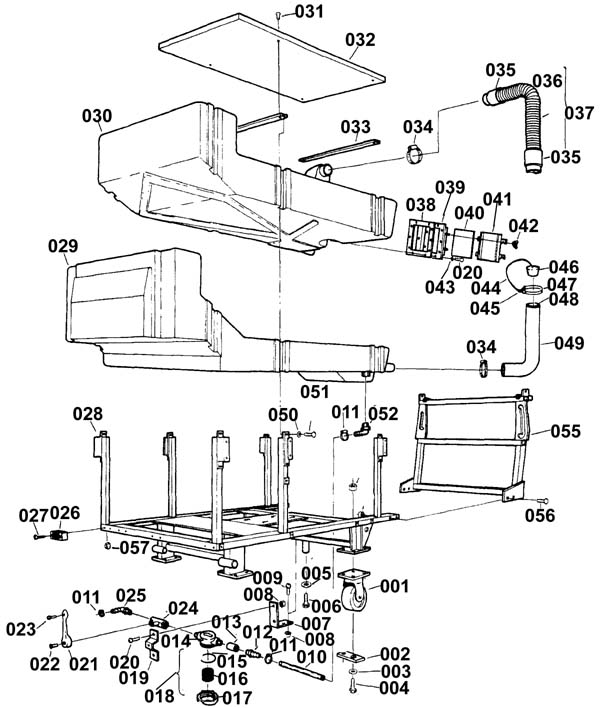

Main Frame with Tanks - 173-0805 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 24 |
173-7156 |
Manual ball valve |
1 |
|
|
|

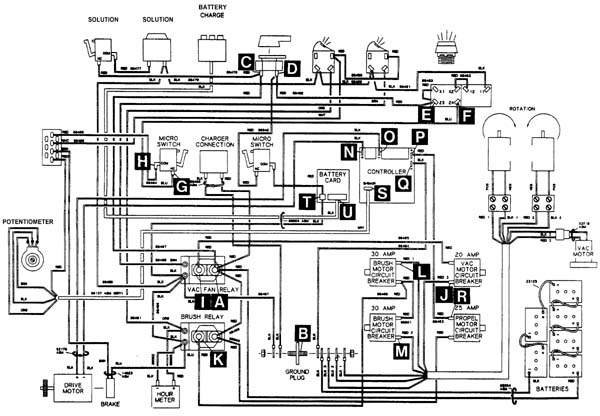

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes and Chargers - 173-9939 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
1 |
|
| 0.9835 |
996-0287 |
15 inch polypropylene scrubbing brush |
2 |
|
| 0.9835 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 0.9835 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
| 0.9835 |
996-0599 |
15 inch Pad driver |
2 |
|
| 0.9835 |
996-0098 |
15 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 0.9835 |
996-0171 |
15 inch heavy grit stripping brush - 80 grit |
2 |
|
| 0.9835 |
996-0122 |
15 inch medium grit scrubbing brush - 180 grit |
2 |
|
| N/S |
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 0.2225 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 0.2305 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 0.3224 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 0.3335 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
|
|
- Pads - 16 inch - 255-1600 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1640 |
16 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1635 |
16 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1664 |
16 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1642 |
16 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1612 |
16 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1677 |
16 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1638 |
16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1621 |
16 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1650 |
16 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1665 |
16 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1630 |
16 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1687 |
16 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1690 |
16 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1670 |
16 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1692 |
16 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1680 |
16 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1660 |
16 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1652 |
16 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1620 |
16 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1611 |
16 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1695 |
16 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1647 |
16 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1655 |
16 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1623 |
16 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0132 |
16 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0133 |
16 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0134 |
16 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0135 |
16 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0136 |
16 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0137 |
16 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0130 |
16 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0131 |
16 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0217 |
16 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0218 |
16 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0219 |
16 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0220 |
16 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0221 |
16 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0222 |
16 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0215 |
16 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0216 |
16 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1624 |
16 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9563 |
16 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9560 |
16 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9557 |
16 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9561 |
16 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9558 |
16 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9559 |
16 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9562 |
16 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9641 |
16 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1682 |
16 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1615 |
16 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1616 |
16 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
