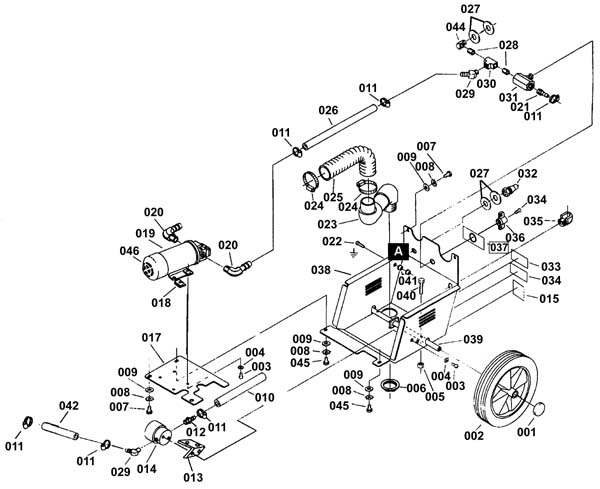

Chassis Assembly - 173-6049 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
273-4000 |
10 inch gray wheel |
|
|
| 003 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 004 |
999-0311 |
Washer #10 external star lock zinc plated |
|
|
| 005 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
|
|
| 006 |
173-2527 |
Nut 1 1/2 nickel plated thread flange |
|
|
| 008 |
999-0017 |
Washer 1/4 external star lock |
|
|
| 009 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
|
|
| 010 |
173-0634 |
Rubber hose 3/8 x 13 inch |
|
|
| 013 |
173-0635 |
Solenoid bracket (OBSOLETE) |
|
|
| 014 |
173-0574 |
2 way solenoid valve |
|
|
| 015 |
173-0636 |
Raise/lower brush label (OBSOLETE) |
|
|
| 017 |
173-0637 |
Pump plate (OBSOLETE) |
|
|
| 018 |
173-2520 |
Nut 10-32 captive jam (OBSOLETE) |
|
|
| 019 |
173-0638 |
Pump 100 PSI 115 volt with anti drip valve |
|
|
| 022 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
|
|
| 023 |
173-0639 |
Vacuum exhaust muffler (OBSOLETE) |
|
|
| 025 |
173-0640 |
Vacuum exhaust hose 19 inches long |
|
|
| 026 |
173-0641 |
Rubber hose 3/8 x 15 inches |
|
|
| 028 |
189-4213 |
1/4 inch nipple |
|
|
| 029 |
173-1937 |
1/2 hosebarb |
|
|
| 032 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 033 |
173-0386 |
Warning label |
|
|
| 034 |
999-0421 |
Screw 10-24 x 1/2 flat head phillips zinc plated |
|
|
| 035 |
173-2199 |
90 degree strain relief |
|
|
| 036 |
173-0642 |
Yellow ball valve knob |
|
|
| 037 |
173-0643 |
Valve position symbol label |
|
|
| 038 |
173-0644 |
Main frame (OBSOLETE) |
|
|
| 039 |
173-0645 |
Wheel axle (OBSOLETE) |
|
|
| 041 |
173-2472 |
Nut 10-32 with star washer |
|
|
| 042 |
173-0646 |
Rubber hose 3/ 8 x 15 inches |
|
|
| 043 |
173-0647 |
Protect from freezing label (OBSOLETE) |
|
|
| 044 |
173-2098 |
Street elbow 1/4 |
|
|
| 045 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
|
|
| 046 |
173-0648 |
115 volt pump head assembly (OBSOLETE) |
|
|
|
|

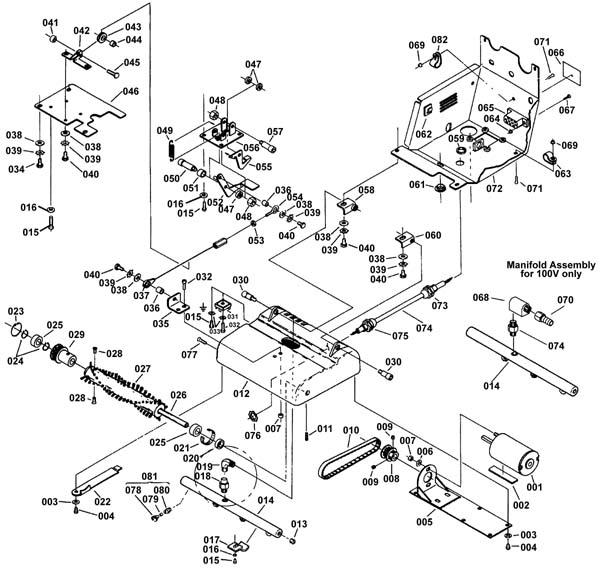

Power Brush Assembly - 173-6050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-0649 |
115 volt brush drive motor |
|
|
| 002 |
173-0650 |
Gasket 1/8 x 1 x 5 (OBSOLETE) |
|
|
| 003 |
999-0092 |
Washer #8 internal star lock zinc plated |
|
|
| 004 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
|
|
| 005 |
173-0651 |
Motor plate assembly (OBSOLTE) |
|
|
| 006 |
999-0998 |
Washer #10 flat stainless steel |
|
|
| 007 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
|
|
| 008 |
173-0652 |
Motor pulley 3/8 bore |
|
|
| 009 |
999-0650 |
Screw 8-32 x 3/16 knurled point socket set plain finish |
|
|
| 011 |
173-3898 |
Screw 8-32 x 1/8 knurled cap |
|
|
| 012 |
173-0653 |
Brush housing |
|
|
| 013 |
173-2090 |
1/8 plug (OBSOLETE) |
|
|
| 015 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 016 |
999-0311 |
Washer #10 external star lock zinc plated |
|
|
| 020 |
173-0657 |
Brush seal (OBSOLETE) |
|
|
| 021 |
173-0658 |
Tolerance ring |
|
|
| 022 |
173-0659 |
Belt cover plate |
|
|
| 023 |
173-0660 |
Internal snap ring 7/8 |
|
|
| 024 |
173-3429 |
3/8 snap ring (OBSOLETE) |
|
|
| 025 |
173-2026 |
Bearing (OBSOLETE) |
|
|
| 028 |
999-0723 |
Screw 10-32 x 1/2 pan head slotted stainless steel |
|
|
| 029 |
173-0663 |
Brush pulley |
|
|
| 030 |
173-3965 |
Bolt 3/8 x 1/2 inch shoulder |
|
|
| 031 |
173-5076 |
Rectifier bridge 115v |
|
|
| 032 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
|
|
| 033 |
999-0311 |
Washer #10 external star lock zinc plated |
|
|
| 035 |
173-0664 |
Brush housing lift bracket (OBSOLETE) |
|
|
| 036 |
173-0542 |
Spacer (OBSOLETE) |
|
|
| 037 |
173-0665 |
Brush lift cable |
|
|
| 038 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
|
|
| 039 |
999-0017 |
Washer 1/4 external star lock |
|
|
| 040 |
999-0383 |
Screw 1/4-20 x 1/2 button head socket cap plain finish |
|
|
| 041 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
|
|
| 042 |
173-0666 |
Cable roller bracket (OBSOLETE) |
|
|
| 043 |
173-0667 |
Roller (OBSOLETE) |
|
|
| 045 |
999-9072 |
Bolt 1/4-20 x 1 hex head cap |
|
|
| 046 |
173-0637 |
Pump plate (OBSOLETE) |
|
|
| 047 |
173-0668 |
White nylon spacer 3/4 x .208 (OBSOLETE) |
|
|
| 048 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
| 049 |
173-2333 |
Extension spring |
|
|
| 050 |
173-0669 |
Bolt 3/8 x 1 1/4 shoulder |
|
|
| 051 |
173-0670 |
Nylon spacer (OBSOLETE) |
|
|
| 052 |
173-0671 |
Left pedal assembly |
|
|
| 053 |
999-0062 |
Nut 10-24 hex |
|
|
| 054 |
173-3876 |
Eyebolt 3/16 and 10-24 nut |
|
|
| 056 |
173-0673 |
Pedal bracket assembly (OBSOLETE) |
|
|
| 057 |
173-0674 |
Bolt 3/8 x 3/4 shoulder |
|
|
| 058 |
173-0675 |
Right hanger bracket (OBSOLETE) |
|
|
| 059 |
173-0676 |
Nut 18.6 strain relief (OBSOLETE) |
|
|
| 060 |
173-0677 |
Left hanger bracket (OBSOLETE) |
|
|
| 061 |
173-0678 |
Snap bushing (OBSOLETE) |
|
|
| 062 |
173-0679 |
Self adhesive wire clip (OBSOLETE) |
|
|
| 064 |
173-2522 |
Nut 6-32 with star washer |
|
|
| 065 |
173-1888 |
Terminal block |
|
|
| 066 |
173-0636 |
Raise/lower brush label (OBSOLETE) |
|
|
| 067 |
173-2523 |
Screw 6-32 x 3/4 nylon black (OBSOLETE) |
|
|
| 068 |
173-2098 |
Street elbow 1/4 |
|
|
| 071 |
173-5002 |
Screw 8-32 x 1/2 phillips round head machine stainless steel |
|
|
| 072 |
173-0644 |
Main frame (OBSOLETE) |
|
|
| 073 |
173-0680 |
Strain relief (OBSOLETE) |
|
|
| 075 |
173-0682 |
Strain relief |
|
|
| 076 |
173-2478 |
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
| 077 |
999-0087 |
Screw 10-32 x 5/8 flat head slotted zinc plated |
|
|
| 078 |
173-2680 |
Mini quick replacement jet |
|
|
| 079 |
173-2085 |
Mini-quick jet seal |
|
|
| 080 |
173-2086 |
Mini-quick jet body with seal |
|
|
| 081 |
173-0683 |
Minin quick jet assembly |
|
|
| 082 |
173-1800 |
5/16 nylon clamp (OBSOLETE) |
|
|
|
|
Tank Assembly - 173-6051 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
173-0099 |
Mesh strainer |
|
|
| 004 |
189-4213 |
1/4 inch nipple |
|
|
| 005 |
173-0685 |
Solution tank |
|
|
| 007 |
173-0687 |
Main label (OBSOLETE) |
|
|
| 008 |
173-2098 |
Street elbow 1/4 |
|
|
| 011 |
173-0688 |
Rubber hose 3/8 x 13 1/2 (OBSOLETE) |
|
|
| 012 |
173-2327 |
vacuum motor brush set (OBSOLETE) |
|
|
| 014 |
999-1212 |
Screw 10-32 x 1/2 hex head stainless steel |
|
|
| 015 |
999-0311 |
Washer #10 external star lock zinc plated |
|
|
| 016 |
999-0165 |
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
|
|
| 017 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
|
|
| 018 |
173-0690 |
12 inch ground wire |
|
|
| 019a |
173-0691 |
Vacuum motor 3 stage 115 volts 5.7 inches |
|
|
| 019b |
173-2526 |
Vacuum Motor 100V |
|
|
| 019c |
991-1213 |
120V 3 stage vacuum motor tangential |
|
(NON-OEM) |
| 020 |
173-0692 |
Vac mounting spacer 115 volts (OBSOLETE) |
|
|
| 021 |
173-3459 |
vacuum fan seal stage gasket |
|
|
| 022 |
173-2527 |
Nut 1 1/2 nickel plated thread flange |
|
|
| 023 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
|
|
| 024 |
999-9072 |
Bolt 1/4-20 x 1 hex head cap |
|
|
| 026 |
173-0693 |
Vacuum motor bracket (OBSOLETE) |
|
|
| 027 |
173-0694 |
Tank lid cord |
|
|
| 028 |
173-0695 |
Solution tank lid |
|
|
| 029 |
173-0268 |
1.5 drain hose (14.5 inches) |
|
|
| 031 |
173-1181 |
Solution hose mounting bracket assembly (OBSOLETE) |
|
|
| 032 |
173-0696 |
Recovery tank |
|
|
| 033a |
173-0697 |
Vac stack tube assembly (OBSOLETE) |
|
|
| 034 |
173-0698 |
1.5 inch elbow |
|
|
| 035 |
173-3654 |
Vacuum intake filter |
|
|
| 036 |
173-0699 |
Dome assembly (OBSOLETE) |
|
|
| 038 |
173-0700 |
Swivel hose cuff 1.5 inch (OBSOLETE) |
|
|
| 039 |
173-0701 |
Vac swivel hose assembly 1.5 x 4 inch |
|
|
| 040 |
173-0299 |
1.5 inch cuff |
|
|
| 041 |
173-0682 |
Strain relief |
|
|
| 042 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
|
|
| 043 |
173-0702 |
Momentary on-off switch 115 volt |
|
|
| 044 |
173-0703 |
Illuminated rocker switch 115 volt (OBSOLETE) |
|
|
| 045 |
173-0704 |
Control panel label 115 volt (OBSOLETE) |
|
|
| 046 |
173-0705 |
Control panel (OBSOLETE) |
|
|
| 047 |
173-0706 |
Curvette light rocker switch 115 volt |
|
|
| 048 |
173-2478 |
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
| 049 |
173-0707 |
Wire assembly 115 volt |
|
|
| 050 |
173-0682 |
Strain relief |
|
|
| 051 |
173-2478 |
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
| 052 |
173-0708 |
Strain relief cord hook |
|
|
| 053 |
173-2182 |
2 inch split ring |
|
|
| 054 |
173-0709 |
Pigtail cord assembly 115 volt |
|
|
| 056 |
173-2059 |
14/3 extension cord 50 foot twist lock (yellow) |
|
|
| 058a |
173-0710 |
Wiring label (OBSOLETE) |
|
|
| 058b |
173-0711 |
Label (OBSOLETE) |
|
|
| 060 |
993-0014 |
CUFF, HOSE 1.5 inch BLK A 2161 |
|
|
| 061 |
173-1276 |
Vacuum hose 1 1/2 x 30 inch (black) |
|
|
| 063 |
999-0017 |
Washer 1/4 external star lock |
|
|
| 064 |
173-0712 |
Vac shoe (OBSOLETE) |
|
|
| 065 |
173-5074 |
Nut 3/8-27 dress panel |
|
|
| 066 |
173-0713 |
1.5amp circuit breaker |
|
|
| 067 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
| 068 |
173-1147 |
Warning Explosion label |
|
|
| 069 |
173-1282 |
For safety decal |
|
|
|
|

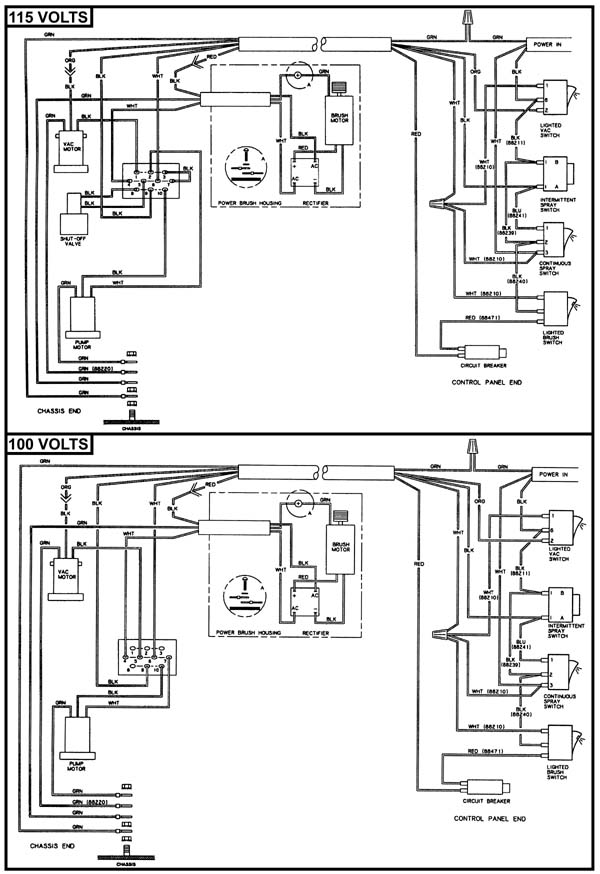

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 173-9885 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
173-5292 |
Brush motor |
|
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
