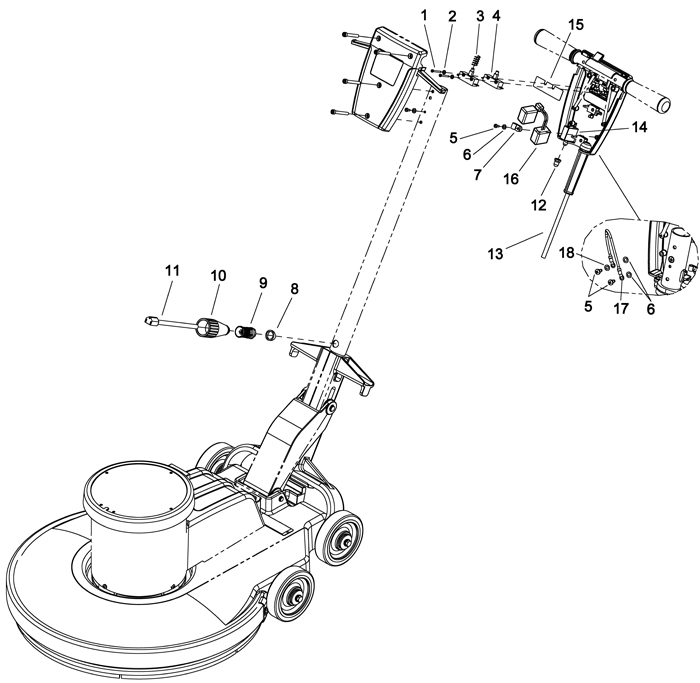

Wiring Assembly - 173-1023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-4704 |
Screw M3-.5 x 40mm pan head thread forming |
2 |
|
| 2 |
173-4705 |
Washer M4 shakeproof |
2 |
|
| 3 |
173-0923 |
Spring (OBSOLETE) |
1 |
|
| 4 |
173-0378 |
25amp switch replacement |
2 |
|
| 5 |
173-4697 |
Screw M4-.8 x 10mm hex head thread forming |
3 |
|
| 6 |
173-4706 |
Washer M5 shakeproof |
3 |
|
| 7 |
173-1800 |
5/16 nylon clamp (OBSOLETE) |
1 |
|
| 9 |
173-2845 |
Strain relief |
1 |
|
| 10 |
173-2844 |
Cord end boot |
1 |
|
| 11 |
173-8469 |
14/3 x 38 inch pigtail cord |
1 |
|
| 12 |
189-0312 |
3/8 inch circuit breaker boot |
1 |
|
| 13a |
173-0335 |
14/3 yellow power cord set 50 ft (with strain relief) |
1 |
|
| 13b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 13c |
991-5001 |
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 14 |
173-7427 |
14amp circuit breaker |
1 |
|
| 15 |
173-4765 |
Barrier sheet |
1 |
|
| 16 |
173-9861 |
Filter assembly |
1 |
(230V) |
| 18 |
999-9100 |
Washer M5 flat stainless steel |
1 |
|
|
|

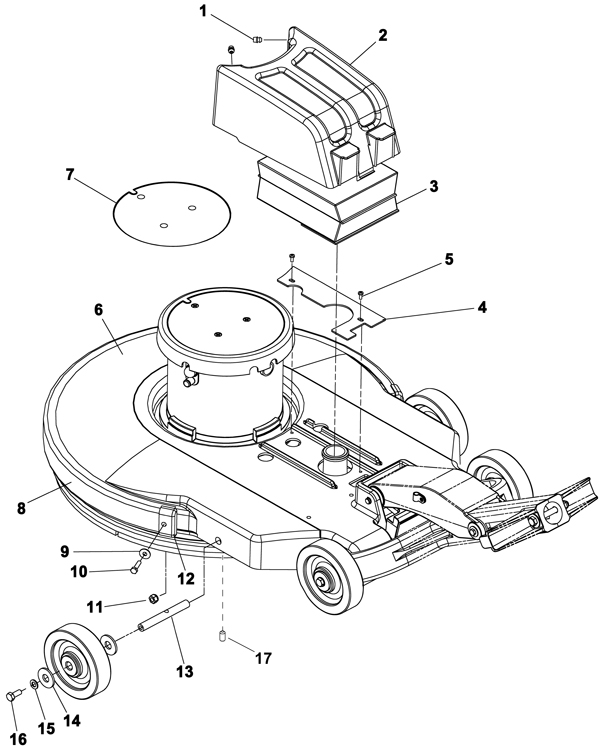

Deck Assembly - 173-4072 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-7435 |
Rubber bumper |
4 |
|
| 2 |
173-8992 |
Filter bag cover |
1 |
|
| 3 |
173-5200 |
Dust bag (pkg of 10) |
1 |
|
| 4 |
173-8997 |
Cord retainer |
1 |
|
| 5 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 6 |
173-8996 |
20 inch burnisher deck |
1 |
|
| 7 |
173-7437 |
Lightning 2000 decal |
1 |
|
| 8 |
173-8995 |
Extrusion bumper (OBSOLETE) |
1 |
|
| 9 |
999-1261 |
Washer M6 flat stainless steel |
2 |
|
| 10 |
999-0779 |
Screw M6-1 x 25mm hex head plain finish |
2 |
|
| 11 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
|
| 12 |
173-2836 |
Fixing ram protection |
2 |
|
| 14 |
999-0972 |
Washer M14 flat |
4 |
|
| 15 |
999-1267 |
Washer M8 flat zinc |
2 |
|
| 16 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
| 17 |
999-1339 |
Screw M8-1.25 x 8mm set cup point |
2 |
|
|
|

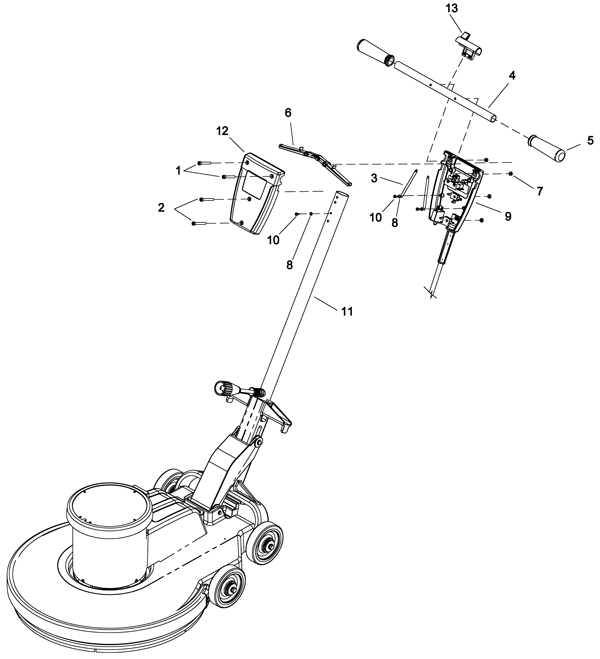

Handle Assembly - 173-4073 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-1336 |
Screw M6-1 x 45mm socket head |
2 |
|
| 2 |
999-1337 |
Screw M6 x 50mm socket head |
2 |
|
| 4 |
173-4700 |
Handle grip tube |
1 |
|
| 6 |
173-4690 |
Switch lever |
2 |
|
| 7 |
999-0950 |
Nut M6-1 hex aluminum |
4 |
|
| 8 |
173-7429 |
Washer M4 flat |
3 |
|
| 9 |
173-7431 |
Rear handle housing |
1 |
|
| 10 |
173-4697 |
Screw M4-.8 x 10mm hex head thread forming |
3 |
|
| 11 |
173-8998 |
Handle tube |
1 |
|
| 12 |
173-7432 |
Front handle housing |
1 |
|
| 13 |
173-4689 |
Safety handle lock |
1 |
|
|
|

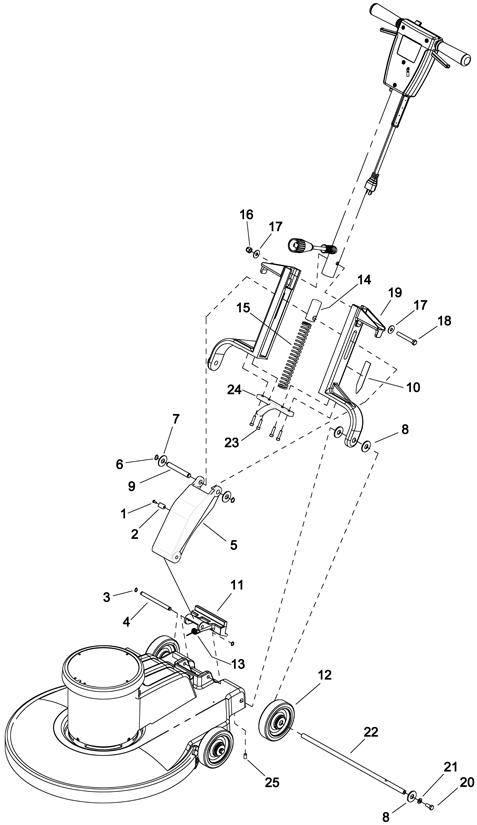

Lower Handle Assembly - 173-4074 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
1 |
|
| 2 |
173-1800 |
5/16 nylon clamp (OBSOLETE) |
1 |
|
| 3 |
173-8999 |
External snap ring |
2 |
|
| 5 |
173-9004 |
Handle link bracket |
1 |
|
| 6 |
173-9005 |
External snap ring |
2 |
|
| 7 |
999-0972 |
Washer M14 flat |
2 |
|
| 8 |
999-0972 |
Washer M14 flat |
6 |
|
| 9 |
173-9006 |
Linkage spacer |
1 |
|
| 10 |
173-7438 |
Handle release decal (OBSOLETE) |
1 |
|
| 11 |
173-9007 |
Handle latch (OBSOLETE) |
1 |
|
| 12 |
173-4664 |
Wheel (gray) |
2 |
|
| 13 |
173-9008 |
Torsion spring |
1 |
|
| 14 |
173-9009 |
Compression spring block |
1 |
|
| 15 |
173-9010 |
Compression spring |
1 |
|
| 16 |
173-3869 |
Nut 3/8-16 hex nylock (OBSOLETE) |
1 |
|
| 17 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 18 |
173-9011 |
Screw 3/8-16 x 3 hex head cap screw |
1 |
|
| 19 |
173-9012 |
Handle mount bracket |
2 |
|
| 20 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
| 21 |
999-1267 |
Washer M8 flat zinc |
2 |
|
| 23 |
173-9014 |
Screw M6 x 30 cap plated |
4 |
|
| 24 |
173-9015 |
Latch striker |
1 |
|
| 25 |
999-1339 |
Screw M8-1.25 x 8mm set cup point |
2 |
|
|
|

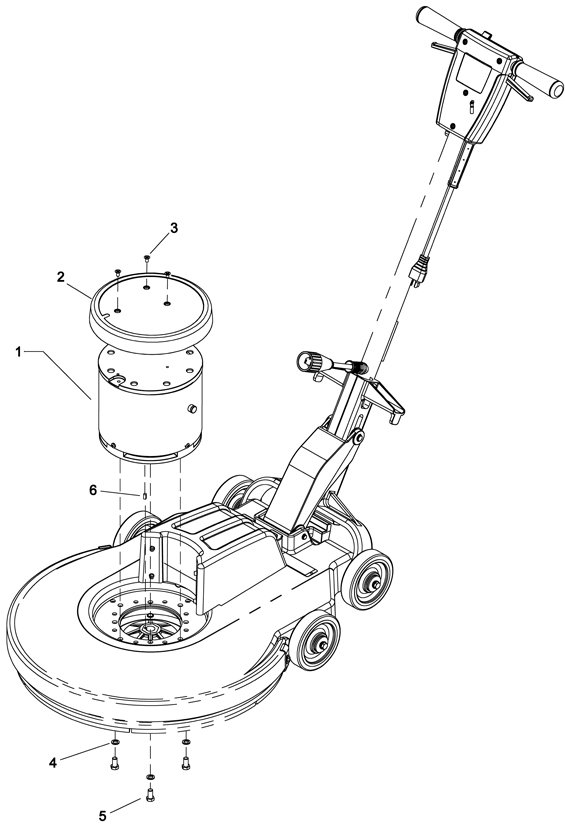

Motor Assembly - 173-4075 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-4157 |
115V 1.5HP motor 2000RPM |
1 |
|
| 3 |
173-4668 |
Screw M5-.8 x 15mm |
3 |
|
| 4 |
999-0034 |
Washer 3/8 split lock plain finish |
4 |
|
| 5 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 6 |
173-9018 |
Square keyway |
1 |
|
| N/S |
273-1134 |
50amp bridge rectifier |
1 |
|
| N/S |
173-9863 |
Brush set (pkg of 4) |
1 |
|
| N/S |
173-0221 |
25amp fuse |
1 |
|
| N/S |
173-2868 |
Fuse holder |
1 |
|
| N/S |
173-9864 |
Sealed ball bearing |
1 |
(bottom motor bearing) |
| N/S |
173-2869 |
Sealed ball bearing |
1 |
(top motor bearing) |
|
|

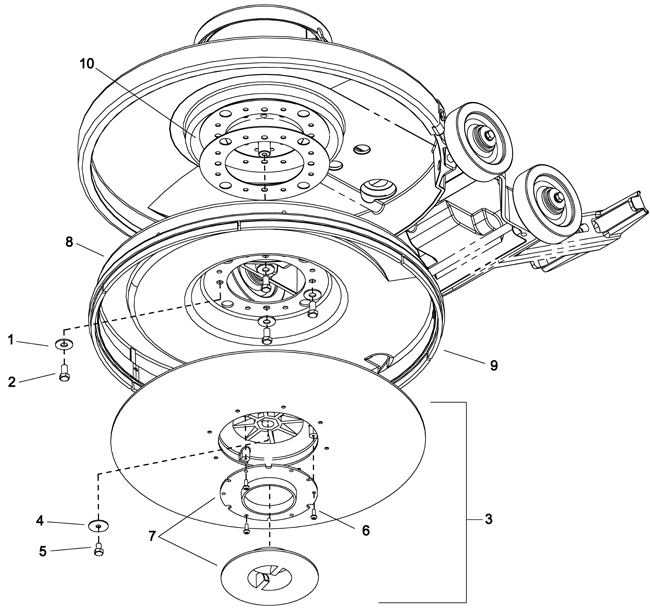

Pad Driver Assembly - 173-4076 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-2548 |
Washer M10 x 30mm plated |
4 |
|
| 2 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 3 |
173-8596 |
Pad driver assembly |
1 |
(includes 6 and 7) |
| 4 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 5 |
173-0439 |
Screw 5/16-24 x 1/2 machine stainless steel |
1 |
|
| 6 |
173-4754 |
Screw #10 x 3/8 pan head phillips standard type b |
3 |
|
| 7a |
991-2202 |
Big mouth pad holder set (blue) |
1 |
|
| 7b |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
1 |
(NON-OEM) |
| 7c |
991-2205 |
Deep lock ring and pad grip ring |
1 |
(NON-OEM) |
| 7d |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
1 |
(NON-OEM) |
| 8 |
173-9017 |
Burnisher shroud |
1 |
(includes 9) |
| 9 |
173-2799 |
Bristle strip (pkg of 6) |
1 |
|
| 10 |
173-9865 |
Shim 1.5 mm |
2 |
|
|
|

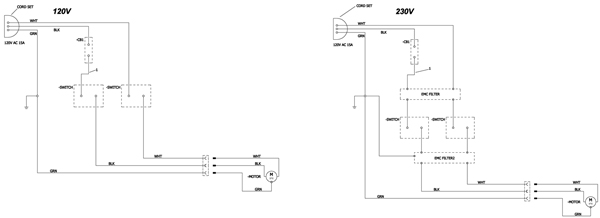

Wiring Diagram - 173-4077 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-7434 |
125mm wire (black) |
1 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9603 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-8469 |
14/3 x 38 inch pigtail cord |
|
|
| 4 |
173-5200 |
Dust bag (pkg of 10) |
|
|
| 5 |
991-2202 |
Big mouth pad holder set (blue) |
|
|
| 6 |
173-0378 |
25amp switch replacement |
|
|
| 7 |
173-4678 |
50amp bridge rectifier |
|
|
|
|
