- Commonly Asked For Parts - 173-9889 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
173-8444 |
Valve assembly |
|
|
|
|

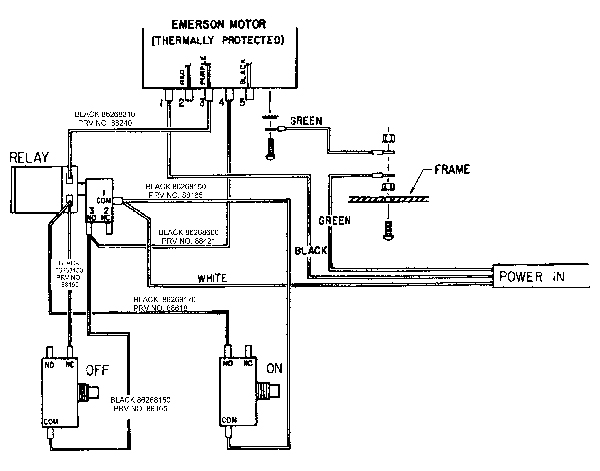

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

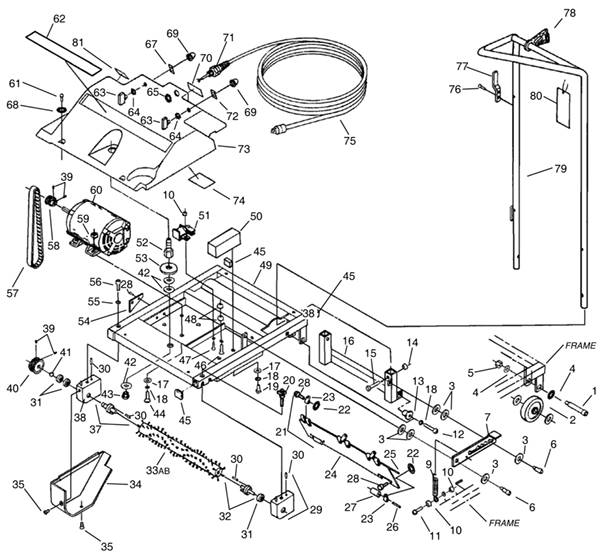

Complete Assembly - 273-3341 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-7823 |
Bolt 3/8 x 2 shoulder stainless steel |
|
|
| 3 |
999-1007 |
Washer 3/8 x 1/16 flat nylon |
|
|
| 4 |
999-0120 |
Washer 3/8 SAE flat |
|
|
| 5 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
| 6 |
173-4828 |
Screw 5/16 x 3/8 phillips head stainless steel |
|
|
| 7 |
273-7825 |
Handle bracket assembly |
|
|
| 9 |
273-0236 |
Extension spring |
|
|
| 11 |
999-0697 |
Screw 8-32 x 3/4 pan head phillips stainless steel |
|
|
| 12 |
999-0599 |
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
|
|
| 13 |
273-3590 |
Handle pivot plug |
|
|
| 14 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
|
|
| 15 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
|
|
| 17 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
|
|
| 18 |
999-0017 |
Washer 1/4 external star lock |
|
|
| 19 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
|
|
| 20 |
273-2040 |
Knob assembly |
|
|
| 21 |
273-2041 |
Splash shield assembly |
|
|
| 22 |
173-3904 |
Washer 1/8 rivet backup |
|
|
| 23 |
273-2042 |
Bag support clamp |
|
|
| 24 |
173-7521 |
Splash shield (OBSOLETE) |
|
|
| 25 |
273-2043 |
Splash shield hanger rod |
|
|
| 26 |
273-2044 |
Splash shield roller rod |
|
|
| 27 |
273-2045 |
Splash shield roller |
|
|
| 28 |
273-7827 |
Aluminum rivet |
|
|
| 29 |
273-2046 |
Left side bearing block assembly |
|
|
| 30 |
273-2047 |
Roll pin 1/4 x 3/4 inch |
|
|
| 31 |
273-2048 |
Brush shaft bearing |
|
|
| 32 |
273-2049 |
Drive shaft and hub assembly |
|
|
| 33a |
173-2791 |
Universal standard brush for Grout Hog |
|
|
| 33b |
173-7520 |
All purpose aggressor brush |
|
|
| 34 |
N/A |
Not available |
|
(belt guard) |
| 35 |
999-1009 |
Screw 10-32 x 1/2 flat head phillips stainless steel |
|
|
| 37 |
273-3557 |
Brush drive shaft/hub assembly |
|
|
| 38 |
273-3558 |
Right hand bearing block assembly |
|
|
| 39 |
999-1051 |
Screw 1/4-28 x 1/4 knurled point socket set plain finish |
|
|
| 41 |
173-3507 |
Retainer ring |
|
|
| 42 |
999-0855 |
Washer 9/16 SAE flat |
|
|
| 44 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
|
|
| 45 |
273-7828 |
Frame tube cap |
|
|
| 46 |
173-3883 |
Bolt 10-32 x 3/4 hex head |
|
|
| 47 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
|
|
| 48 |
173-2472 |
Nut 10-32 with star washer |
|
|
| 50 |
273-7831 |
Counter balance weight |
|
|
| 54 |
273-7834 |
Frame bracket |
|
|
| 55 |
999-1053 |
Washer 5/16 internal star lock stainless steel |
|
|
| 56 |
999-1051 |
Screw 1/4-28 x 1/4 knurled point socket set plain finish |
|
|
| 59 |
173-2506 |
Nut 1/4-20 captive |
|
|
| 61 |
173-4961 |
Screw 10-24 x 3/4 phillips head thread cutting |
|
|
| 62 |
273-7837 |
Grouthog decal |
|
|
| 63 |
173-2007 |
SPDT 20A snap action switch |
|
|
| 64 |
173-5043 |
Washer 3/8 interlocking |
|
|
| 65 |
173-2478 |
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
|
|
| 70 |
173-0386 |
Warning label |
|
|
| 71 |
173-2081 |
Strain relief |
|
|
| 73 |
273-7841 |
Brush cover (blue) |
|
|
| 75 |
273-7887 |
40 foot cord assembly (yellow) |
|
|
| 80 |
273-7844 |
Instruction card |
|
|
| 81 |
173-1282 |
For safety decal |
|
|
|
|
