Parts List Complete for WINDSOR FLEX CAT2

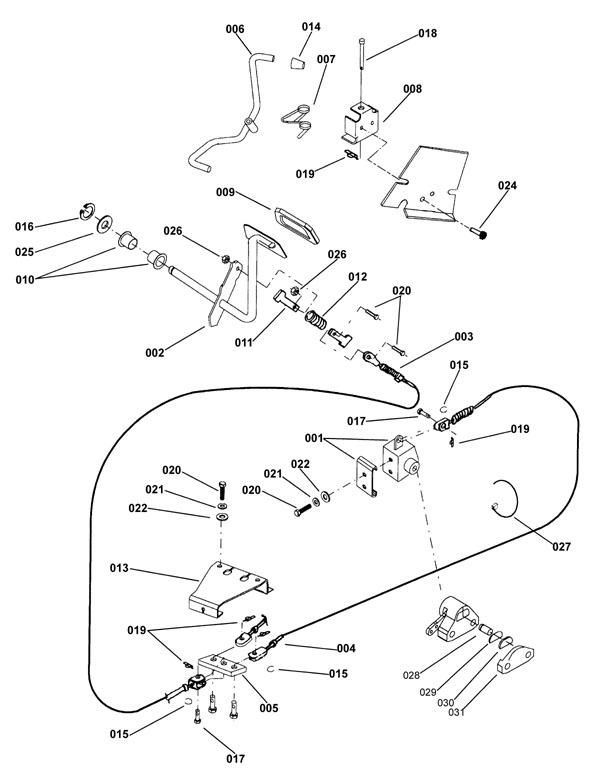

Brake Assembly - 173-2300
RefNbr Part Number Description Req Notes
001 173-3471 Brake caliper 2
002 173-3476 Brake pedal weldment 1
003 173-3477 Front brake cable 1
004 173-3481 Rear brake cable 2
005 173-3482 Equalizer bar 1
006 173-3478 Parking brake weldment 1
007 173-3479 Torsion spring 1
008 173-3480 Parking brake channel (OBSOLETE) 1
009 173-3218 Brake pedal pad 1
010 173-3220 Bushing 2
011 173-3483 Spring retainer plate 2
012 173-3221 compression spring 1
013 173-8691 Channel cable mount 1
014 173-3485 Rod end cap 1
015 173-8224 1/4 clip ring 5
016 173-3486 Snap ring 1
017 173-3153 Clevis pin 5
018 173-3487 Clevis pin 1
019 173-1130 Cotter ring 6
020 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 8
021 999-1049 Washer 1/4 split lock zinc plated 6
022 999-0123 Washer 1/4 SAE flat zinc plated 6
024 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 2
025 173-3974 Washer 53/100 ID X 1 OD X 3/50 1
026 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
027 173-3169 Wire tie 3
028 173-3472 Pin caliper actuator 1
029 173-3473 Caliper backing plate 1
030 173-3474 Caliper puck 1
031 173-3475 Anvil subassembly caliper 1

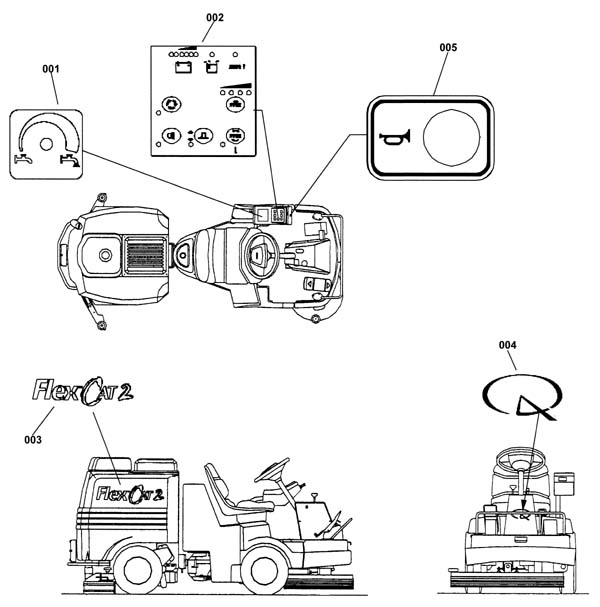

Decal Assembly - 173-2301
RefNbr Part Number Description Req Notes
001 173-8692 Label solution control (OBSOLETE) 1
002 173-8693 Label touch pad (OBSOLETE) 1
003 173-8694 Main label (OBSOLETE) 1
004 173-8695 Quadra logo decal 3.5 high (OBSOLETE) 1
005 173-3504 Horn overlay 1

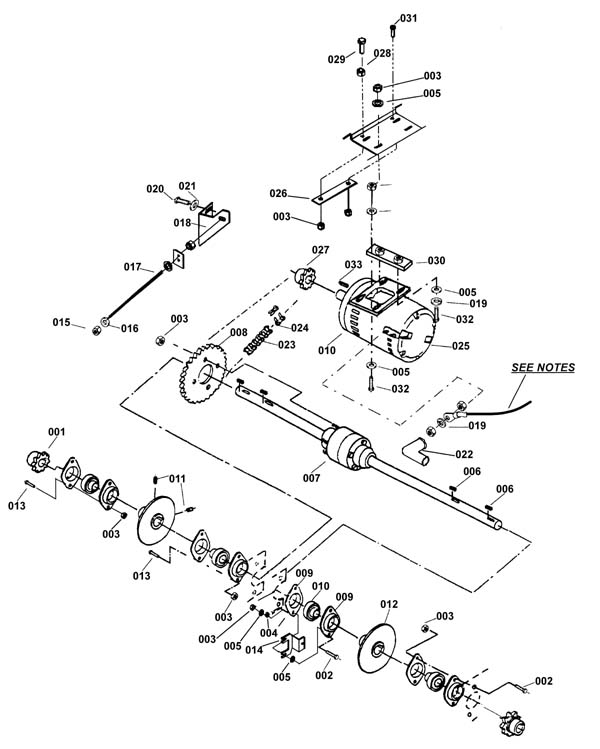

Differential Assembly - 173-2302
RefNbr Part Number Description Req Notes
001 173-3289 Sprocket 2
002 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 6
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 16
004 999-0430 Nut 5/16-18 hex jam plain finish 2
005 173-3912 Washer .344 x .066 flat head (OBSOLETE) 10
006 173-1856 Square keyway 4
007 173-3535 Flex differential 1
008 173-3534 36 tooth sprocket 1
009 173-3536 Flanged bearing 8
010 173-3444 Ball bearing 4
011 999-1051 Screw 1/4-28 x 1/4 knurled point socket set plain finish 4
012 173-3537 Brake disc 2
013 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
014 173-3598 Guard harness plate 1
015 999-0881 Nut 1/2-13 jam 4
016 173-3974 Washer 53/100 ID X 1 OD X 3/50 4
017 173-3542 Motor position rod 1
018 173-3539 Motor position angle 1
019 999-0028 Washer 5/16 split lock plain finish 2
020 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
021 999-0034 Washer 3/8 split lock plain finish 2
022 173-3311 Insulated rubber terminal boot 4
023 173-3533 Chain 1
024 173-3303 Lambda m-link chain 1
025 173-3532 Drive motor (OBSOLETE) 1
026 173-3587 Motor locator bar 1
027 173-3443 Sprocket 1
028 999-0069 Nut 5/16-18 hex 1
029 173-8463 Screw 5/16 - 18 x 2 hex head cap plated 1
030 173-3541 Retaining bar 1
031 999-0225 Screw 5/16-18 x 1 button head socket plain finish 1
033 173-3540 Square key 1

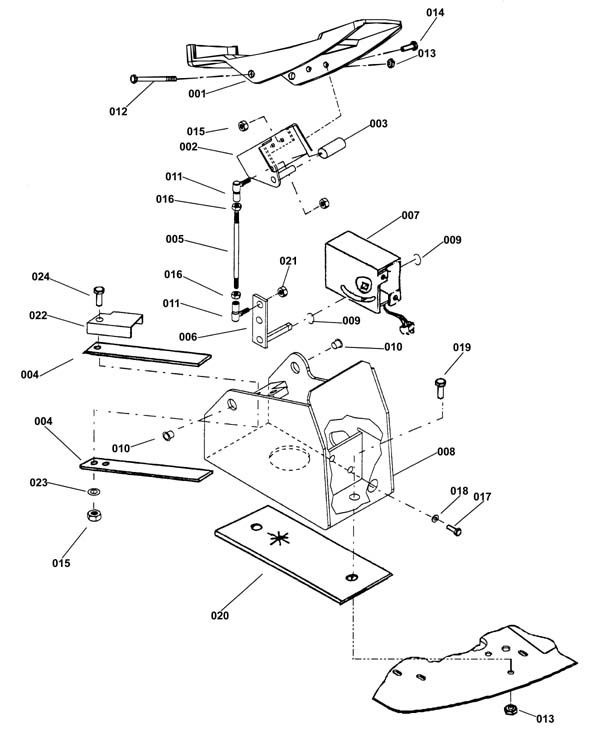

Direction Control Assembly - 173-2303
RefNbr Part Number Description Req Notes
001 173-3269 Forward/reverse pedal (OBSOLETE) 1
002 173-3577 Pedal plate weldment 1
003 173-3272 Isolator tubing 1
004 173-3273 Flat spring 2
005 173-3578 Stud 1/4 - 38 X 1.63 stainless steel (OBSOLETE) 1
006 173-3579 Throttle arm weldment 1
007 173-3271 Electronic control throttle 2
008 173-3580 Pedal mount weldment (OBSOLETE) 1
009 173-3276 External 7/32 inch E-ring 2
010 173-3275 Flanged bearing 2
011 173-3278 1/4 inch ball joint assembly 2
012 999-1406 Bolt 3/8-16 x 4 1/2 hex head zinc 1
013 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 3
014 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
015 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
016 999-0651 Nut 1/4-28 hex stainless steel 2
017 173-3989 Bolt 5 x 0.8 x 6mm hex head 2
018 999-0053 Washer #10 split lock plain finish 2
019 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
020 173-3581 Pedal mount pad 1
021 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel 2
022 173-3582 Spring alignment bracket 1
023 999-0123 Washer 1/4 SAE flat zinc plated 1
024 999-9072 Bolt 1/4-20 x 1 hex head cap 1

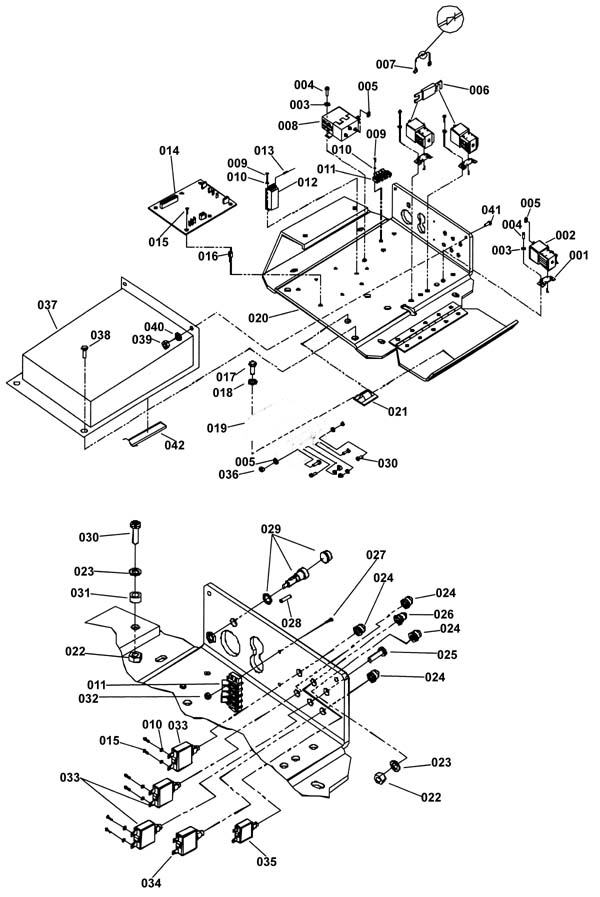

Electrical Assembly - 173-2304
RefNbr Part Number Description Req Notes
001 173-3547 Contractor mount (OBSOLETE) 3
002 173-3548 Contractor 3
003 999-0311 Washer #10 external star lock zinc plated 8
004 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel 8
005 999-0028 Washer 5/16 split lock plain finish 13
006 173-3549 125amp fuse 1
007 189-0372 Diode assembly 1
008 173-3552 Forward/reverse contractor (OBSOLETE) 1
009 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 4
010 999-0051 Washer #6 medium split lock 4
011 173-1790 Strip 8 position terminal 2
012 173-8697 Relay 1
013 173-8698 Resistor assembly 1
014 173-8699 Control board secondary 1
015 199-0418 1 1/2 inch blower kit with felt and horse hair brushes 12
016 173-8700 Standoff 6-32 X 3/8 hex (OBSOLETE) 6
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 3
018 999-1049 Washer 1/4 split lock zinc plated 3
019 173-3546 Speed controller 1
020 173-8701 Seat mount (OBSOLETE) 1
021 173-3705 Self adhesive clip (OBSOLETE) 1
022 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
023 173-3912 Washer .344 x .066 flat head (OBSOLETE) 3
024a 173-1522 3/8 inch circuit breaker boot 4
024b 991-5157 3/8 inch circuit breaker boot 4 (NON-OEM)
025 173-3984 Screw 5/16-18 x 1/2 phillips truss head machine 1
026 189-0312 3/8 inch circuit breaker boot 1
027 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel 2
028 173-3212 8A fuse 1
029 173-3210 Fuseholder 1
030 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 6
031 173-3703 Rubber bumper 2
032 173-5037 Nut 6-32 elastic stop (OBSOLETE) 2
033 991-1632 25amp circuit breaker 3
034 173-3492 10A circuit breaker 1
035 173-2271 8amp circuit breaker 1
036 999-0069 Nut 5/16-18 hex 4
037 173-8702 Electronics cover (OBSOLETE) 1
038 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 2
039 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
040 999-0123 Washer 1/4 SAE flat zinc plated 2
041 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 2
042 173-8703 Gasket 1/8 X 3/8 foam (OBSOLETE)

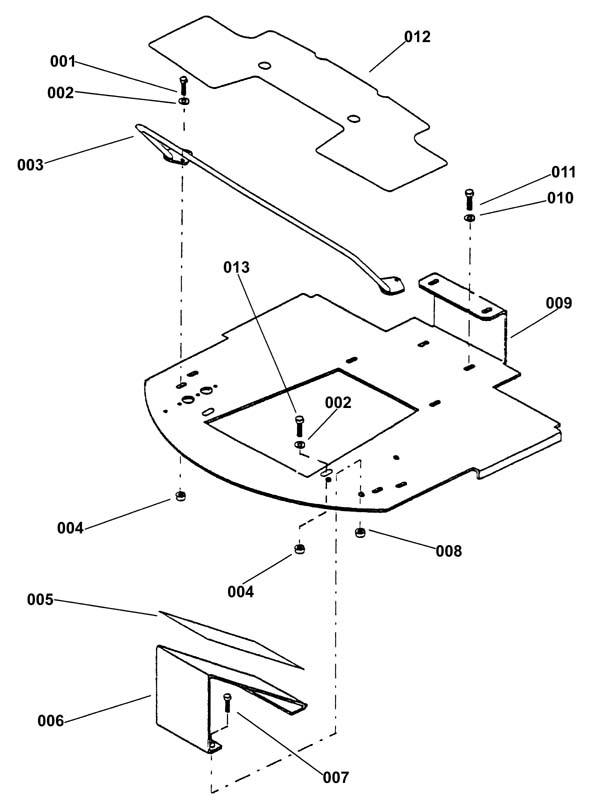

Floor Assembly - 173-2305
RefNbr Part Number Description Req Notes
001 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
002 999-0033 Washer 7/16 SAE flat 6
003 173-3665 Guard weldment 1
004 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 6
005 173-3664 Foot rest pad 1
006 173-3662 Foot rest plate 1
007 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 3
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
009 173-8704 Plate floor (OBSOLETE) 1
010 999-0617 Washer 3/8 x 1 flat stainless steel 4
011 173-5055 Screw 3/8-16 x 2 1/2 4
012 173-8705 Pad floor 1
013 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2

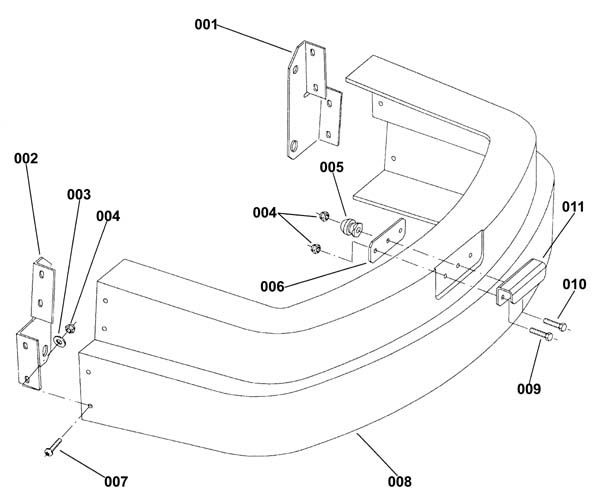

Front Bumper Assembly - 173-2306
RefNbr Part Number Description Req Notes
001 173-3469 Right bumper mount 1
002 173-3468 Left bumper mount 1
003 999-0123 Washer 1/4 SAE flat zinc plated 8
004 999-0152 Nut 1/4-20 nylon insert lock zinc plated 11
005 173-3470 Male latch 1
006 173-3467 Handle plate 1
007 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 8
008 173-8706 Bumper 1
009 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
010 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated 1
011 173-3466 Bumper handle 1

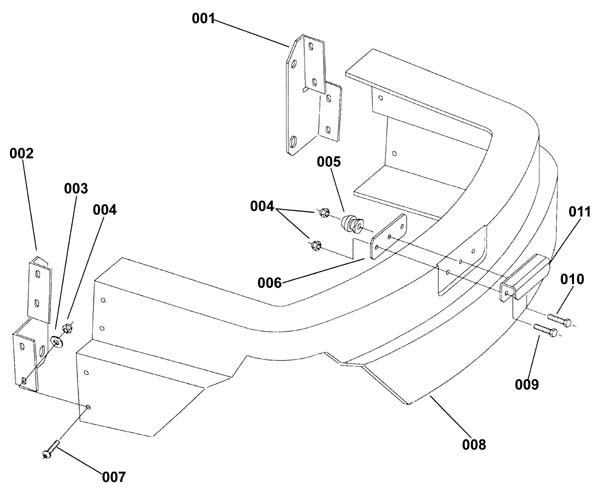

Front Bumper Cylindrical Assembly - 173-2307
RefNbr Part Number Description Req Notes
001 173-3469 Right bumper mount 1
002 173-3468 Left bumper mount 1
003 999-0123 Washer 1/4 SAE flat zinc plated 8
004 999-0152 Nut 1/4-20 nylon insert lock zinc plated 11
005 173-3470 Male latch 1
006 173-3467 Handle plate 1
007 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 8
008 173-8707 Bumper front (OBSOLETE) 1
009 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
010 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated 1
011 173-3466 Bumper handle 1

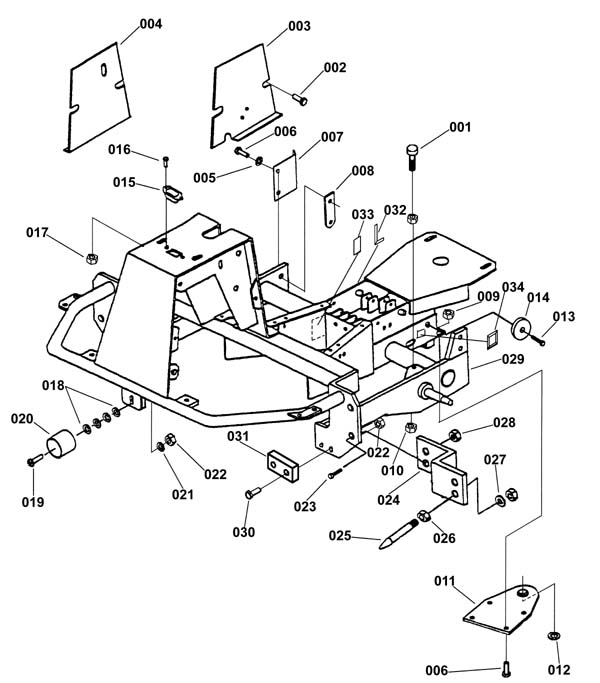

Front Frame Assembly - 173-2308
RefNbr Part Number Description Req Notes
001 173-1537 Adjustment bumper 4
002 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
003 173-3569 Left cover plate 1
004 173-3568 Right cover plate 1
005 173-5043 Washer 3/8 interlocking 2
006 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 6
007 173-3574 Drain hose guard plate 1
008 173-3573 Tapped bar from S/N6000513 1
009 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 4
010 999-0069 Nut 5/16-18 hex 8
011 173-3558 Pivot plate weldment 1
012 173-1062 1.0 extension snap hd ring 1
013 173-3962 Bolt 5/16-18 x 1/2 hex head 2
014 173-3575 Spacer plate 2
015 173-1160 LED hour meter 1
016 173-3976 Screw 6-32 x 3/4 socket head cap 2
017 173-5037 Nut 6-32 elastic stop (OBSOLETE) 2
018 173-5040 Washer plastic 4
019 173-5041 Screw 1/4-20 x 1 1/2 socket head 1
020 173-3570 Female latch 1
021 999-0123 Washer 1/4 SAE flat zinc plated 1
022 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
023 999-0200 Bolt 1/2-13 x 1 1/4 hex head 4
024 173-3576 Extension plate 2
025 173-3567 Bumper pin 4
026 999-0881 Nut 1/2-13 jam 8
027 999-0126 Washer 1/2 split lock 4
028 173-5058 Nut 1/2-13 elastic stop 4
029 173-8708 Front frame (OBSOLETE) 1
030 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated 4
031 173-3559 Slide block 2
032 173-3776 Edging 2
033 173-8709 Edging 1 63/100 inch 1
034 173-8710 Edging 7 1/4 inch 1

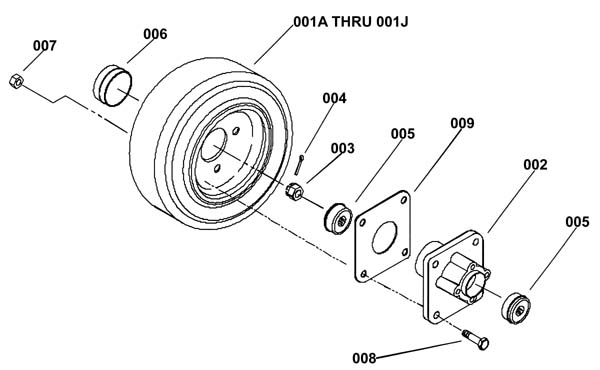

Front Wheel Assembly - 173-2309
RefNbr Part Number Description Req Notes
001a 173-3615 Foam filled black knobby wheel assembly 2
001b 173-3610 Pneumatic black wheel assembly (OBSOLETE)
001c 173-3614 Foam filled non-marking wheel assembly
001d 173-3612 Tire/rim assembly (OBSOLETE)
001e 173-3614 Foam filled non-marking wheel assembly
001f 173-3608 Non-marking wheel assembly
001g 173-3635 Solid wheel assembly (OBSOLETE)
001h 173-3626 Solid tire rim (OBSOLETE)
001i 173-8711 Tire solid press on 16 X 3 1/2 X 121 (OBSOLETE)
001j 173-3636 Scrubber compund wheel assembly (OBSOLETE)
001k 173-3618 Scrubber press on tire P/N82100 (OBSOLETE)
001l 173-3620 Non-marking wheel assembly (OBSOLETE)
001m 173-3621 Non marking press on tire P/N82101 (OBSOLETE)
001n 173-3617 Solid tire wheel assembly (OBSOLETE)
001o 173-3619 Solid press-on tire (OBSOLETE)
002 173-3628 Drive wheel machined hub (OBSOLETE) 2
003 173-0416 Nut slotted 2
004 173-3585 Cotter pin 2
005 173-3301 Bearing 4
006 173-3624 Hubcap 2
007 173-0415 Nut wheel 8
008 173-3629 Stud 8
009 173-8712 Wheel hub plate 2

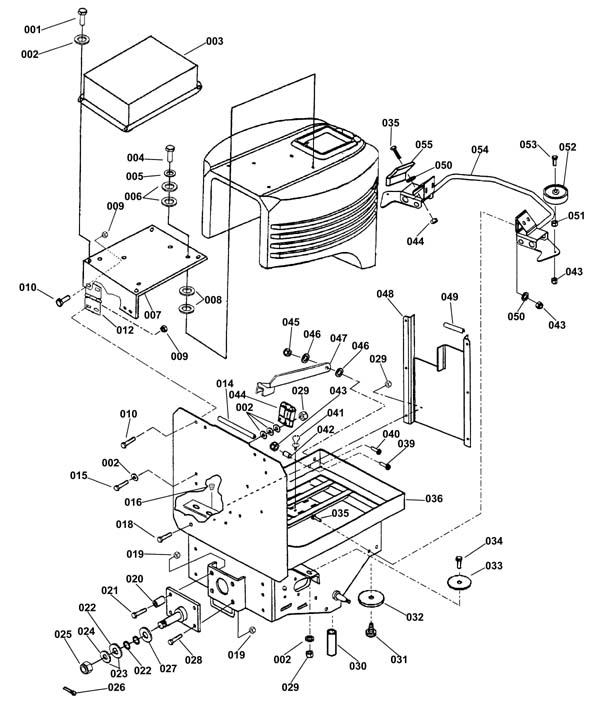

Rear Frame Assembly - 173-2310
RefNbr Part Number Description Req Notes
001 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
002 999-0123 Washer 1/4 SAE flat zinc plated 14
003 173-3554 Electric cover 1
004 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 5
005 999-0028 Washer 5/16 split lock plain finish 5
006 999-0024 Washer 5/16 flat stainless steel 10
007 173-3544 Electronics plate 1
008 173-3657 Spacer 10
009 999-0595 Nut 1/4-20 flange lock serrated zinc plated 8
010 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
011 173-8713 Hinge rear clip 2
012 173-3594 Edging 1
013 999-0748 Screw 1/4-20 x 1 1/2 flat head phillips zinc plated 2
014 173-3602 Rubber bumper (OBSOLETE) 1
015 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 6
016 173-5058 Nut 1/2-13 elastic stop 4
017 173-5045 Spacer 2
018 999-0128 Bolt 1/2-13 x 3 hex head grade 5 zinc plated 2
019 173-5048 Washer fiber glide 2
020 173-3593 O-ring (OBSOLETE) 2
021 173-5047 Washer thrust 1
022 173-5046 Nut slotted 1
023 173-3585 Cotter pin 1
024 173-0511 Screw 1/2-13 x 1 1/2 hex head cap grade 5 2
025 173-3584 Pivot plate weldment 1
026 999-0152 Nut 1/4-20 nylon insert lock zinc plated 10
027 173-8714 Hose 3/4 X 2 3/4 inch vinyl 2
028 173-1577 Tree clip 1
029 173-3600 Drain valve 1
030 173-8715 Washer 2 1/2 X 1/8 4
031 999-0538 Screw 1/4-20 x 1 flat head slotted stainless steel 2
032 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 8
033 173-8716 Rear frame weldment 1
034 999-0592 Screw 3/8-16 x 1 button head socket plain finish 1
035 999-1917 Screw 1/2-13 x 1 button socket cap SS 1
036 173-3461 Wire retainer (OBSOLETE) 1
037 173-1591 Spacer 1
038 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 11
039 991-2112 175amp charger plug with pins (gray) SB175 1
040 173-3886 Nut 1/2-13 lock thin 1
041 173-3974 Washer 53/100 ID X 1 OD X 3/50 2
042 173-3601 Tank support weldment 1
043 173-3588 Cable cover channel 1
044 173-3591 Edging 1
045 999-0033 Washer 7/16 SAE flat 8
046 999-0170 Nut 3/8-16 hex plain finish 2
047 189-0326 Bumper wheel 2
048 173-3937 Bolt 3/8-16 x 2 hex head 2
049 173-8717 Rear guard weldment (OBSOLETE) 1
050 173-3603 Shim plate 2

Rear Wheel Assembly - 173-2311
RefNbr Part Number Description Req Notes
002 999-0028 Washer 5/16 split lock plain finish 8
003 173-8718 Sprocket #40 1/2 inch 44T (OBSOLETE) 2
004 173-3629 Stud 8
005 173-3301 Bearing 4
006 173-8719 Drive wheel hub (OBSOLETE) 2
007 173-0415 Nut wheel 8
008a 173-3615 Foam filled black knobby wheel assembly 2
008b 173-3608 Non-marking wheel assembly
008c 173-3610 Pneumatic black wheel assembly (OBSOLETE)
008d 173-3614 Foam filled non-marking wheel assembly
008e 173-3612 Tire/rim assembly (OBSOLETE)
008f 173-3614 Foam filled non-marking wheel assembly
008g 173-3635 Solid wheel assembly (OBSOLETE)
008h 173-3626 Solid tire rim (OBSOLETE)
008i 173-8711 Tire solid press on 16 X 3 1/2 X 121 (OBSOLETE)
008j 173-3636 Scrubber compund wheel assembly (OBSOLETE)
008k 173-3618 Scrubber press on tire P/N82100 (OBSOLETE)
008l 173-3620 Non-marking wheel assembly (OBSOLETE)
008m 173-3621 Non marking press on tire P/N82101 (OBSOLETE)
008n 173-3617 Solid tire wheel assembly (OBSOLETE)
008o 173-3619 Solid press-on tire (OBSOLETE)
009 173-3624 Hubcap 2
010 173-0416 Nut slotted 2
011 173-3632 Chain 2
012 173-3303 Lambda m-link chain 2
013 173-3585 Cotter pin 2
014 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 4
015 173-3631 Tensioner bar 2
016 999-0033 Washer 7/16 SAE flat 4
017 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
018 173-3633 Chain tensioner 2
019 173-3634 Chain guard 2
020 173-3937 Bolt 3/8-16 x 2 hex head 4
021 999-0123 Washer 1/4 SAE flat zinc plated 2
022 173-5050 Bolt 1/4-14 hex washer head tek 3 4

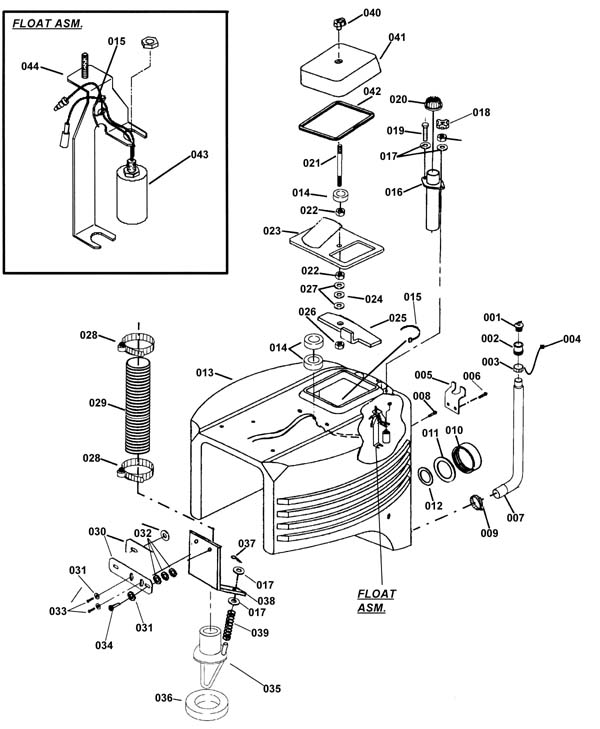

Recovery Tank Assembly - 173-2312
RefNbr Part Number Description Req Notes
001 173-1213 Drain plug 1
002 189-4130 1/2 inch hosebarb 1
003 189-0329 Hose clamp 1
004 189-4123 Drain plug tether 1
005 173-3407 Retainer drain hose mount 1
007 173-1216 Drain hose 1 1/2 x 24 inch 1
008 173-5053 Nut 1/4-20 well (OBSOLETE) 2
009 997-2007 Hose clamp 1
010 173-1272 Tank cleanout cap (OBSOLETE) 1
011 173-1269 Clean out cap fillerplate (OBSOLETE) 1
012 173-3316 Tank cap gasket 1
013 173-8720 Recovery tank 1
014 173-3645 Recovery cover ring gasket 3
015 173-3169 Wire tie 2
016 173-3646 Vacuum tube weldment 1
017 999-0123 Washer 1/4 SAE flat zinc plated 6
018 173-3315 1/4-20 knob (OBSOLETE) 1
019 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
020 173-3654 Vacuum intake filter 1
021 173-3649 Rod 1
022 999-0881 Nut 1/2-13 jam 2
023 173-3647 Seperator weldment 1
024 173-2571 Washer 1/2 x .125 wave 1
025 173-3644 Cover retainer bar 1
026 173-5051 Nut 1/2-13 elastic lock stainless steel 1
027 999-0855 Washer 9/16 SAE flat 2
028 997-2003 Hose clamp 2
029 173-3650 Vacuum hose 1
030 173-3642 Vacuum seal mount bar 1
031 173-3912 Washer .344 x .066 flat head (OBSOLETE) 4
032 173-3657 Spacer 6
033 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
034 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 2
035 173-3641 Vacuum seal weldment 1
036 173-3643 Vacuum base seal 1
037 173-1039 Cotter Pin 1/16 x 3/4 2
038 173-3651 Seal mount angle 1
039 173-3653 Spring 2
040 173-3648 Knob (OBSOLETE) 1
041 173-3639 Recovery tank cover 1
042 173-3640 Cover gasket 1
043 173-3325 Recycling float assembly 1
044 173-8721 Float switch mount plate 1

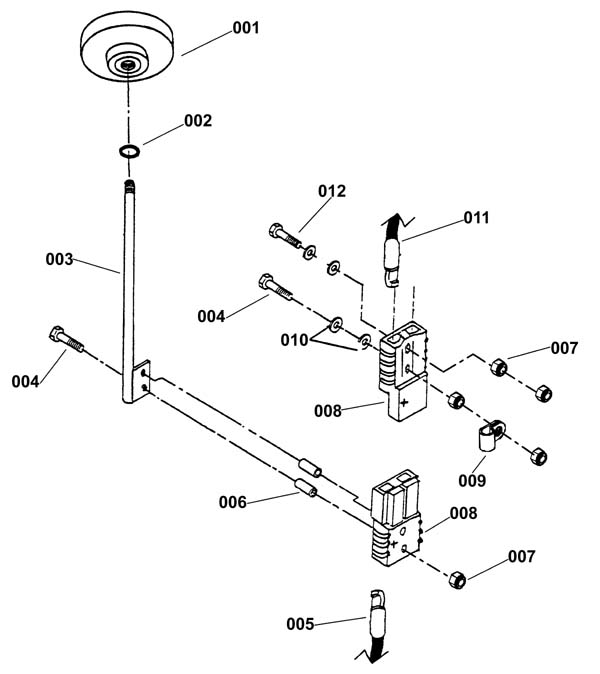

Safety Switch Assembly - 173-2313
RefNbr Part Number Description Req Notes
001 173-3363 Stop red 3/8-16 F insert knob 1
002 173-3996 Washer 3/8in ID x 1x 0.1 neoprene 1
003 173-3364 Safety switch weldment (OBSOLETE) 1
004 173-5054 Bolt 1/4-1-3/4 hex head 3
005 173-8722 Terminal wire
006 173-3365 Safety switch spacer tube 2
007 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
008 991-2112 175amp charger plug with pins (gray) SB175 2
009 173-3402 P clamp 1
010 999-0123 Washer 1/4 SAE flat zinc plated 4
011 173-8723 Terminal wire (OBSOLETE)
012 173-9903 Screw 1/4-20 X 2 1

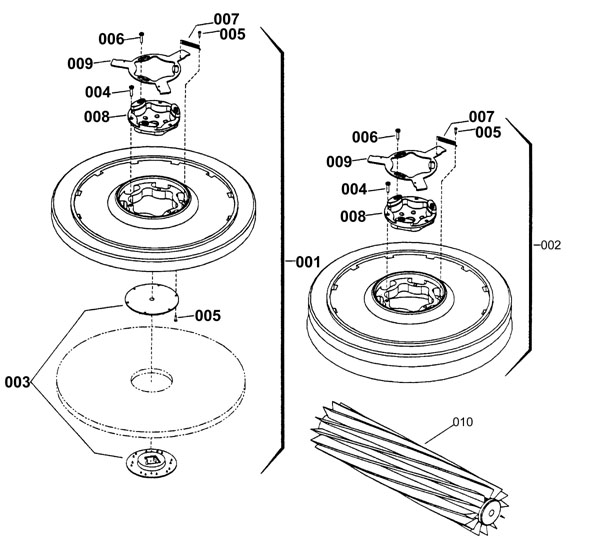

Scrub Brush/Pad Driver (Star Drive 34in) Assembly - 173-2314
RefNbr Part Number Description Req Notes
001 996-0954 Pad driver 2
002a 996-0971 Polypropelene scrubbing brush 2
002b 996-0957 20 inch nylon brush 2
002c 996-0956 20 inch nylon polishing brush 2
002d 996-0958 19 inch medium grit scrubbing brush - 180 grit 2
002e 173-8724 Extra heavy grit stripping brush - 46 grit 2
003 991-2206 Center-Lok 3 pad holder 1
004 999-1332 Screw 12-24 x 1 pan head stainless steel 3
005 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel 4
006 999-1390 Screw 10-12 x 3/4 truss head phillips stainless steel 3
007 173-1558 Extension spring 1
008 173-1566 Clutch plate 1
009 173-1567 Brush release plate 1
010a 173-8725 Cylindrical brush 37.19 inch poly 2
010b 173-8726 Cylindrical brush 37.19 inch nylon 2
010c 173-8727 Cylindrical brush 37.19 inch standard 2
010d 173-8728 Cylindrical brush 37.19 inch super grit 2

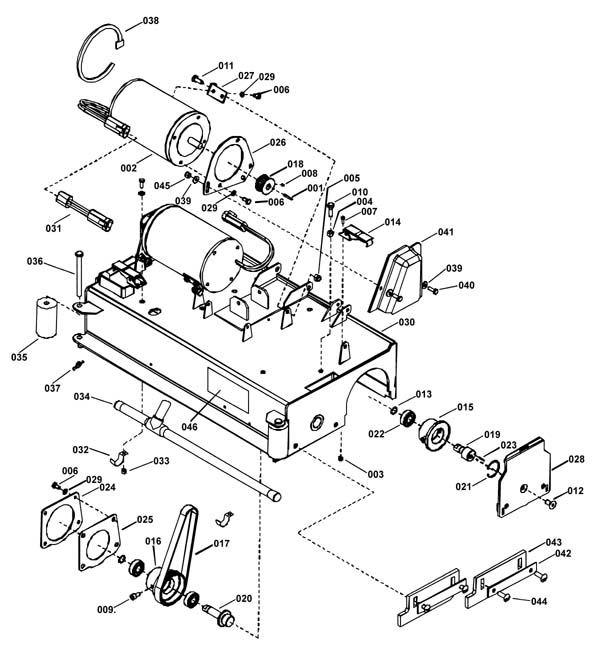

Scrub Head Cylindrical Assembly - 173-2315
RefNbr Part Number Description Req Notes
001 173-1742 1/4 x 3/4 key 2
002 173-1743 Brush motor 2
003 999-0151 Nut 8-32 nylon insert lock zinc plated 4
004 999-0069 Nut 5/16-18 hex 2
005 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
006 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 16
007 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
008 999-1635 Screw 10-32 x 1/4 socket set 4
009 999-0681 Screw 5/16-18 x 1/2 cup point square head set 8
011 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
012 173-5034 Screw 3/8-16 x 3/4 flat head socket cap 2
013 173-3507 Retainer ring 4
014 173-0412 Squeegee strap latch 2
015 173-1745 Idler cylindrical scrub hub (OBSOLETE) 2
016 173-1746 Drive cylindrical scrub hub 2
017 173-1748 Cylindrical brush drive belt 2
018 173-1749 Motor drive cylindrical brush pulley 2
019 173-1750 Idler cylindrical scrub shaft 2
020 173-1751 Drive cylindrical scrub shaft 2
021 173-1752 Retaining HO ring 2
022 173-1753 Bearing 6
023 173-1754 Roll pin 2
024 173-3506 Seal retainer plate 2
025 173-1756 Driver cylindrical scrub seal 2
026 173-1757 Motor mount plate 2
027 173-1758 Motor mount angle 2
028 173-1759 Cylindrical door scrub weldment (OBSOLETE) 2
029 999-0017 Washer 1/4 external star lock 16
030 173-8729 Cylinder scrubhead weldment (OBSOLETE) 1
031 173-1766 Polarity jumper wire assembly 1
032 173-1741 Conduit clamp 2
033 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
034 173-8730 Tube assembly (OBSOLETE) 2
035 173-1762 Cylindrical side scrub roller 2
036 173-1744 Clevis pin (OBSOLETE) 2
037 173-1659 1/2 inch cotter ring (OBSOLETE) 2
038 173-3305 Cable tie 2
039 999-0123 Washer 1/4 SAE flat zinc plated 8
040 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
041 173-1763 Cylindrical belt scrub machine guard 2
042 173-1760 Retainer bar 4
043 173-1747 Squeegee cylindrical side scrub 4
044 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
045 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
046 173-1767 Scrub plus decal 1

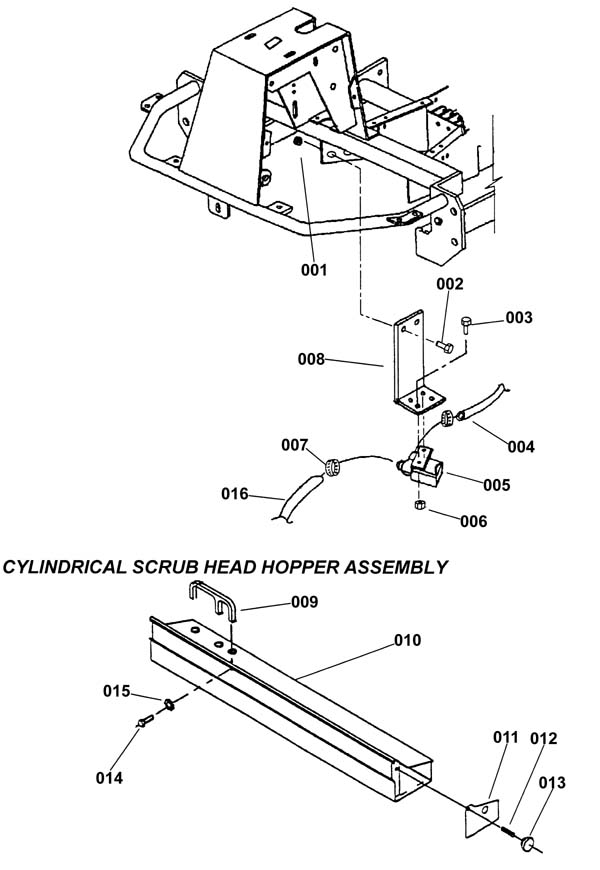

Cylindrical Valve and Hopper Assembly - 173-2316
RefNbr Part Number Description Req Notes
001 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
002 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
003 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
004 173-8731 Vinyl hose 5/8 X 18 1/2 1
005 173-1098 36V solenoid valve 1
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
007 173-1821 Hose clamp 2
008 173-3699 Valve mount angle (OBSOLETE) 2
009 173-1739 Cylindrical scrub hopper handle 1
010 173-8732 Scrub tray weldment 1
011 173-3515 End plate 1
012 173-3516 Screw 5/16-18 x 1 1/2 set 1
013 173-1736 Knob 1
016 173-3701 5/8 x 19 1/2 vinyl hose 1

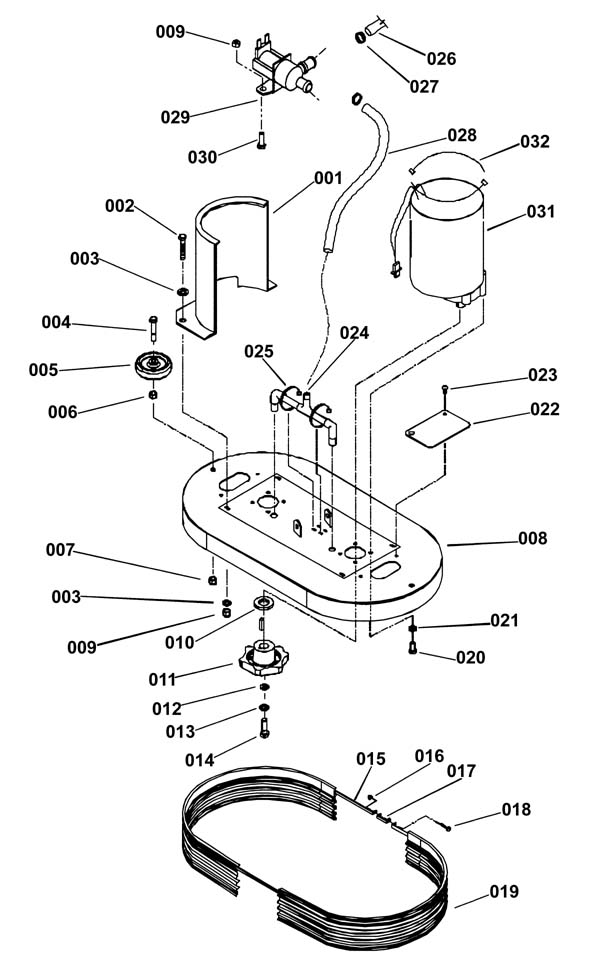

Scrub Head Disk Assembly - 173-2317
RefNbr Part Number Description Req Notes
001 173-3684 Motor machined cover 2
002 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
003 999-0123 Washer 1/4 SAE flat zinc plated 8
004 173-3937 Bolt 3/8-16 x 2 hex head 1
005 189-0326 Bumper wheel 1
006 999-0170 Nut 3/8-16 hex plain finish 1
007 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 1
008 173-8733 Scrub head weldment (OBSOLETE) 1
009 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
010 173-3924 Washer .78 x .25 2
011 173-1569 Star drive hub 2
012 999-1364 Washer 5/16 x 1 fender zinc finish 2
013 999-0028 Washer 5/16 split lock plain finish 2
014 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
015 173-8734 Skirt retainer 1
016 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
017 173-8735 Motor guard (OBSOLETE) 4
018 999-0151 Nut 8-32 nylon insert lock zinc plated 4
019 173-8736 Skirt 3 1/2 X 46 inch 2
020 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 8
021 999-0034 Washer 3/8 split lock plain finish 8
022 173-1578 Brush release cover 2
023 173-1577 Tree clip 4
024 173-8737 Solution delivery manifold (OBSOLETE) 1
025 173-3169 Wire tie 2
026 173-8731 Vinyl hose 5/8 X 18 1/2 1
027 173-1821 Hose clamp 2
028 173-3685 Long hose 1
029 173-1098 36V solenoid valve 1
030 173-9903 Screw 1/4-20 X 2 2
031a 173-8738 Motor 36 volt 2
031b 173-1576 Carbon brush (pkg of 4) 1
032 173-3305 Cable tie 2

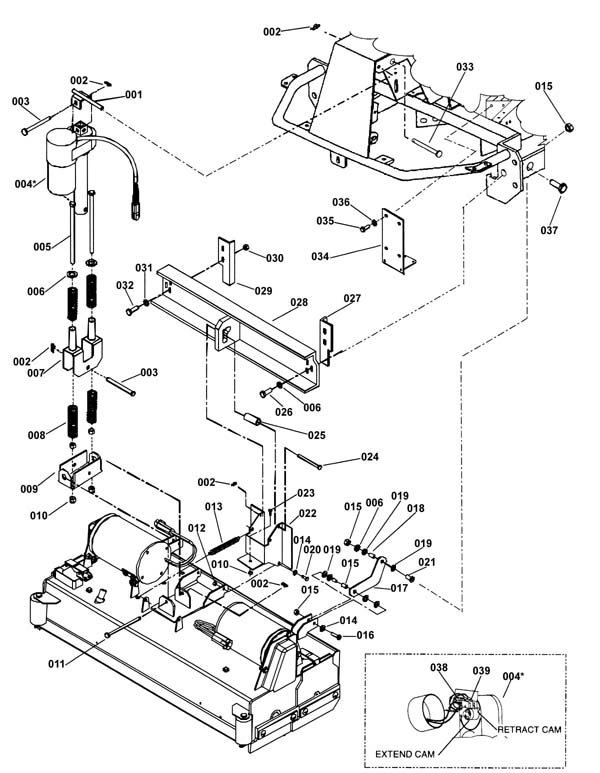

Scrub Head Lift Cylindrical Assembly - 173-2318
RefNbr Part Number Description Req Notes
001 173-3520 Actuator pivot 1
002 173-1593 Cotter ring (OBSOLETE) 7
003 173-1595 Clevis pin (OBSOLETE) 2
004 273-4033 36V actuator 1
005 173-3957 Screw 3/8-16 x 6 hex head 2
006 999-0033 Washer 7/16 SAE flat 2
007 173-8739 Spring retainer (OBSOLETE) 1
008 173-2637 Compression spring 97/100 OD X 635 L X 3/25 W 4
009 173-3525 Pivot channel 1
010 999-0170 Nut 3/8-16 hex plain finish 2
011 173-1596 Clevis pin 1
012 173-5058 Nut 1/2-13 elastic stop 2
013 173-3432 Extension spring 2
014 173-3974 Washer 53/100 ID X 1 OD X 3/50 2
015 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 4
016 173-0503 Screw 3/8-16 x 1-3/4 hex head cap screw 2
017 173-3528 Lift arm (OBSOLETE) 2
018 173-3382 Fiber bearing 4
019 173-3995 Washer 1/2 Fiber Glide 4
020 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
021 173-3527 Rear upper slide pivot 2
022 173-3523 Adjustment channel (OBSOLETE) 1
023 173-5035 Screw 3/8-16 x 2 button head cap 1
024 173-1662 Clevis pin 1/2 X 4 4/5 1
025 173-3521 Top roller 1
026 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
027 173-3519 Stop left angle (OBSOLETE) 1
028 173-3517 Upper slide (OBSOLETE) 1
029 173-3518 Stop right angle (OBSOLETE) 1
030 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
031 173-3912 Washer .344 x .066 flat head (OBSOLETE) 4
033 173-3157 Clevis pin 1
034 173-3561 Valve mount angle 1
035 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
036 999-0034 Washer 3/8 split lock plain finish 4
037 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
038 173-3462 Assembly fasco actuator diode 1
039 173-3463 Travel limit switch 1

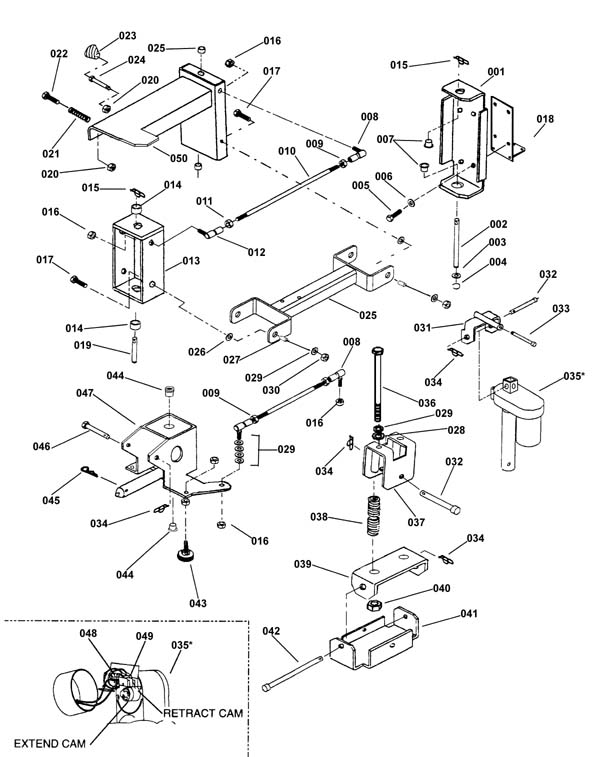

Scrub Head Lift Disk Assembly - 173-2319
RefNbr Part Number Description Req Notes
001 173-3692 Swing mount plate 1
002 173-3695 Pivot pin 1
003 173-3974 Washer 53/100 ID X 1 OD X 3/50 10
004 173-3486 Snap ring 2
005 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
006 999-0034 Washer 3/8 split lock plain finish 4
007 173-3220 Bushing 4
008 173-3691 1/2 inch ball joint 3
009 999-0181 Nut 1/4-20 hex jam plain finish 2
010 173-3687 Trailing assembly rod 1
011 999-0134 Nut 1/2-20 hex jam plain finish 1
012 173-8740 Pin .178 diameter cotter hair 1
013 173-3688 Front pivot 1
014 173-3355 Bearing fiber 8
015 173-1659 1/2 inch cotter ring (OBSOLETE) 2
016 173-5056 Nut 1/2-20 hex elastic lock (OBSOLETE) 4
017 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
018 173-3561 Valve mount angle 1
019 173-3696 Pivot pin 1/2 X 7 5/8 inch (OBSOLETE) 1
020 999-0069 Nut 5/16-18 hex 6
021 173-3693 Extension spring 1
022 173-3378 Clevis pin 1
023 173-3697 Shift stop bumper 1
024 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated 1
025 173-3686 Trailing arm channel 1
026 173-3995 Washer 1/2 Fiber Glide 4
027 173-1591 Spacer 4
028 173-3996 Washer 3/8in ID x 1x 0.1 neoprene 2
029 999-0033 Washer 7/16 SAE flat 2
030 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 6
031 173-3520 Actuator pivot 1
032 173-1595 Clevis pin (OBSOLETE) 2
033 173-3157 Clevis pin 1
034 173-1593 Cotter ring (OBSOLETE) 5
035 273-4033 36V actuator 1
036 999-0926 Bolt 3/8-16 x 7 1/2 hex head grade 8 plain finish 2
037 173-3526 Spring retainer 1
038 173-1776 Compound spring 4
039 173-3524 Spring mount 1
040 999-0170 Nut 3/8-16 hex plain finish 2
041 173-3525 Pivot channel 1
042 173-1596 Clevis pin 1
043 173-1537 Adjustment bumper 2
044 173-3220 Bushing 4
045 173-1538 Cotter hair pin 1
046 173-3531 Clevis pin 1
047 173-3690 Quick connect pin weldment 1
048 173-3462 Assembly fasco actuator diode 1
049 173-3463 Travel limit switch 1
050 173-3681 Swing arm weldment 1

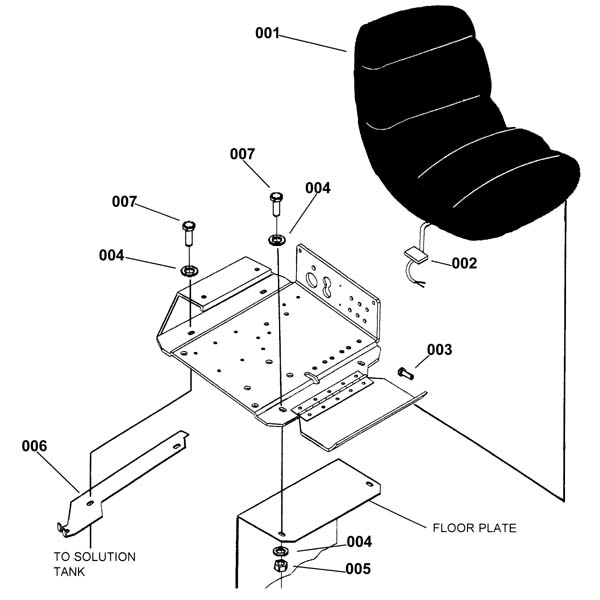

Seat Assembly - 173-2320
RefNbr Part Number Description Req Notes
001 173-3359 Super surburban vinyl seat 1
002 173-3362 Seat switch assembly 1
003 173-3962 Bolt 5/16-18 x 1/2 hex head 2
004 173-3912 Washer .344 x .066 flat head (OBSOLETE) 6
005 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
006 173-8741 Drain hose plate 1
007 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4

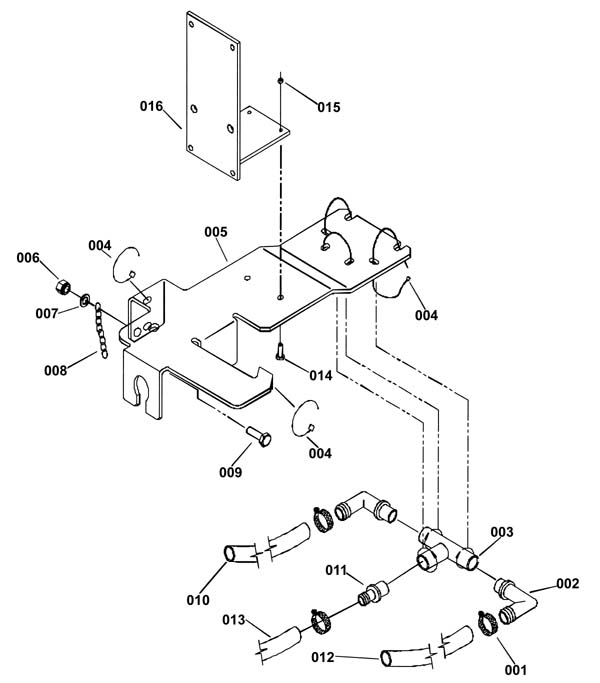

Solution Hoses and Fittings Assembly - 173-2321
RefNbr Part Number Description Req Notes
001 173-1821 Hose clamp 3
002 173-3767 3/4 MPT x 5/8 hose hosebarb 2
003 173-3563 3/4 inch female tee fitting 1
004 173-3169 Wire tie 5
005 173-8742 Valve mount plate 1
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
007 999-0123 Washer 1/4 SAE flat zinc plated 1
008 173-1667 #10 7-links grounding chain (OBSOLETE) 1
009 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
010 173-8743 Hose 5/8 X 15 1/2 inch vinyl 1
011 173-3562 Fitting 1
012 173-8744 Hose 5/8 X 13 inch vinyl 1
013 173-8731 Vinyl hose 5/8 X 18 1/2
014 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 2
016 173-3561 Valve mount angle

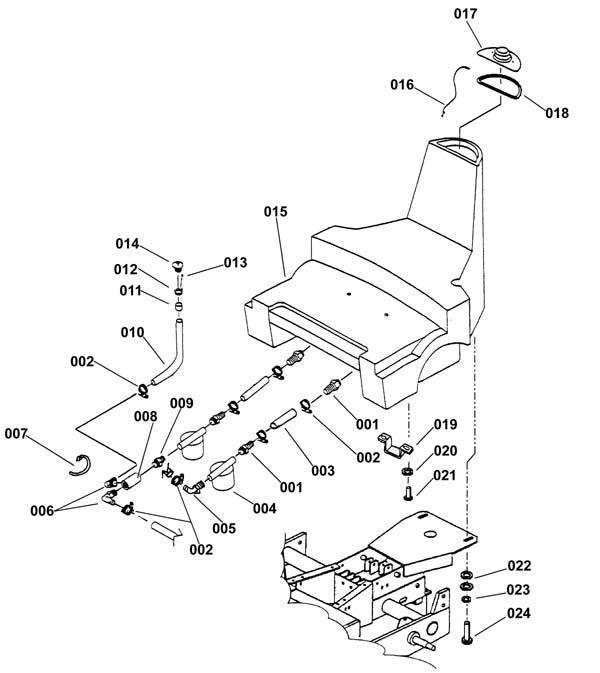

Solution Tank Assembly - 173-2322
RefNbr Part Number Description Req Notes
001 173-3764 Hosebarb 1/2 X 1/2 4
002 173-1821 Hose clamp 7
003 173-3765 5/8 inch vinyl x 3 inch hose 2
004 173-3395 Mesh strainer 20 inch 2
005 173-8746 Hosebarb 1/2 X 5/8 1
006 173-3767 3/4 MPT x 5/8 hose hosebarb 2
007 273-3820 11 inch cable tie 1
008 173-3563 3/4 inch female tee fitting 1
009 173-8747 3/4 inch nipple reducer 1
010 173-8748 Hose 5/8 X 34 inch vinyl 1
011 173-3408 Coupling 1/2 inch copper fitting (OBSOLETE) 1
012 173-3236 Wire tie 1
013 173-4123 Main frame 1
014 173-2794 Drain hose plug 1
015 173-8749 Solution tank (OBSOLETE) 1
016 173-3412 Cord 1/8 x 12 inch 1
017 173-8750 Solution tank cover 1
018 173-8751 Tank cover gasket 1
019 173-8752 Cable support bracket 1
020 173-3912 Washer .344 x .066 flat head (OBSOLETE) 2
021 173-3962 Bolt 5/16-18 x 1/2 hex head 2
022 999-0024 Washer 5/16 flat stainless steel 4
023 999-0028 Washer 5/16 split lock plain finish 2
024 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2

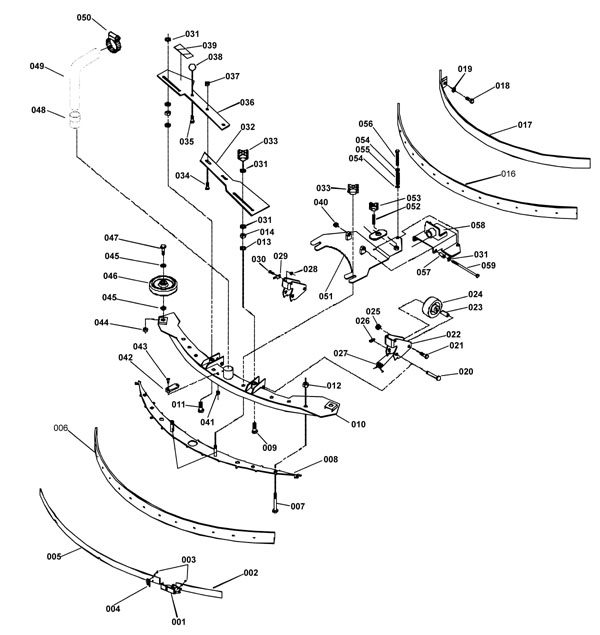

Standard Squeegee Assembly - 173-2323
RefNbr Part Number Description Req Notes
001 173-0412 Squeegee strap latch 1
002 173-8753 Rear strap assembly short 1
003 173-2797 Rivet 4
004 170-7029 Keeper 1
005 173-8754 Rear strap assembly long 1
006a 173-8755 Squeegee blade rear 1
006b 173-8756 Squeegee blade rear tile (OBSOLETE)
006c 173-8757 Squeegee blade rear
007 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc 6
008 173-8758 Plate assembly 1
009 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated 1
010 173-8759 Squeegee top plate assembly 1
011 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
012 999-0423 Nut 5/16-18 nylon insert lock stainless steel 6
013 999-1144 Washer 3/8 external star lock stainless steel 2
014 999-0247 Nut 3/8-16 hex jam plain finish 2
016a 173-8760 Squeegee blade front linatex 1
016b 173-8761 Squeegee blade front tile (OBSOLETE)
016c 173-8762 Squeegee blade front (OBSOLETE)
017 173-8763 Strap assembly front 1
018 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1
019 999-0971 Nut 1/4-20 jam stainless steel 1
020 173-1610 Clevis pin 2
021 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
022 173-1624 Squeegee wheel support bracket 2
023 173-1634 Bushing 2
024a 173-1630 3 inch rubber wheel 2
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
026 173-1593 Cotter ring (OBSOLETE) 2
027 173-1601 Torsion spring 2
029 173-1617 Pointer plate 1
030 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
031 999-0033 Washer 7/16 SAE flat 6
032 173-8764 Slide plate short 1
033 173-1025 Knob 3
034 173-3931 Screw 1/4-20 x 3/4 carriage 2
035 173-3962 Bolt 5/16-18 x 1/2 hex head 1
036 173-8765 Side plate long 1
037 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
038 173-1618 Knob adjustment ball 1
039 173-1616 Squeegee overlay 1
040 173-0513 Brush strip cover 2
041 999-0151 Nut 8-32 nylon insert lock zinc plated 2
042 164-1136 Squeegee level 1
043 173-8766 Screw 8-32 X 1 1/4 flat head stainless steel machine 2
044 173-5058 Nut 1/2-13 elastic stop 2
045 999-0016 Washer 1/4 flat plain finish 4
046 173-8767 Wheel 6 X 1 X 1/2 gray 2
047 999-0378 Bolt 1/2-13 x 2 1/2 hex head grade 5 zinc plated 2
048 173-3716 Hose cuff 1
049 173-3717 Squeegee hose 1
050 997-2003 Hose clamp 1
051 173-8768 Squeegee mount assembly lower 1
052 173-8769 Stud 3/8-16 X 2 3/25 stainless steel 1
053 173-8770 Knob 3/8-16 X 2 3/25 stainless steel (OBSOLETE) 1
054 999-0617 Washer 3/8 x 1 flat stainless steel 2
055 173-8771 Compression spring 1
056 999-0921 Bolt 3/8-16 x 3 1/2 hex head grade 8 plain finish 1
057 173-1665 Flanged bearing 2
058 173-8772 Squeegee mount assembly upper 1
059 173-4138 Screw 3/8-16 x 6 hex head cap stainless steel 2
060 173-8773 Squeegee locking bar 1

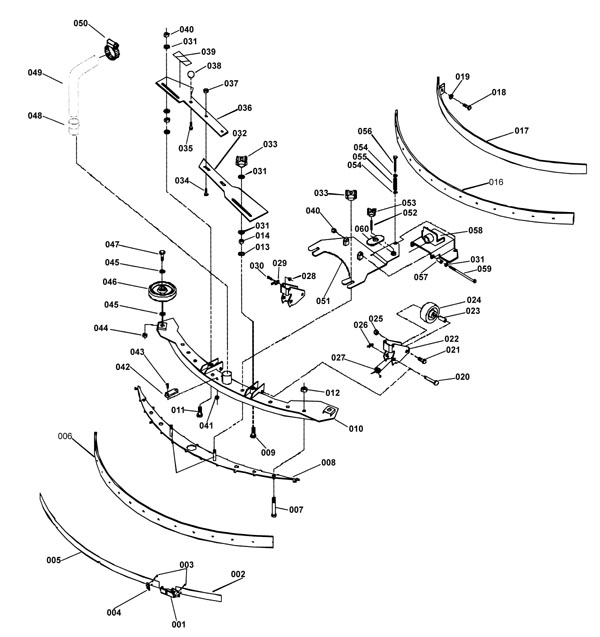

Tight Squeegee Assembly - 173-2324
RefNbr Part Number Description Req Notes
001 173-0412 Squeegee strap latch 1
002 173-8774 Rear strap assembly 1
003 173-2797 Rivet 4
004 170-7029 Keeper 1
005 173-8775 Rear long strap assembly 1
006a 173-8776 Squeegee blade rear linatex 1
006b 173-8777 Squeegee blade rear tile (OBSOLETE)
006c 173-8778 Squeegee blade rear
007 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc 9
008 173-8779 Plate assembly 1
009 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated 1
010 173-8780 Squeegee top plate assembly 1
011 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
012 999-0423 Nut 5/16-18 nylon insert lock stainless steel 6
013 999-1144 Washer 3/8 external star lock stainless steel 2
014 999-0247 Nut 3/8-16 hex jam plain finish 2
016a 173-8781 Squeegee blade front 1
016b 173-8782 Squeegee blade front tile
016c 173-8783 Squeegee blade front (OBSOLETE)
017 173-8784 Front strap assembly 1
018 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1
019 999-0971 Nut 1/4-20 jam stainless steel 1
020 173-1610 Clevis pin 2
021 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
022 173-1624 Squeegee wheel support bracket 2
023 173-1634 Bushing 2
024a 173-1630 3 inch rubber wheel 2
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
026 173-1593 Cotter ring (OBSOLETE) 2
027 173-1601 Torsion spring 2
028 999-0442 Nut 10-24 nylon insert lock stainless steel 1
029 173-1617 Pointer plate 1
030 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
031 999-0033 Washer 7/16 SAE flat 6
032 173-8764 Slide plate short 1
033 173-1025 Knob 3
034 173-3931 Screw 1/4-20 x 3/4 carriage 2
035 173-3962 Bolt 5/16-18 x 1/2 hex head 1
036 173-8765 Side plate long 1
037 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
038 173-1618 Knob adjustment ball 1
039 173-1616 Squeegee overlay 1
040 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
041 999-0151 Nut 8-32 nylon insert lock zinc plated 2
042 164-1136 Squeegee level 1
043 173-8766 Screw 8-32 X 1 1/4 flat head stainless steel machine 2
044 173-5058 Nut 1/2-13 elastic stop 2
045 999-0016 Washer 1/4 flat plain finish 4
046 173-8767 Wheel 6 X 1 X 1/2 gray 2
047 999-0378 Bolt 1/2-13 x 2 1/2 hex head grade 5 zinc plated 2
048 173-3716 Hose cuff 1
049 173-3717 Squeegee hose 1
050 997-2003 Hose clamp 1
051 173-8768 Squeegee mount assembly lower 1
052 173-8769 Stud 3/8-16 X 2 3/25 stainless steel 1
053 173-8770 Knob 3/8-16 X 2 3/25 stainless steel (OBSOLETE) 1
054 999-0617 Washer 3/8 x 1 flat stainless steel 2
055 173-8771 Compression spring 1
056 999-0921 Bolt 3/8-16 x 3 1/2 hex head grade 8 plain finish 1
057 173-1665 Flanged bearing 2
058 173-8786 Squeegee mount assembly upper modern 1
059 173-4138 Screw 3/8-16 x 6 hex head cap stainless steel 2
060 173-8773 Squeegee locking bar 1

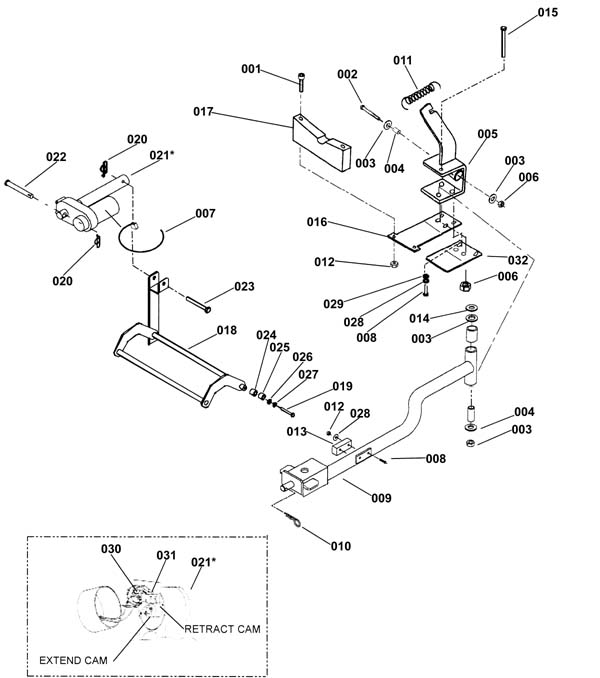

Squeege Lift Assembly - 173-2325
RefNbr Part Number Description Req Notes
001 999-0991 Screw 1/4-20 x 2 1/2 socket head alloy plain finish 2
002 173-3982 Bolt 3/8-16 x 4 hex head 1
003 173-3995 Washer 1/2 Fiber Glide 4
004 173-3738 Spacer 2
005 173-3725 Squeegee flex lift arm assembly 1
006 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 2
007 173-3305 Cable tie 1
008 999-9072 Bolt 1/4-20 x 1 hex head cap 4
009 173-8787 Squeegee arm assembly 1
010 173-8788 Cotter hair pin 1
011 173-3727 Spring 1
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
013 173-3559 Slide block 1
014 173-3974 Washer 53/100 ID X 1 OD X 3/50 1
015 999-1406 Bolt 3/8-16 x 4 1/2 hex head zinc 1
016 173-3734 Squeegee retainer plate 1
017 173-3736 Squeegee retainer block 1
018 173-3726 Squeegee lift weldment 1
019 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
020 173-1593 Cotter ring (OBSOLETE) 2
021 173-3729 Actuator 1
022 173-3732 Clevis pin 1
023 173-1595 Clevis pin (OBSOLETE) 1
024 173-3382 Fiber bearing 2
025 173-3529 Spacer 2
026 999-0033 Washer 7/16 SAE flat 2
027 999-0034 Washer 3/8 split lock plain finish 2
028 999-0123 Washer 1/4 SAE flat zinc plated 4
029 999-1049 Washer 1/4 split lock zinc plated 2
030 173-3462 Assembly fasco actuator diode 1
031 173-3463 Travel limit switch 1
032 173-3735 Retainer doubler plate 1

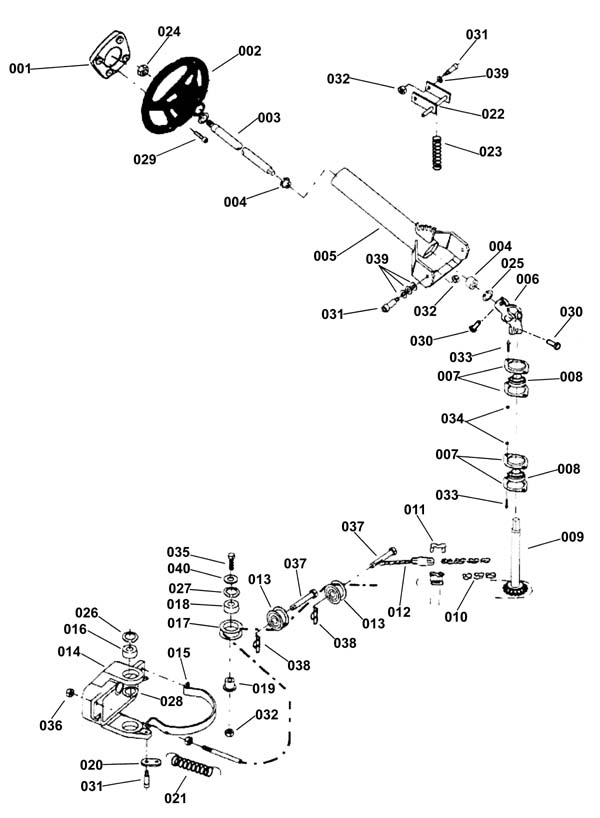

Steering Assembly - 173-2326
RefNbr Part Number Description Req Notes
001 173-3438 Steering wheel machined cover 1
002 173-3439 Steering raw wheel 1
003 173-8789 Upper steering shaft 1
004 173-3446 Flanged bearing 2
005 173-8790 Steering column 1
006 173-3442 Joint assembly universal S/N from 1000028195 1
007 173-3536 Flanged bearing 4
008 173-3444 Ball bearing 2
009 173-8791 Steering shaft 1
010 173-3748 #41 1/2 pitch 9 tooth chain 1
011 991-0103 Master link 3
012 173-3750 Steering cable 2
013 173-3751 Pulley cable 4
014 173-3752 Flex machined pivot (OBSOLETE) 1
015 173-3753 Steering pivot bar (OBSOLETE) 1
016 173-3754 Bearing 2
017 173-3755 Splitter pulley 1
018 173-3756 Ball bearing 1
019 173-3757 Pulley steering spacer 1
020 173-3758 Spring pivot bar 1
021 173-3759 Extension spring 1
022 173-3437 Steering tilt lock weldment 1
023 173-3449 extension spring 1
024 173-5057 Nut 5/8-16 elastic stop 1
025 173-3445 Ring clip 2
026 173-3760 Retaining ring 2
027 173-3761 Retaining ring 1
028 173-1062 1.0 extension snap hd ring 1
029 173-5008 Screw 10-32 x 3/4 shoulder socket cap ss (OBSOLETE) 4
030 173-5009 Bolt 10 x 40 hex head 2
031 173-5007 Bolt 1/2 x 1/2 Shoulder 5
032 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 5
033 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
034 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
035 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
036 999-0169 Nut 3/8-24 hex jam plain finish 4
037 173-1588 Clevis pin 4
038 173-1593 Cotter ring (OBSOLETE) 4
039 173-3974 Washer 53/100 ID X 1 OD X 3/50 8
040 173-2548 Washer M10 x 30mm plated 1

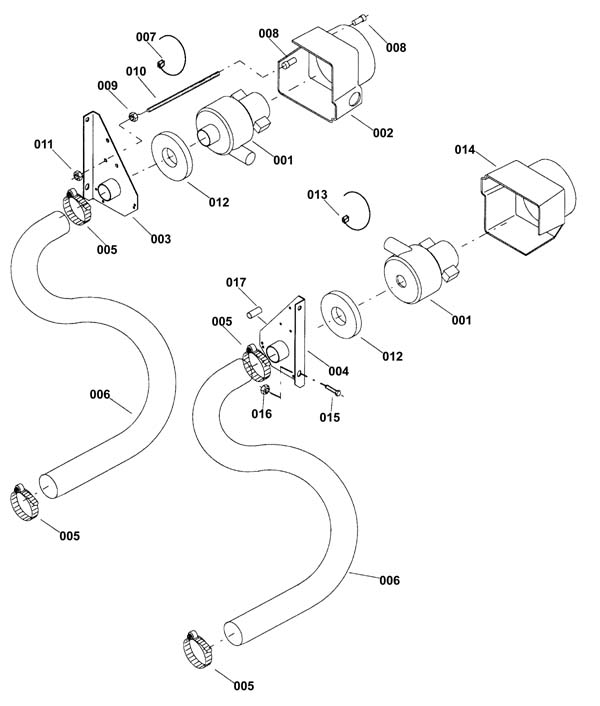

Vacuum Assembly - 173-2329
RefNbr Part Number Description Req Notes
001a 173-0402 36V 3 stage vacuum motor assembly 2 OEM
001b 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug 2 (NON-OEM)
002 173-3770 Vacuum right motor cover 1
003 173-3771 Vacuum mount weldment right hand 1
004 173-3772 Vacuum motor weldment 1
005 997-2003 Hose clamp 4
006 173-3773 Vacuum motor hose (OBSOLETE) 2
007 173-3169 Wire tie 2
008 173-5053 Nut 1/4-20 well (OBSOLETE) 10
009 999-0190 Nut 1/4-20 hex plain finish 6
010 173-3774 Vacuum mount rod 6
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
012 173-3459 vacuum fan seal stage gasket 2
013 173-3305 Cable tie 2
014 173-3775 Vacuum left motor cover 1
015 999-0200 Bolt 1/2-13 x 1 1/4 hex head 4
016 173-5058 Nut 1/2-13 elastic stop 4
017 173-3776 Edging 1

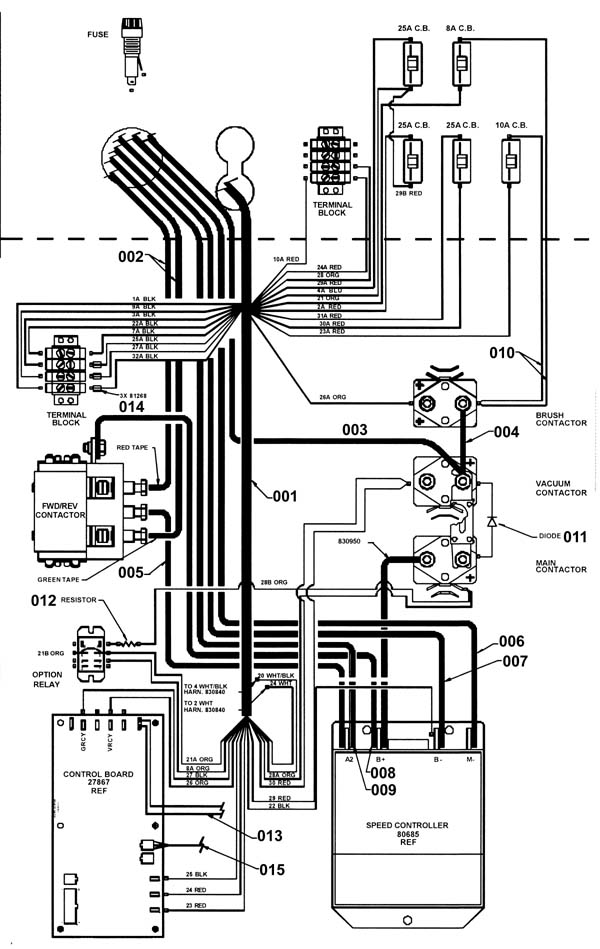

Main Panel Wiring Assembly - 173-2330
RefNbr Part Number Description Req Notes
001 173-8792 Front main harness (OBSOLETE)
002 173-8793 78 1/2 inch 4 gauge cable (black) 2
003 173-8722 Terminal wire 1
004 173-8794 Cable 3 1/3 inch 2
005 173-8796 Cable 6 inch 1
006 173-8797 Cable 83 inch 1
007 173-8798 Cable 94 1/2 inch 1
008 173-8799 Cable 11 inch 1
009 173-8800 Cable 86 inch (OBSOLETE) 1
010 173-8801 Wire 76066 X 76029 2
011 189-0372 Diode assembly
012 173-8698 Resistor assembly
013 173-8802 Wire assembly secondary 1
014 173-3261 Terminal doubler 3
015 173-8803 Wire assembly solution control

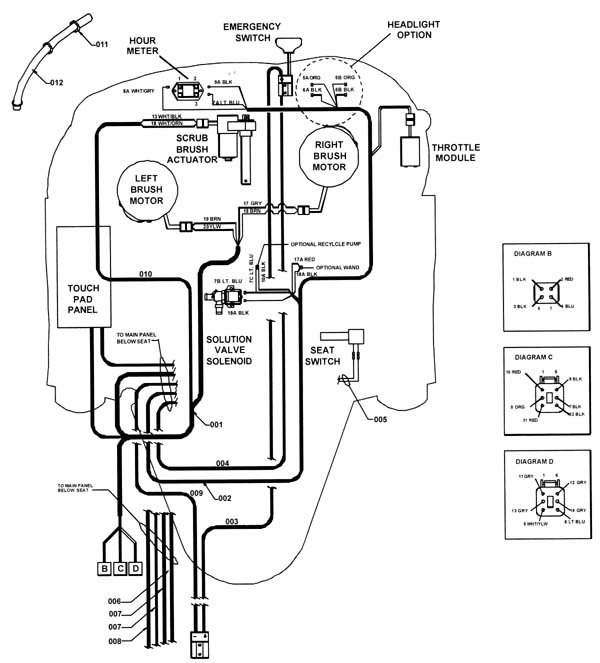

Front Main Throttle Harness Wiring Assembly - 173-2331
RefNbr Part Number Description Req Notes
001 173-8792 Front main harness (OBSOLETE) 1
002 173-8804 Throttle harness 1
003 173-8723 Terminal wire (OBSOLETE) 1
004 173-8722 Terminal wire 1
005 173-8802 Wire assembly secondary
006 173-8800 Cable 86 inch (OBSOLETE)
007 173-8793 78 1/2 inch 4 gauge cable (black)
008 173-8797 Cable 83 inch
009 173-8798 Cable 94 1/2 inch
010 173-8805 Touch pad harness
011 173-0822 Wire tie 3
012 173-4098 Split flex duct (OBSOLETE) 1

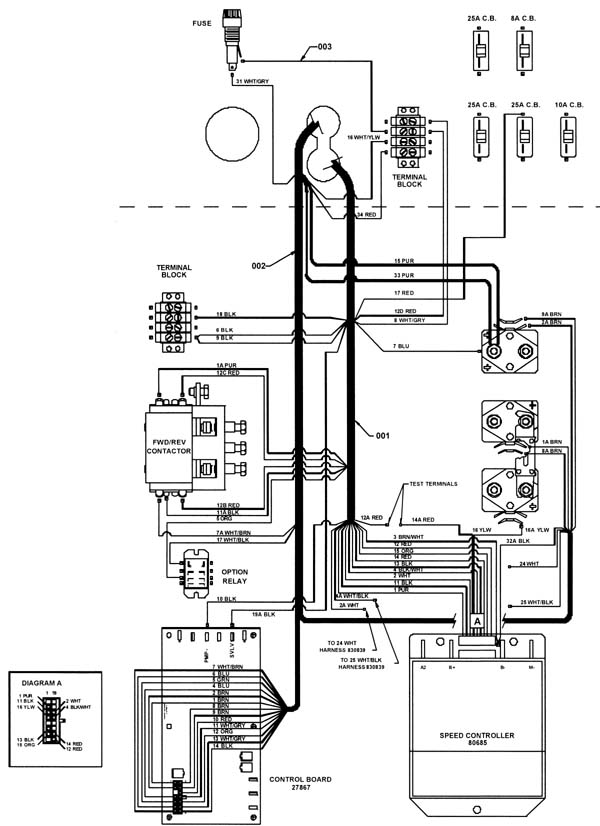

Touch Pad Harness Wiring Assembly - 173-2332
RefNbr Part Number Description Req Notes
001 173-8805 Touch pad harness
002 173-8792 Front main harness (OBSOLETE)
003 173-8807 11 inch wire 1
004 173-8803 Wire assembly solution control

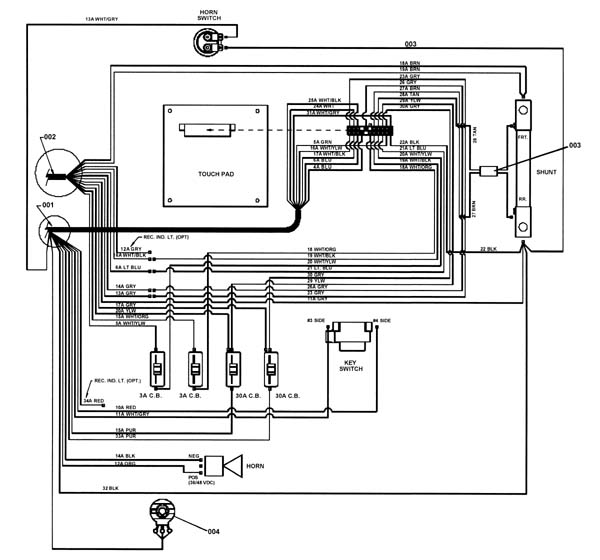

Touch Pad Panel Wiring Assembly - 173-2333
RefNbr Part Number Description Req Notes
001 173-8805 Touch pad harness
002 173-8792 Front main harness (OBSOLETE)
003 173-8807 11 inch wire 1
004 173-8803 Wire assembly solution control

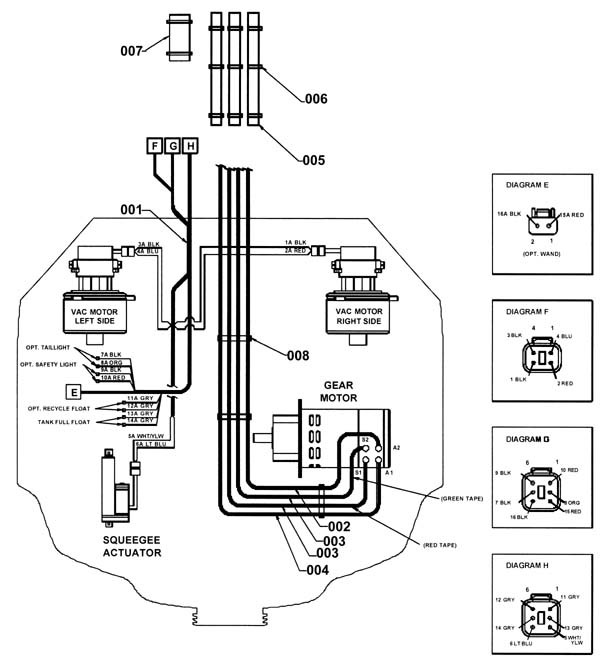

Rear Main Harness Wiring Assembly - 173-2334
RefNbr Part Number Description Req Notes
001 173-8808 Rear harness 1
002 173-8800 Cable 86 inch (OBSOLETE)
003 173-8793 78 1/2 inch 4 gauge cable (black)
004 173-8797 Cable 83 inch
005 173-8809 Sleeve loom 1 1/4 X 4 inch 3
006 173-3236 Wire tie 11
007 173-3249 Sleeve loom 1 1/4 X 4 1
008 173-3169 Wire tie 3

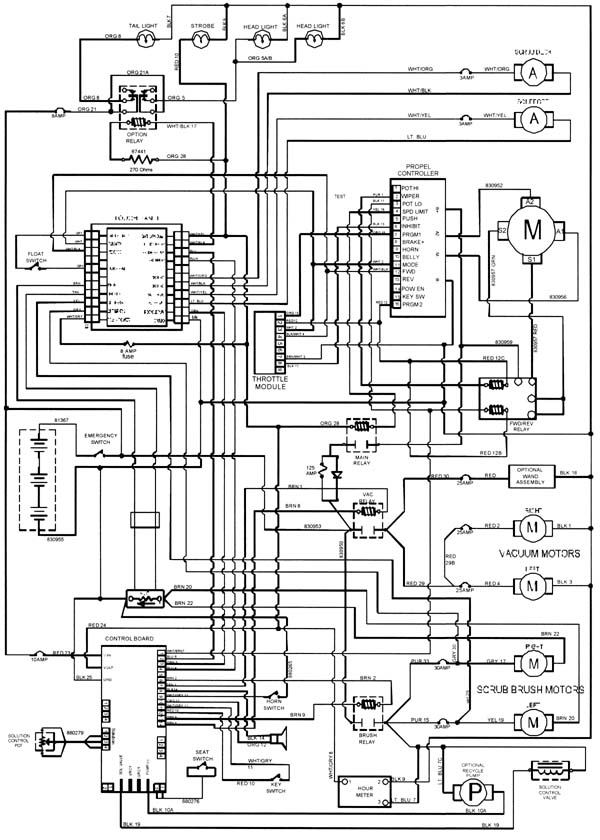

Wiring Assembly -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Chargers - 173-6707
RefNbr Part Number Description Req Notes
0.9835 996-0958 19 inch medium grit scrubbing brush - 180 grit 2
0.9835 173-8724 Extra heavy grit stripping brush - 46 grit 2
0.9835 173-1566 Clutch plate 2
0.9835 996-0971 Polypropelene scrubbing brush 2
0.9835 996-0954 Pad driver 2

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad(OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
