Height Adjustment Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

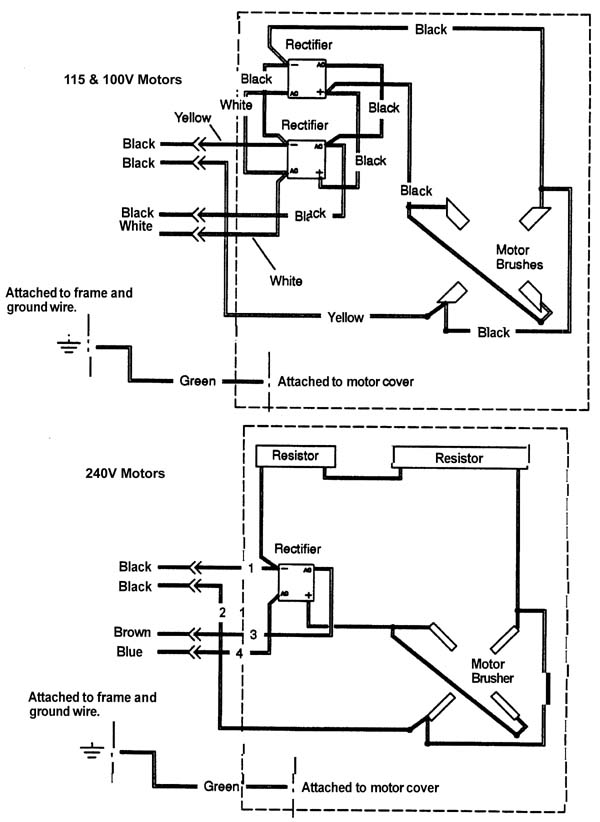

Wiring Diagrams - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

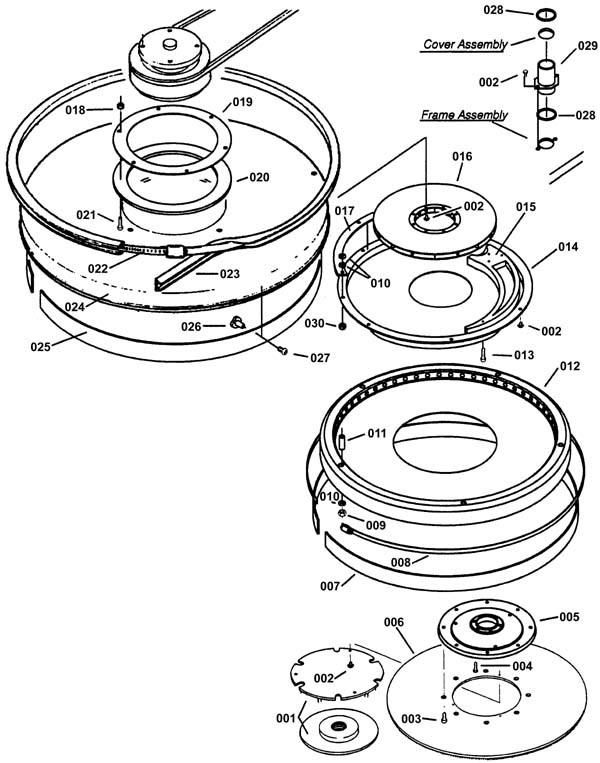

Frame and Motor Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

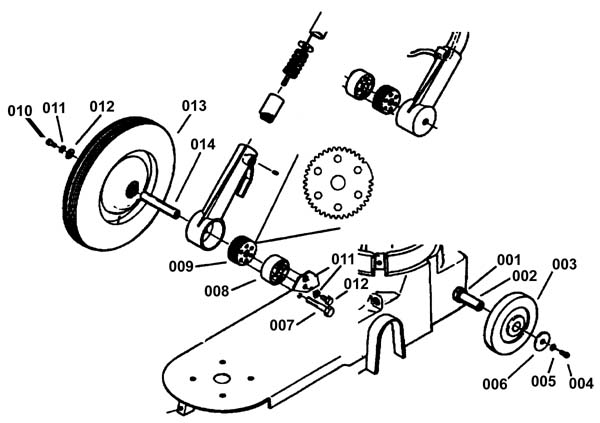

Wheel Assembly - 170-1107 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 007 |
173-8463 |
Screw 5/16 - 18 x 2 hex head cap plated |
|
|
| 010 |
999-0064 |
Screw 10-24 x 7/16 round head slotted zinc plated |
|
|
| 011 |
999-0017 |
Washer 1/4 external star lock |
|
|
| 012 |
999-0016 |
Washer 1/4 flat plain finish |
|
|
| 013 |
173-0347 |
Wheel kit (pkg of 2) |
|
|
| 014 |
173-8464 |
Axle (OBSOLETE) |
|
|
|
|

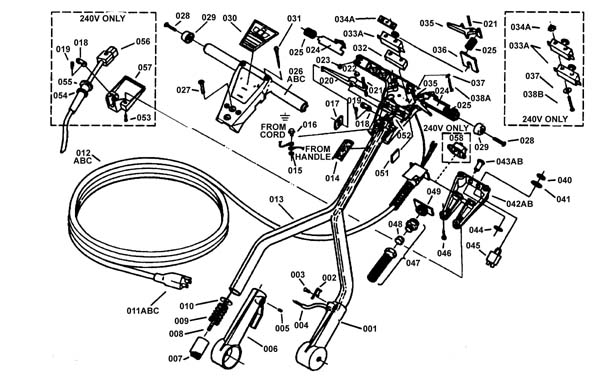

Handle Assembly - 170-1108 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 012 |
173-8466 |
14/3 cord assembly 75' |
|
|
| 045 |
173-0999 |
16 amp Circuit breaker |
|
|
|
|

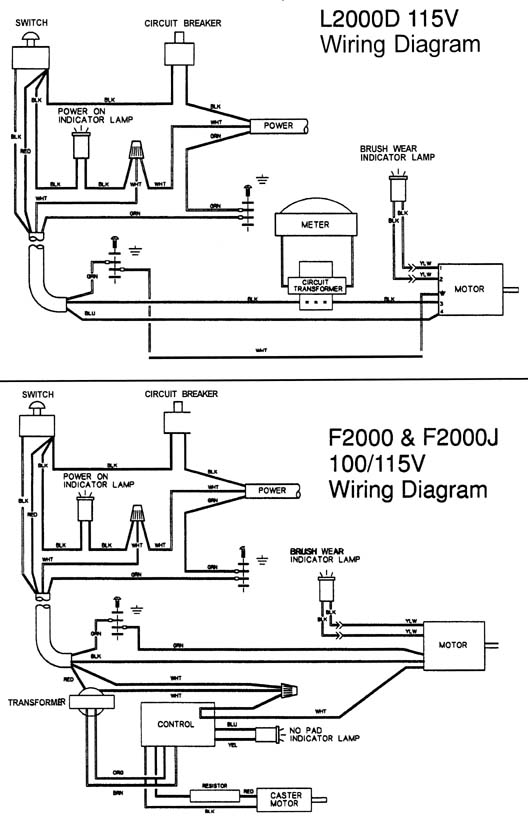

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

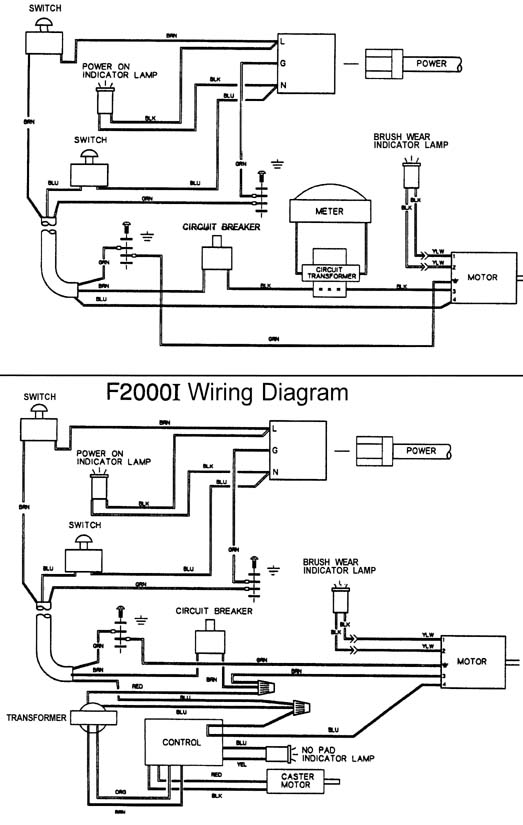

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Lower base - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

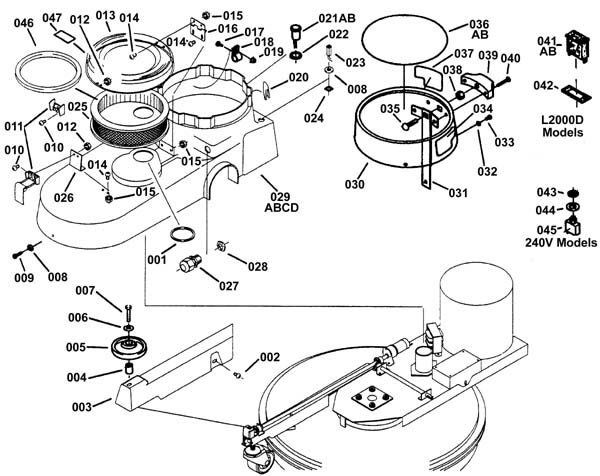

Lower Frame - 173-1055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 025 |
N/A |
Not available |
|
Dust control filter cartridge |
| 041a |
173-0105 |
Pad pressure meter |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
