Parts List Complete for WINDSOR ARMADA BRC 40/22


- Commonly Asked For Parts - 173-9933
RefNbr Part Number Description Req Notes
01 273-3571 Deck mount bracket
02 273-3584 Rocker switch
03 273-3627 Vacuum shoe linkage

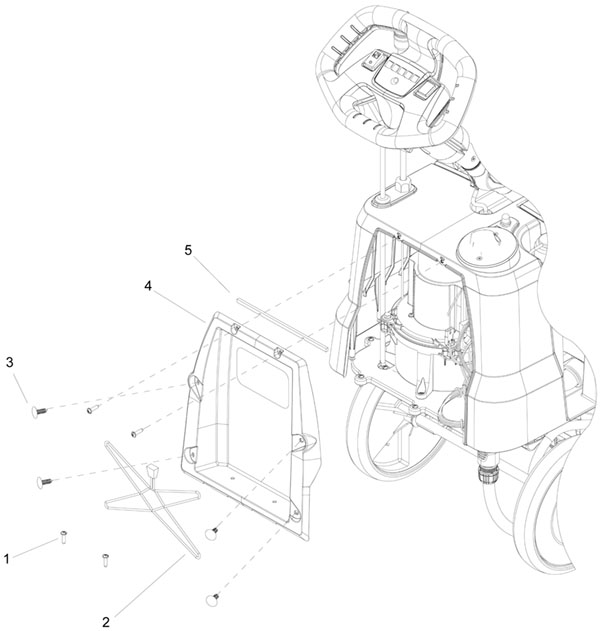

Rear Cover Assembly - 273-0021
RefNbr Part Number Description Req Notes
1 273-8440 Screw (OBSOLETE) 4
2 273-8441 Cargo net 1
4 273-8442 Door cover 1
3 273-8443 Clip 4
5 273-8444 Gasket 1

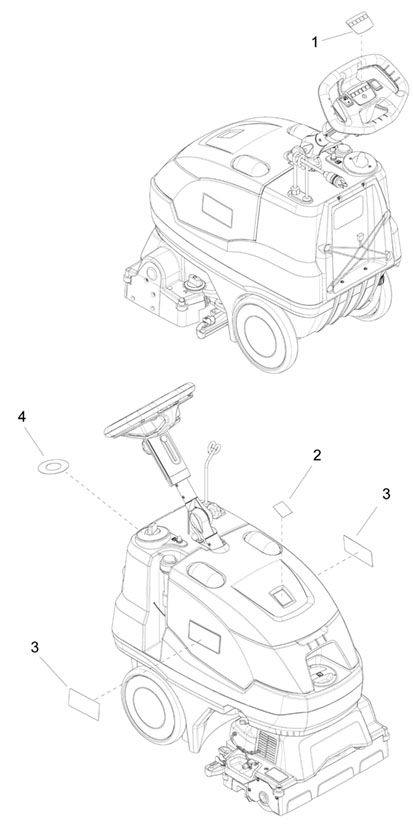

Decal Assembly - 273-0022
RefNbr Part Number Description Req Notes
1 273-8549 Light panel decal 1
2 273-8550 Logo decal 1
3 273-8551 Armada decal 2
4 273-8445 Armada switch decal 1

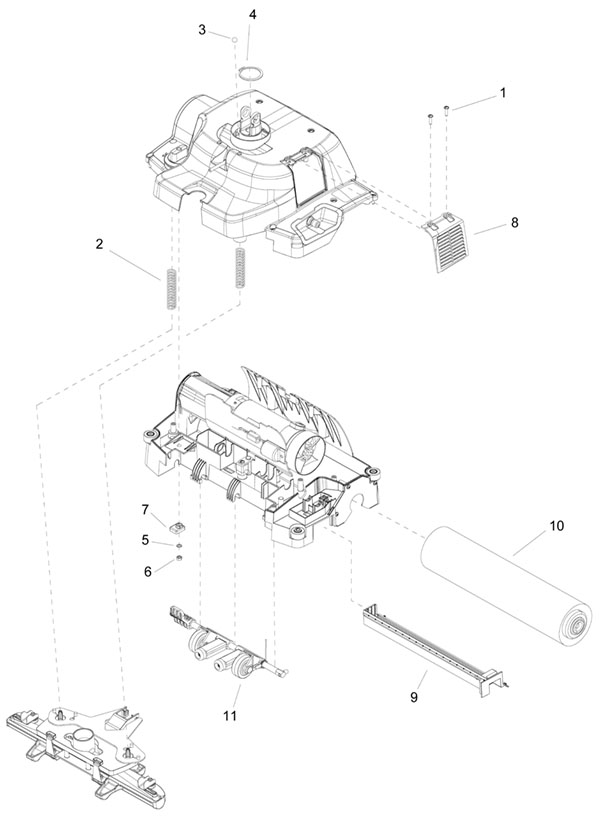

Complete Deck Assembly - 273-0023
RefNbr Part Number Description Req Notes
1 273-8440 Screw (OBSOLETE) 2
2 273-8446 Spring 2
3 273-8447 Bracket 1
4 273-8552 Locking ring 1
5 173-6298 Serrated lock washer 1
6 183-0262 Hex nut 1
7 273-8553 Bracket 1
8 273-8448 Cover 1
9 273-8449 Debris drawer 1
10 273-8450 Brush (green) 1
11 273-8451 Wheel assembly 1

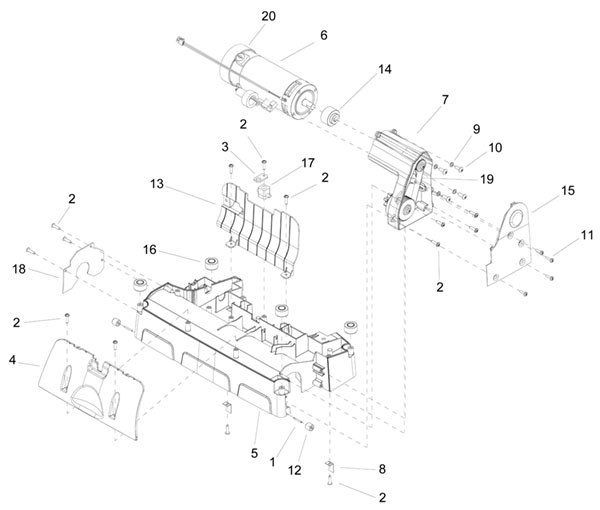

Lower Deck Assembly - 273-0024
RefNbr Part Number Description Req Notes
1 273-8452 Axle 2
2 273-8440 Screw (OBSOLETE) 14
3 273-8453 Plate 1
4 273-8454 Spray shield 1
5 273-8455 Lower deck 1
6 273-8456 120V brush motor assembly 1 (inlcudes 20)
7 273-8457 Gear case 1
8 273-8458 Plate 2
9 173-6298 Serrated lock washer 4
10 183-0236 Screw 4
11 173-6287 Screw M5 x 16mm (OBSOLETE) 4
12 273-8459 Roller 2
13 273-8460 Plate 1
14 273-8461 Coupler 1
15 273-8462 Gear case cover 1
16 273-8463 Deflector 4
17 273-8464 Swivel joint 1
18 273-8465 Brush plate 1
19 273-8466 Belt 1
20 273-8467 Brush motor fan 1

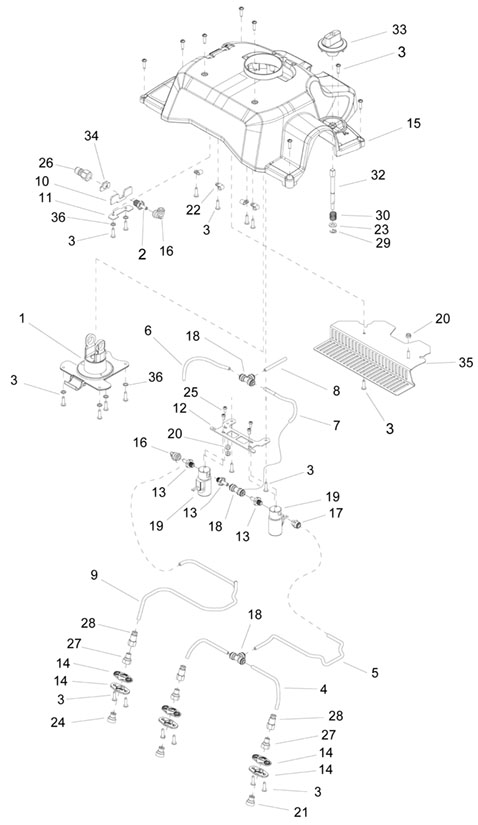

Upper Deck Assembly - 273-0025
RefNbr Part Number Description Req Notes
1 273-8468 Deck weldment 1
2 273-8469 Adapter 1
3 273-8440 Screw (OBSOLETE) 27
4 273-8470 6 inch hose 2
5 273-8471 13 1/2 inch hose 1
6 273-8472 8 inch hose 1
7 273-8473 9 1/2 inch hose 1
8 273-8474 30 inch hose 1
9 273-8475 23 1/2 inch hose 1
10 273-8476 Bracket 1
11 273-8477 Bracket 1
12 273-8478 Solenoid plate 1
13 273-8479 Adapter 3
14 273-8480 Nozzle holder 6
15 273-8481 Upper deck 1
16 273-8482 Elbow fitting 2
17 273-8483 Connector 1
18 273-7872 Union tee 3
19a 273-8554 Solenoid 2 (after SN 10080060001130)
19b 273-8484 Solenoid 2 (before SN 10080060001130)
20 999-0442 Nut 10-24 nylon insert lock stainless steel 3
21 273-8485 Jet 2
22 173-7218 Hose clamp (OBSOLETE) 4
23 273-5523 Washer M8 flat stainless steel 1
24 173-8641 Promax jet 11001 1
25 273-0187 Screw 8-32 x 5/16 stainless steel 4
26 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
27 173-2210 Jet body 3
28 173-2207 Quick connect 3
29 173-6209 Lock washer 1
30 173-6261 Helical spring 1
31 273-8486 Splash guard 1
32 273-8487 Pin 1
33 273-8488 Height adjustment knob 1
34 273-8489 Spacer 1
35 273-8490 Solution bracket assembly 1
36 173-6298 Serrated lock washer 6

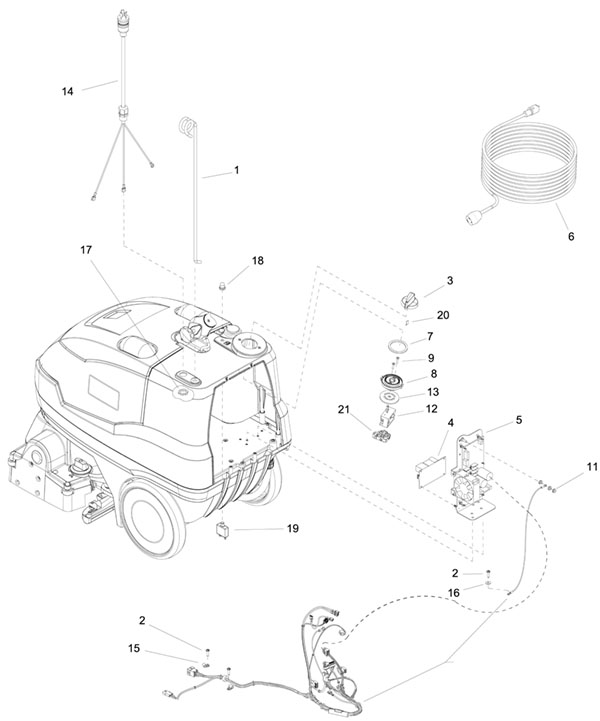

Electrical Assembly - 273-0026
RefNbr Part Number Description Req Notes
1 273-8491 Cord holder 1
2 273-8440 Screw (OBSOLETE) 4
3 273-6022 Knob 1
4 373-4962 120V power supply 1
5 273-8493 Control board assembly 1
6 173-2059 14/3 extension cord 50 foot twist lock (yellow) 1
7 273-6633 Gasket 1
8 273-6632 Rotary switch (bezel) 1
9 999-9141 Screw M4-.7 x 20mm pan flat head phillips stainless steel 2
10 173-2014 Screw 4-40 x 1/4 8
11 173-2472 Nut 10-32 with star washer 2
12 273-8494 Switch 1
13 273-8495 Spacer 1
14 189-4164 14/3 pigtail cord with twist lock 22 inch 1
15 173-7218 Hose clamp (OBSOLETE) 3
16 273-5591 Washer M5 flat stainless steel 1
17 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) 1
18 189-0312 3/8 inch circuit breaker boot 1
19 273-0038 18amp circuit breaker 1
20 273-9368 Knob w/ spring clip 1
21 273-8496 Switch 1

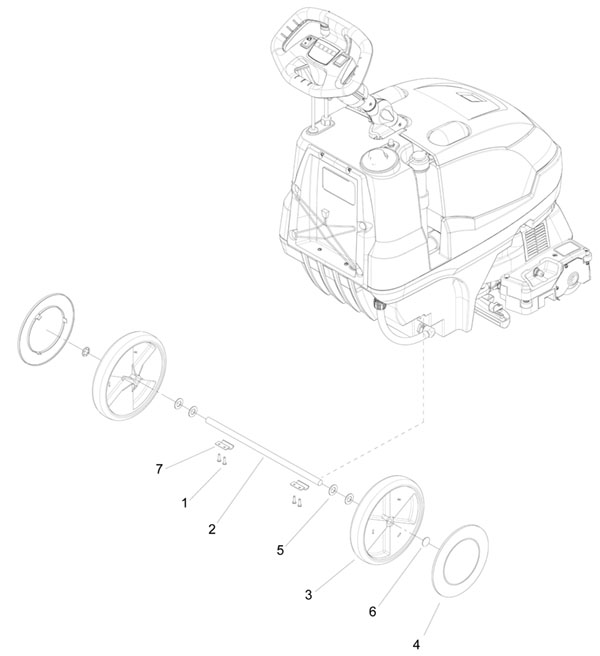

Wheel Assembly - 273-0027
RefNbr Part Number Description Req Notes
1 273-8440 Screw (OBSOLETE) 4
2 273-8497 Axle 1
3 273-4000 10 inch gray wheel 2
4 273-5748 Wheel hubcap 2
5 999-9127 Washer 5/8 SAE flat stainless steel 4
6 173-2064 Axle cap 2
7 273-8498 Bracket 2

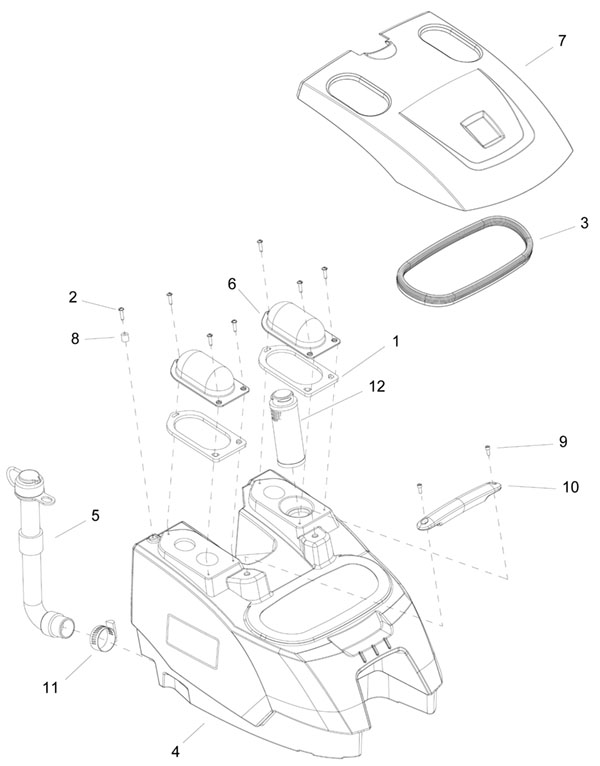

Recovery Tank Assembly - 273-0028
RefNbr Part Number Description Req Notes
1 273-8499 Gasket 2
2 273-8440 Screw (OBSOLETE) 7
3 273-8500 Gasket 1
4 273-8501 Recovery tank 1
5 273-8502 Drain hose 1
6 273-8503 Recovery tank dome 2
7 273-8504 Recovery tank lid 1
8 173-9739 Nylon spacer 1
9 999-1212 Screw 10-32 x 1/2 hex head stainless steel 2
10 273-7393 Recovery tank handle 1
11 997-2007 Hose clamp 1
12 189-4142 Shut-off float 1

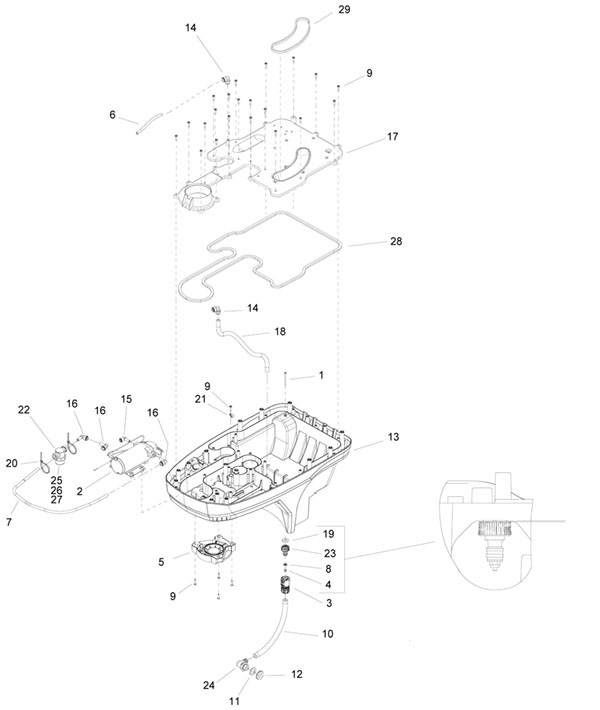

Solution Tank Assembly - 273-0029
RefNbr Part Number Description Req Notes
1 999-6703 Screw 8-32 x 2 1/4 pan head phillips stainless steel 1
2a 273-8505 Pump assemlby 1 (after SN 10080060001130)
2b 273-8506 Pump assemlby 1 (before SN 10080060001130)
3 273-8507 Coupling 1
4 999-0151 Nut 8-32 nylon insert lock zinc plated 1
5 273-8508 Bearing 1
6 273-8509 Hose 1
7 273-8510 Hose 1
8 273-8511 Washer 1
9 273-8440 Screw (OBSOLETE) 27
10 273-8512 Hose 1
11 173-9064 Seal 1
12 173-5810 Nut 1/2 hex 1
13 273-8513 Solution tank base 1
14 273-7860 3/8 tube elbow 2
15 273-7858 Elbow 1
16 273-7859 Elbow 3
17 273-8514 Solution tank lid assembly 1 (includes 25-29)
18 273-8515 Tube assembly 1
19 273-7892 Washer 1/2 x 1 neoprene 1
20 273-3820 11 inch cable tie 2
21 173-7218 Hose clamp (OBSOLETE) 1
22 273-8516 Strainer assembly 1
23 273-8517 Connection 1 (when installing discard washer gasket and replace with reference 19)
24 273-1128 Angle bushing 1
25 273-6141 Strainer cap 1
26 173-3050 O-ring gasket 1
27 273-8518 Screen 1
28 273-8519 Gasket 1
29 273-7314 Gasket 1

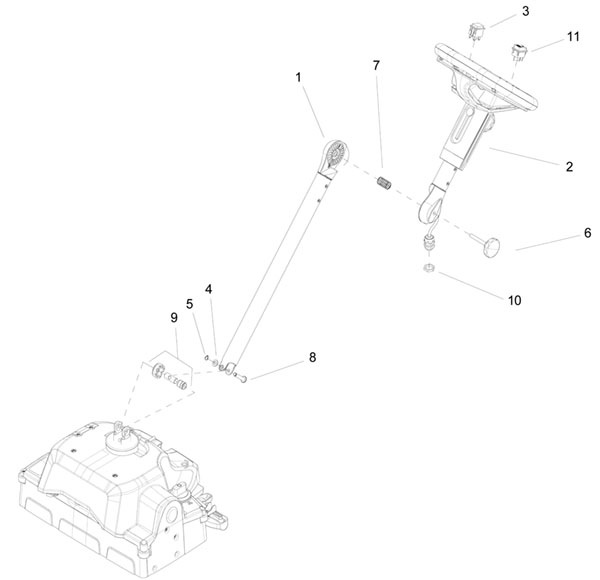

Steering Assembly - 273-0030
RefNbr Part Number Description Req Notes
1 273-8520 Lower steering assembly 1
2 273-8521 Upper steering assembly 1
3 273-3584 Rocker switch 1
4 273-5523 Washer M8 flat stainless steel 1
5 183-4102 Spring clip 1
6 273-7146 Star grip 1
7 273-8522 Spring 1
8 273-8523 Bolt 1
9 273-8524 Bearing 1
10 273-8525 Lock nut 1
11 273-8526 Switch 1

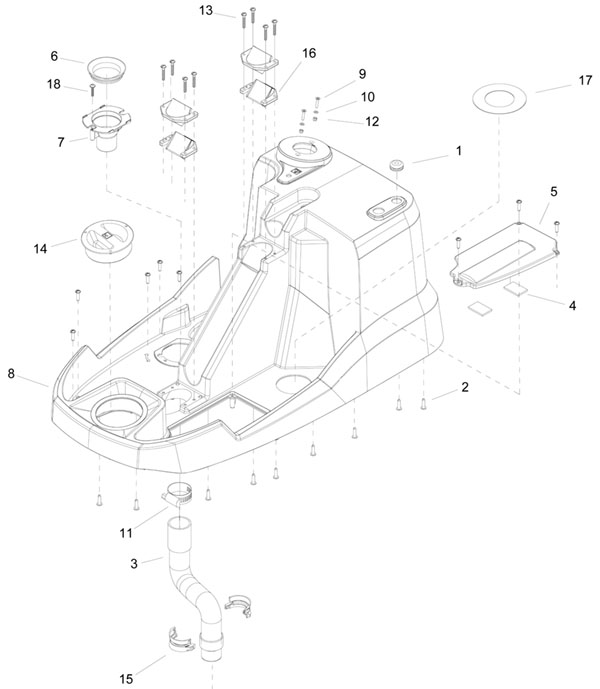

Solution Tank Base Assembly - 273-0031
RefNbr Part Number Description Req Notes
1 273-8527 Grommet (OBSOLETE) 1
2 273-8440 Screw (OBSOLETE) 17
3 273-8528 16 inch hose 1
4 273-8529 Gasket 2
5 273-8530 Solution pump cover 1
6 273-8531 Seal 1
7 273-8532 Tube 1
8 273-8533 Solution tank base 1
9 999-9141 Screw M4-.7 x 20mm pan flat head phillips stainless steel 2
10 173-7429 Washer M4 flat 2
11 997-2007 Hose clamp 1
12 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
13 273-0977 Screw M5-10.9 x 30mm 8
14 273-8534 Lid 1
15 273-8535 Hose clamp 2
16 273-8536 Bearing 4
17 273-8537 Seal 1
18 273-8538 Screw 1

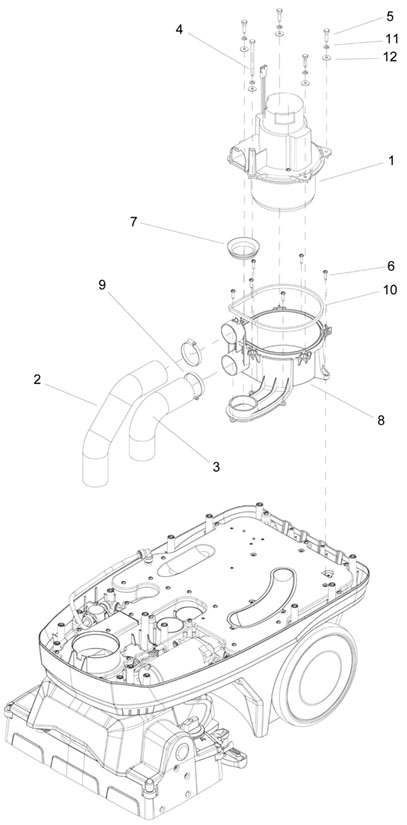

Vacuum Motor Assembly - 273-0032
RefNbr Part Number Description Req Notes
1 273-8539 120V vacuum motor assembly 1
2 273-8540 14 inch hose 1
3 273-8541 11 inch hose 1
4 999-1609 Bolt M6-1 x 90mm hex head stainless steel 1
5 999-1087 Bolt M6-1 x 25mm hex head stainless steel 4
6 273-8440 Screw (OBSOLETE) 6
7 273-8531 Seal 1
8 273-8542 Vacuum motor housing 1
9 997-2007 Hose clamp 2
10 273-7314 Gasket 1
11 273-5506 Washer 6mm spring lock (OBSOLETE) 5
12 173-4178 Washer M6 flat plated (OBSOLETE) 5

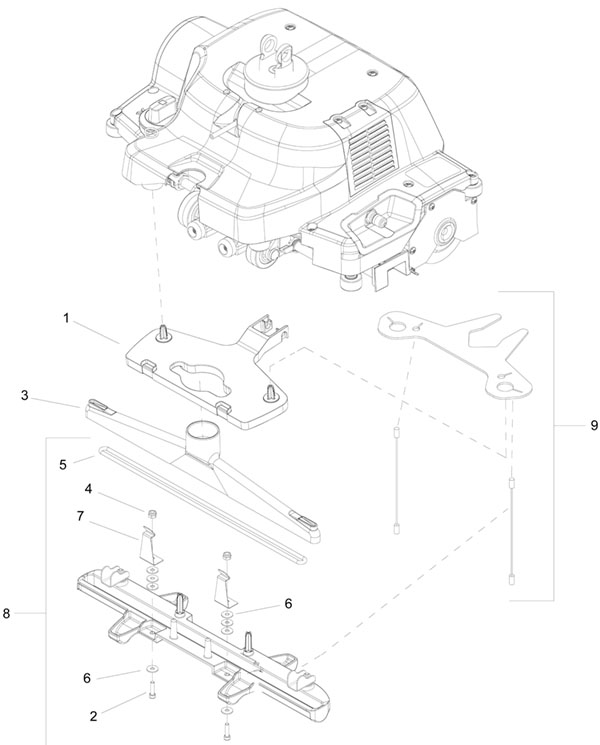

Vacuum Shoe Assembly - 273-0033
RefNbr Part Number Description Req Notes
1 273-3627 Vacuum shoe linkage 1
2 173-5008 Screw 10-32 x 3/4 shoulder socket cap ss (OBSOLETE) 2
3 273-8543 Vacuum shoe cover 1
4 999-0442 Nut 10-24 nylon insert lock stainless steel 2
5 273-3252 Gasket 1
6 273-5591 Washer M5 flat stainless steel 8
7 273-6532 Spring clip 2
8 273-8544 Vacuum shoe assembly 1 (inlcudes 2,4,5-7)
9 273-8545 Vacuum shoe bracket 1

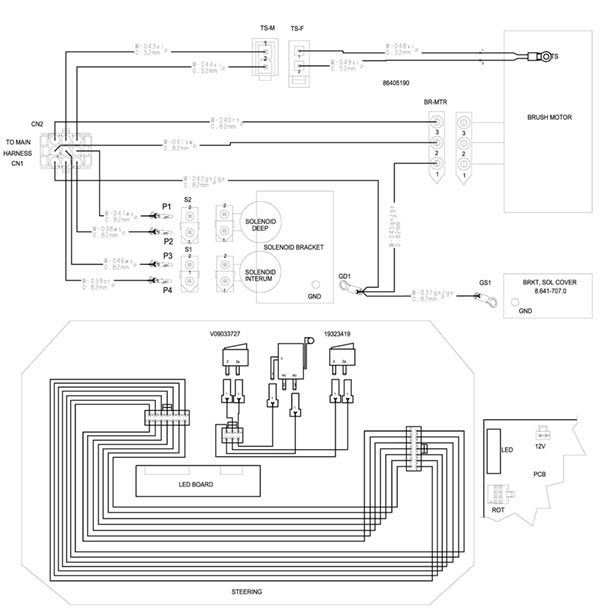

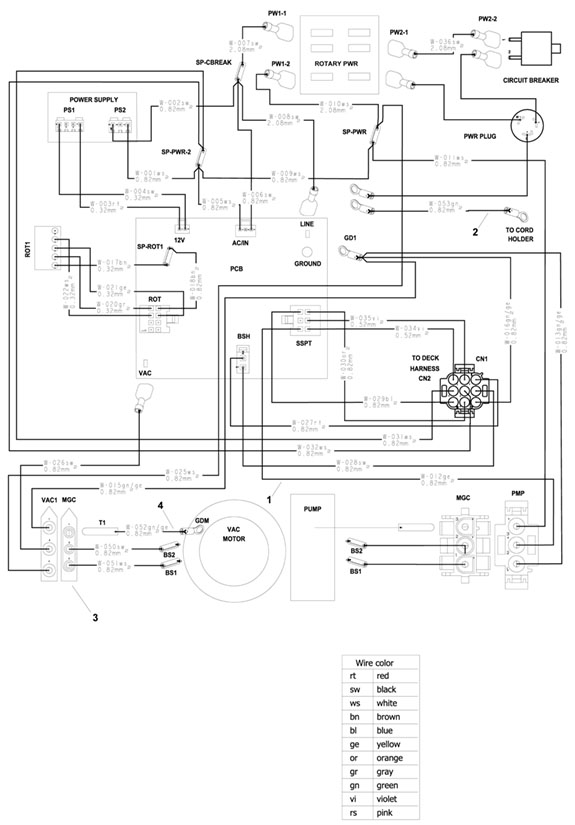

Wiring Diagram - Part 1 - 273-0034
RefNbr Part Number Description Req Notes
1 273-8546 Wiring harness 1
2 173-2218 22 inch wire (green) 1
3 273-8547 Vacuum motor harness 1
4 273-8548 Wire 1

Wiring Diagram - Part 2 -

RefNbr Part Number Description Req Notes

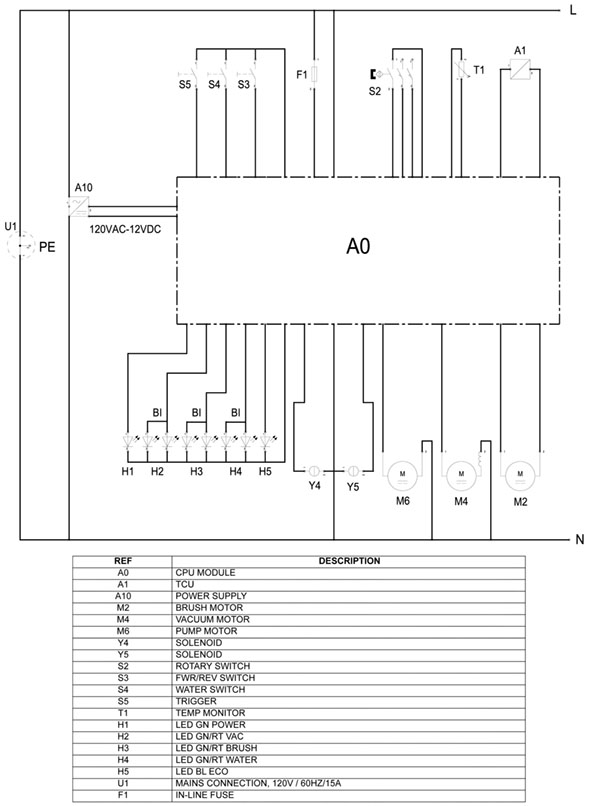

Wiring Diagram - Part 3 -

RefNbr Part Number Description Req Notes
