Parts List Complete for WHITTAKER LOMAC


- Commonly Asked For Parts - 251-1997
RefNbr Part Number Description Req Notes
01 251-1032 G 48R gear
02 251-1033 K 66L gear
03 251-1034 Bearing pin
04 251-1023 Complete gear set with rings
05a 251-1024 15 inch brush (blue)
05b 251-2270 20 inch brush (blue)
06 251-1025 End cap
07 251-1026 Retaining ring
08 251-1027 Bearing
09 251-1028 Flange
10 251-1029 Axle seal
11 251-1030 Axle nut
12 251-1030 Axle nut
13 251-2043 Male coupling
14 251-2044 Solution hose kit (16 inches of tubing)
15 251-2045 Female coupling
16 251-2046 90° fitting
17 251-2047 1/8 inch fitting
18 251-1004 Spray nozzle 110 degree fan tip
19 251-2250 In tank plastic filter
20 251-1002 20 inch brush - CYLINDRICAL (green)
21 251-1129 Lower handle connector
22a 251-1130 Lower handle connector (Twin 20 inch) (20 inch)
22b 251-1131 Lower handle connector (Twin 15 inch) (15 inch)
23a 251-1132 20 inch spare part kit (20 inch)
23b 251-1133 15 inch spare part kit (15 inch)
24 251-1175 Electric Applicator w/ handle
25 251-1179 Start up control
26 251-2266 Ergo tank

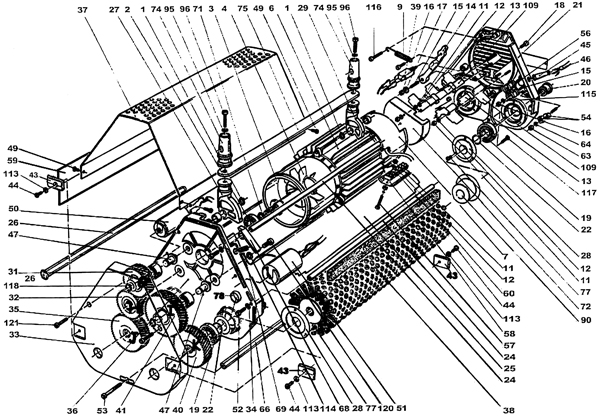

Base Assembly - 251-2000
RefNbr Part Number Description Req Notes
1 251-1058 Snap ring
2 251-1059 Motor shaft bearing
3a 251-1060 15 inch spacer
3b 251-1061 20 inch spacer
4a 251-1062 Ventilator
4b 251-1063 Tension pin
6a 251-1064 15 inch motor
6b 251-1065 20 inch motor
7a 251-1066 15 inch spacer
7b 251-1067 20 inch spacer
9 251-1006 Spring
11 251-1068 Nut
12 251-1069 Lockwasher
13 251-1070 Microswitch
14 251-1072 Switch lever
15 251-1073 Worm screw
16 251-1074 Nut
17 251-1050 Washer
18 251-1075 Screw
19 251-1027 Bearing
20 251-1028 Flange
21 251-1076 Housing assembly
22 251-1026 Retaining ring
24a 251-1077 15 inch rear spacer
24b 251-1078 20 inch rear spacer
24c 251-1079 15 inch stud
24d 251-1080 20 inch stud
25a 251-1081 15 inch brush cover
25b 251-1082 20 inch brush cover
25c 251-1083 15 inch brush axle
25d 251-1084 20 inch brush axle
26a 251-1085 15 inch axle stainless steel
26b 251-1086 20 inch axle stainless steel
26c 251-1087 15 inch side brush axle
26d 251-1084 20 inch brush axle
27 251-1000 Lower handle connector
28 251-1029 Axle seal
29 251-1130 Lower handle connector (Twin 20 inch)
31 251-1032 G 48R gear
32 251-1089 H gear
33 251-1090 Gear cover
34 251-1091 Lock washer
35 251-1010 J 66R gear
36 251-1092 Housing assembly with gears
37a 251-1093 15 inch motor cover stainless steel
37b 251-1094 20 inch motor cover stainless steel
38a 251-1095 Side brush (blue)
38b 251-1096 Side brush (gray)
39 251-1031 Motor protector breaker
40 251-1033 K 66L gear
41 251-2000 I 73R Gear
43a 251-2001 Front corner protector
43b 251-2002 Rear corner protector
43c 251-2003 Corner gear protector
44 251-2004 Screw
45a 251-2005 Machine grommet
45b 251-2006 Handle casing grommet
46a 251-1122 50ft extension cord
46b 251-1003 4 foot motor cord
47 251-1034 Bearing pin
49 251-2008 Screw
51a 251-2009 20uF capacitor
51b 251-2010 40uF capacitor
52 251-2011 Screw M5 x 12
53 251-1009 Stud
54 251-2012 Ground wire clamp strip
56 251-2013 Cable clamp (red)
57 251-2014 Screw
58 251-2015 Insulator plate
59a 251-2016 15 inch removable flap
59b 251-2017 20 inch removable flap
60 251-2018 Terminal block
63 251-1074 Nut
64 251-2019 Lockwasher
66a 251-2020 15 inch cord protector
66b 251-2021 20 inch cord protector
68 251-1001 Foot pedal
69 251-2022 Spring
71 251-2023 Snap ring
72 251-2024 Switch cover
74a 251-2025 15 inch handle connector cone
74b 251-2026 20 inch handle connector cone
75a 251-2027 15 inch handle connector bar
75b 251-2028 20 inch handle connector bar
77 251-2029 Screw
78 251-2030 V-ring seal rubber
88 251-2031 Power handle casing with cord
90 251-1025 End cap
95 251-2032 Washer lock
96a 251-2033 Screw (15 inch model)
96b 251-2034 Screw (20 inch model)
108a 251-2035 15 inch storage tray
108b 251-2036 20 inch storage tray
109 251-2037 Insulator
113 251-2038 Flat washer
114 251-2032 Washer lock
115 251-2042 Lockwasher
116 251-2033 Screw
117 251-2039 Screw
118 251-2040 Snap ring
120a 251-1035 Gear screw
120b 251-2041 Bearing pin screw
121 999-1899 Screw M5-.8 x 25mm socket hex head stainless steel
133 251-1071 Microswitch with lever
134 251-1030 Axle nut

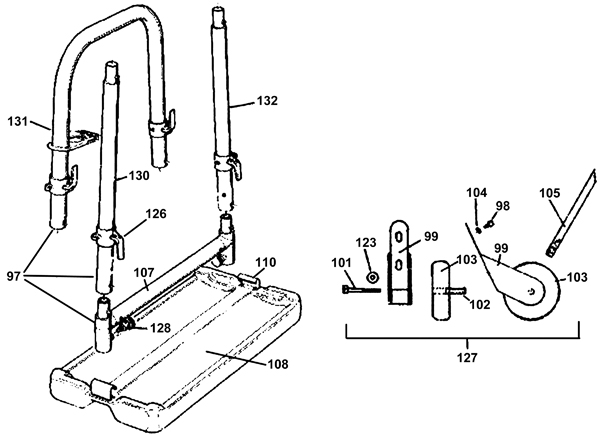

Handle and Wheel Assembly - 251-2001
RefNbr Part Number Description Req Notes
97 251-1039 Handle assembly 2
98 251-1040 Screw 2
99 251-1041 Wheel bracket 2
101 251-1009 Stud 2
102a 251-1042 Wheel bushing 2 (poly wheel)
102b 251-1043 Wheel bushing 2 (rubber wheel)
103 251-1044 Transport wheel 2
104 251-1045 Wheel bracket washer 2
105a 251-1046 15 inch wheel bracket stud 2
105b 251-1047 20 inch wheel bracket stud 2
107 251-1048 Crossover tube 1
108 251-2035 15 inch storage tray 1
108 251-2036 20 inch storage tray 1
110 251-1049 Storage tray clip 1
123 251-1050 Washer 2
126 251-1051 Cable holder swivel 2
127a 251-1052 15 inch wheel assembly 2 (includes 98-99, 101-105 and 123)
127b 251-1053 20 inch wheel assembly 2 (includes 98-99, 101-105 and 123)
128 251-1054 Snap-in assembly 2
130 251-1055 Left upright handle 2
131 251-1056 Handle loop 1
132 251-1057 Right upright handle 2

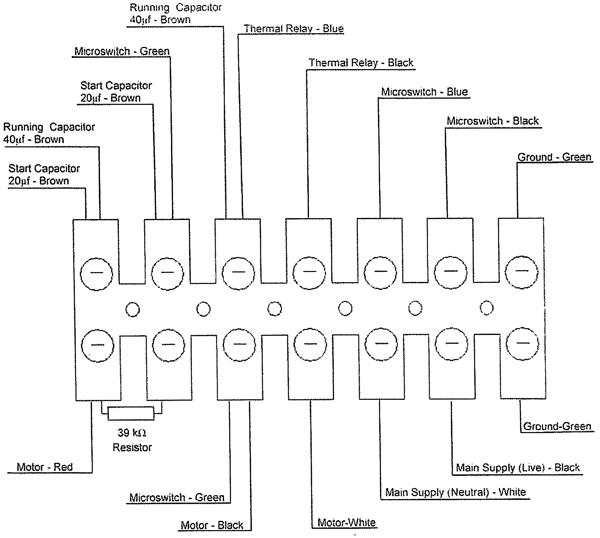

Electrical Diagram -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
