Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

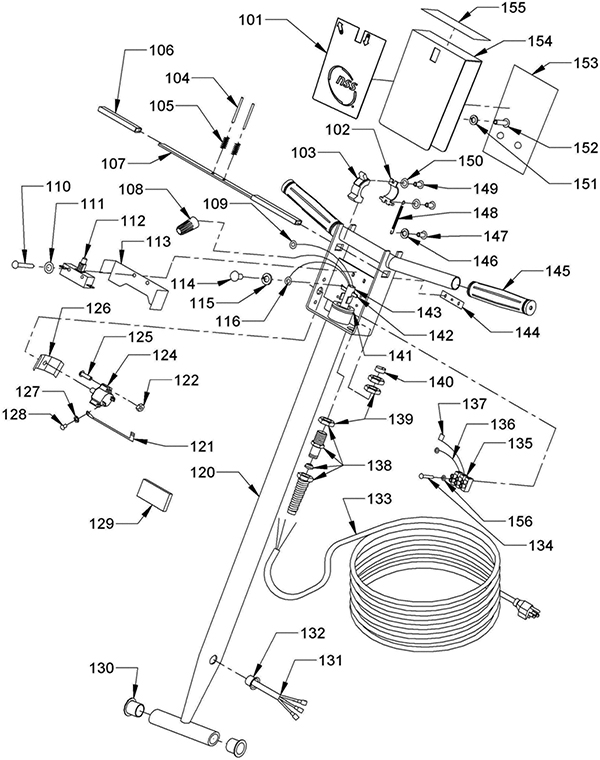

Handle Assembly - 164-3046 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
164-4485 |
Handle assembly (Mustang 300, 115V) |
1 |
|
| 000b |
164-7821 |
240V handle assembly |
1 |
|
| 101 |
164-4436 |
Switch box with circuit breaker icon |
1 |
|
| 102 |
164-5049 |
Safety lockout bracket |
1 |
|
| 103 |
164-1856 |
Safety lockout |
1 |
|
| 106 |
164-5054 |
Switch lever grip |
2 |
|
| 107 |
164-1844 |
Switch lever |
1 |
|
| 108 |
998-0061 |
Wire nut (orange) |
1 |
|
| 109 |
164-1801 |
14-16 GA #8 Ring Terminal |
1 |
|
| 110 |
999-0102 |
Screw 6-32 x 1 round head slotted zinc plated |
2 |
|
| 111 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 113 |
164-5056 |
Switch insulator |
1 |
|
| 114 |
999-0645 |
Screw 10-24 x 3/8 round head phillips stainless steel |
1 |
|
| 115 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 116 |
164-4649 |
10 ring terminal |
1 |
|
| 121 |
164-0793 |
Circuit breaker lead |
1 |
|
| 122 |
999-0004 |
Nut 10-24 k-lock zinc plated |
2 |
|
| 124a |
164-1559 |
20amp circuit breaker |
1 |
|
| 124b |
164-0792 |
8 amp circuit breaker |
1 |
|
| 125 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
2 |
|
| 126 |
164-0790 |
Breaker lead-insulation |
1 |
|
| 127 |
999-0150 |
Washer #8 medium split lock |
1 |
|
| 128 |
999-0317 |
Screw 8-32 x 1/4 pan head slotted zinc plated |
1 |
|
| 129 |
164-5058 |
Cushion pad |
1 |
|
| 130 |
164-5041 |
Nylon bushing |
2 |
|
| 131 |
164-4489 |
Handle cord with terminals (Mustang 300) |
1 |
|
| 132 |
164-5175 |
Cord grommet |
1 |
|
| 133a |
164-5075 |
Cord strain relief |
1 |
(OEM) |
| 133b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 133c |
164-4562 |
Shuko cord 240v 75ft |
1 |
|
| 134 |
999-0245 |
Screw 6-32 x 3/4 round head phillips zinc plated |
1 |
|
| 135 |
164-4423 |
Terminal block |
1 |
|
| 136 |
164-4422 |
Wire assembly, ground/terminal block |
1 |
|
| 137 |
164-4421 |
Wire assembly, deadman/terminal |
1 |
|
| 138a |
164-5075 |
Cord strain relief |
1 |
|
| 138b |
164-4502 |
Strain relief |
1 |
|
| 139a |
164-5074 |
Strain relief nut |
2 |
|
| 139b |
164-4516 |
Strain relief nut |
1 |
|
| 140a |
164-5073 |
Cord clamp |
1 |
|
| 140b |
164-7822 |
240V strain relief cord clamp |
1 |
|
| 141 |
999-0035 |
Washer 3/8 x 1 1/2 fender |
1 |
|
| 142 |
164-5061 |
Cord clamp |
1 |
|
| 143 |
991-1401 |
Clear vinyl tubing (sold by the inch) |
3 in |
|
| 144 |
164-5057 |
Double hole switch speed nut |
1 |
|
| 145 |
164-0016 |
Handle grip |
2 |
|
| 146 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 147 |
999-0645 |
Screw 10-24 x 3/8 round head phillips stainless steel |
1 |
|
| 149 |
164-1877 |
Screw M3-.05 x 8mm pan head phillips thread cutting |
2 |
|
| 150 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 151 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 152 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 153 |
164-1816 |
Safety decal |
1 |
|
| 154 |
164-5069 |
Metal switch box cover |
1 |
|
| 155 |
164-5284 |
Identifier decal (Mustang 300DS) |
1 |
|
| 156 |
999-0148 |
Washer #6 external star lock zinc plated |
1 |
|
|
|

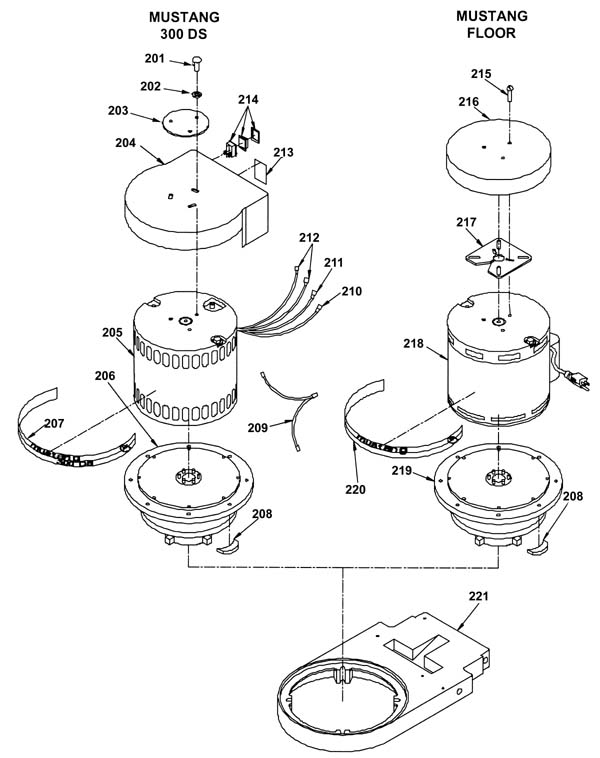

Upper Base Assembly - 164-3047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 214 |
164-4199 |
Master switch, all volt with boot |
1 |
|
|
|

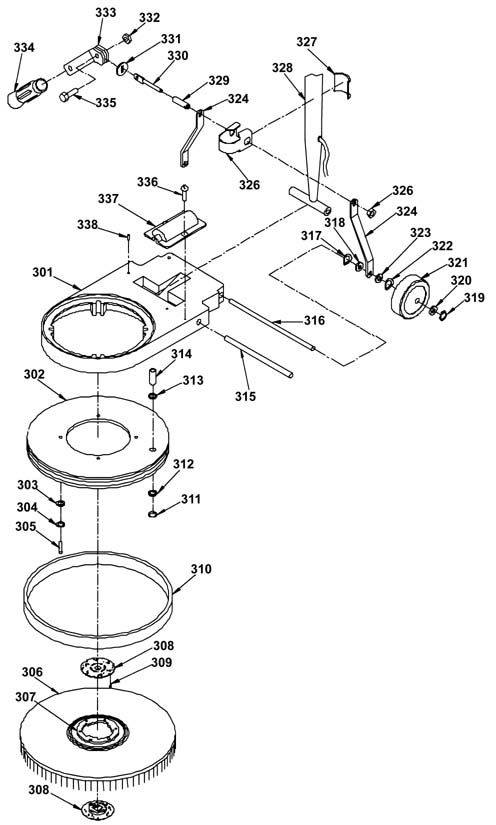

Lower Base Assembly - 164-3048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 310 |
164-0018 |
20 inch bumper |
1 |
|
|
|

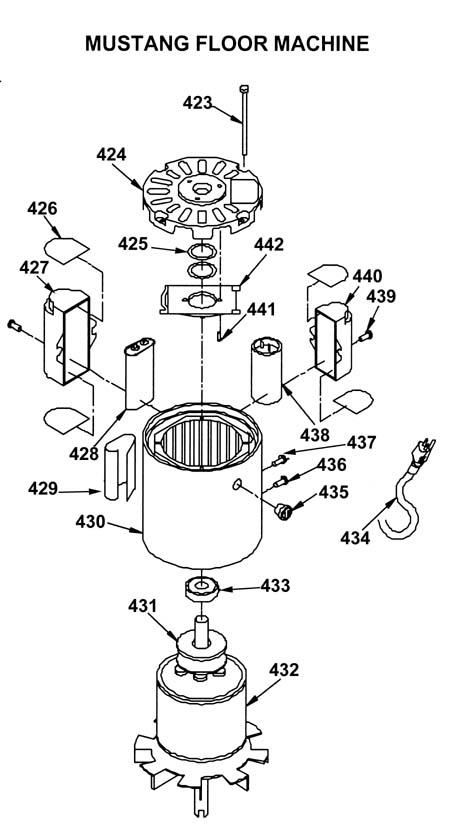

Motor Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

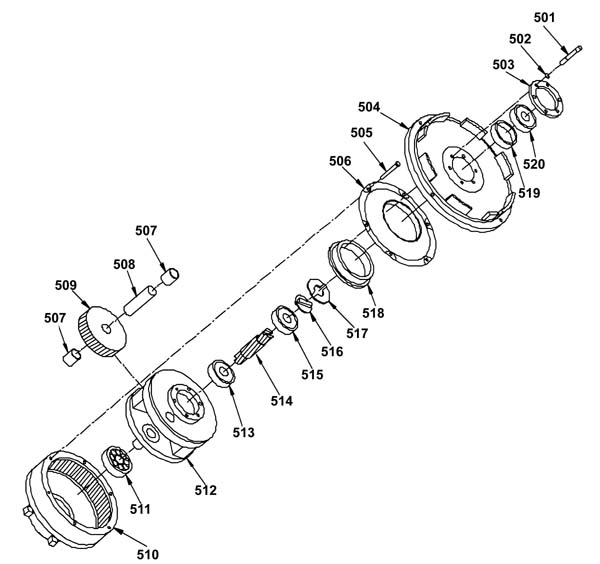

Gearbox Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

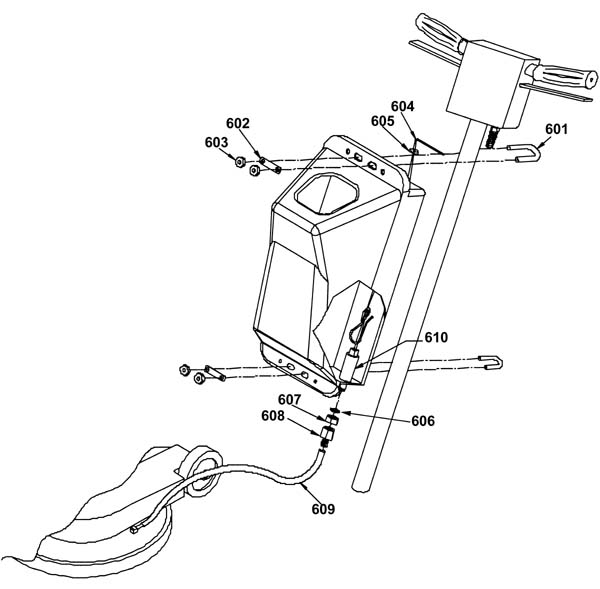

Solution Tank Assembly - Optional - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Brushes - 164-9969 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
996-0049 |
15 inch heavy grit stripping brush - 80 grit |
1 |
|
| 02 |
996-0022 |
15 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 03 |
996-0009 |
15 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 04 |
996-0264 |
15 inch polypropylene scrubbing brush |
1 |
|
| 05 |
996-0344 |
Carpet brush for 17 inch swing |
1 |
|
| 06 |
996-3027 |
15 inch value daily cleaning brush assembly |
1 |
|
| 07 |
996-3794 |
15 inch daily cleaning brush |
1 |
|
| 08 |
996-0293 |
15 inch union mix polishing brush |
1 |
|
| 09 |
996-0070 |
17 inch pad driver |
1 |
|
| 10 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
1 |
|
| 11 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
1 |
|
| 12 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
1 |
|
|
|
- Commonly Asked For Parts - 164-9992 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
|
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 01a |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 01b |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
| 02 |
996-0264 |
15 inch polypropylene scrubbing brush |
1 |
|
| 03 |
996-0344 |
Carpet brush for 17 inch swing |
1 |
|
| 04 |
996-0070 |
17 inch pad driver |
1 |
|
| 05 |
164-5048 |
Safety lockout |
|
|
| 06 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
|
|
| 1 |
996-3794 |
15 inch daily cleaning brush |
|
|
| 10 |
164-5077 |
14/3 power cord 50 foot |
|
|
| 11 |
996-0049 |
15 inch heavy grit stripping brush - 80 grit |
1 |
|
| 12 |
996-0022 |
15 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 13 |
996-0009 |
15 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 14 |
170-0694 |
Odum coupling |
|
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
