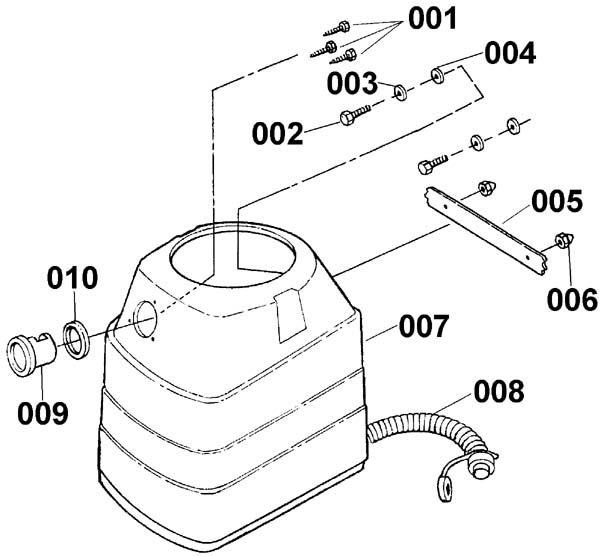

Tank Assembly - 170-2045 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-3582 |
Screw 3 1/2x14 (OBSOLETE) |
3 |
|
| 002 |
N/A |
Not available |
2 |
(Screw M8x1 1/4x16 shoulder) |
| 003 |
N/A |
Not available |
2 |
(Washer M9x30x2 stainless) |
| 004 |
170-3589 |
Washer 1/4 pvc rubber (OBSOLETE) |
2 |
|
| 005 |
N/A |
Not available |
|
(Frame) |
| 006 |
N/A |
Not available |
2 |
(Nut M8 cap stainless) |
| 007a |
170-3591 |
Tank 15gal (OBSOLETE) |
1 |
|
| 007b |
170-3590 |
Tank 20gal (OBSOLETE) |
|
|
| 008 |
170-3592 |
Drain hose assembly |
1 |
|
| 009 |
170-3593 |
Tank inlet (OBSOLETE) |
1 |
|
| 010 |
170-3594 |
Tank inlet seal (OBSOLETE) |
1 |
|
|
|

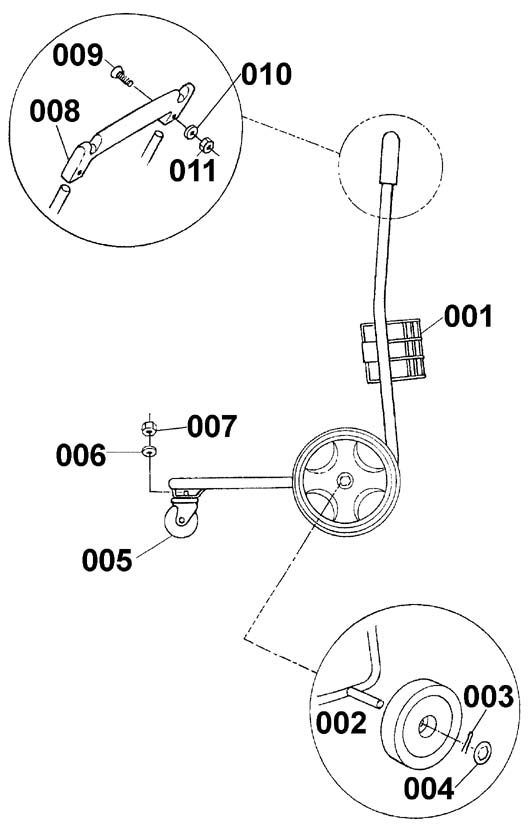

Frame Assembly - 170-2046 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
170-3595 |
Frame assembly (OBSOLETE) |
1 |
15gal |
| 001b |
170-3596 |
Frame assembly (OBSOLETE) |
1 |
20gal |
| 002 |
170-3597 |
Wheel (OBSOLETE) |
2 |
|
| 003 |
170-3598 |
Frame retainer (OBSOLETE) |
2 |
|
| 004 |
170-3599 |
Cover retainer (OBSOLETE) |
2 |
|
| 005 |
170-3600 |
Caster (OBSOLETE) |
1 |
|
| 006 |
N/A |
Not available |
1 |
(Washer M8.4x17x1 1/2) |
| 007 |
N/A |
Not available |
1 |
(Nut M8 hex) |
| 008 |
170-3601 |
Handle bar (OBSOLETE) |
1 |
|
| 009 |
N/A |
Not available |
2 |
(Screw M6x40 self threading) |
| 010 |
N/A |
Not available |
2 |
(Washer M6.4x12 1/2x1 1/2) |
| 011 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
|

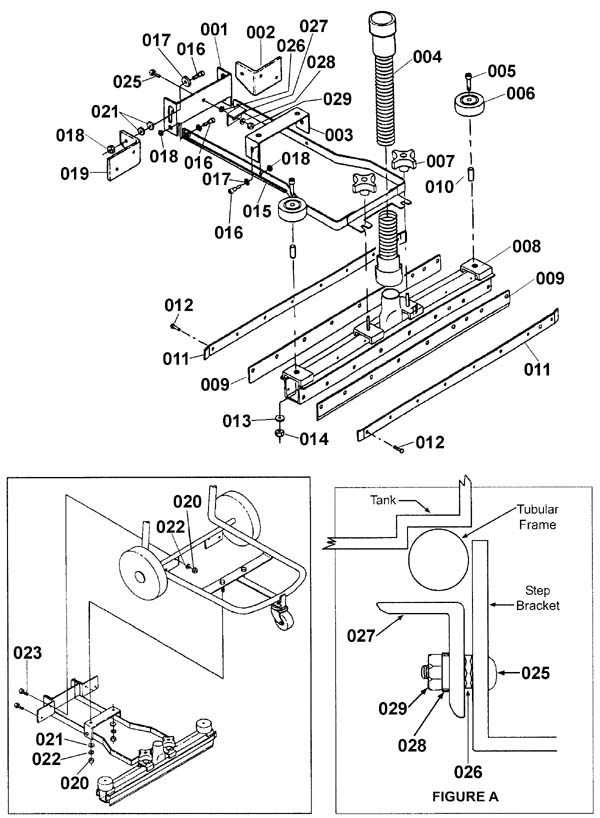

Squeegee Assembly - 170-2047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-3602 |
Squeegee lift pedal (OBSOLETE) |
1 |
|
| 002 |
170-3603 |
Left pedal support (OBSOLETE) |
1 |
|
| 003 |
170-3604 |
Lift support (OBSOLETE) |
1 |
|
| 004 |
170-3605 |
Squeegee hose (OBSOLETE) |
1 |
|
| 005 |
N/A |
Not available |
2 |
(Screw M6x1x40 hex shoulder) |
| 006 |
170-0165 |
Wheel (OBSOLETE) |
2 |
|
| 007 |
170-4587 |
Knob (OBSOLETE) |
2 |
|
| 008 |
170-3608 |
Squeegee frame weldment (OBSOLETE) |
1 |
|
| 009 |
170-3609 |
Squeegee blade ribbed urethane |
2 |
|
| 010 |
170-3610 |
Wheel bushing (OBSOLETE) |
2 |
|
| 011 |
170-3611 |
Squeegee blade retainer (OBSOLETE) |
2 |
|
| 012 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
18 |
|
| 013 |
N/A |
Not available |
2 |
(Washer M6.4x12 1/2x1 1/2) |
| 014 |
N/A |
Not available |
2 |
(Nut M6 lock) |
| 015 |
170-3612 |
Squeegee lift weldment (OBSOLETE) |
1 |
|
| 016 |
N/A |
Not available |
6 |
(Bolt 1/2x1 1/4x22mm shoulder) |
| 017 |
N/A |
Not available |
6 |
(Washer M10 1/2x21x1 1/2) |
| 018 |
N/A |
Not available |
6 |
(Nut M8 lock) |
| 019 |
170-3613 |
Right pedal support (OBSOLETE) |
1 |
|
| 020 |
N/A |
Not available |
6 |
(Nut M8 hex) |
| 021 |
N/A |
Not available |
6 |
(Washer M8.4x17x1 1/2) |
| 022 |
999-0150 |
Washer #8 medium split lock |
6 |
|
| 023 |
999-0783 |
Screw M8-1.25 x 16mm hex head |
6 |
|
| 024 |
170-3614 |
Squeegee assembly (OBSOLETE) |
1 |
|
| 025 |
170-3615 |
Screw M8 hex head |
1 |
|
| 026 |
N/A |
Not available |
1 |
(Washer M8 star) |
| 027 |
170-3616 |
Bracket (OBSOLETE) |
1 |
|
| 028 |
N/A |
Not available |
1 |
(Washer M8 flat) |
| 029 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
|

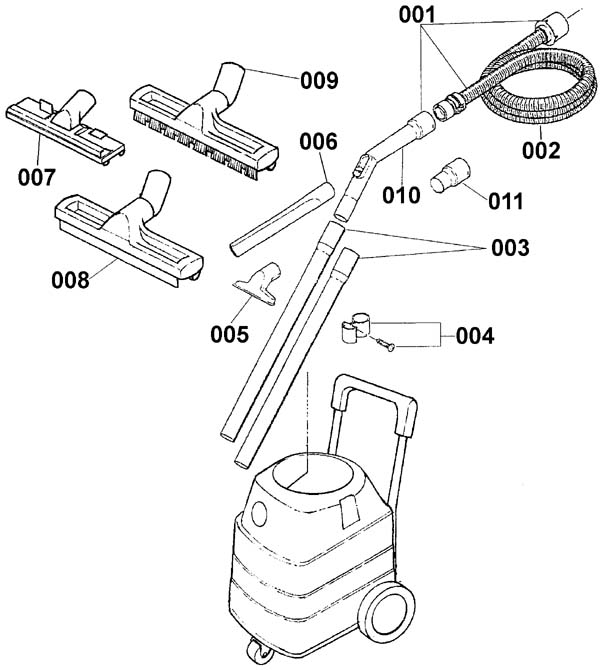

Accessory Tools Assembly - 170-2048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
572-5028 |
Hand hose tube |
|
|
| 001b |
170-3619 |
Hose assembly |
1 |
|
| 002a |
572-5028 |
Hand hose tube |
|
|
| 002b |
170-3620 |
Vac hose 2 meters |
1 |
|
| 003a |
170-3621 |
Plastic extension wands 2pc |
2 |
|
| 003b |
572-3997 |
Suction tube |
|
|
| 004 |
170-3623 |
Wand holder |
1 |
|
| 005 |
170-3624 |
Universal nozzle |
1 |
|
| 006 |
170-3625 |
Crevice tool 12in |
1 |
|
| 007 |
572-4005 |
Floor nozzle |
1 |
|
| 009 |
170-3628 |
Dry floor nozzle (OBSOLETE) |
1 |
|
| 010 |
170-3629 |
Curved wand |
1 |
|
| 011 |
170-3630 |
Hose wand adapter 1 1/2in |
1 |
|
| N/S |
170-3636 |
Bumper (OBSOLETE) |
|
|
| N/S |
170-2120 |
2 piece wand |
1 |
|
| N/S |
170-3638 |
Jet sweep floor tool 20in |
1 |
|
| N/S |
170-3627 |
Squeegee |
|
(For 7270) |
| N/S |
572-3997 |
Suction tube |
|
|
| N/S |
170-3633 |
Wheel axle (OBSOLETE) |
|
|
| N/S |
170-3635 |
Brush strips (OBSOLETE) |
|
|
| N/S |
170-3634 |
Squeegee blades (OBSOLETE) |
|
(For52851A) |
| N/S |
170-3639 |
Squeegee blade tool 20 inch (pkg of 2) (OBSOLETE) |
1 |
|
| N/S |
170-3631 |
Brush strips (OBSOLETE) |
|
|
|
|

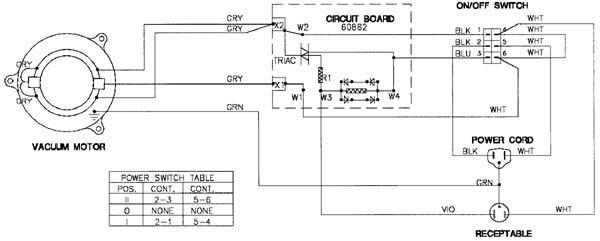

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

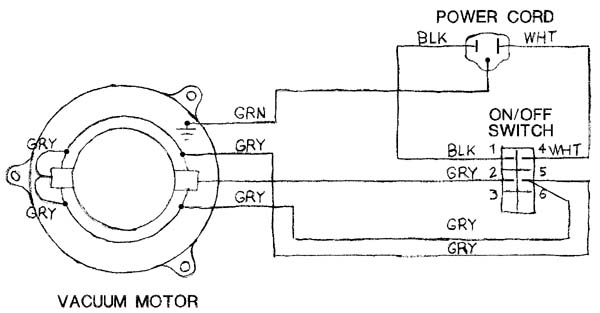

Electrical Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Head Assembly - 170-2051 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-2053 |
Permanent filter |
1 |
|
| 002 |
170-3586 |
Float (OBSOLETE) |
1 |
|
| 003 |
170-3586 |
Float (OBSOLETE) |
1 |
|
| 004 |
170-3584 |
Cloth filter |
1 |
|
| 005a |
170-3640 |
7 gallon filter bags (pkg of 5) |
1 |
(7gal) |
| 005b |
170-2054 |
Filter bags |
1 |
(15-20gal) |
| 006 |
170-3641 |
Nut cap (OBSOLETE) |
4 |
|
| 007 |
170-3642 |
U-Disc 8.4mm zinc (OBSOLETE) |
4 |
|
| 008 |
170-3643 |
Vacuum tank 7gal (OBSOLETE) |
1 |
|
| 009 |
170-3644 |
Washer (OBSOLETE) |
4 |
|
| 010 |
170-3645 |
Caster 4pk (OBSOLETE) |
4 |
|
| 011 |
N/A |
Not available |
5 |
(Screw M5x20 phillips self threading) |
| 012a |
170-3580 |
Housing bottom single stage (OBSOLETE) |
|
|
| 012b |
170-3581 |
Housing bottom 2-stage (OBSOLETE) |
1 |
|
| 013 |
170-3575 |
Motor ring (OBSOLETE) |
2 |
|
| 014a |
170-3646 |
Vac motor 120v single stage (OBSOLETE) |
|
|
| 014b |
170-6234 |
120V vacuum motor two stage |
1 |
|
| 014c |
170-3646 |
Vac motor 120v single stage (OBSOLETE) |
1 |
|
| 014d |
170-6234 |
120V vacuum motor two stage |
1 |
|
| 015a |
170-3648 |
Foam piece (OBSOLETE) |
1 |
|
| 015b |
170-3648 |
Foam piece (OBSOLETE) |
1 |
|
| 016 |
170-2346 |
AUTO START, CTV 7 AS (OBSOLETE) |
1 |
|
| 018 |
472-0173 |
COVER CHASSIS KIT |
1 |
|
| 019 |
170-3651 |
Socket plug |
1 |
|
| 020a |
170-2345 |
Switch Aero 400/600 |
|
|
| 020b |
N/A |
Not available |
1 |
(Switch) |
| 021 |
N/A |
Not available |
3 |
(Screw M3 1/2x.6x14 hex shoulder) |
| 022 |
170-3653 |
Handle (OBSOLETE) |
1 |
|
| 023 |
170-3571 |
Top cover (OBSOLETE) |
1 |
|
| 024 |
170-2052 |
Cover clamp (OBSOLETE) |
2 |
|
| 025a |
170-3654 |
Power cord (OBSOLETE) |
1 |
|
| 025b |
170-3461 |
Power cord |
1 |
|
| 026 |
170-3572 |
Upper housing (OBSOLETE) |
1 |
|
| 027a |
170-3655 |
Carbon brush (OBSOLETE) |
1 |
|
| 027b |
170-3578 |
Carbon brush for motor 6181600 (OBSOLETE) |
|
|
| 027c |
170-3579 |
Carbon brush for motor 6181630 (OBSOLETE) |
1 |
|
| 028 |
170-3593 |
Tank inlet (OBSOLETE) |
1 |
|
| 029 |
170-3594 |
Tank inlet seal (OBSOLETE) |
1 |
|
| N/S |
170-3583 |
Deflector (perm. filter) (OBSOLETE) |
1 |
|
| N/S |
N/A |
Not available |
1 |
Spacer ring |
|
|
