Parts List Complete for VIPER VENOM VN2015


Solution Tank Kit - NON-OEM - 172-2089
RefNbr Part Number Description Req Notes
000a 209-0013 4 gallon solution tank kit for round handle side x sides 1 (includes 001-018)
000b 209-0014 4 gallon solution tank kit for square handle side x sides 1
000c 209-0017 2 1/2 gallon solution tank kit (OBSOLETE) 1
001 209-0033 Cap (black) 1
002 209-0034 Brass handle rod (OBSOLETE) 1
003 209-0035 1/8 inch grommet 1
004 N/A Not available 1 (Tank only)
005 209-0036 Solution valve 1 (includes 006 and 007)
006 N/A Not available 1 (Washer)
007 209-0038 Nut 1/4 brass pipe thread straight 1
008 209-0039 Hose barb 1/4 1
009 209-0040 Hose 3/8 x 24 inch 1
010 209-0041 Coupling 1/8 brass 1
011 209-0042 1/8 inch brass nipple 1
012 209-0043 Washer 1/8 brass 2
013 209-0044 Nut 1/8 brass lock (OBSOLETE) 1
014 209-0045 Hose assembly (OBSOLETE) 1 (includes 009-013)
015 209-0046 5/16 inch u bolt 2 (only used for round handle buffers)
016 209-0047 Washer bar 2
017 999-0069 Nut 5/16-18 hex 2
018 209-0049 U bolt assembly (set of 2) 1 (only used for round handle side x sides) (includes 015-017)
019 209-0051 Advance adapter U-bolts assembly (set of 2) (OBSOLETE) 1

Base Assembly - Before SN US24624JUNF - 240-0036
RefNbr Part Number Description Req Notes
1 240-0843 Screw M6 x 30mm socket cap 4
2 240-0261 Handle clamp block 1
3 240-0844 Axle 1
4 240-0845 Left handle bracket 1
5 240-0769 Washer M13 plain finish 4
6 240-0310 Clamp lock 2
7 240-0066 Screw M5 x 20 self tapping 4
8 240-0068 Plain washer 4
9 240-0636 Screw M5 x 20 2
10 240-0067 Screw M5 x 16mm 5
11 240-0043 Plain washer 4
13 240-0047 Screw M8 x 60 4
14 240-0439 Screw 1/4 x 1 self-tapping 6
15 991-2208 3 hole clutch plate (formerly 6 hole) 1
16a 240-0071 19 inch pad holder 1 (VN2015)
16b 240-0846 16 inch pad holder 1 (VN1715)
17 240-6584 Gear box 1
18 240-0077 Coupling 1
19 240-0078 Sleeve 1
20a 240-0847 20 inch bumper 1 (VN2015)
20b 240-0848 17 inch bumper 1 (VN1715)
21 240-0849 Bearing 1
22 999-0876 Washer M6 split lock plain finish 6
23 240-0080 Screw M5 x 30 hex socket 6
24a 240-0850 20 inch shroud 1 (VN2015)
24b 240-0851 20 inch shroud and bumper assembly 1
24c 240-0853 17 inch shroud and bumper assembly 1 (VN1715)
24d 240-0853 17 inch shroud and bumper assembly 1
24e 240-0854 15 inch shroud and bumper assembly 1 (optional)
25 240-0081 Rotor with fan assembly (OBSOLETE) 1
26 240-0856 Bearing 1
27a 240-0857 Centrifugal switch 1 (VN1715, before SN1616) (VN2015, before SN5766)
27b 240-0857 Centrifugal switch 1 (VN1715, after SN1617) (VN2015, after SN5767)
28 240-0050 Screw M5 x 10 2
29 240-0001 Aluminum motor base (OBSOLETE) 1
30a 240-0083 Stationary switch (OBSOLETE) 1 (VN1715, before SN1616) (VN2015, before SN5766)
30b 240-0858 Stationary switch 1 (VN1715, after SN1617) (VN2015, after SN5767)
31 240-0091 Running capacitor 1
32 240-0074 Hose barb 1
33 240-0859 Small capacitor mounting frame 1
34 240-0860 Right handle bracket 1
35 240-0197 External retaining ring 2
36 999-0806 Washer M12 wave zinc plated 2
37 240-0861 Screw M5 x 8mm 4
38 240-0198 5 inch wheel 2
39 240-0110 Read manual decal 1
40 240-0200 Screw M6-1 x 12mm 2
41 240-0199 Washer M6 flat 2
42 240-0186 Washer M5 star lock 4
43 240-0862 Large capacitor mounting frame 1
44 240-0262 Large female plug protector 1
45 240-0090 Starting capacitor 1
46 240-0863 Clear cover 4
47 240-0864 Capacitor wrap 2
48 240-0865 Bolt assembly 4
49 N/A Not available 1 (Not available assembled, order items 17 and 50)
50 240-0866 110V 1.5HP motor 1
51 240-0867 Motor decal 1
52 240-0234 Viper logo 1
53 999-1986 Screw M5-.8 x 14mm pan head phillips 3
54 240-0868 Motor top cover 1
55 991-2208 3 hole clutch plate (formerly 6 hole) 1
56 240-0089 Top cover bumper 1

Handle Assembly - Before SN US24624JUNF - 240-0037
RefNbr Part Number Description Req Notes
1 240-0267 Handle release 1
2a 240-0264 Handle release bolt (short) 1
2b 240-6580 Handle release bolt (longer) 1
3 240-0265 Handle release plain washer 2
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
5 240-0266 Handle release screw pin 1
6 240-0259 HANDLE RELEASE HEAVY DUTY -VN 1
7 240-0039 Handle cable 1
8 240-0232 Small male plug protector 1
9 240-0019 Grommet 1
10 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
11 240-0205 Washer M10 plain 1
12 999-1944 Screw M8-1.25 x 55mm hex head plain finish 1
13a 240-0259 HANDLE RELEASE HEAVY DUTY -VN 1 (old style)
13b 240-2129 Hook (low speed) 1 (new style) (one piece system - Difficult to install - Must remove entire top of handle.)
13c 240-0259 HANDLE RELEASE HEAVY DUTY -VN 1 (two piece system - Much easier to install)
14 240-0237 Screw M6 x 10 hex socket 1
15 240-0870 Tube 1
16 240-0871 Solution lever 1
18 240-0118 Lever pin 3
19 240-0872 Left trigger switch 1
20a 240-0105 14/3 power cord 1 (OEM)
20b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
21 240-0106 Strain relief 1
22 240-0184 Solution handle gasket 1
23 272-8065 Screw M6 x 25 phillips stainless steel 2
24 240-0111 Screw M6 x 40mm 2
25 240-0185 Washer M6 star lock 2
26 240-0271 Rear switch housing cover 1
27 240-0115 Circuit breaker 1
28 240-0182 Leveling cover 1
29 240-0028 Nut M4 3
30 240-0103 Handle cable block 1
31 240-0873 Right trigger switch 1
32a 272-8640 Switch 1
32b 372-1360 Switch 1 (Starting at SN US24624JuneF)
34 240-0116 Washer M4 external tooth 1
35 240-0117 Screw M4 x 30mm hex socket 1
36 240-0112 Safety block 1
37 240-0183 Safety block spring 1
38 240-0269 Handle grip 2
39 240-0268 Switch housing front cover 1
40 240-0123 Viper logo decal 1
41 240-0186 Washer M5 star lock 4
42 999-1986 Screw M5-.8 x 14mm pan head phillips 4
N/S 240-1139 Solution tank 1

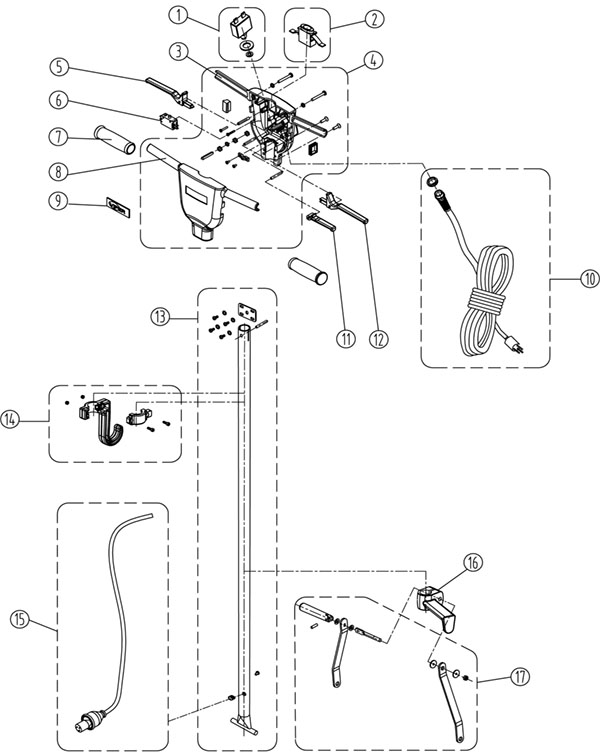

Handle Assembly - After SN US24624JUNF - 240-0053
RefNbr Part Number Description Req Notes
1 240-6549 Circuit breaker 1
2 240-6550 Safety lock button kit 1
3 240-6551 Rear cover 1
4 240-6552 Handle kit 1 (includes 3 and 8)
5 240-0270 Right switch trigger 1
6 372-1360 Switch 2
7 240-0269 Handle grip 1
8 240-6555 Front cover 1
9 240-0123 Viper logo decal 1
10 240-1151 Power cord kit 1
11 240-6556 Solution lever 1
12 240-0272 Trigger switch left 1
13 240-6558 Tube kit 1
14 240-6559 Cord hook kit 1
15 240-6560 Power cord kit 1
16 240-2129 Hook (low speed) 1
17 240-6561 Handle release kit 1

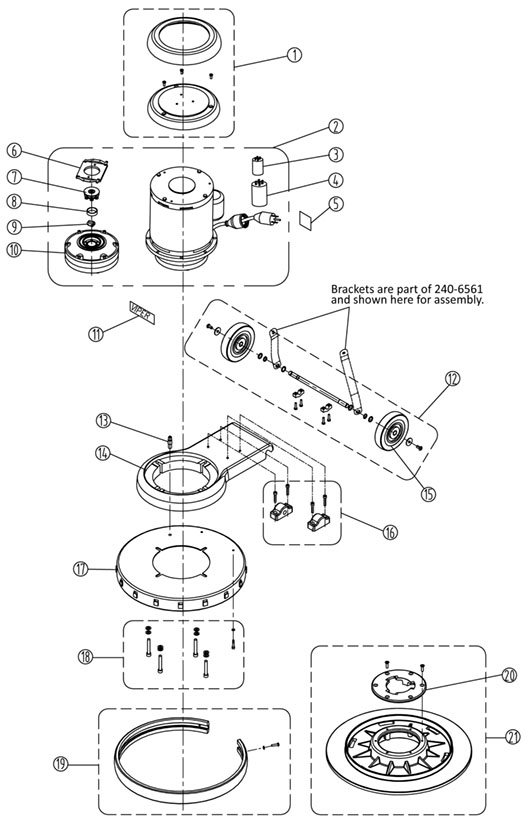

Base Assembly - After SN US24624JUNF - 240-0054
RefNbr Part Number Description Req Notes
1 240-6562 Motor cover kit 1
2 240-0866 110V 1.5HP motor 1 (includes 3-4, 6-10)
3 240-6577 Running capacitor 1
4 240-6564 Starting capacitor 1
5 240-0234 Viper logo 1
6 240-6565 Switch 1
7 240-6566 Switch 1
8 240-6567 Sleeve 1
9 240-6568 Coupler 1
10 240-6569 Gear box 1
11 240-0110 Read manual decal 1
12 240-6570 Wheel kit 1 (includes 15)
13 240-0074 Hose barb 1
14 240-6571 Motor base 1
15 240-6572 5 inch wheel 2
16 240-6573 Handle clamp block kit 1
17 240-6574 20 inch frame 1
18 240-6575 Screw kit 1
19 240-6576 20 inch bumper 1
20 991-2208 3 hole clutch plate (formerly 6 hole) 1
21 240-0071 19 inch pad holder 1 (includes 20)

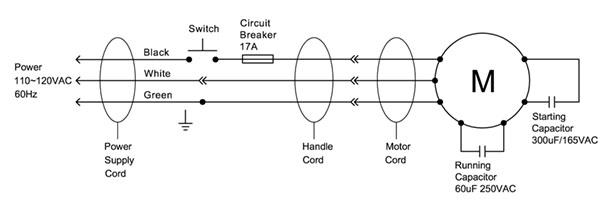

Electrical Diagram -

RefNbr Part Number Description Req Notes

Brushes - 240-9980
RefNbr Part Number Description Req Notes
996-0348 18 inch nylon carpet scrubbing brush
996-0047 18 inch heavy grit stripping brush - 80 grit
996-0020 18 inch medium grit scrubbing brush - 180 grit
991-2208 3 hole clutch plate (formerly 6 hole)
255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
996-0375 18 inch polypropylene scrubbing brush
255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
996-0240 Carpet brush for 20 inch swing
996-0377 18 inch lite grit scrubbing brush - 500 grit
996-0071 19 inch pad driver

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
