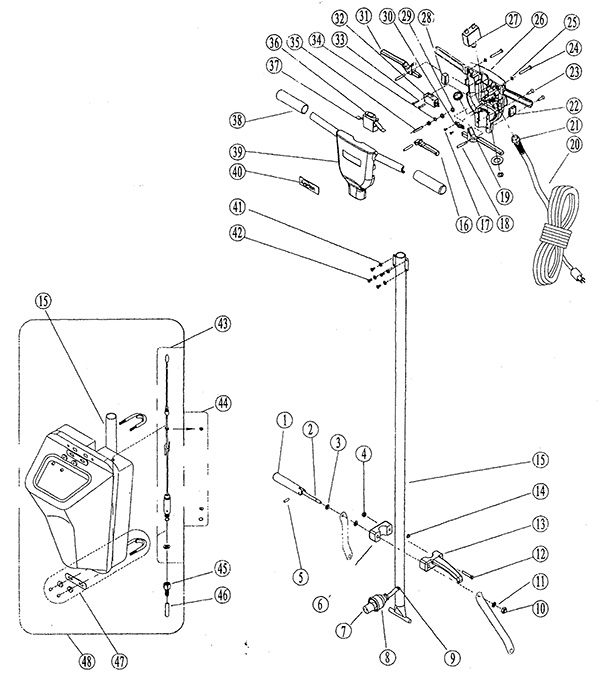

Handle Assembly - 240-0010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-0267 |
Handle release |
1 |
|
| 2 |
240-6580 |
Handle release bolt (longer) |
1 |
|
| 3 |
240-0265 |
Handle release plain washer |
2 |
|
| 4 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
| 5 |
240-0266 |
Handle release screw pin |
1 |
|
| 6 |
240-0259 |
HANDLE RELEASE HEAVY DUTY -VN |
1 |
|
| 7 |
240-0039 |
Handle cable |
1 |
|
| 8 |
240-0232 |
Small male plug protector |
1 |
|
| 10 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
| 11 |
240-0205 |
Washer M10 plain |
1 |
|
| 12 |
999-1944 |
Screw M8-1.25 x 55mm hex head plain finish |
1 |
|
| 13 |
240-0259 |
HANDLE RELEASE HEAVY DUTY -VN |
1 |
|
| 14 |
240-0237 |
Screw M6 x 10 hex socket |
1 |
|
| 16 |
240-0871 |
Solution lever |
1 |
|
| 19 |
240-0872 |
Left trigger switch |
1 |
|
| 20 |
240-0105 |
14/3 power cord |
1 |
|
| 21 |
240-0106 |
Strain relief |
1 |
|
| 22 |
240-0184 |
Solution handle gasket |
1 |
|
| 23 |
272-8065 |
Screw M6 x 25 phillips stainless steel |
2 |
|
| 24 |
240-0111 |
Screw M6 x 40mm |
2 |
|
| 25 |
240-0185 |
Washer M6 star lock |
2 |
|
| 26 |
240-0271 |
Rear switch housing cover |
1 |
|
| 27 |
240-0114 |
Circuit breaker |
1 |
|
| 28 |
240-0182 |
Leveling cover |
1 |
|
| 30 |
240-0103 |
Handle cable block |
1 |
|
| 31 |
240-0873 |
Right trigger switch |
1 |
|
| 34 |
N/A |
Not available |
1 |
(Washer) |
| 35 |
240-0117 |
Screw M4 x 30mm hex socket |
1 |
|
| 36 |
240-0112 |
Safety block |
1 |
|
| 37 |
240-0183 |
Safety block spring |
1 |
|
| 38 |
240-0269 |
Handle grip |
2 |
|
| 39 |
240-0268 |
Switch housing front cover |
1 |
|
| 40 |
240-0123 |
Viper logo decal |
1 |
|
| 41 |
240-0186 |
Washer M5 star lock |
4 |
|
| 42 |
999-1986 |
Screw M5-.8 x 14mm pan head phillips |
4 |
|
| 43 |
240-0127 |
Valve assembly, solution tank |
1 |
|
| 44 |
240-0126 |
Gasket/seal kit, solution tank |
1 |
|
| 45 |
240-0159 |
Tank end barb hose |
1 |
|
| 46 |
240-0075 |
Hose solution |
1 |
|
| 47 |
240-1138 |
Solution tank mounting kit |
1 |
|
| 48 |
209-2246 |
SOLUTION TANK ASSY |
1 |
(includes 15 and 43-47) |
|
|

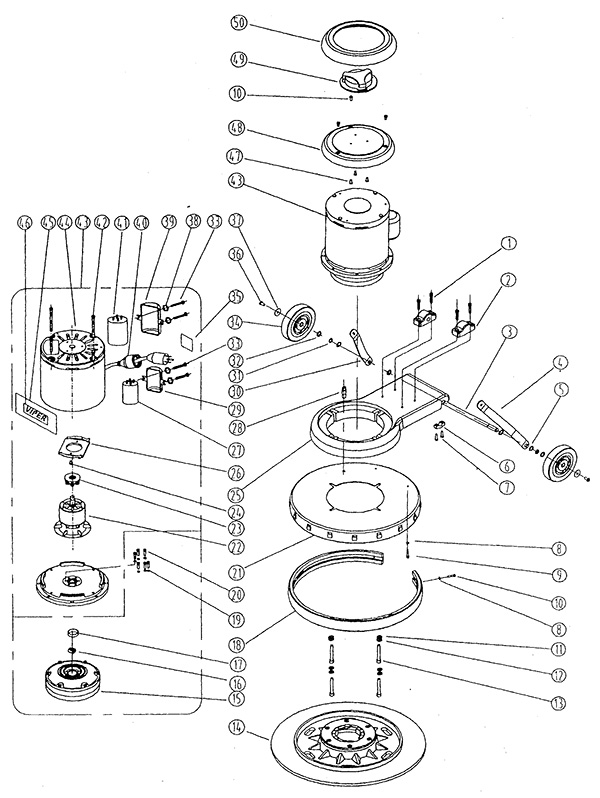

Base Assembly - 240-0012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-0843 |
Screw M6 x 30mm socket cap |
|
|
| 2 |
240-0261 |
Handle clamp block |
|
|
| 4a |
240-0845 |
Left handle bracket |
|
(after SN 1765) |
| 5 |
240-0769 |
Washer M13 plain finish |
|
|
| 7 |
240-0066 |
Screw M5 x 20 self tapping |
|
|
| 10 |
240-0067 |
Screw M5 x 16mm |
|
|
| 13 |
240-0047 |
Screw M8 x 60 |
|
|
| 14a |
240-0846 |
16 inch pad holder |
|
|
| 14b |
240-0071 |
19 inch pad holder |
|
|
| 18a |
240-0848 |
17 inch bumper |
|
|
| 18b |
240-0847 |
20 inch bumper |
|
|
| 19 |
999-0876 |
Washer M6 split lock plain finish |
|
|
| 20 |
240-0080 |
Screw M5 x 30 hex socket |
|
|
| 21a |
240-0853 |
17 inch shroud and bumper assembly |
|
|
| 21b |
240-0850 |
20 inch shroud |
|
|
| 22 |
240-0081 |
Rotor with fan assembly (OBSOLETE) |
|
|
| 23 |
240-0857 |
Centrifugal switch |
|
|
| 25 |
240-0001 |
Aluminum motor base (OBSOLETE) |
|
|
| 26 |
240-0083 |
Stationary switch (OBSOLETE) |
|
|
| 27 |
240-0091 |
Running capacitor |
|
|
| 29 |
240-0859 |
Small capacitor mounting frame |
|
|
| 30a |
240-0860 |
Right handle bracket |
|
(after SN 1765) |
| 31 |
240-0197 |
External retaining ring |
|
|
| 32 |
999-1346 |
Washer M12 flat stainless steel |
|
|
| 33 |
240-0861 |
Screw M5 x 8mm |
|
|
| 35 |
240-0110 |
Read manual decal |
|
|
| 36 |
240-0200 |
Screw M6-1 x 12mm |
|
|
| 37 |
240-0199 |
Washer M6 flat |
|
|
| 38 |
240-0186 |
Washer M5 star lock |
|
|
| 39 |
240-0862 |
Large capacitor mounting frame |
|
|
| 40 |
240-0262 |
Large female plug protector |
|
|
| 41 |
240-0090 |
Starting capacitor |
|
|
| 42 |
240-0865 |
Bolt assembly |
|
|
| 44 |
240-0866 |
110V 1.5HP motor |
|
|
| 47 |
999-1986 |
Screw M5-.8 x 14mm pan head phillips |
|
|
| 48 |
240-0868 |
Motor top cover |
|
|
| 49 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
|
|
|
|
- Commonly Asked For Parts - 240-9984 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
240-0105 |
14/3 power cord |
1 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
